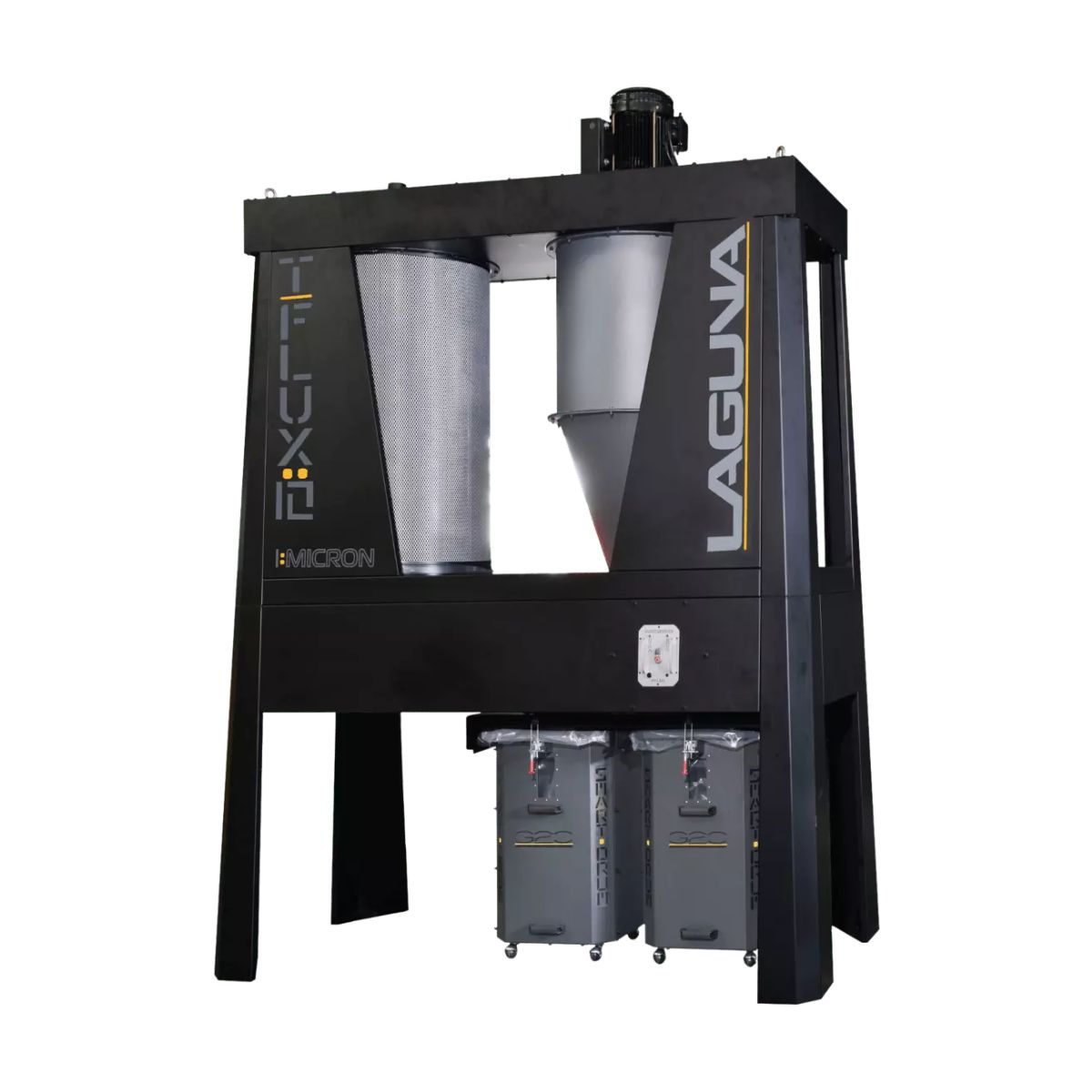

The T|Flux series from Laguna starts to get serious. The Titan cyclones are geared towards clients who desire a single central unit for the entire shop The T|Flux cyclones are equipped with a 12″ port that splits into 3 x 4″, allowing you to run a large diameter pipe system throughout your shop with drops to the individual stations.
Specs & Features
Features:
- Motor HP: 10 HP
- 220V, 30 Amps, 3 Phase
- Recommended Breaker: 50 Amp
- 60 Hertz
- 3450 RPM
- Switch Type: Sunken Radio Frequency Remote switch with LED full drum & LED Filter dirt detection
- Hand Held Remote Control: High Frequency
Additional Details
All models are outfitted with smart drums which alert the user when the drums reach capacity. Automatic canister cleaning is controlled by a timer that turns on every work hour & runs 10 seconds clockwise & counter clockwise. The 1 micron canister has a huge surface area and filtrates 99.97% of particles ranging from 0.2 to 2 microns. Smart Drums comes standard with high quality casters and feature our unique quick disconnect design.

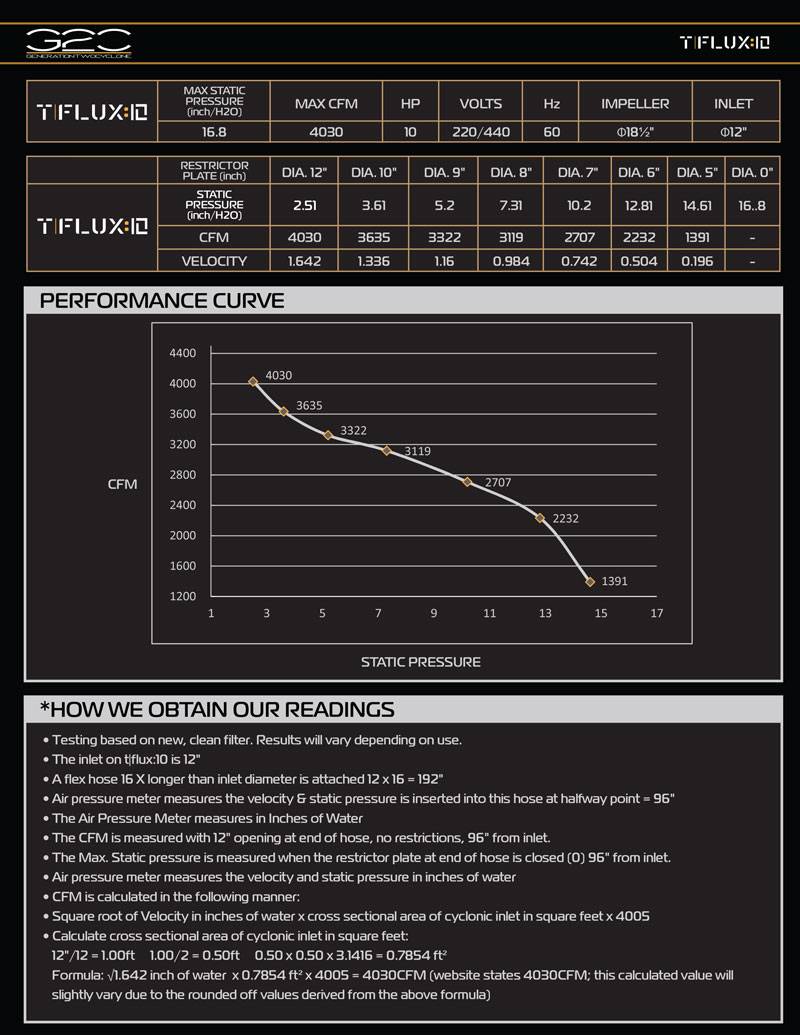

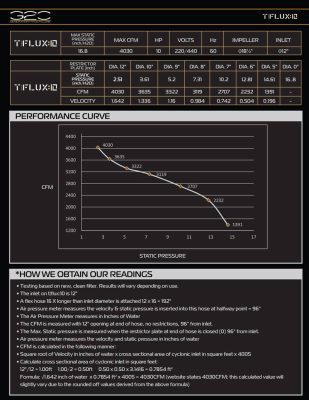

Shop Setting CFM*: 4030
Inlet CFM: 6957
Max Static Pressure (Inches of Water): 16.8″
Impeller/Fan Size: 18½″
Impeller Material: Steel
Impeller Type: Radial Fin
How is the fan balanced? To what specs?: ISO 1940
Inlet Diameters: 12″
Drum Capacity: 54 ga x 2 Sets
Octagon Drum: Low Pressure
Drum Collection Bag (Dia x L): Plastic Bag (740 x 1300mmL)
Canister Filter Type: Black 1 Micron
Filtration Efficiency: 0.2-2 Micron
MERV Rating: 12
Canister Diameter: 750mm (29.53″)
Canister Length: 1200mm (47.24″)
Filter Surface Area: 19.2 m²/207 ft²
Canister Cleaning: Auto Clean (gear motor)/Cleans every hour 10 sec clockwise, 10 sec counter-clockwise
Canister Filter Lower Dust Collection: Plastic Bag(740 x 600mmL)
Canister Filter Lower Dust Collection: Plastic Bag (740 x 600mmL)
Wheels: None
US/CSA Approved: Yes
Decibel Reading: 81 dB(A)(@9.8ft)
Machine Weight: 590 kgs/1301 lbs
Shipping Weight: 735 kgs/ 1621 lbs
Shipping Dimensions (L x W x H): 100″ x 49″ x 86″

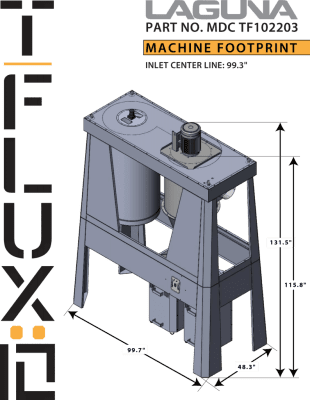

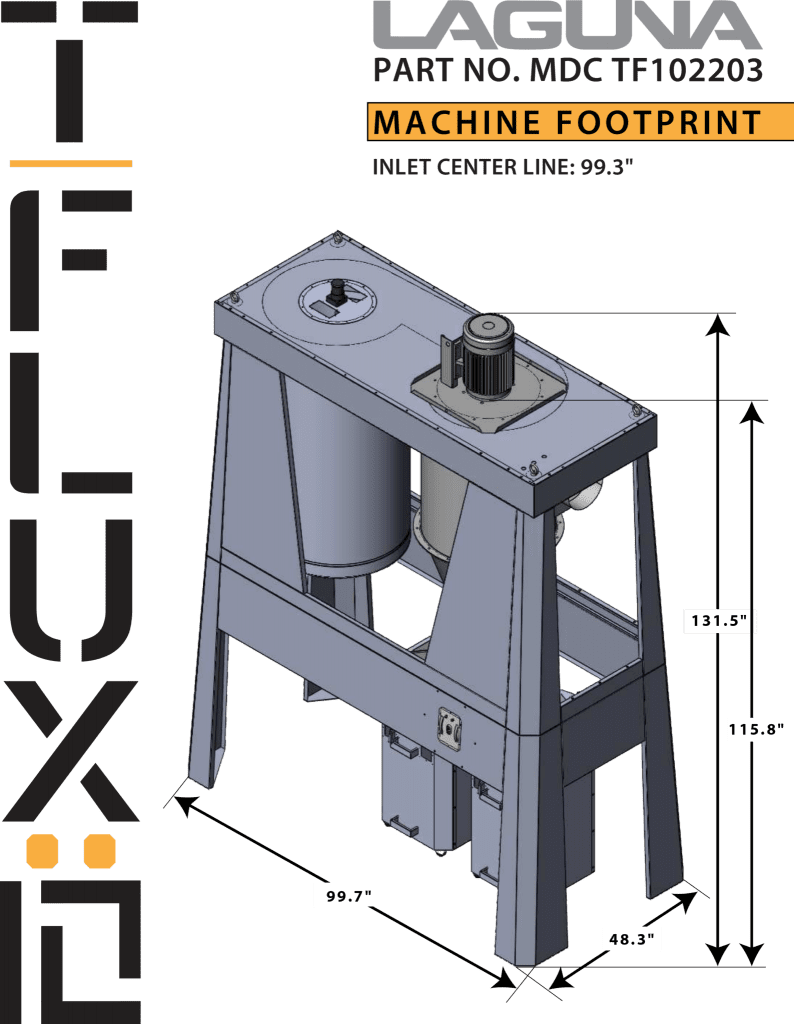

Assembled Dimensions (L x W x H): 99.6″ x 48.3″ x 131.4″ (2530 x 1225 x 3337mm)
