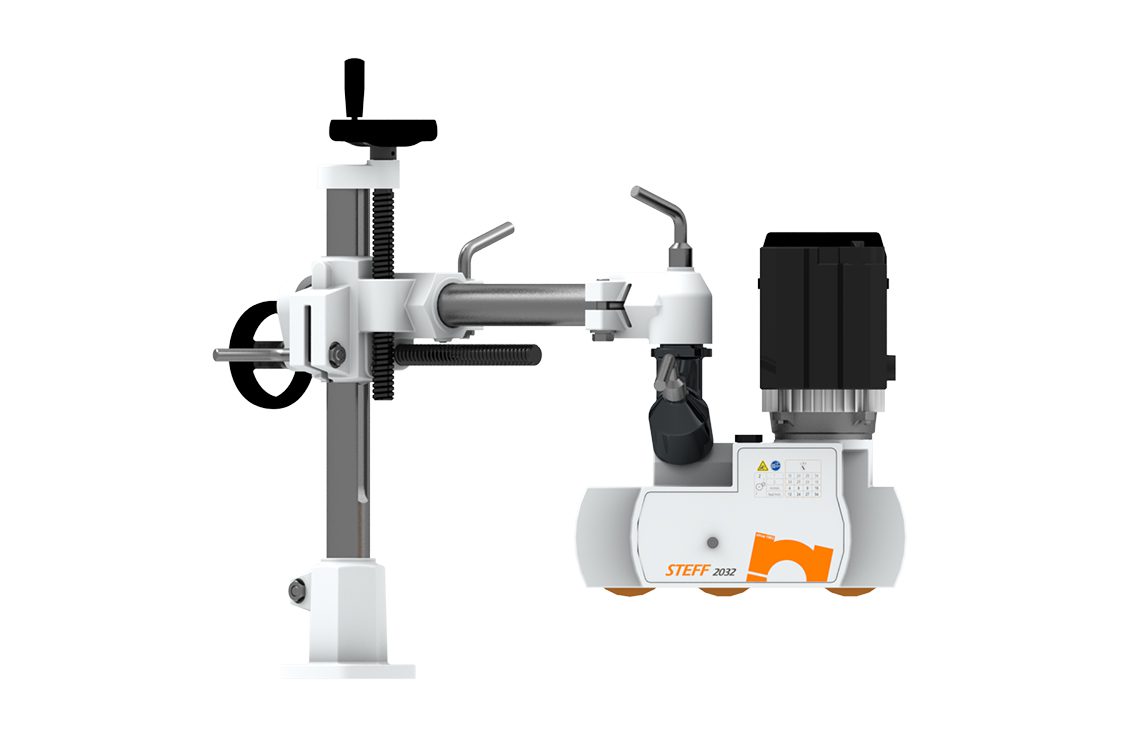

Steff 2032 3-Roll 4-Speed Power-Feeder

Steff 2032 3-Roll 4-Speed Power-Feeder

$795.00

SKU N/A Categories , , , Tags , Brand:

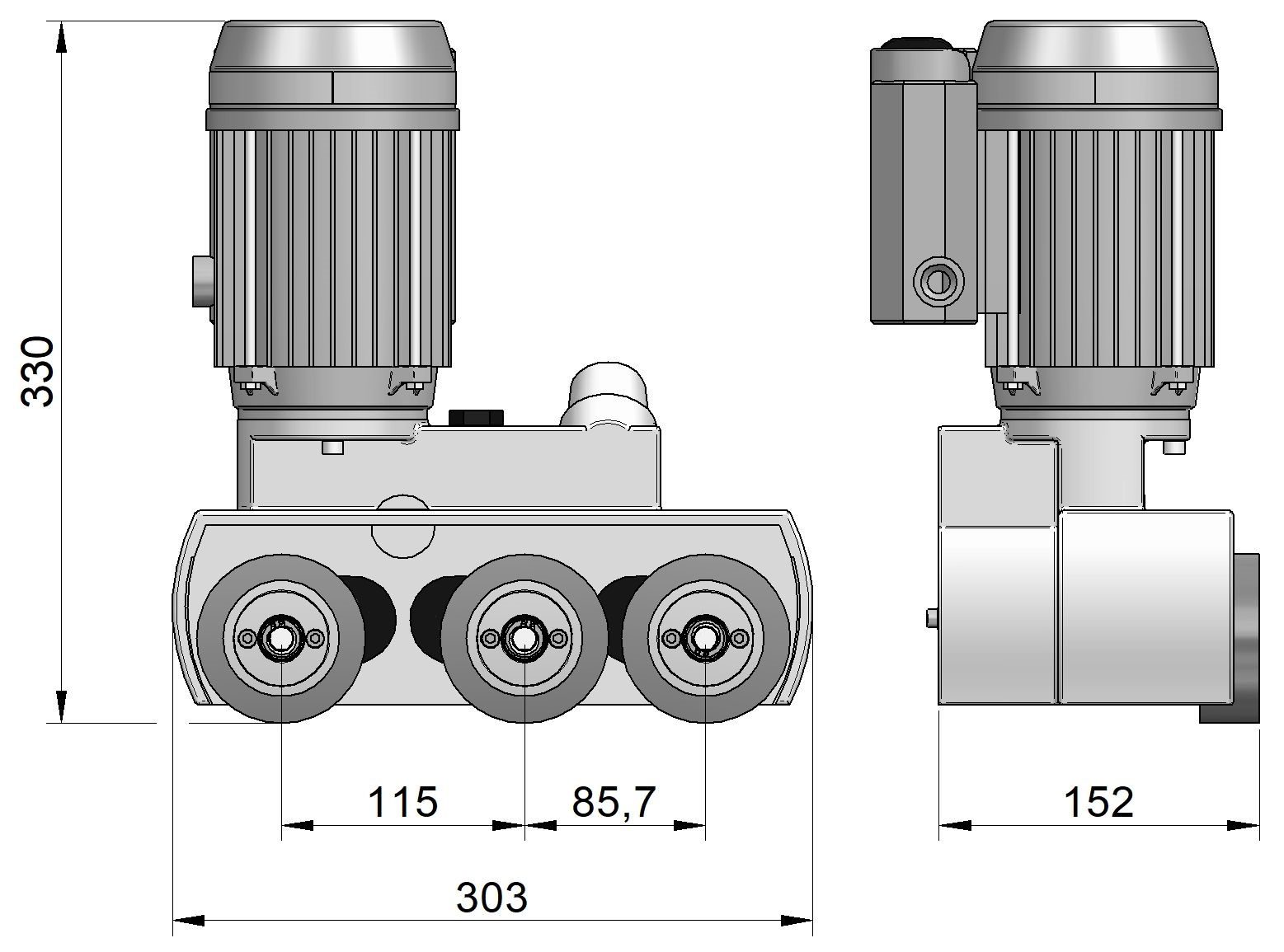

The 2032 is the compact entry-level Steff feeder: 3 rubber rolls, 4 fixed speeds (4, 8, 9, and 18 m/min), and the smallest footprint in the line at 330x303x150 mm. Available in single-phase (0.52 kW) or three-phase (0.75 kW). Roller vertical travel is 9/16″, slightly less than the larger models.

Add to Quote Request

Features:

  • Roller/Belt Vertical Range of Motion is 9/16 inches.
  • Electrostatic paint finish.
  • Sintered case hardened gears.
  • Bronze alloy main drive gear.
  • Natural rubber, 50 shore hardness rollers/belts. (Polyurethane rollers are also available).
  • Calibrated spring support to maintain consistent roller contact.

Specifications:

Feed Rollers:

Number of Rollers:

 3

Roller Dimensions:

 Ø 80 x 28 mm

Roller Hardness:

 50 shore

Roller Springing Travel:

 15 mm

Feed Speeds:

 4 / 8 / 9 / 18 m/min

Motor Power:

Single-Phase Motor:

 0,52 kW

Three-Phase Motor:

 0,75 kW

Feeder Dimensions:

 330x303x150 mm

Shipping Dimensions:

 670x570x330 mm

Net Weight:

 34 kg

Gross (Shipping) Weight:

 36 kg
