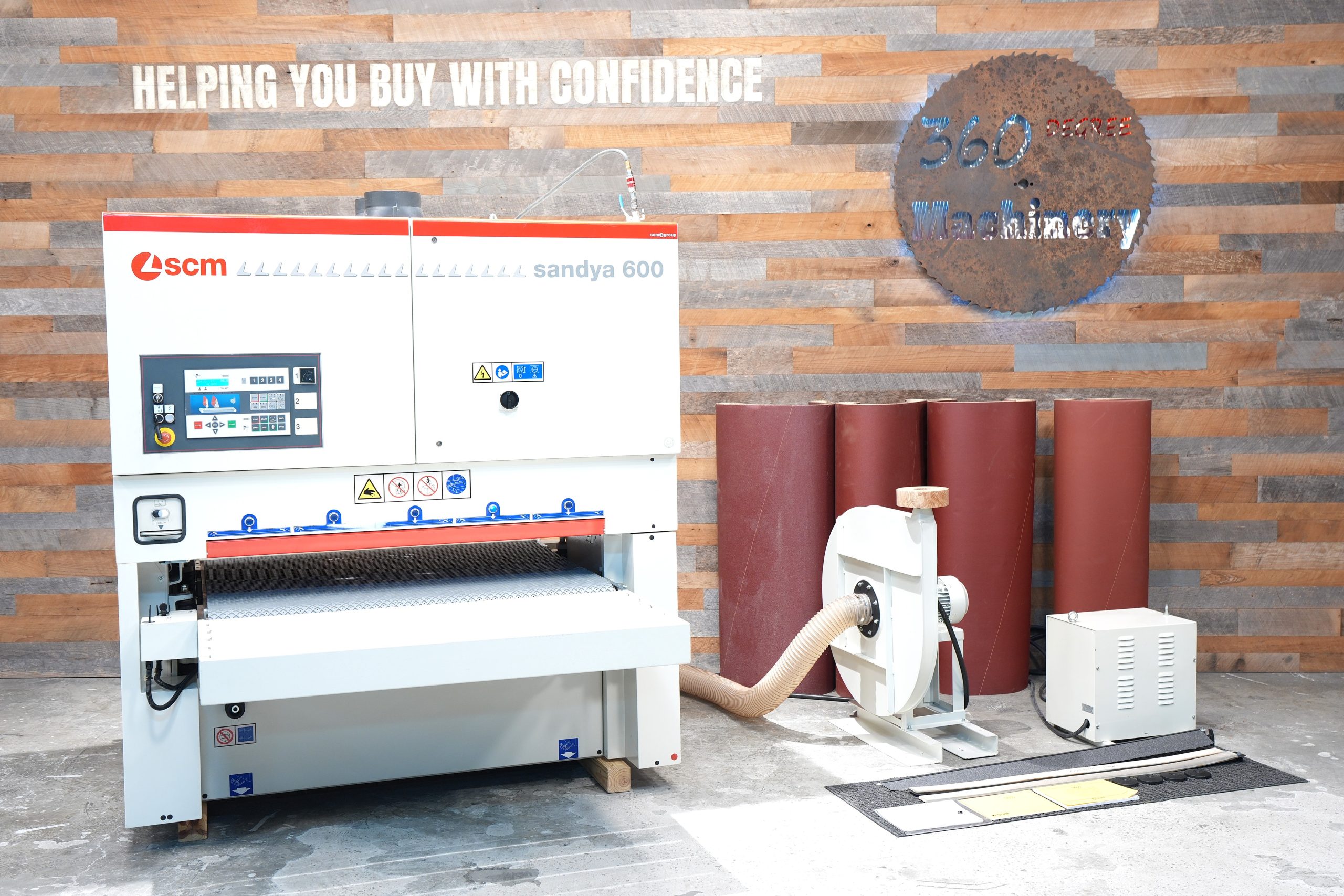

SCMI Sandya S600 RCS135 (2) Head 53″ Wide Belt Sander (Vacuum Bed/Segmented Platen)

$27,500.00

Categories Certified Pre-Owned Machinery, Sanders, Sanders (Wide Belt) Tag Wide-Belt Sanders

SCMI Sandya S600 RCS135 (2) Head 53″ Wide Belt Sander is very well optioned and includes a vacuum bed, segmented platen, and variable speed on the heads. It has a 53″ wide X 6″ capacity. The first head is a 5.5″ dia. helical steel calibrating drum. While the second head is a Combination Head with a (6.25″) 45 durometer, grooved rubber drum with 2″ Segmented platen and included two platens with 2 different felt densities. Both heads are powered by a 24/29 hp motor. Hp varies depending on if you are operating it at low or high speed. The feed has 2 speeds and is powered by a .73/1.3 hp motor depending on speed. The feedbed does have the optional 4 hp vacuum hold down and has a NEW $4,500 feed-mat installed. Automatic Thickness Setup Device, digital metric height read out, and motorized bed elevation. Very very clean machine with (30) NEW abrasive belts. (8-80, 4-120, 4-150, 10-180, and 4-220 grit) Machine is 460V/3-Phase and comes with a 230 to 460V multi tap transformer.

This fully functional machine has been fully cleaned, checked, and is ready to work from the time you receive it. This is our guarantee to both you and your company. It is owned by 360 Degree Machinery and located in our inventory in Kingston, TN.

Specs & Features

Main Motor: 17.4kw/23.65hp @ 1,765 RPM or 21.4/29.09hp @ 3,540 RPM

1st Head: 140 mm (5.5″) dia. helical steel calibrating drum

2nd Head: Combination Head with a (6.25″) 45 durometer, grooved rubber drum with 2″ Segmented platen (two platens @ 2 different felt densities)

Working width mm: 1350 (53″ inches)

Min./max. working thickness mm: 4/154

Segmented pad platen with 2 removable inserts

Belt Size: 53″ x 85″

Automatic feed belt tracking

Dual Feed Speed

.73/1.3 HP Feed Motor

Vacuum Hold Down Bed

Automatic Thickness Setup Device

On/Off Selector Of Both Rollers And Pad

Powered Table Lift

Digital Table Height Indicator

2 Roller Infeed/Outfeed Table Extensions (Front 25″/Rear 23″)

Includes Y-Delta 2-stage reduced voltage starter on main motor with amp meter, main disconnect switch with the ability to be locked, front and rear emergency stop buttons

Dust Extraction Requirements: 3,544 CFM with (2) 195 mm (7.75″) dust outlets

Air Requirements: 88 PSI
