SCM Nova SI 4 Layout Drawing (PDF)SCM Nova SI 4 Sliding Table Saw
The SI 4 is where SCM’s Nova range shifts from a light-duty slider to a production saw. It runs on three-phase power, drives a 400 mm blade with an 8 HP motor, and carries a scoring unit with twice the motor power of the machines below it. The sections below cover what the extra mass buys you, how it compares to the SI 4K, and the numbers that decide whether it fits your work.
Built Heavier Than the 4K
The SI 4 and the Nova SI 4K look like siblings, and they share the ten-year carriage guarantee and the 50-inch rip capacity. The differences are all in the iron and the power:
- 1,770 lb shipping weight against the 4K’s 1,409 lb
- 8 HP three-phase main motor against 5.5 HP single-phase
- 2 HP scoring motor against 1 HP
- 140 mm (5.5 in) of cut at 90 degrees against 136 mm
- 1,040 x 630 mm worktable against 1,000 x 560 mm
None of those alone is dramatic. Together they describe a machine built to run all day rather than several times a week, and the three-phase requirement is the practical dividing line: if your shop has three-phase service, the SI 4 is the more capable machine at a modest step up in price.
The Scoring Unit Does Real Work
A 2 HP independent scoring unit turning at 8,500 rpm is a serious piece of equipment on a saw this size, and it is what keeps the underside of veneered panels clean when the machine is cutting continuously. Vertical and horizontal adjustments are made on knobs at the front of the machine, so dialing the scorer in does not mean reaching around the saw.
Carriage and Capacity

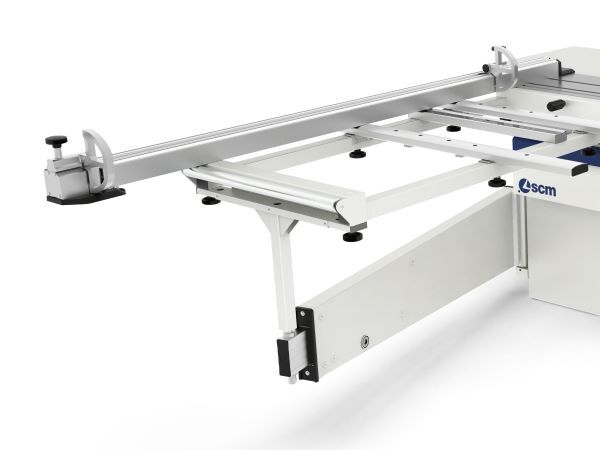

The anodized aluminum carriage rides mechanically fixed, hardened steel guides with a closed lattice cross-section, locks at any point along its travel, and is guaranteed by SCM for ten years. It squares 3,200 x 3,200 mm, a full 10.5-foot stroke in both directions, and the parallel fence rips to 1,270 mm (50 in). The blade tilts from 90 to 46 degrees and turns at 3,700 rpm.
If You Prefer Automated Setup

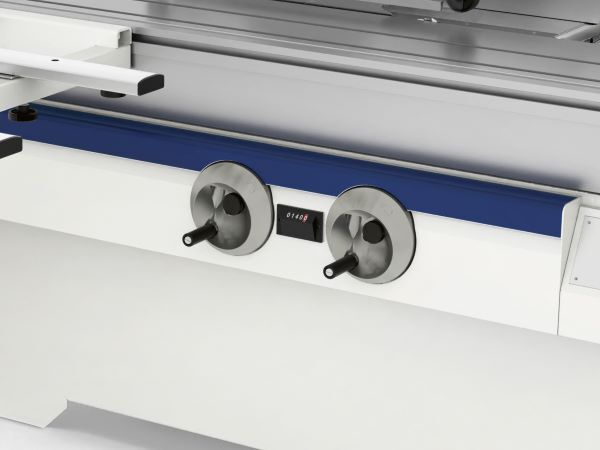

The SI 4 sets blade height, tilt and rip width by hand. The Nova SI 4 EP is the same machine with a bigger 11 HP motor, a three-speed blade drive, and SCM’s READY 3 UP control, which powers all three movements from a panel.
Specifications
| Type | Sliding table saw, tilting blade |
|---|---|
| Main motor | 8 HP (6 kW), three-phase |
| Electrical | 220 V, 60 Hz, 27 A |
| Max blade diameter | 400 mm (15.75 in) |
| Scoring unit | Independent, 2 HP (1.5 kW); 120 mm blade |
| Simultaneous blades | 400 mm main + 120 mm scorer |
| Blade speed | 3,700 rpm (scorer 8,500 rpm) |
| Blade tilt | 90° to 46° |
| Max cutting height | 140 mm (5.5 in) at 90°; 99 mm (3.9 in) at 45° |
| Max squaring capacity | 3,200 × 3,200 mm (10.5 × 10.5 ft) |
| Rip capacity | 1,270 mm (50 in) |
| Worktable | 1,040 × 630 mm (40.9 × 24.8 in) |
| Blade arbor | 30 mm (1.18 in); scorer 20 mm (0.79 in) |
| Carriage | 10.5 ft, locks at any position; 10-year guarantee on the sliding system |
| Dust extraction | 696 CFM nominal; 120 mm frame + 80 mm overhead outlets |
| Shipping weight | 1,770 lb |
| Product line | SCM Nova |
Contact 360 Degree Machinery
360 Degree Machinery is an authorized SCM dealer. Call 630-229-6705 or request a quote online. Tell us whether your building has three-phase service and how many hours a day the saw will run, and we will confirm whether the SI 4 or the single-phase SI 4K is the right fit. Installation fees may apply.
