SCM Minimax fs 41c 16″ Jointer Planer (1-phase)
SCM Minimax fs 41c 16″ Jointer Planer (1-phase)
Price range: $7,375.00 through $7,975.00
It’s getting harder and harder to find quality combination machines. The SCM Minimax line does not disappoint! All of their combination machines share the same technology of their stand alone machines. All of these are built in house by SCM. They own both their own state of the art foundry and machine shop. This allows them to control quality from start to finish.
Did we mention the fast change over times? This along with its narrower 12″ brother are perpetual favorites.
The surfacing-thicknessing planer powerful and user friendly, for D.I.Y. woodworkers and craftsmen workshops.

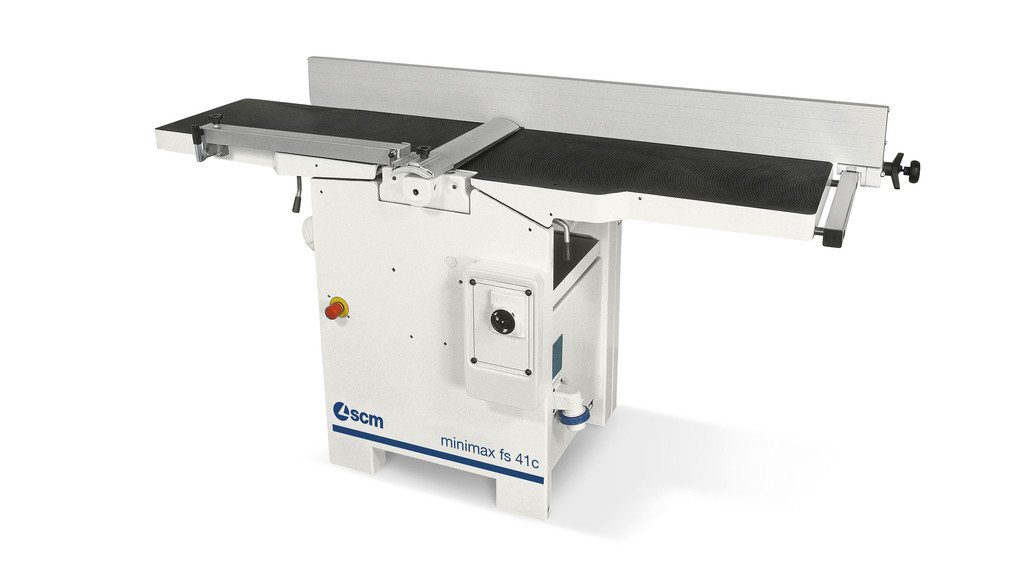

This 16” Jointer/Planer combo machine offers power and precision in a compact size for any shop. With long jointer tables, and sturdy fence, this machine is a quality product, made in Italy, for a value price. Find out why this machine may be perfect for you.
Discover the “Xylent“ cutterhead, available for this machine.
*Photos may include optional equipment.
Advertised Price Configuration:
FS 41C – T – 1ph, 4.8HP, 16″ TERSA cutterblock (3 knives), 70.9″ jointer bed, gravitational handwheel, mobility kit MINIMAX
FS 41C – X – 1ph, 4.8HP, 16″ XYLENT cutterblock, 70.9″ jointer bed, gravitational handwheel, mobility kit
Specs & Features
The Tersa cutterblock with automatic knives clamping by means of the centrifugal force ensures safe and precise machining. The system, without fixing screws, makes knives substitution extremely fast.

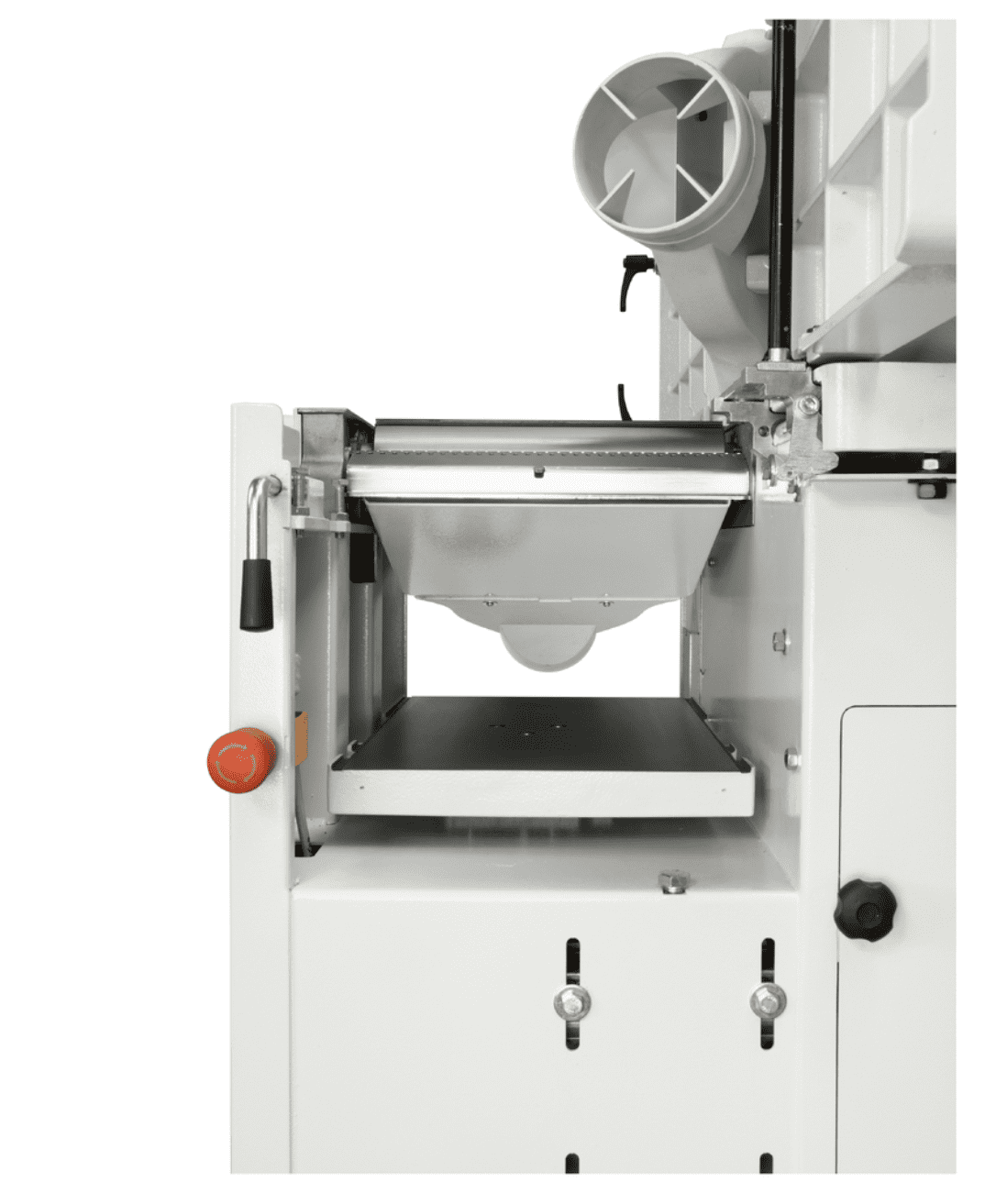

For an impeccable finish, the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined.
The very long surfacing fence is made of extruded aluminum and ensures an absolute rigidity.
The “Xylent” spiral knives cutter block gives an exceptional finish with reduced noise during machining thus to provide a more comfortable working environment.
- The “Xylent” cutter block also improves the dust extraction due to the production of very small chips
- Each cutter of the “Xylent” block has 4 tips which can be rotated into the cutting position when worn, therefore increasing the knives production life before they require replacement
- The thicknesser infeed roller has helical toothing to guarantee strong, constant work piece feed

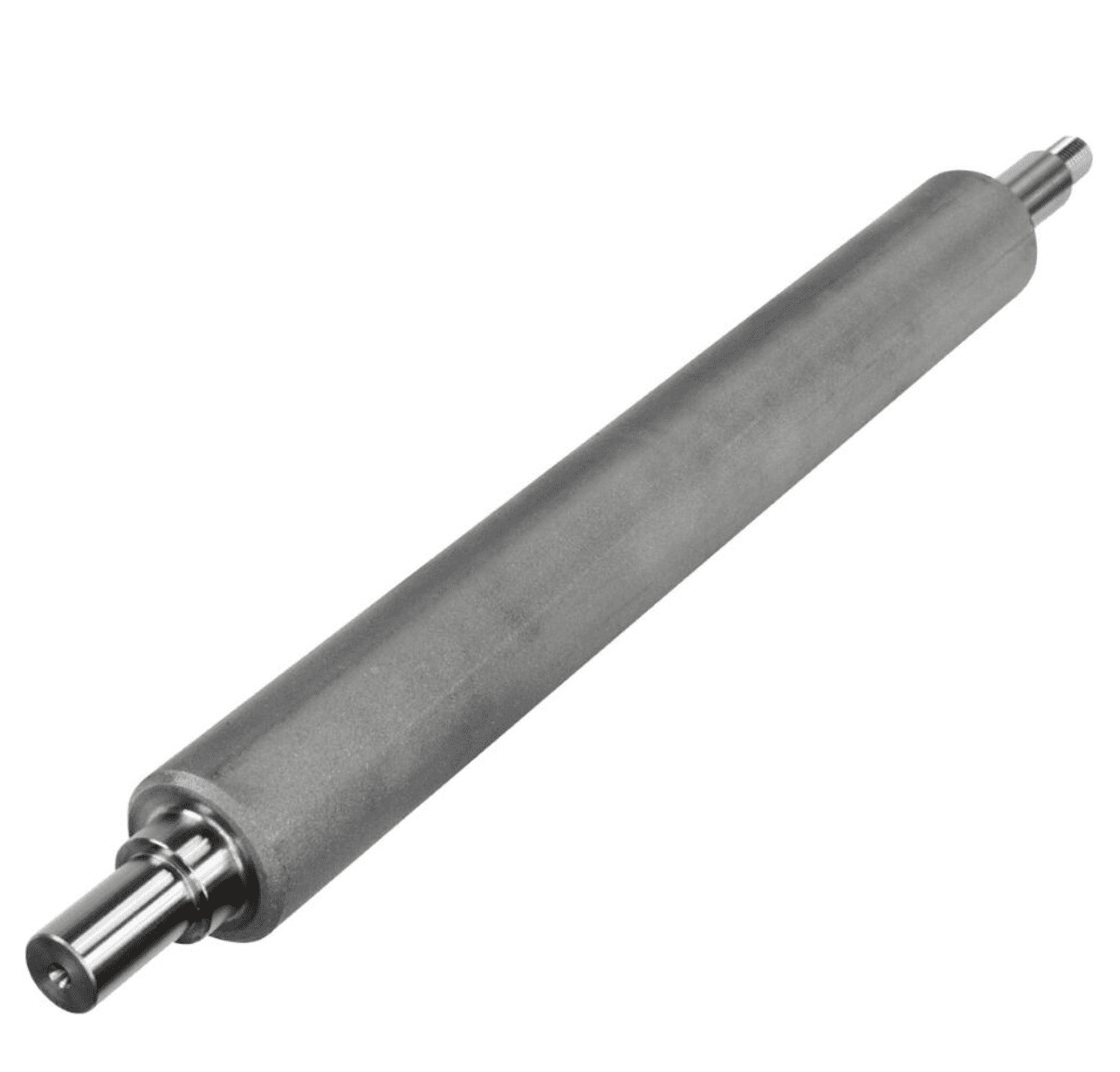

- The sandblasted steel thicknesser outfeed roller maintains the perfect post-machining finish.
- Handwheel with gravitational numerical readout for an easy and precise positioning of the thicknessing table
Technical data
| fs 41c | ||
| Cutterhead working width | mm / inches | 410 / 16 |
| With TERSA Straight-knife Cutterhead: Cutterblock diameter / no° of standard knives Dimension of standard knives |
mm / n° mm |
87 / 3 410 x 30 x 3 |
| With XYLENT Spiral Helical Cutterhead: Cutterblock diameter / no° of standard knives Dimension of standard knives |
mm / n° mm |
87 / 66 15 x 15 x 2.5 |
| Max. stock removal | mm | 4 |
| Jointer table length | mm / inches | 1800 / 71 |
| Planer table dimensions | mm / inches | 410 x 605 / 16 x 24 |
| Planer feed speed | m/min | 7 |
| Min. – max. planer working height | mm / inches | 3 – 230 / 0.12 – 9 |
| Single-phase motor | Hp | 4.8 |
| Fence Tilt | degrees | 0 – 45 |
Shipping
FREE SHIPPING DOES NOT APPLY TO PRE-OWNED MACHINERY
Please Contact us for a shipping quote for Pre-Owned Machinery and or New machinery below $6,000.
***Some restrictions apply for free freight on NEW machinery over $5,999. FREE freight is to a commercial address with a dock and or forklift. EXTRA FEES may apply to accessorials like restricted access, residential drops, liftgates, and excessive lengths.
Applies to lower 36 of the contiguous states only. AZ, CA, CO, ID, MT, ND, NV, OR, SD, UT, WA, & WY do not qualify for free shipping. We can split ship to these states from $5,999 and up. Free shipping does not apply to RazorGage, Oliver, nor JLT Machinery or other machines listed as not free shipping.
Manuals & Technical Documents
Brochure
