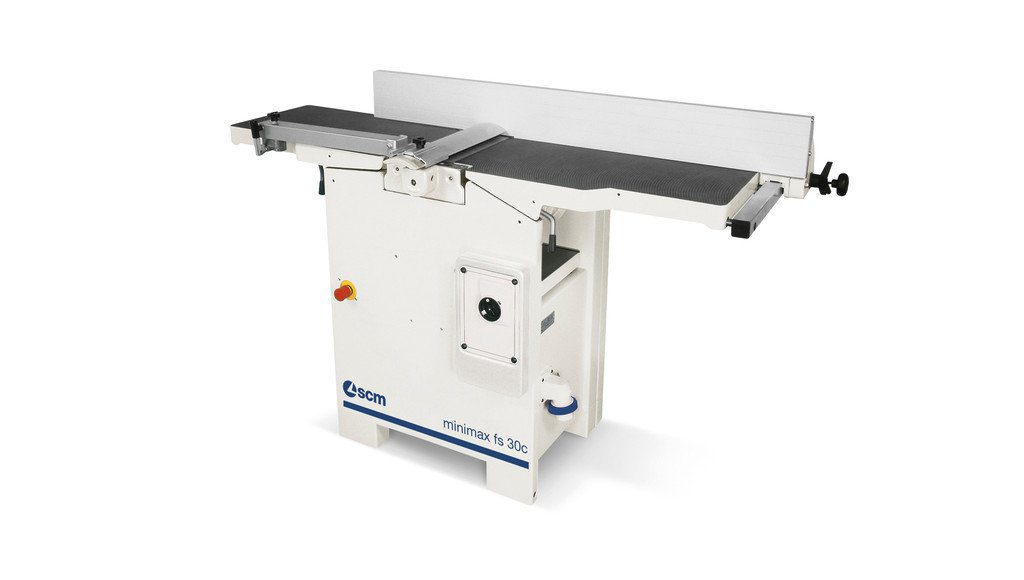

SCM Minimax fs 30c 12″ Jointer Planer (1-phase)
SCM Minimax fs 30c 12″ Jointer Planer (1-phase)
Price range: $5,775.00 through $6,375.00
It’s getting harder and harder to find quality combination machines. The SCM Minimax line does not disappoint! All of their combination machines share the same technology of their stand alone machines. All of these are built in house by SCM. They own both their own state of the art foundry and machine shop. This allows them to control quality from start to finish.
Did we mention the fast change over times? This along with its larger 16″ brother are perpetual favorites.
The surfacing-thicknessing machine for the D.I.Y. woodworkers and the craftsmen joineries. Fine Woodworking named our award-winning 12″ jointer/planer as “Best Overall” in its category. This machine offers premium power and precision in a compact size for any shop. With long jointer tables, and sturdy fence, this machine is a quality product, made in Italy, for a value price. Find out why one of our best-selling units may be perfect for you.
*Photos may include optional equipment.
Advertised Price Configuration:
FS 30C – T – 1ph, 4.8HP, 12″ TERSA cutterblock (3 knives), 59.5″ jointer bed, gravitational handwheel
FS 30C – X – 1ph, 4.8HP, 12″ XYLENT cutterblock, 59.5″ jointer bed, gravitational handwheel
*Free shipping applies to the Xylent configuration only. The Tersa configuration is priced under our $5,999 free-freight minimum; contact us for shipping pricing.
Specs & Features
ADVANTAGE
Optimal planing

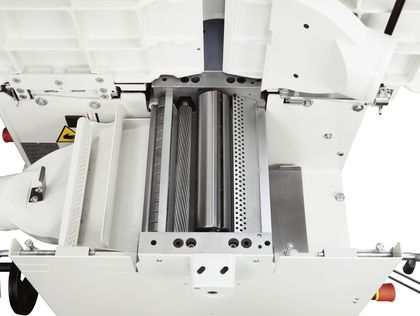

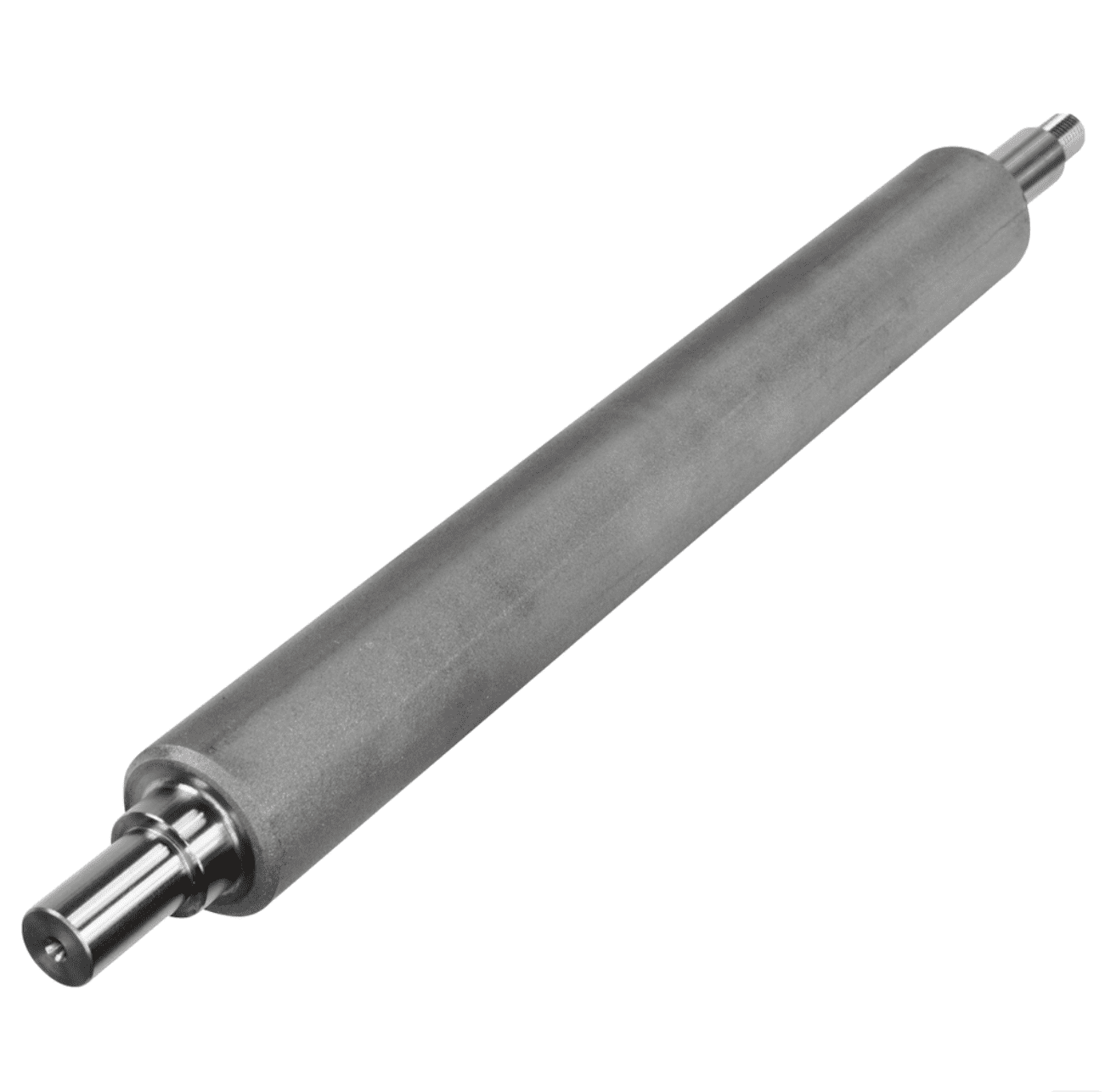

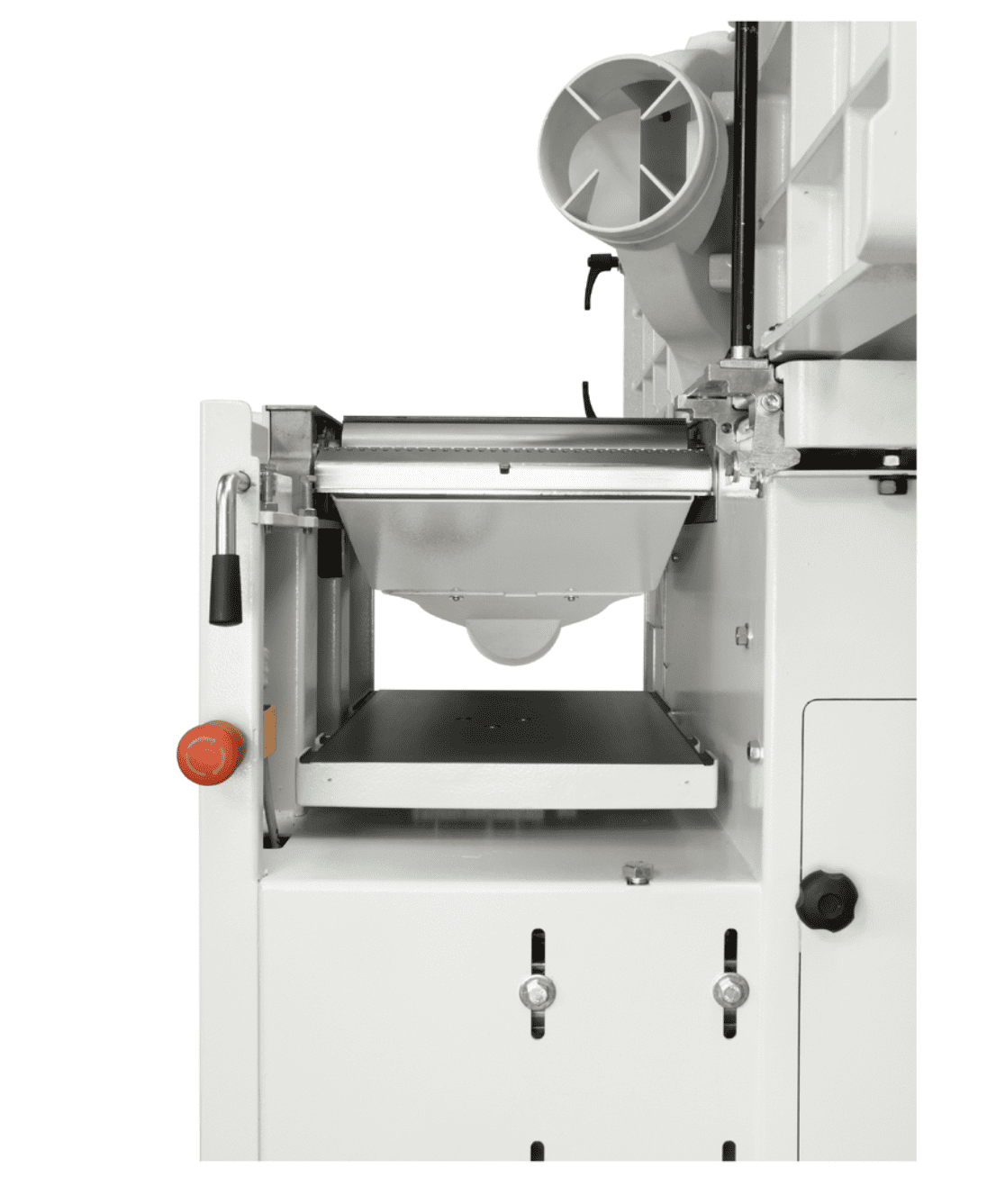

The planer unit in the standard version has a 72 mm diameter cutter block with 3 knives (the optional “Tersa” cutter block is available with quick tightening knives and automatic adjustment). For an impeccable result, the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The thicknesser infeed roller has helical toothing to guarantee strong, constant work piece feed. In contrast, the sandblasted steel outfeed roller maintains the perfect post-machining finish.
Absolute rigidity

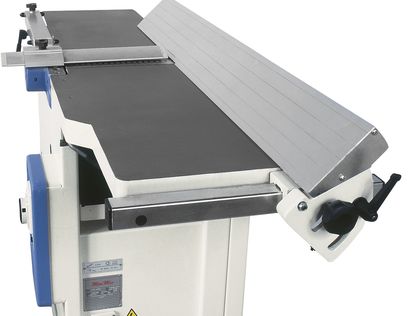

Very high rigidity of the surfacing fences made of extruded aluminum with 1670 mm length.
“Xylent” spiralknife cutter block with 3 series of knives
The 3 spiralknives give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.
Technical data
| fs 30c | ||
| Cutterhead working width | mm / inches | 300 / 12 |
| With TERSA Straight-knife Cutterhead: Cutterblock diameter / no° of standard knives Dimension of standard knives |
mm / n° mm |
72 / 3 330 x 30 x 3 |
| With XYLENT Spiral helical Cutterhead: Cutterblock diameter / no° of standard knives Dimension of standard knives |
mm / n° mm |
72 / 48 15 x 15 x 2.5 |
| Max. stock removal | mm | 4 |
| Jointer table length | mm / inches | 1510 / 59.5 |
| Planer table dimensions | mm / inches | 300 x 585 / 12 x 22 |
| Planer feed speed | m/min | 7 |
| Min. – max. planer working height | mm / inches | 3 – 230 / 0.12 – 9 |
| Single-phase motor | Hp | 4.8 |
| Fence Tilt | degrees | 0 – 45 |
Shipping
FREE SHIPPING DOES NOT APPLY TO PRE-OWNED MACHINERY
Please Contact us for a shipping quote for Pre-Owned Machinery and or New machinery below $6,000.
***Some restrictions apply for free freight on NEW machinery over $5,999. FREE freight is to a commercial address with a dock and or forklift. EXTRA FEES may apply to accessorials like restricted access, residential drops, liftgates, and excessive lengths.
Applies to lower 36 of the contiguous states only. AZ, CA, CO, ID, MT, ND, NV, OR, SD, UT, WA, & WY do not qualify for free shipping. We can split ship to these states from $5,999 and up. Free shipping does not apply to RazorGage, Oliver, nor JLT Machinery or other machines listed as not free shipping.
Manuals & Technical Documents
Brochure
