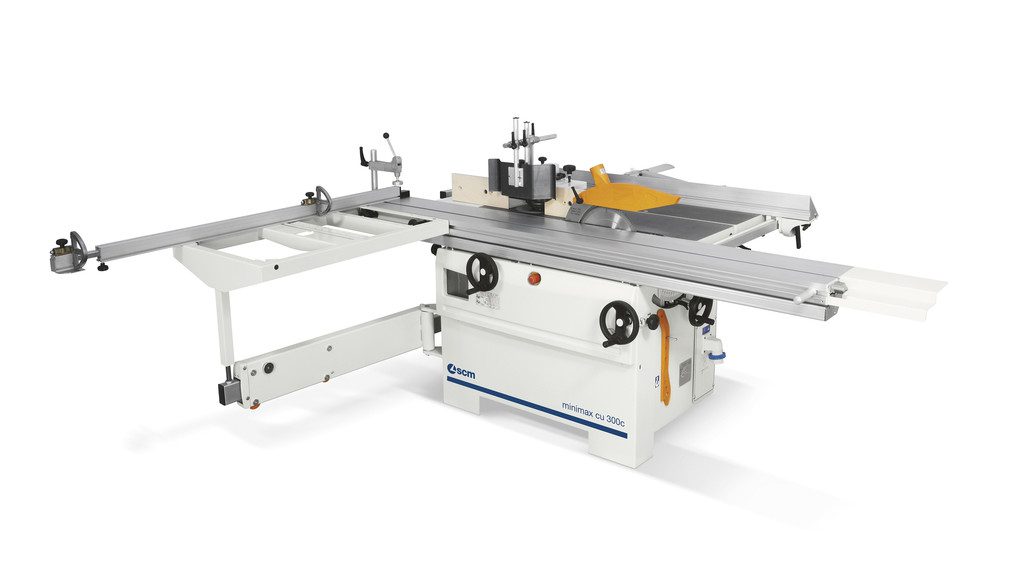

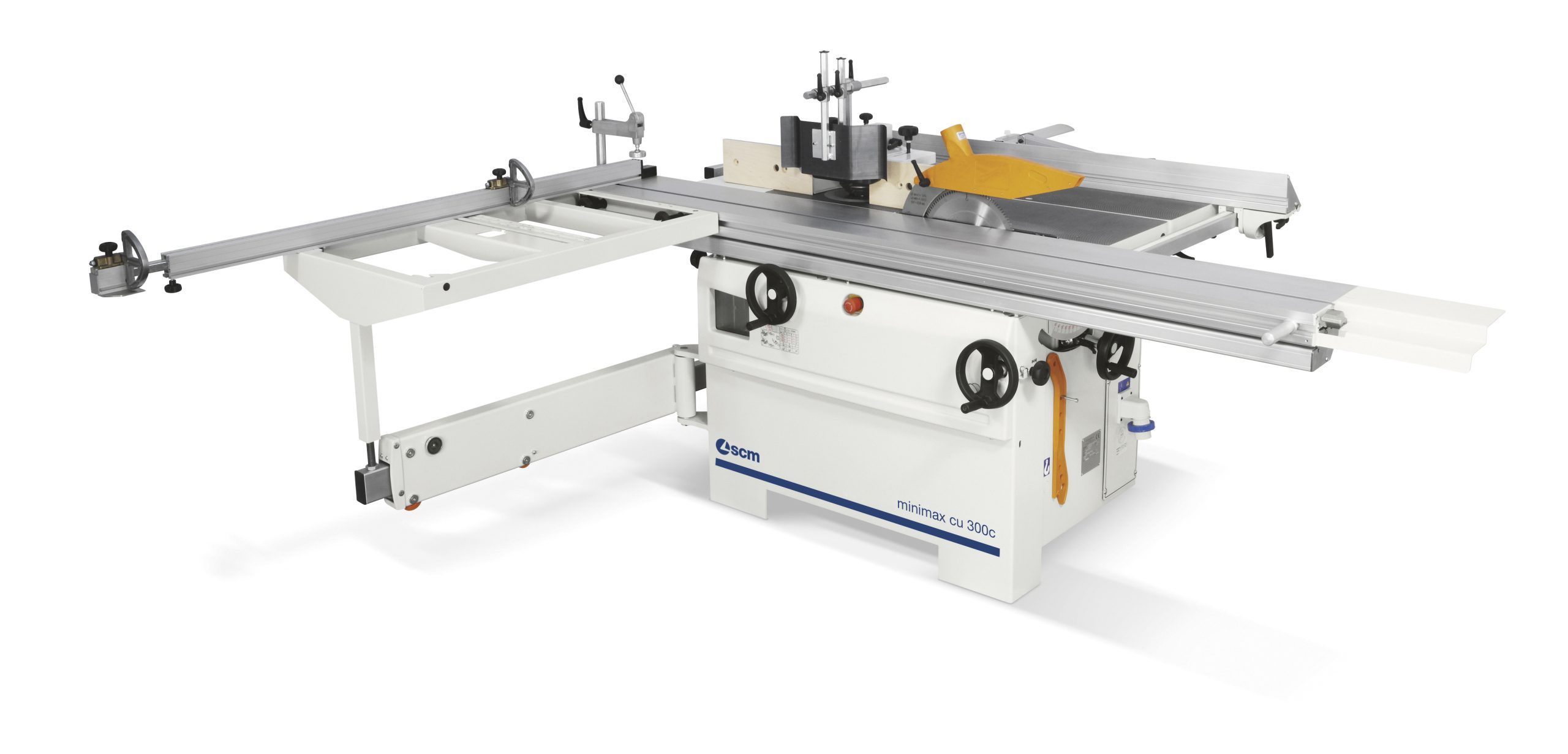

SCM Minimax cu 300c Combination Machine (1-Phase) (5.5′ & 8.5′ Slide Options)
SCM Minimax cu 300c Combination Machine (1-Phase) (5.5′ & 8.5′ Slide Options)
Price range: $13,775.00 through $14,775.00
It’s getting harder and harder to find quality combination machines. The SCM Minimax line does not disappoint! All of their combination machines share the same technology of their stand alone machines. All of these are built in house by SCM. They own both their own state of the art foundry and machine shop. This allows them to control quality from start to finish.
Did we mention the fast change over times?
Universal combined machine with all minimax quality, at the most affordable price, ideal for demanding hobbyists and crafts woodworking workshops.

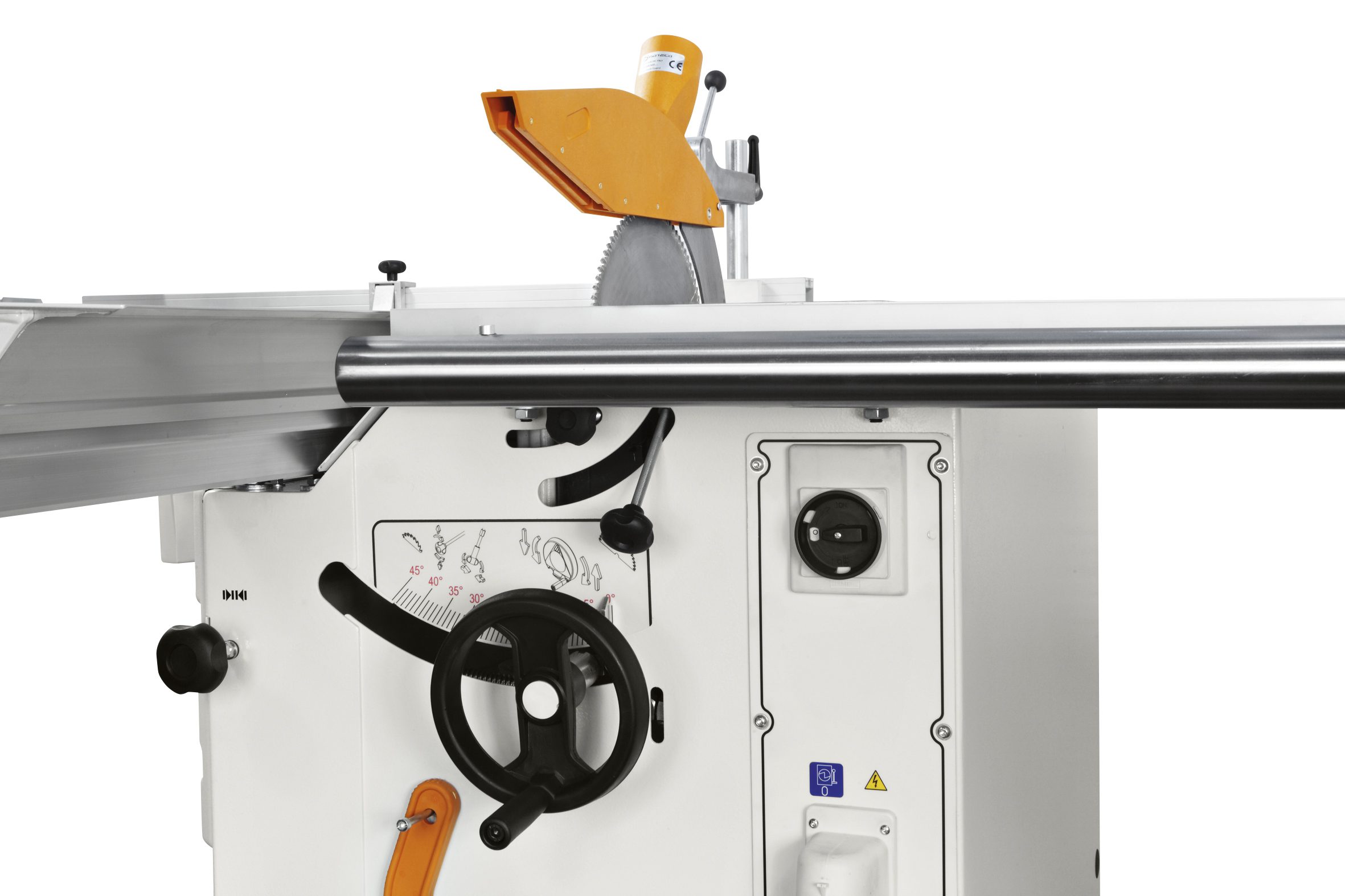

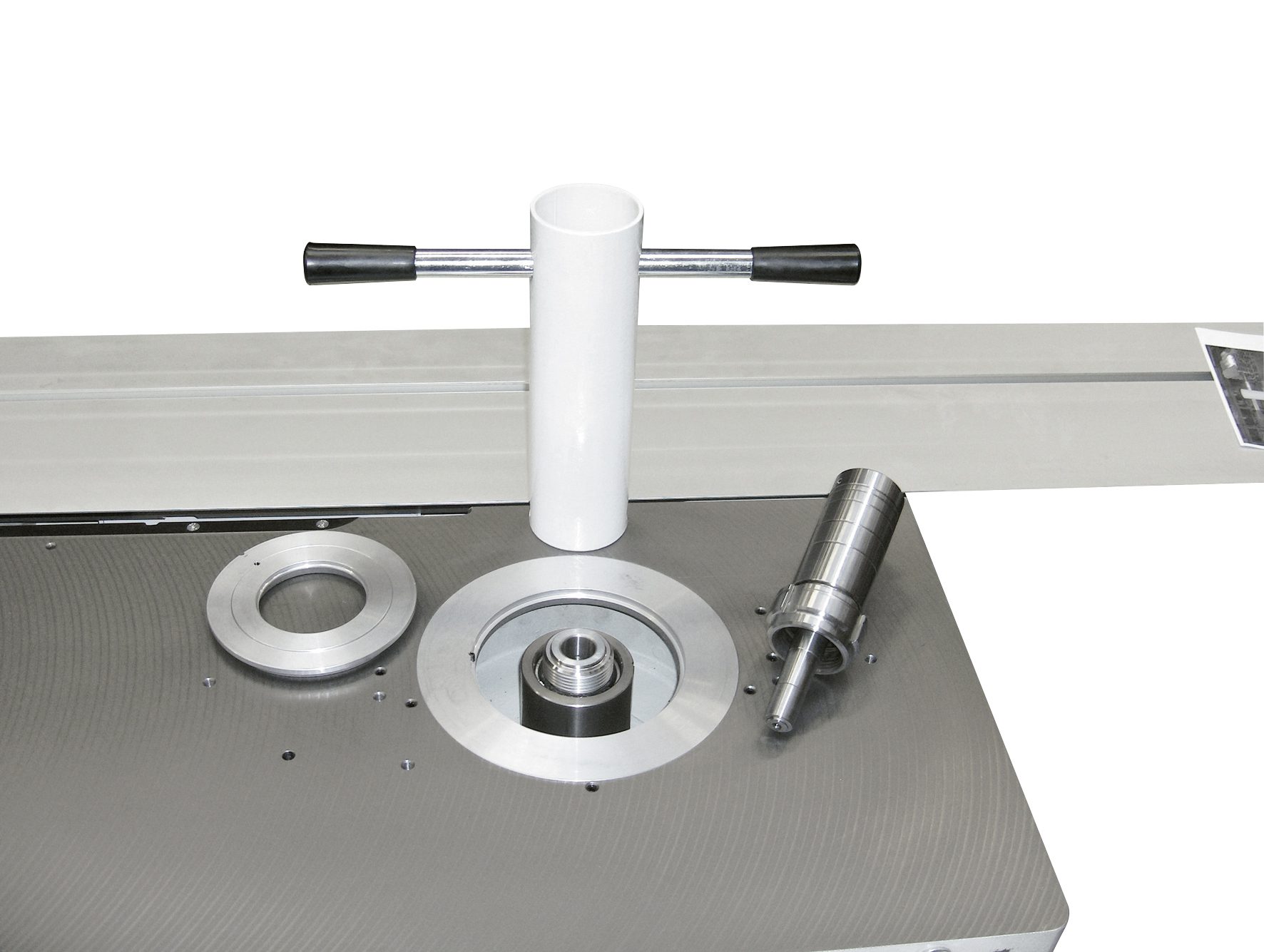

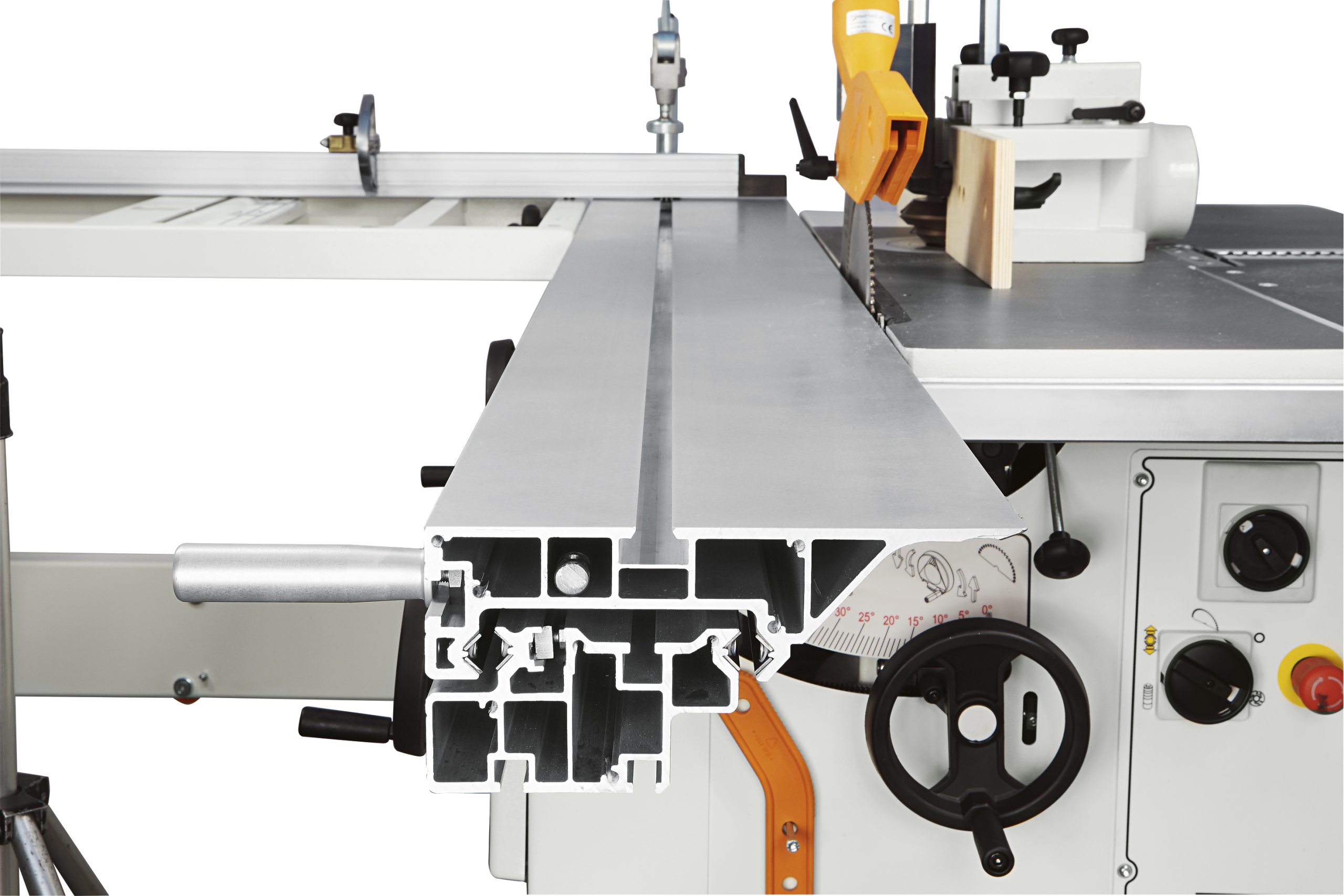

The Minimax line of combined woodworking machines is engineered to provide an ergonomic and high-performance workflow for craftsmen seeking versatility without sacrificing precision. These machines feature surfacing worktables that open toward the inside for improved shop ergonomics and utilize anodized-extruded guides with rapid-locking supports to ensure ease of use across all functions. The spindle shaper unit offers maximum flexibility with multiple speeds and a micrometrically adjustable hood for intricate moulding and tenoning operations, while the tiltable saw unit and anodized aluminum carriage guarantee industrial-grade cutting accuracy. Setting up between different machining tasks is made seamless through practical hand-wheel adjustments for lifting and tilting, all while maintaining rigorous CE safety standards—including dedicated shaft protection for curved profiles and large surfacing tables for stable planing—to deliver a comprehensive, professional-tier woodworking platform.
Discover the “Xylent” cutter-head, available for this machine
*Photos may include optional equipment. Advertised price is the starting from price + options
Specs & Features
ADVANTAGE
Performance without limits

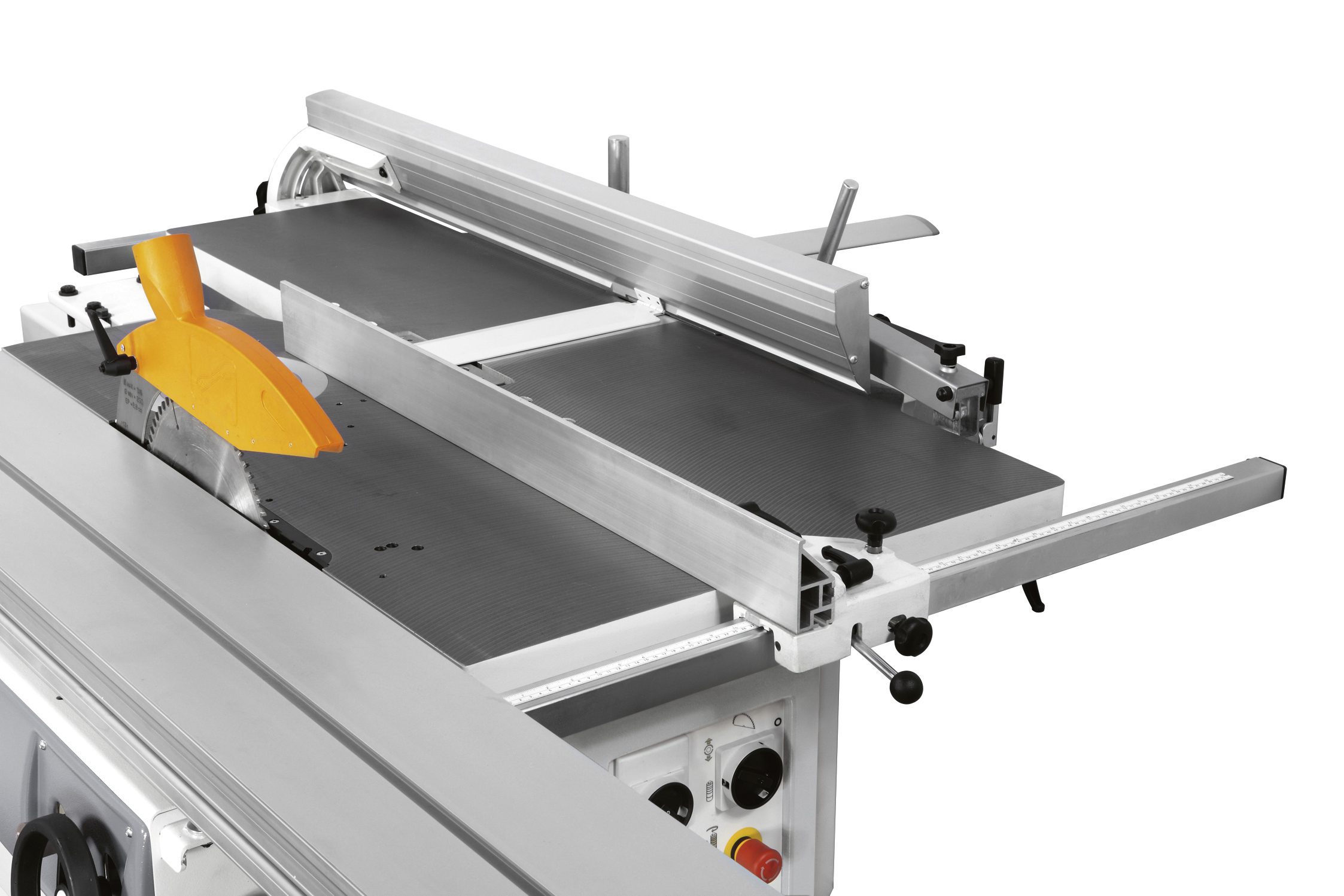

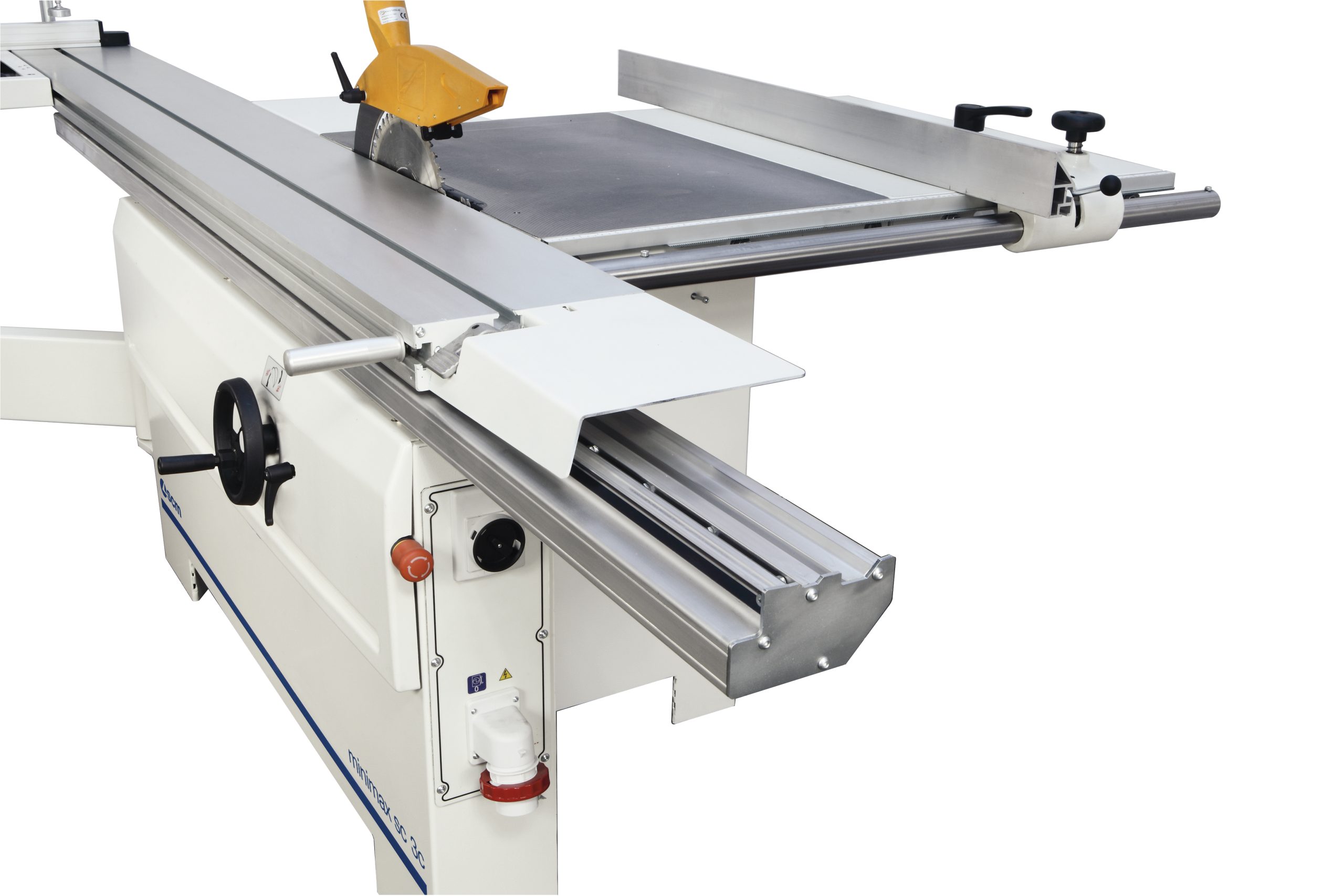

Incredible cutting of both very thick solid wood and panels, even those veneered, thanks to the new saw unit with a blade that has a maximum diameter of 315 mm that grants a 100 mm cutting height with the scoring blade installed.
Professional and very sturdy

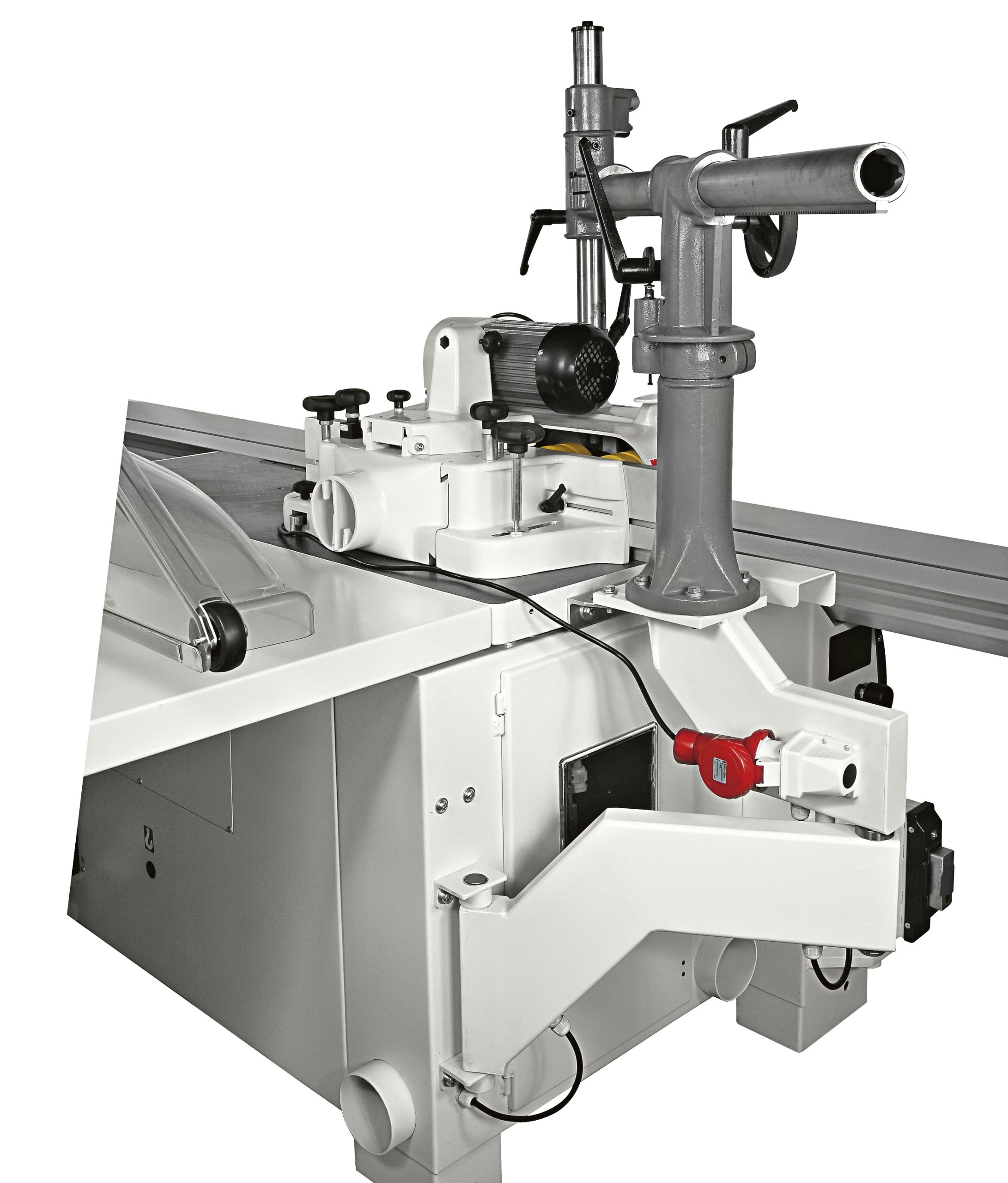

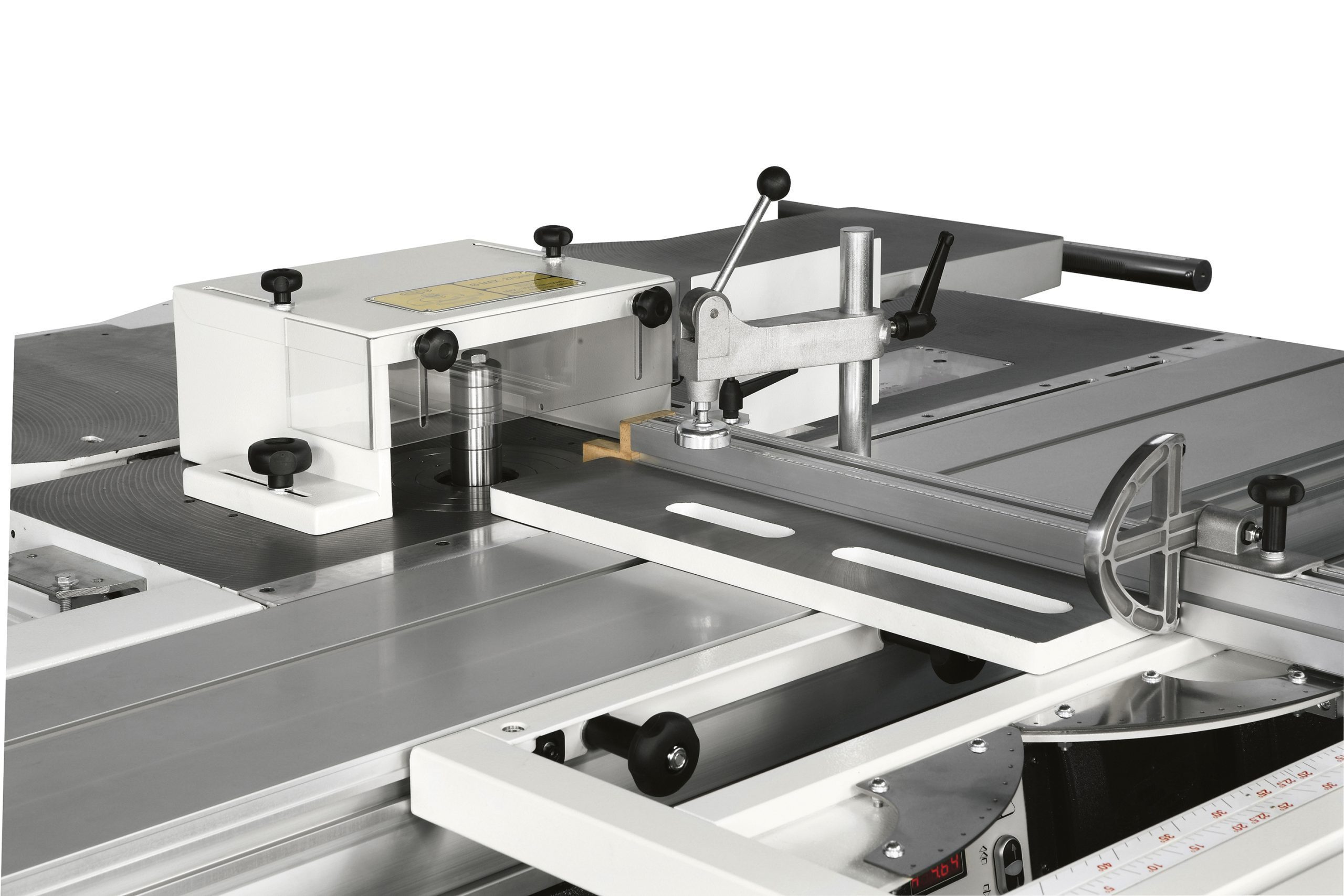

The unit has a cast iron structure. It is closed off by a cast iron “cup” to protect mechanical components inside the machine from sawdust, shavings and dirt. Precise and safe machining with the spindle shaper fence with micrometric adjustment complete with vertical and horizontal pressers.
Optimal planing

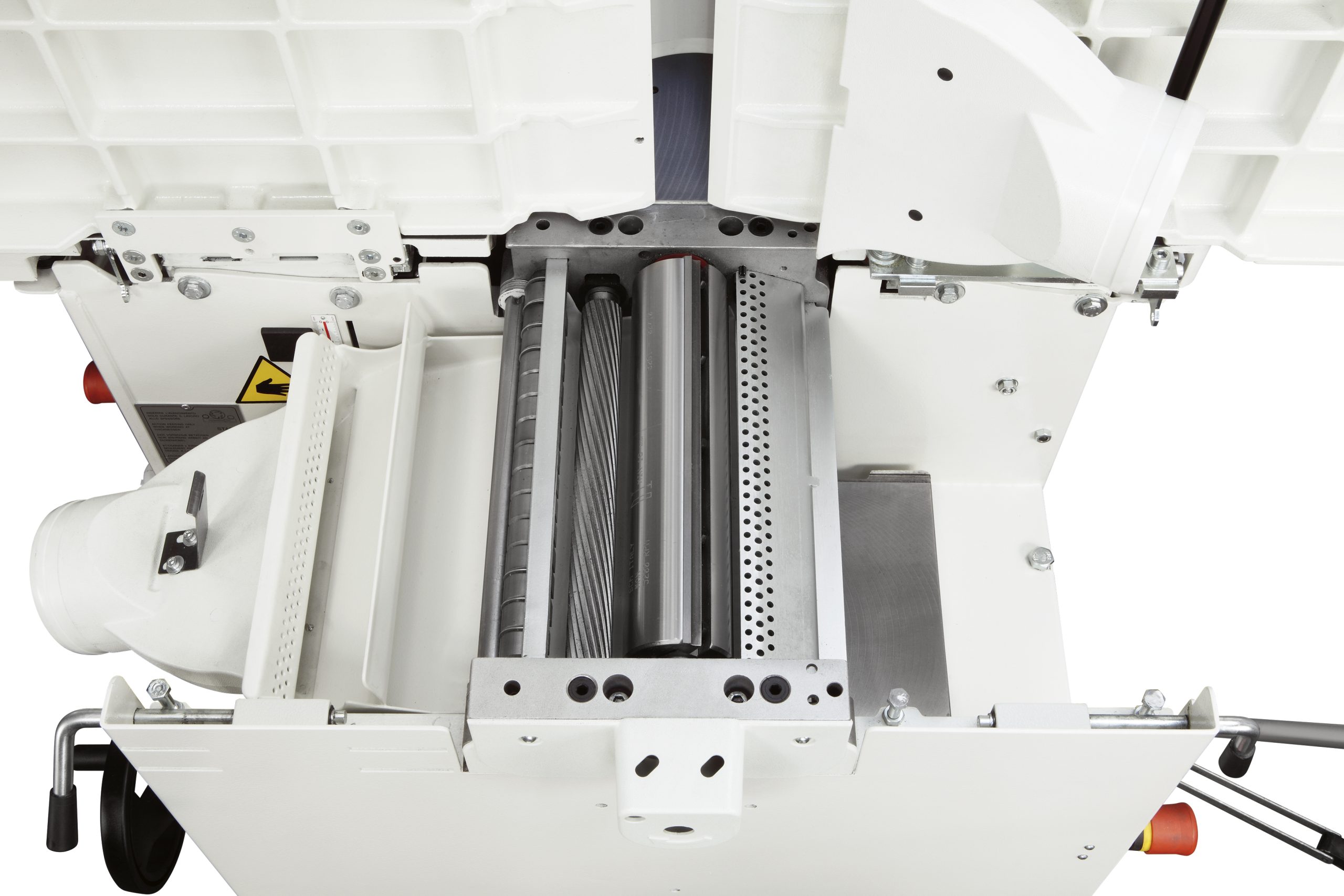

The planer unit in the standard version has a 72 mm diameter cutter block with 3 knives (the optional “Tersa” cutter block is available with quick tightening knives and automatic adjustment). For an impeccable result, the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The thicknesser infeed roller has helical toothing to guarantee strong, constant work piece feed. In contrast, the sandblasted steel outfeed roller maintains the perfect post-machining finish.
Exceptional accessibility

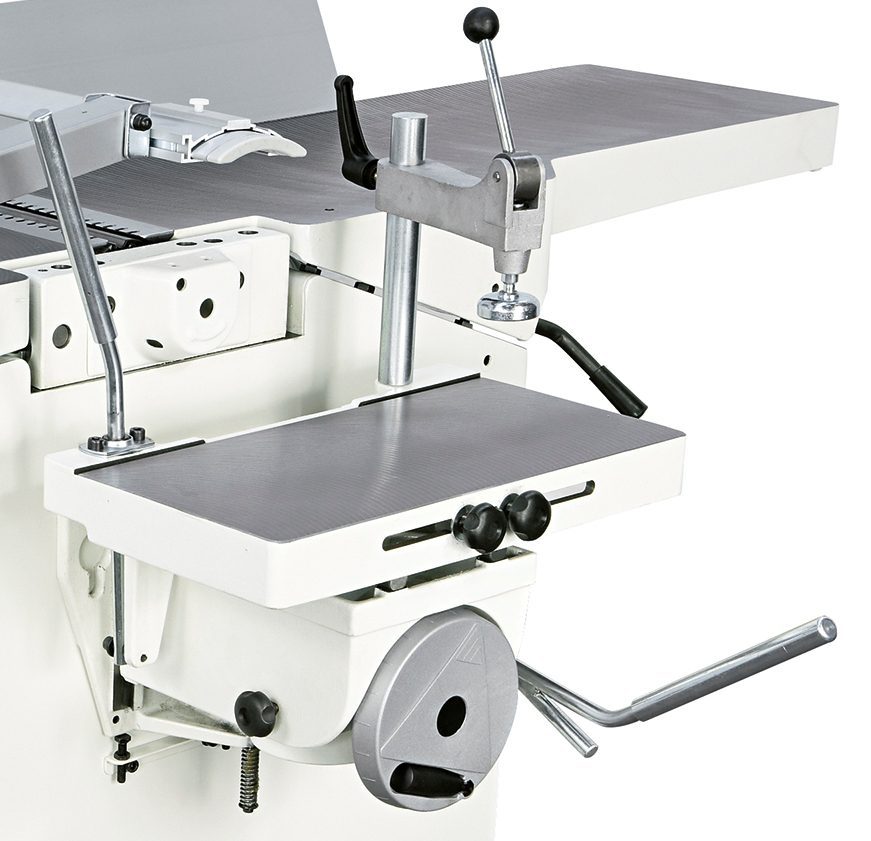

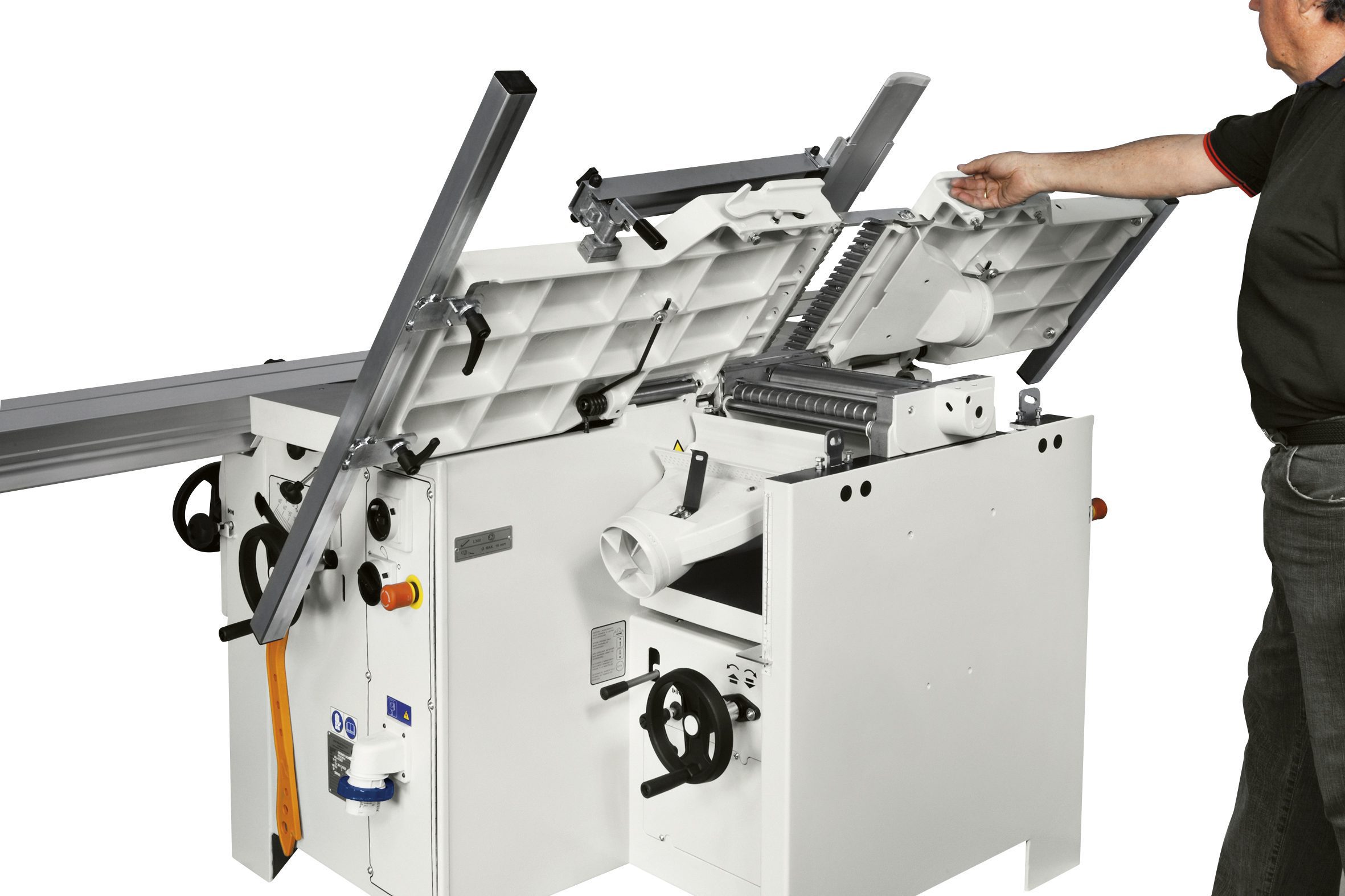

Thicknessing is more comfortable: during the changeover from surfacing to thicknessing the surfacing tables open towards the inside of the machine, with a 90° angle, and simultaneously. Work pieces with a maximum height of 230 mm can be machined to the thicknesser. The new design of the dust conveyor, protecting the cutter block, is specifically intended to further increase system safety and efficiency.
Technical data
| cu 300c | ||
| Cutterhead working width | mm / inches | 300 / 12 |
| Jointer bed length | mm / inches | 1510 / 60 |
| Max. sawblade diameter with scoring blade installed | mm / inches | 315 / 12 |
| Sawblade arbor size | mm / inches | ⅝ |
| Max. sawblade projection from table at 90°/45° | mm / inches | 100/78 3.75/3 |
| Cutting width on parallel fence (Rip capacity) | mm / inches | 820 / 32 |
| Max. useful spindle length | mm / inches | 100 / 4 |
| Max. tool diameter when profiling | mm / inches | 210 / 8.25 |
| Spindle moulder speed | rpm | 1700/4000/7000/9000 |
| (3x) Single-phase motors | Hp | 4.8 |
| Max. squaring stroke of sliding table saw | mm / ft | 1600/5.5 or 2600/8.5 |
| With TERSA Straight-knife Cutterhead: Cutterlock diameter / n° of standard Knives Dimension of standard knives |
mm/n° mm |
72/3 300 x 30 x 3 |
