Pillar CMJ-HSK: High-Speed Coping Machine with HSK Spindles
The CMJ-HSK is a high-speed coping machine with two independent 11 HP HSK-63F spindles, designed for shops running 10 or more profiles daily. Push-button tooling changes take 30 seconds, cutting downtime significantly compared to standard spindle setups. Cycle time and throughput match the standard CMJ: 6-8 seconds per part, up to 4,000 rails per shift.
Standout Features and Advantages

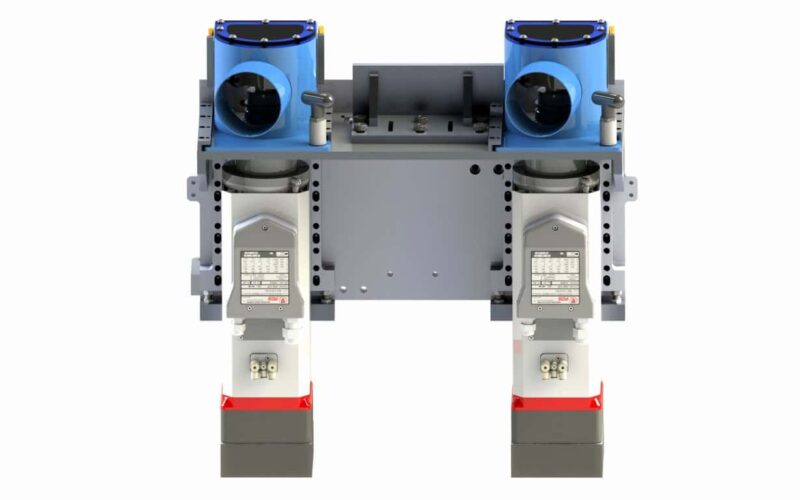

- Quick-Change HSK Spindles: Two 11 HP HSK-63F spindles with push-button tool changes reduce downtime, making them ideal for shops with 10 or more daily profiles.

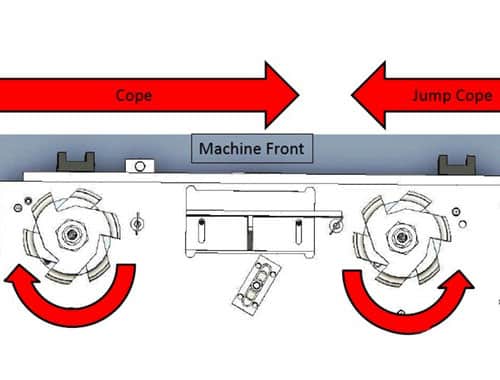

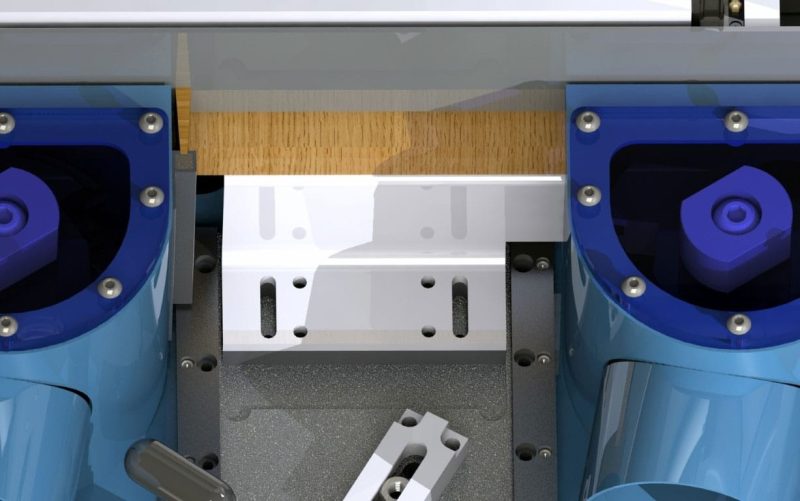

- Chip-Free Excellence: Dual counter-rotating spindles clear the leading edge and process the full width, ensuring clean, tear-out-free cuts.
- Blazing-Fast Cycles: Completes coping or tenoning in 6-8 seconds, capable of processing up to 4000 rails per shift when cutting two parts at once.

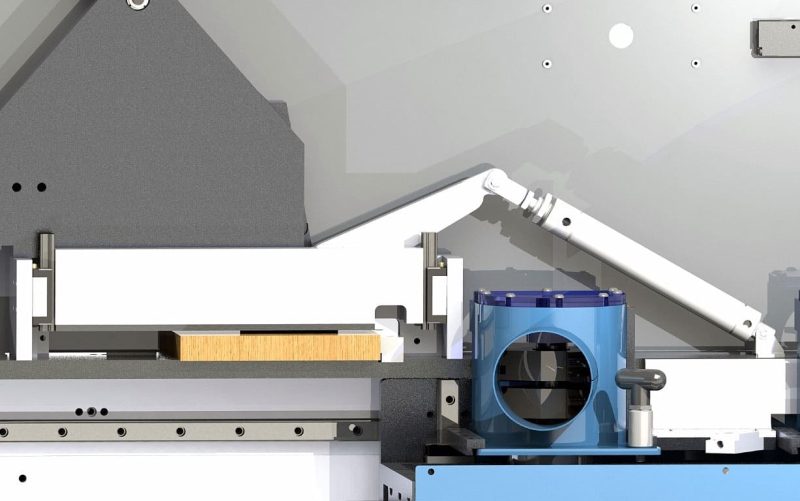

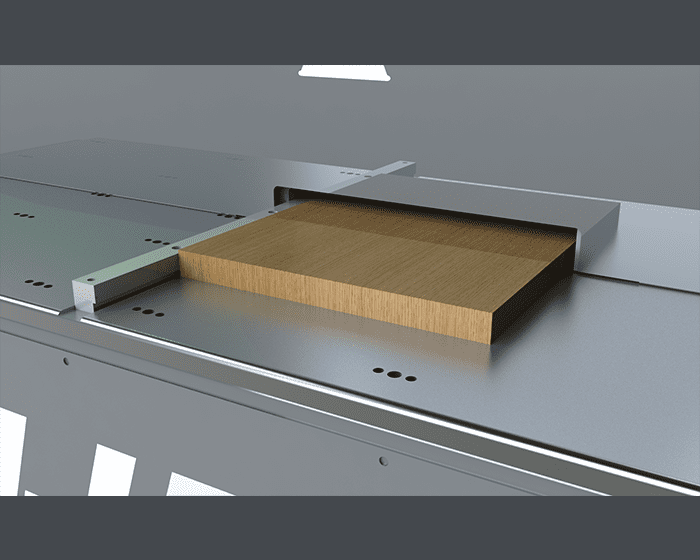

- Accurate Alignment: Scissor lock clamp applies up to 600 lbs. of force, with precise spindle adjustments for perfect tool alignment.

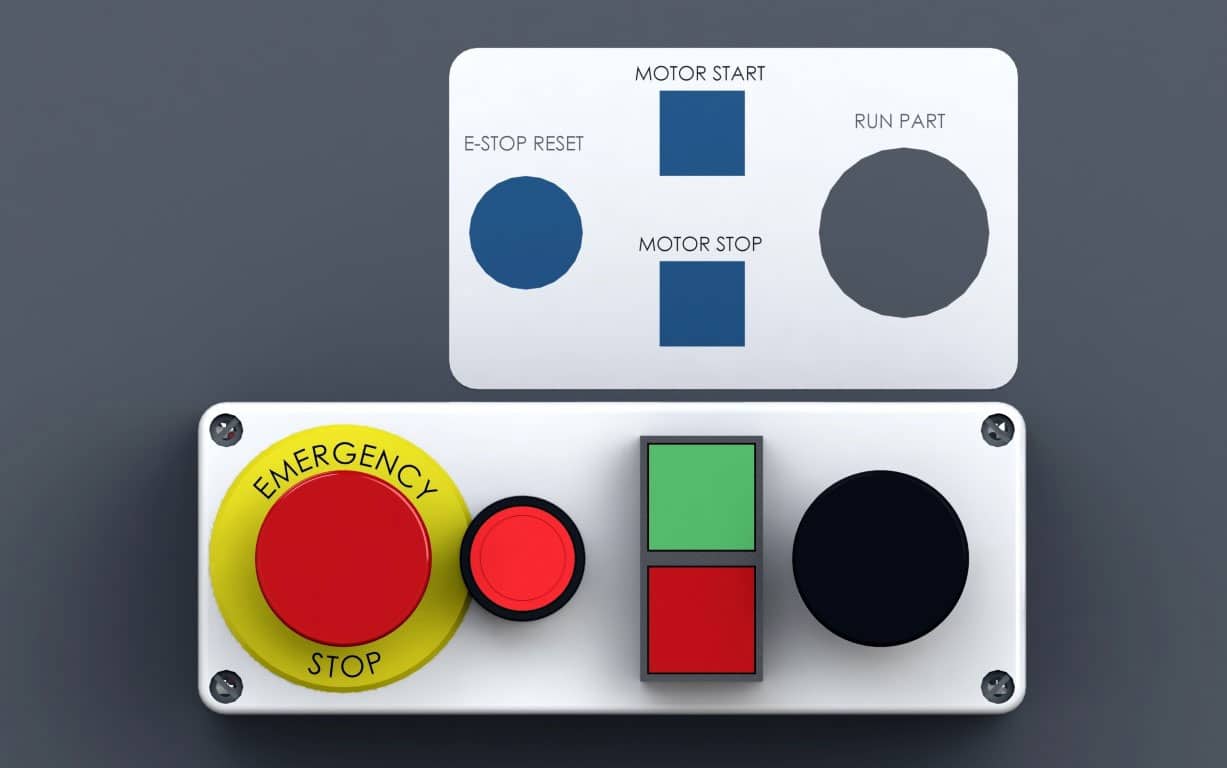

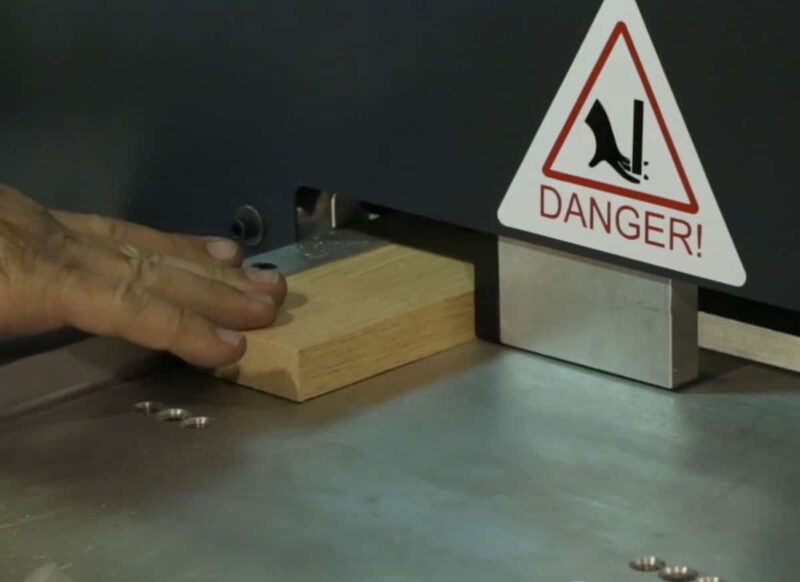

- Operator-Friendly PLC: Programmable Logic Controller (PLC) offers simple controls, making it easy to achieve consistent results with minimal training.
- Heavy-Duty Build: 1,350 lb. frame with high-precision square rail guides ensures durability in high-volume production environments.
Technical Breakdown
| Feature | Specification |
|---|---|
| Machine Type | Coping, tenoning, finger jointing, and end matching machine |
| Cycle Time | 6-8 seconds per part |
| Production Capacity | Up to 4000 rails per shift (dual parts) |
| Material Length | Min: 3″; Max: Not applicable |
| Material Width | Min: 1.5″; Max: 12″ |
| Material Thickness | Min: 0.5″; Max: 1″ |
| Depth of Cut | Max: 5/8″ |
| Spindles | 2 independent HSK-63F spindles, 11 HP each |
| Clamp Force | Scissor lock clamp, up to 600 lbs. |
| Controls | PLC with programmable settings |
| X-Axis Guides | High-precision square rail guides and bearings |
| Electrical | 3-phase, 208-230V, 60 cycles, 30 amps |
| Compressed Air | 90 PSI at 5 CFM |

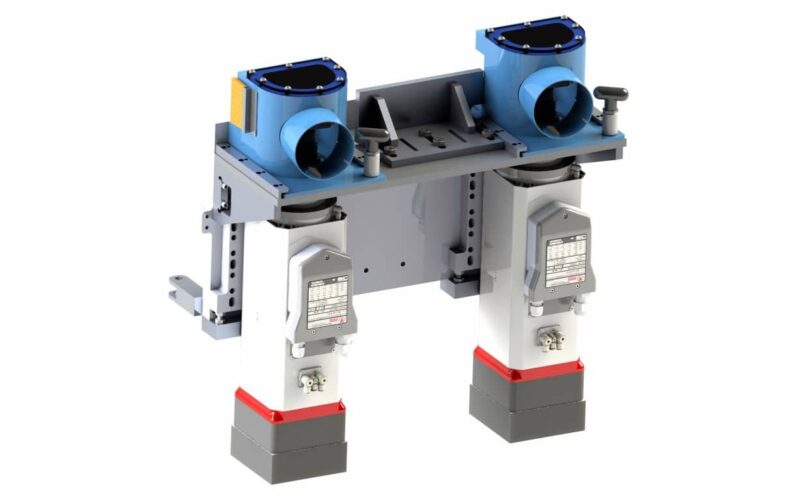

| Dust Collection | 2 x 4″ ports, 696 CFM total |
| Dimensions | 52″ W x 30″ D x 57″ H |
| Weight | 1,350 lbs. (approx.) |
Available CMJ‑HSK Options
Rear Guarding Upgrade

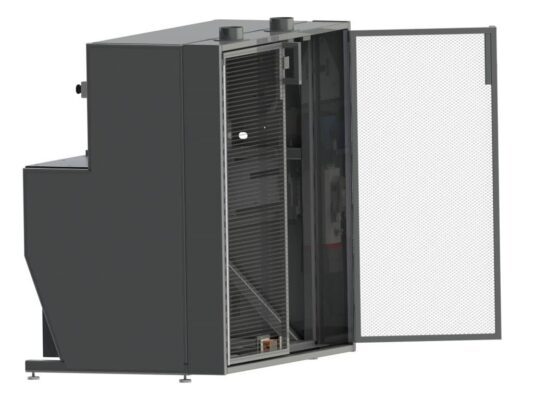

Includes hinged tube‑steel and expanded‑mesh access doors at the back for enhanced safety and visibility. Note: Welded-on, may extend lead time and increase machine depth to 40 inches.
Keyed Electronic Interlock
Integrates into rear guard doors to function as an emergency stop switch. Note: may extend lead time.
Foot Pedal Control
Replaces the palm-button start with a floor pedal, allowing hands-free operation. Note: may extend lead time.
HSK Tool Holder Package

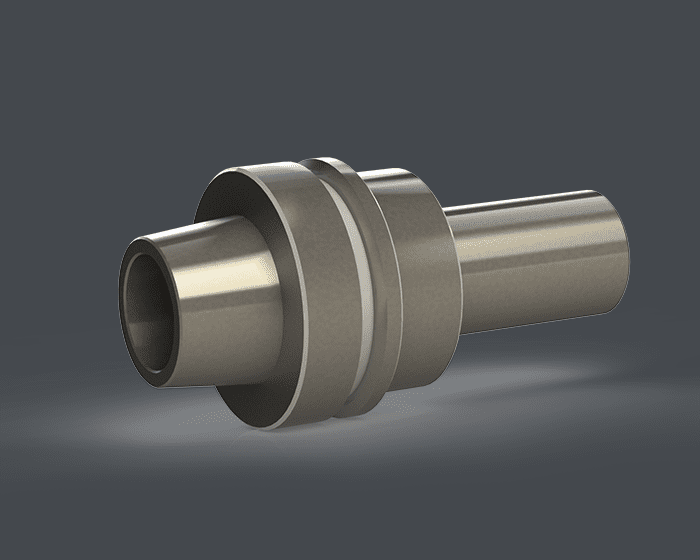

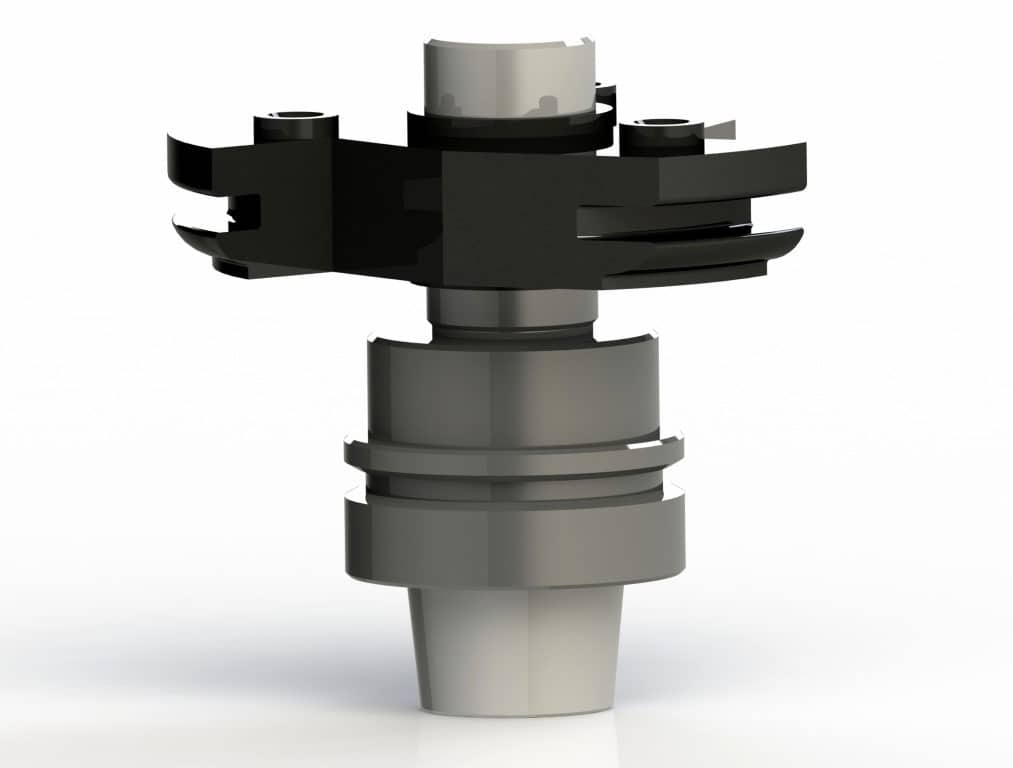

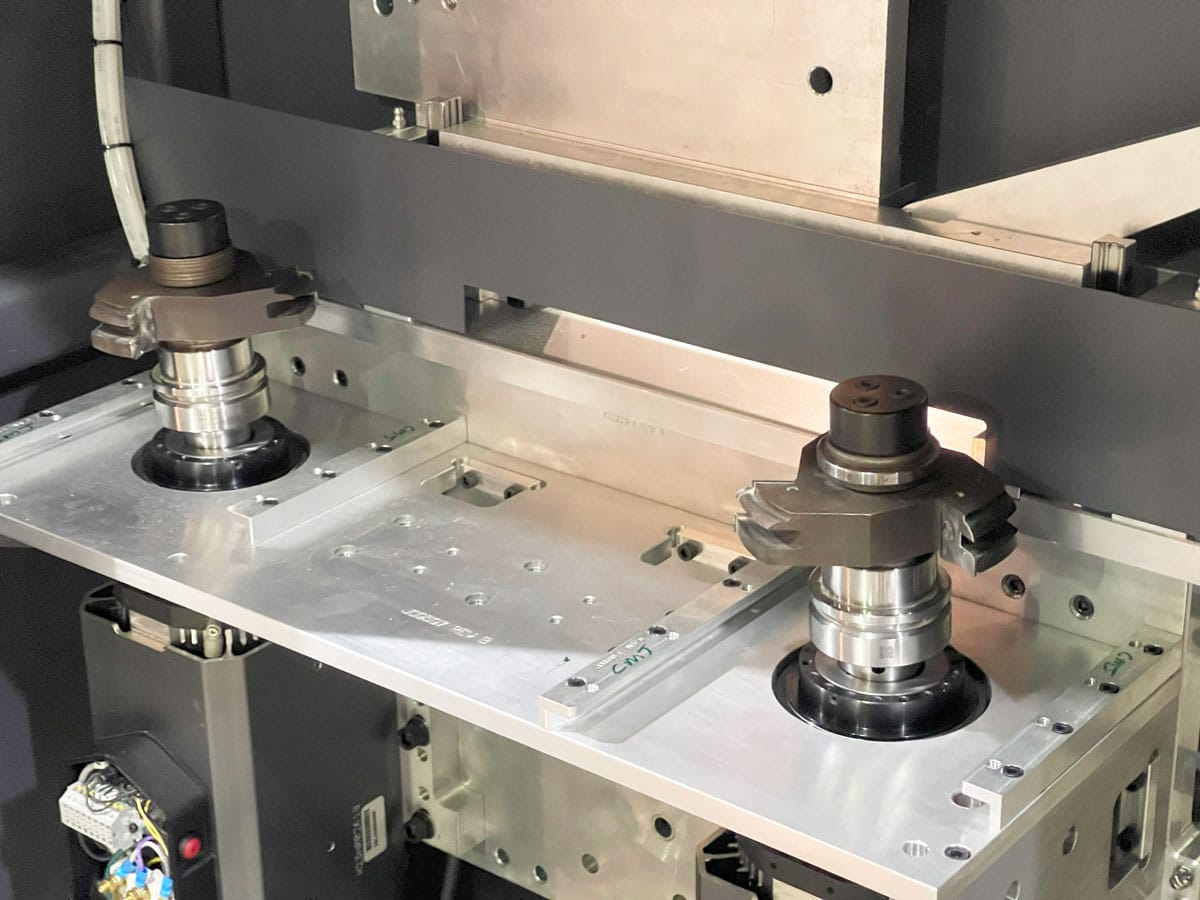

Comes with one pair of HSK-63F tool holders (1¼” × 55 mm) for quick tool changes.
Automatic Oiler System
Delivers adjustable, pressurized lubrication to bearings (8 total: 4 × X‑axis, 4 × under spindles). Operates whenever the spindle runs. Note: may extend lead time.
Pre‑Setup Tooling Service
Pillar will install a customer-provided tooling profile at the factory before shipment—additional setups are available at an extra cost.* Note: This may extend the lead time; tooling and arbors must be supplied.
About Pillar Machine
Pillar Machine is based in Salt Lake City, Utah and builds all of its equipment in the USA. Machines come with a one-year warranty and free online training direct from the factory.
