Specifications:

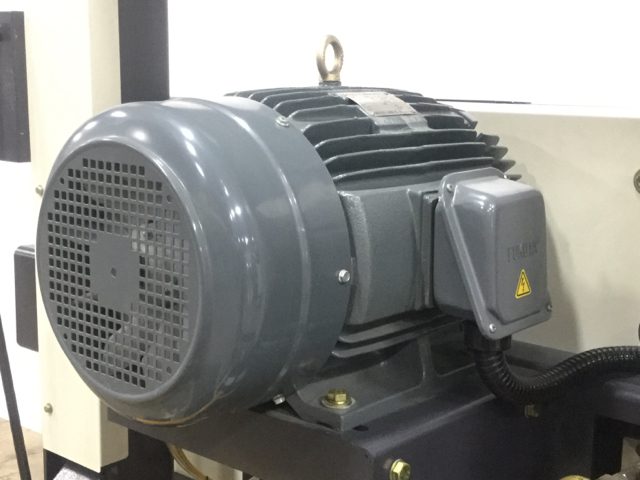

- Main Motor Hp. = 20 hp.
- Voltage/ Freq. = 460 Volt 60Hz
- Phase = 3 Phase
- Amp Requirement = 45 Amps
- Feed Hp. = 5 Hp.
- Feed System = 11” x 218” Hydraulic Drive Belt

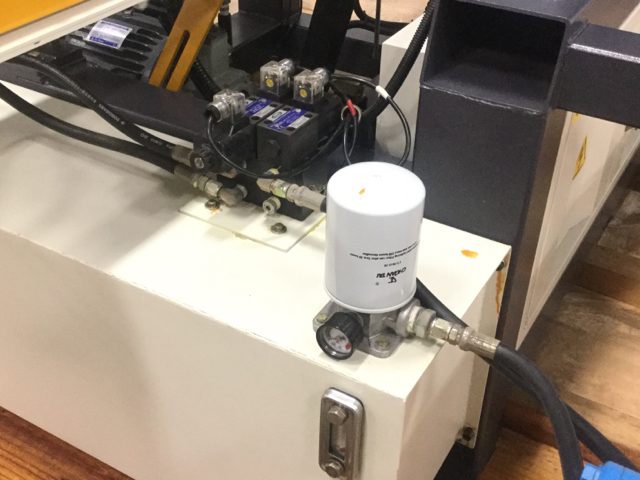

- Drive System = 5 Hp. Hydraulic Pump
- Feed Speed = 0 – 95 FPM
- Variable Speed = Hydraulic Adjustment Knob
- Reverse Feed = Yes

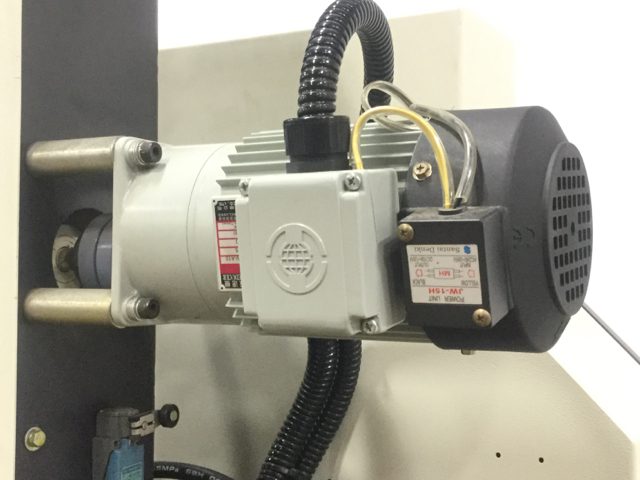

- Elevation Hp. = 1/4 Hp.
- Elevation Style = Auto Touch Screen Control
- Elevation Sys. = (2) Post Jack Screw
- Total Hp. = 30-1/4 Hp.

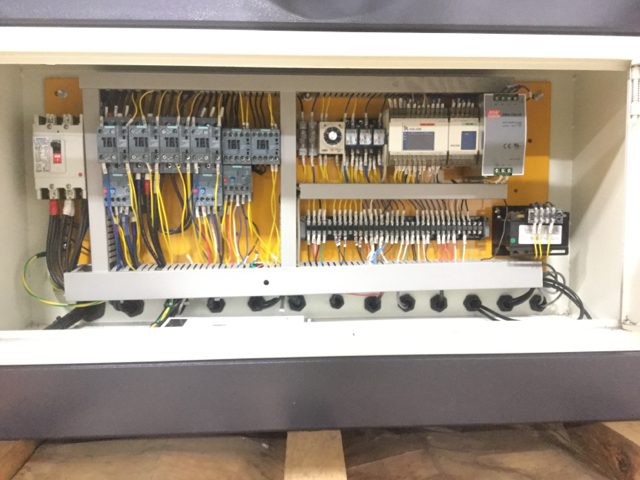

- Electronics = CE Approved Components
- Control Voltage = 230 Volt / 24 Volt
- Assisted Start = Wye-Delta
- Programmable = Elevation
- Touch Screen = 6” Digital Touch Screen
- Operator Panel = Fixed
- Cut Envelope = 6-3/4” x 11-3/4”
- Min. Length = 16”
- Max. Length = Infinite
- Min. Width = 1.5”
- Max. Width = 11-3/4”
- Min. Thickness = 1/4”
- Max. Thickness = 11-1/2”
- Blade Size = 1” x 170” Bandsaw Blade
- No. of Teeth = 4 TPI
- Tooth Spacing = 5/16”
- Blade Kerf = .063 In.
- Blade Speed = 6200 FPM
- Cleaning System = Weighted Wheel Scrapers
- Tracking Style = Manual Adjustment

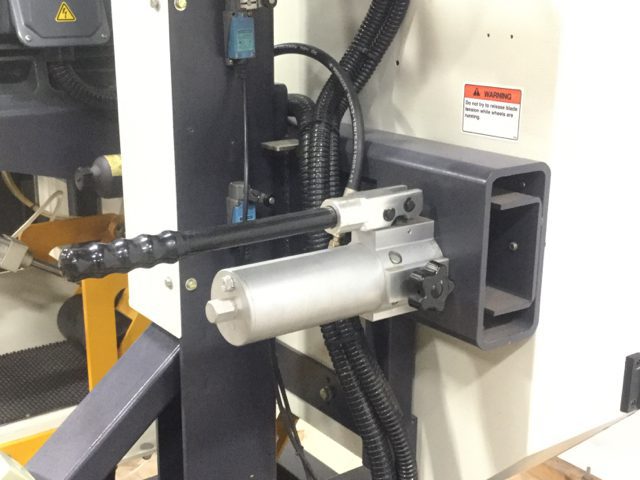

- Tension Style = Hydraulic Tension
- Vertical Travel = 1/4” – 6-3/4”
- Dust Collection = (1) 6” @ 981 CFM
- Dust Port Out = 6” Bottom
- Arbor Diameter = 2”
- Digital Display = 6” Digital Display
- Conveyor = Rubber Belt
- Hold Down Style = (1) Infeed (1) Outfeed Pneumat
- FLR Included = Filter, Lubricator, Regulator
- Recommended CFM = 981 CFM
- Emergency Stop = Push Button
- Rear E Stop = Push Button
- Guarding = Full Cabinet Enclosure

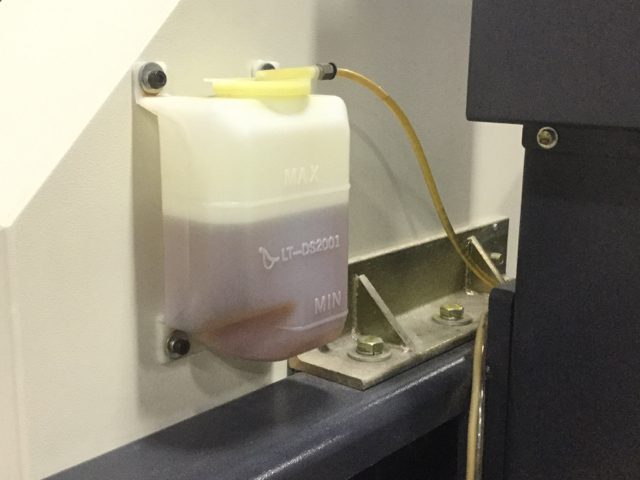

- Oiler = Blade Oil Mister
- Fence Type = Steel
- Fence Dims. = 6-1/2” Tall
- Tiltable = 30 Degree Tilt
- Blade Guide = Steel Blade Guides
- Wheel Dims. = 1” x 28”
- Wheel Cnstr. = Steel Construction
- Frame Const. = 3/16” Steel Construction
- Infeed Table = 11-1/4” x 109”
- Return Conveyor = 7-1/4” x 109”
- Measure Meth. = Precision Encoder
- Decible Rating = 72 dB
- Machine Dims. = 109” x 85-1/2” x 80”
- Packaging Dims = 111” x 89” x 85”
