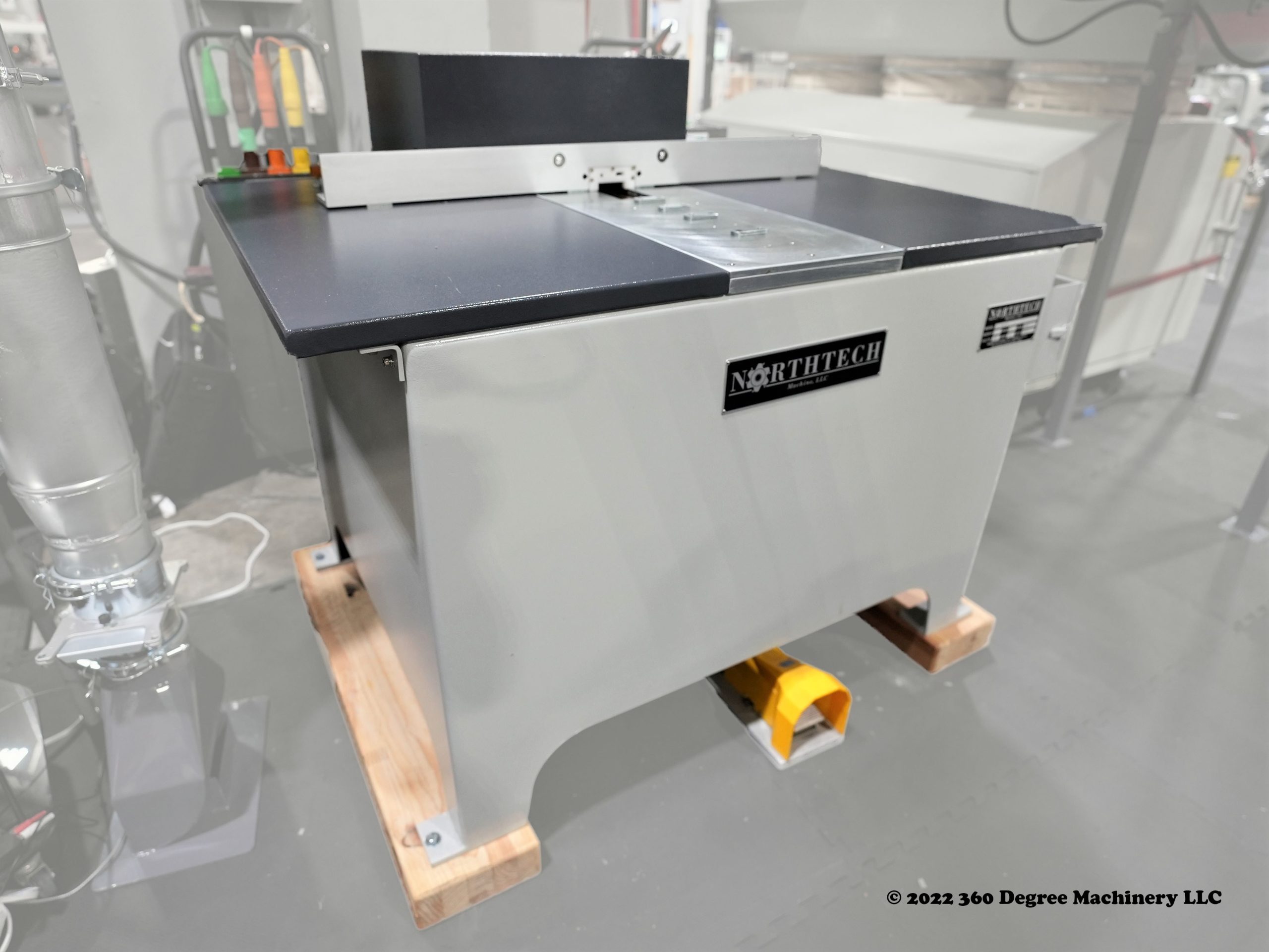

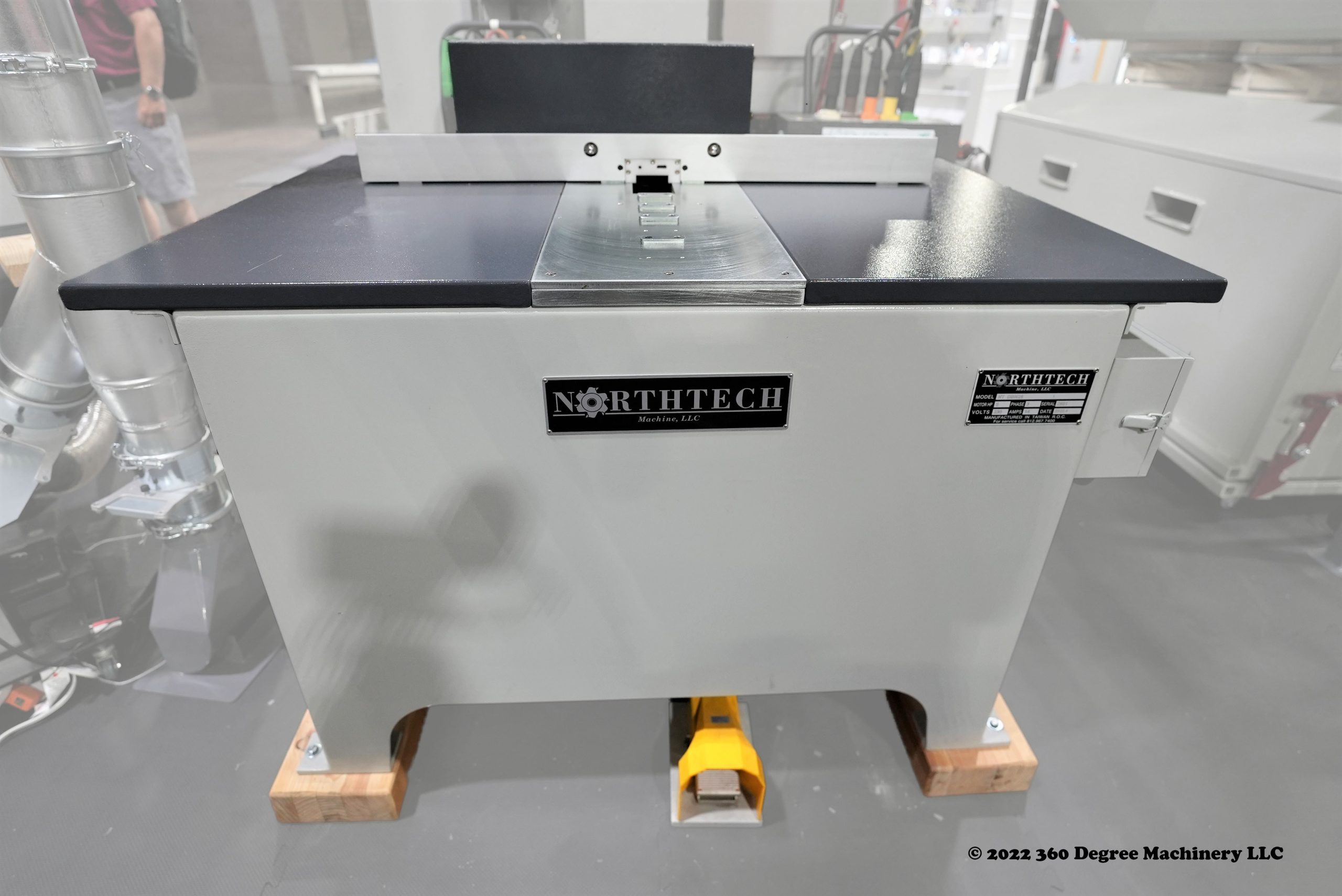

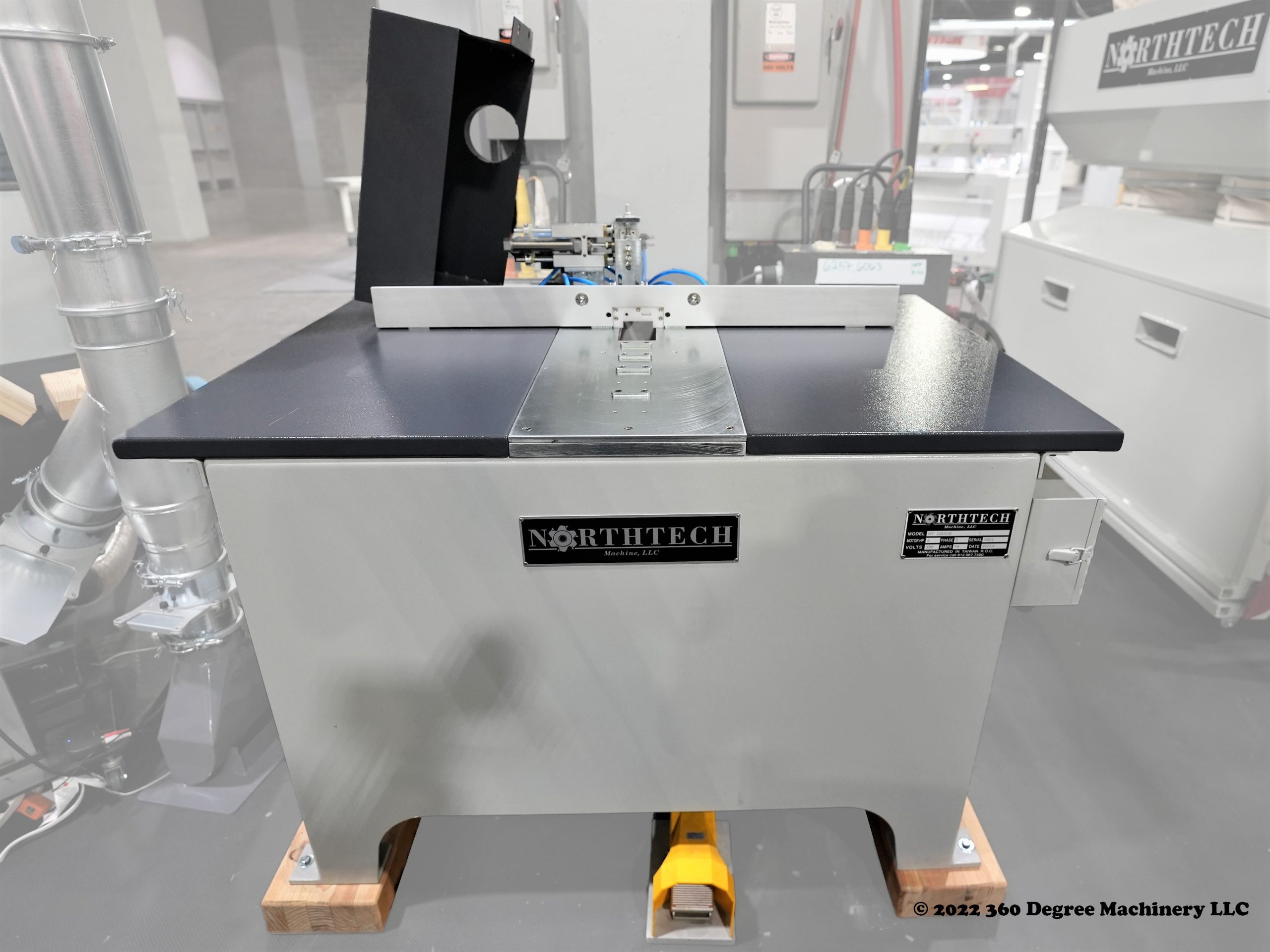

NT-DBN26 Drawer Box Notcher
• Motor 5HP 3PH 230V or 460V 60HZ
• Max notch dimensions: 57mm (2 ¼”) x 0.5” H
• Capable of notching over 200 boxes/hr
• Designed to notch and drill the underside of a drawer box for mounting undermount drawer slides
• Cutter diameter: 10”
• Drill diameter: ¼”

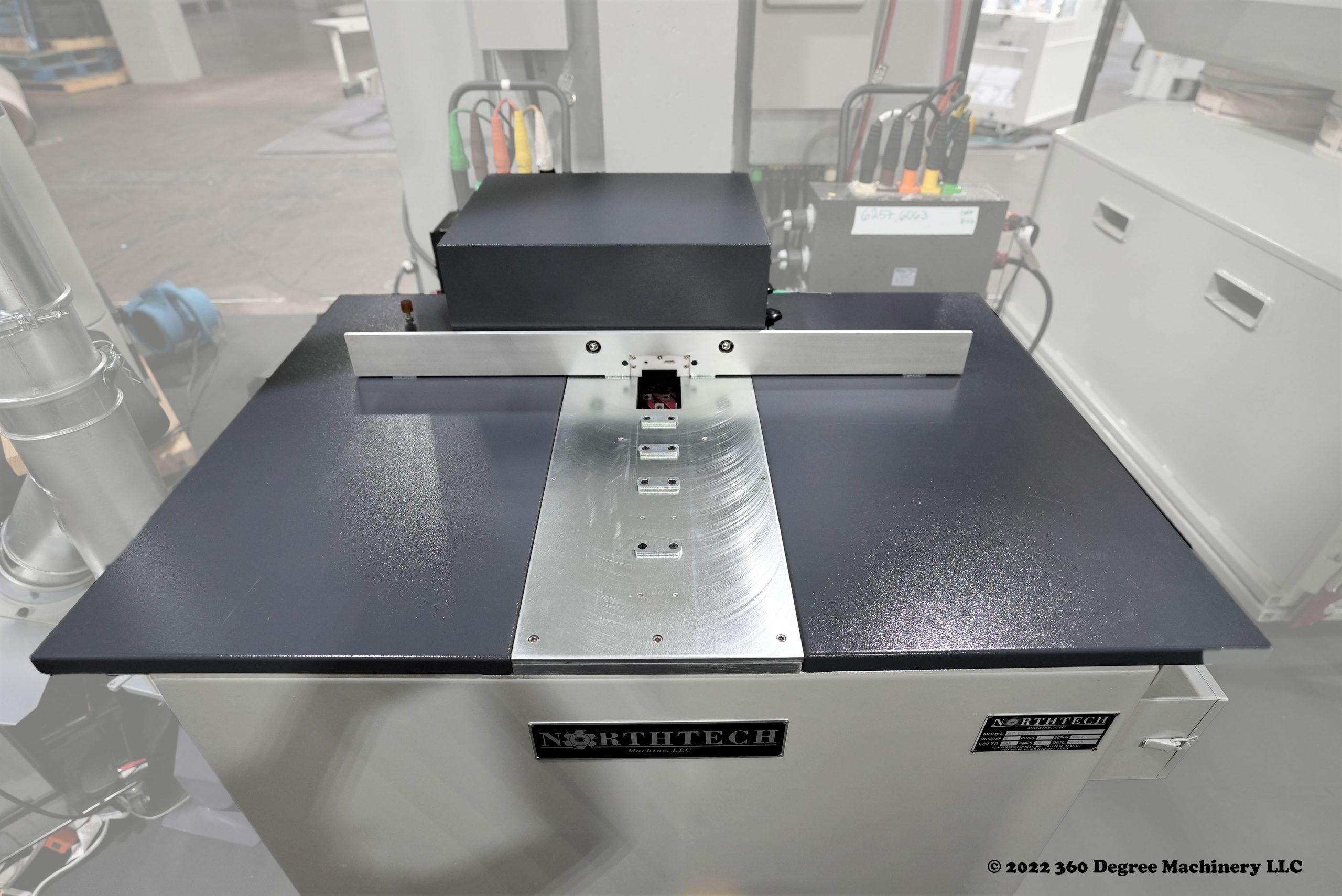

• Table size: 50” x 23”
• Passline: 33”
• (1) Dust port 4” requiring 436CFM at point of extraction

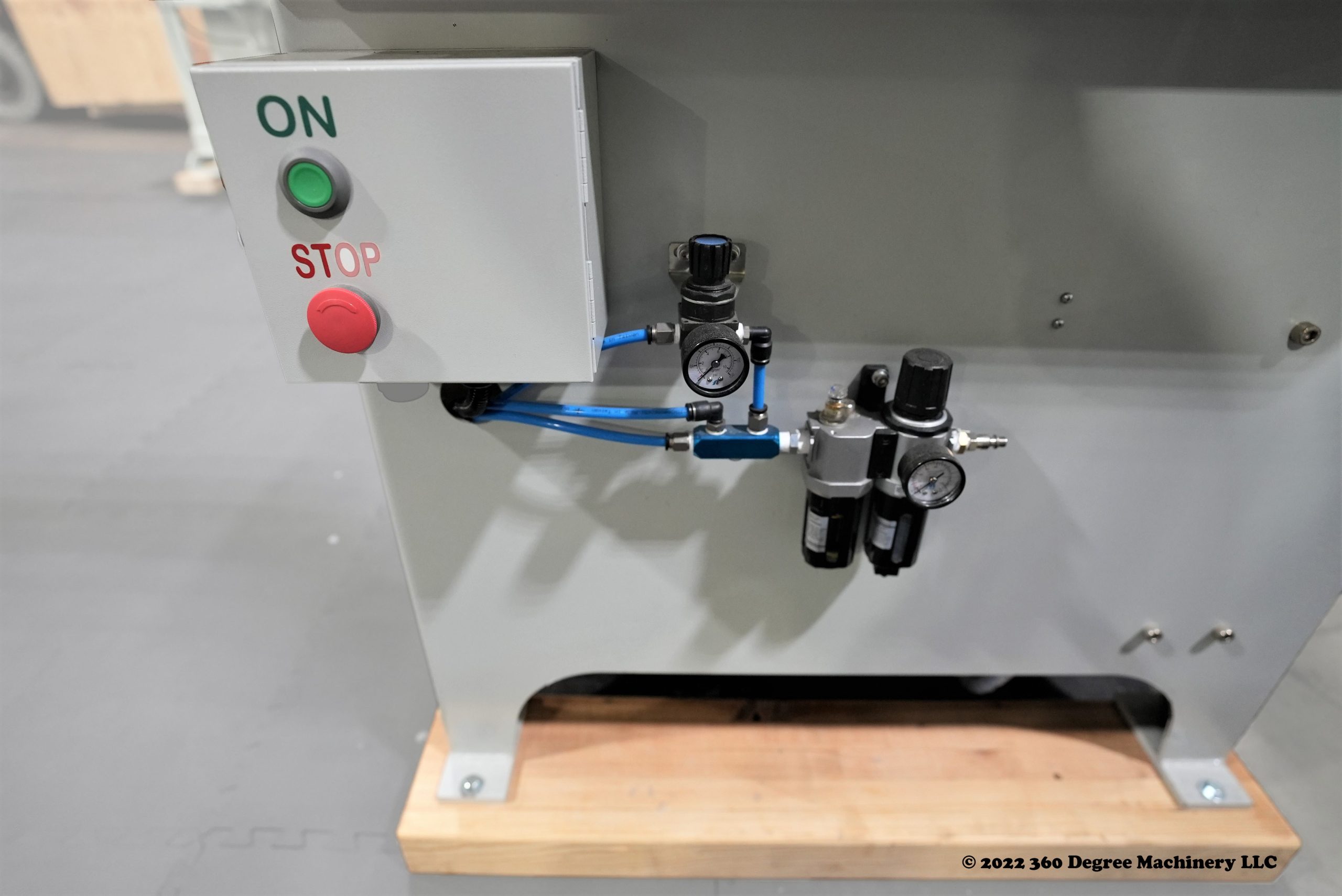

• Compressed air required 90 – 100 PSI

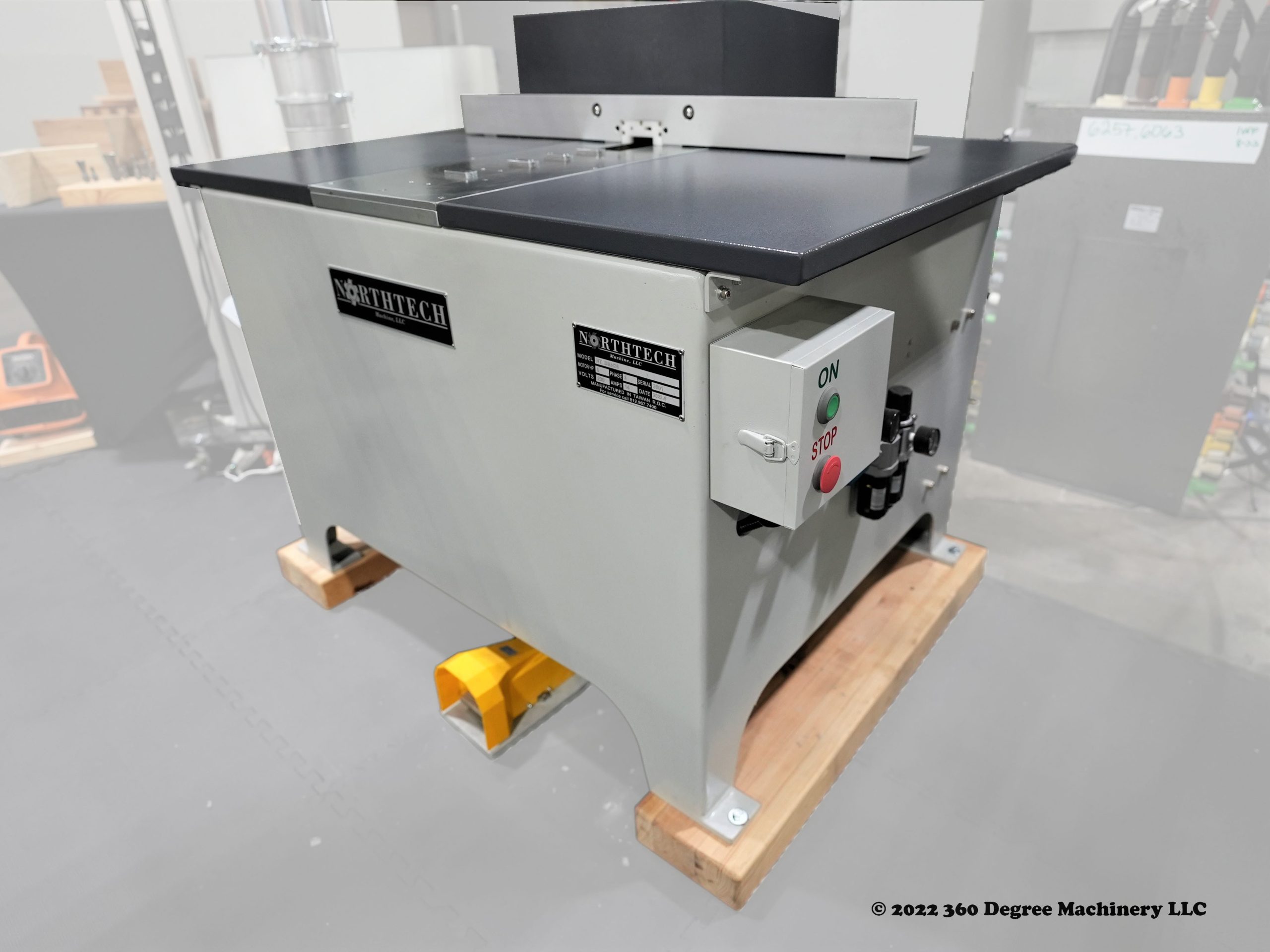

• Pneumatic cutter & drill stroke by foot pedal operation simultaneously for fast cycles
• Cutter stroke and drill speed are adjustable
• Machine will not cycle unless a drawer is up against the switch for safe operation
• Insert knife cutterhead with solid carbide inserts for optimum finish results and long tool life
• Comes with 2-1/4” cutterhead with inserts and ¼” (6.3mm) carbide drill bit
• Machine dimensions (LxWxH): 48” x 38” x 40”
• Machine weight: 650lbs
• Operation and Parts Manual included
• Warranty is one year parts
• All machines are tested stateside prior to shipment providing trouble free start up.
• Northtech offers a full line of drawer building machinery, ask your salesman for information on
Box Sander and Dovetailers
