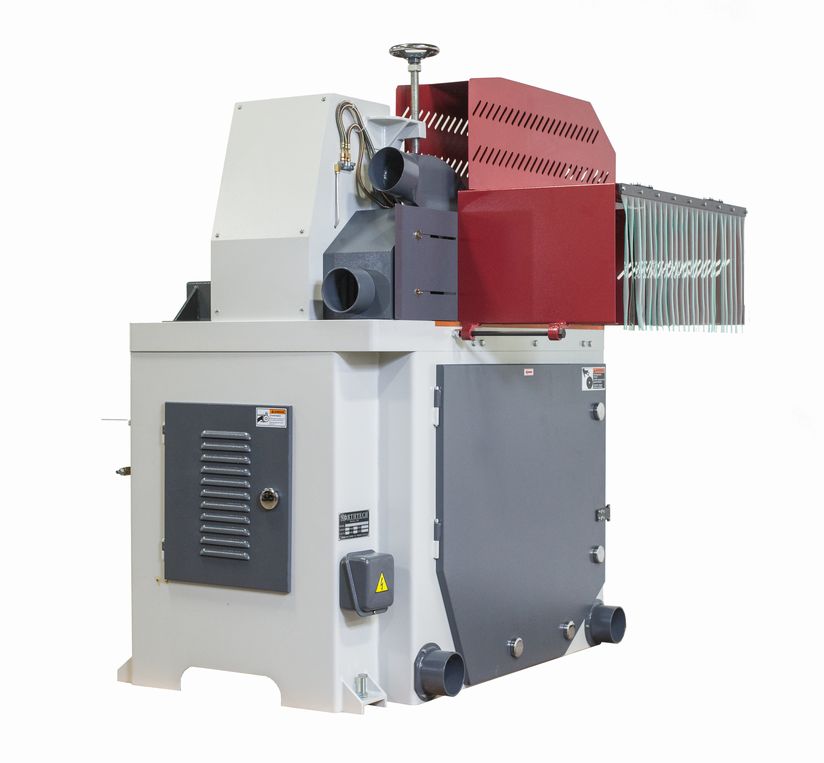

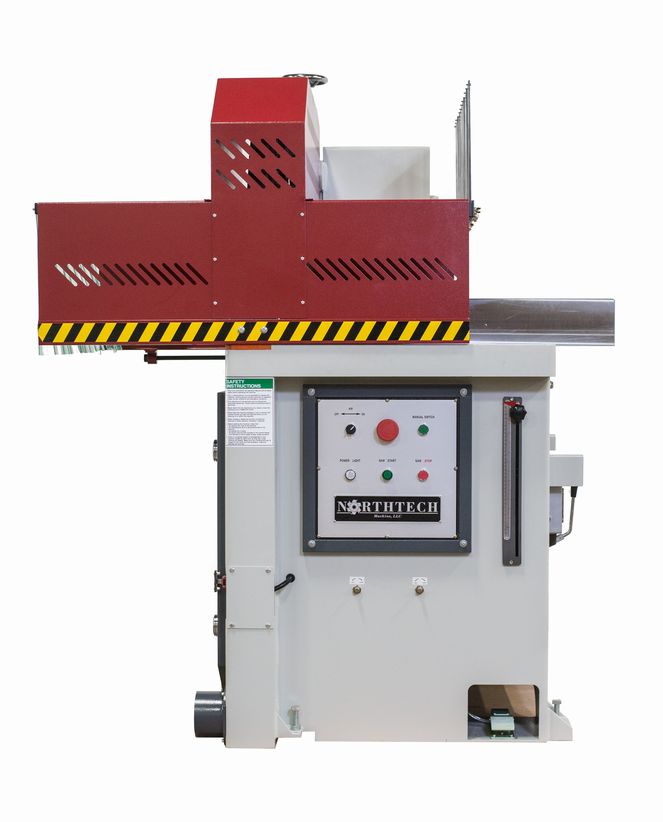

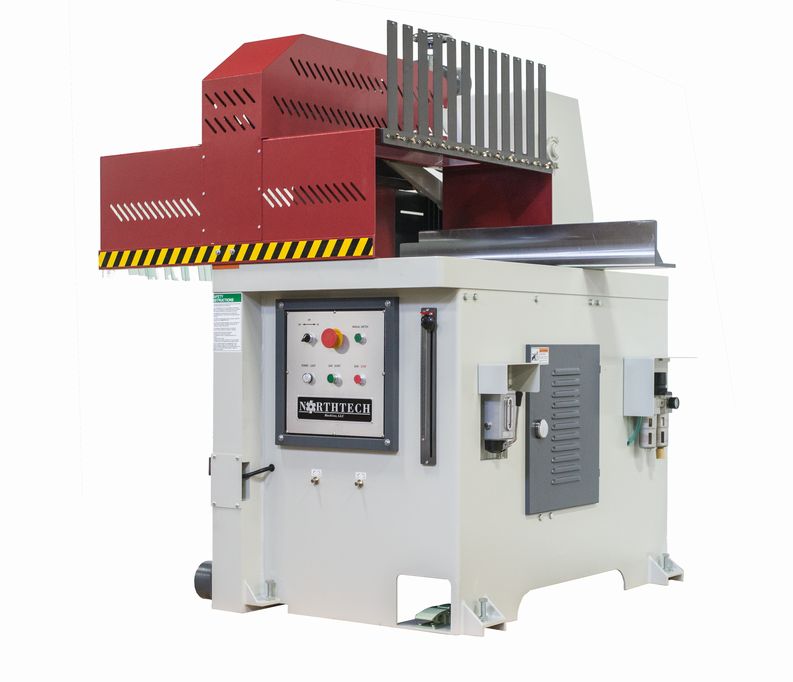

Northtech NT CS36L‑2534 36″ 25 HP Timber Upcut Saw (Left‑Hand Cut) 460V

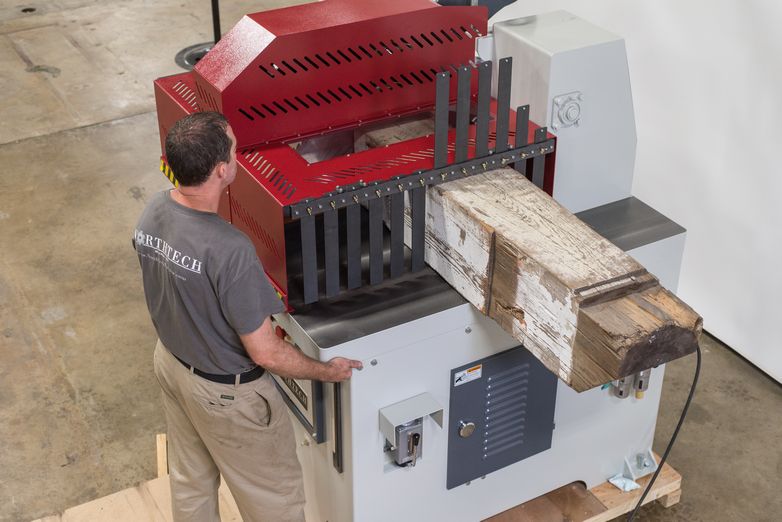

Quickly and safely cut boards and timbers up to 33 inches wide or 12 inches high with this up-cut saw from Northtech. The powerful 25 HP motor and 36″ diameter blade make for fast work with consistent results. Up to 16′ infeed/outfeed tables with flip-stops are optionally available to further improve operator speed and accuracy.

*Be sure to us about the newly-available “UCS” up-cut saw models, which offer advanced features such as extra dust collection and a full zero-clearance fence to help eliminate tear-out!

Add to Quote Request

Specs & Features

PRODUCT DIMENSIONS:

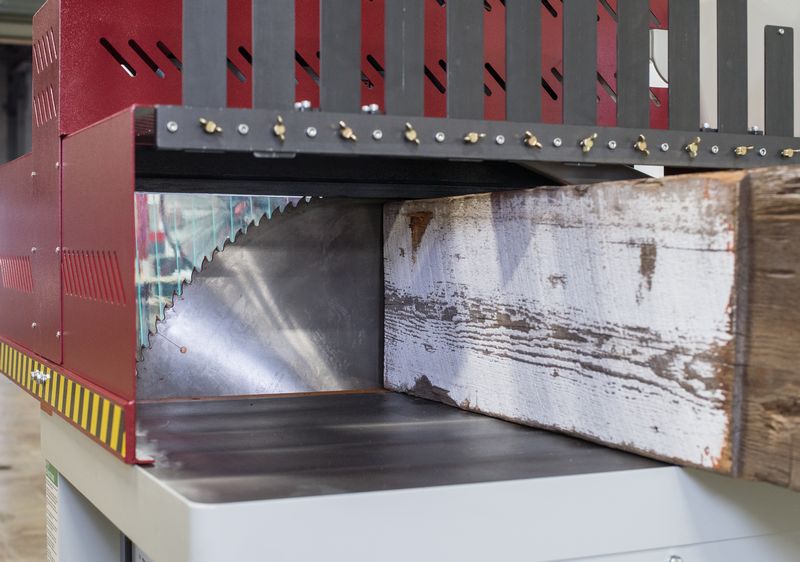

• Max cutting capacity: 2” x 33” 4” x 31” 6” x 29” 8” x 25” 10” x 20” 12” x 12”

FEATURES:

• Motor: 25HP 3PH 460V; (1500 RPM).

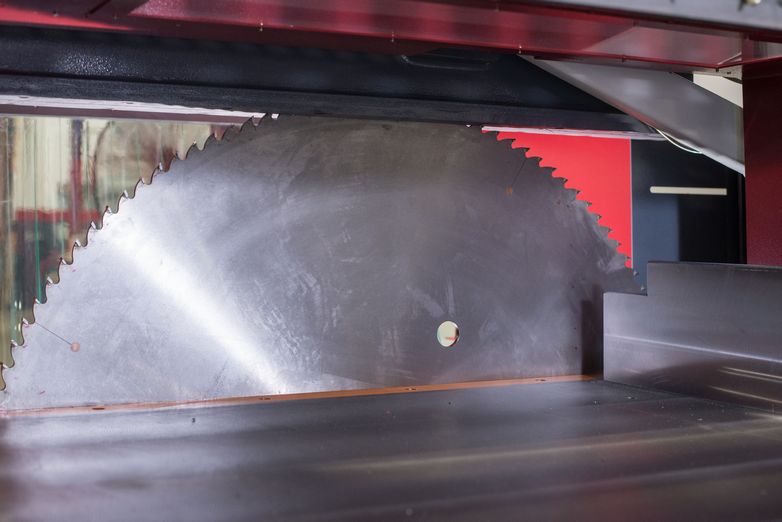

• 36” Carbide tipped blade with 120T included

• 2” Saw arbor diameter

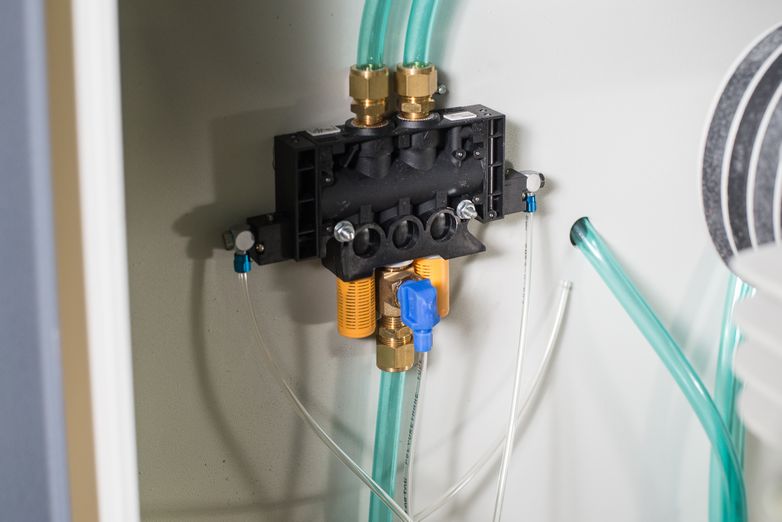

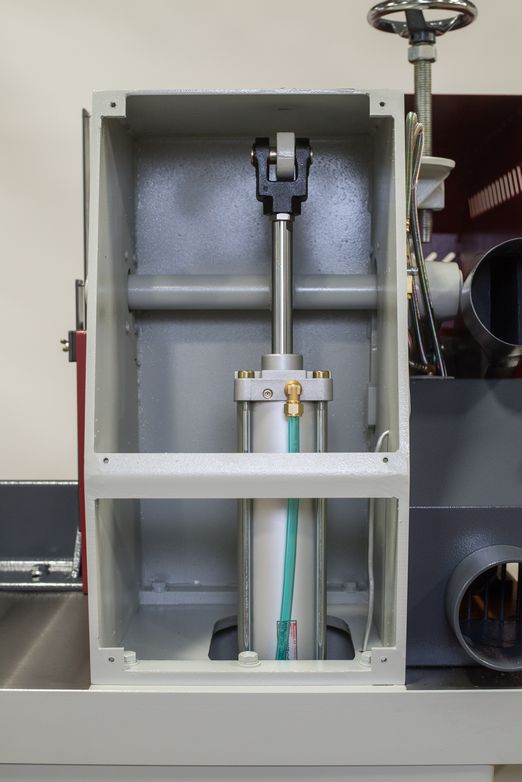

• Cycle operation: Pneumatic

• Table size: 57-3/4” x 34-3/4”

• Safety interlock on blade door.

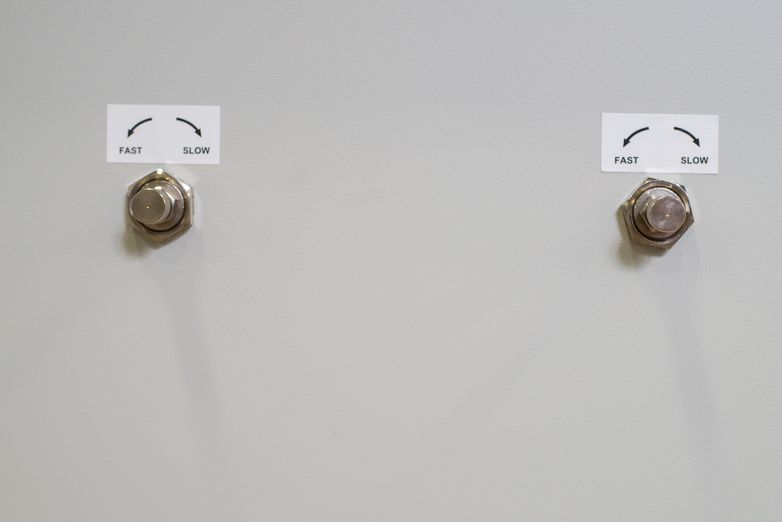

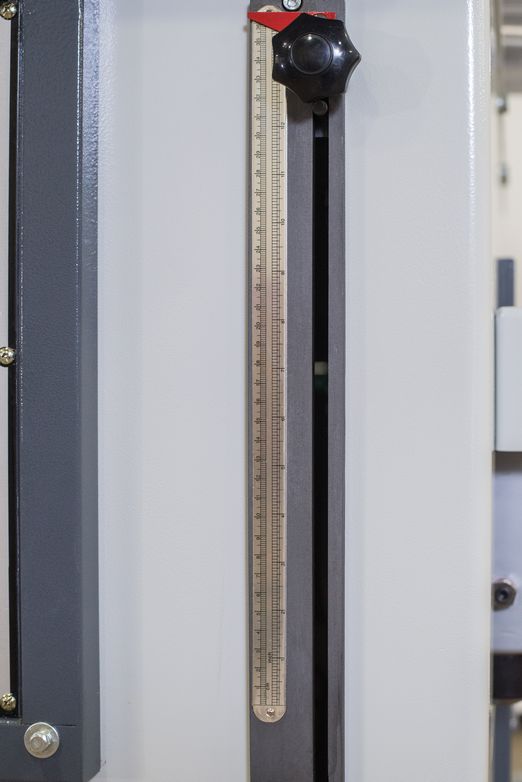

• Quick access in front of the machine to adjust the stroke.

• Net weight: 2,605 lbs. • Gross weight: 2,900 lbs.

• Packing dimensions: (L) 63″ x (W) 45″ x (H) 79″

• (1) Toolbox and manual

• Warranty is one-year parts

• All machines are tested at the factory prior to shipment providing trouble-free start-up.

Options:

• 8’ infeed / 8’ outfeed roller system with (2) gravity flip stops . . .

• 16′ infeed / 16′ outfeed roller system with (2) gravity flip stops . . .

• 36” x 120T carbide tipped blade (standard with saw) . . .

• 36” x 160T carbide tipped blade . . .

• (1) Gravity flip stop . . .

• 230V electrics . . .

• Double palm button actuation in lieu of foot pedal . . .

Specifications:

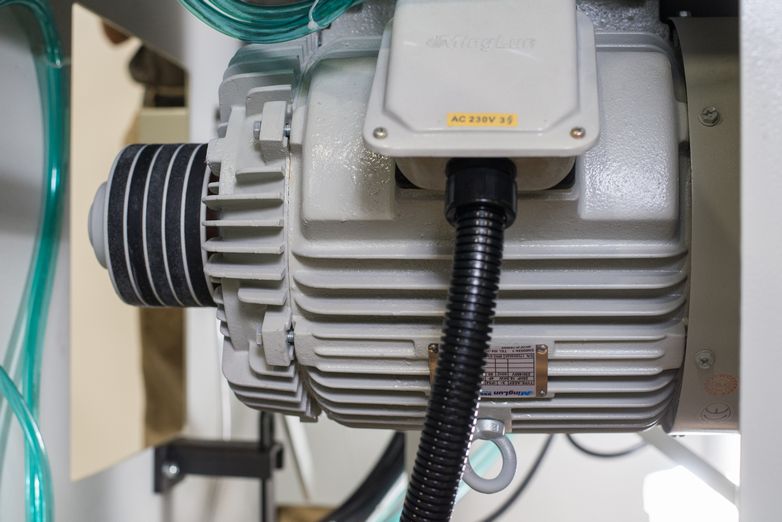

Main Motor Hp. = 25 hp.
Voltage/ Freq. = 460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 30 Amp s
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 24 Volt Control Voltage
Assisted Start = Wye-Delta
Cut Envelope = 2” x 33” 12” x 12”
Max. Width = 2” x 33”
Max. Thickness = 12”
Arbor Rpm = 1500 Rpm
Blade Size = 36” Tungsten Carbide Tipped
No. of Teeth = 120 Tooth
Tooth Spacing = 1”
Blade Kerf = .305 In.

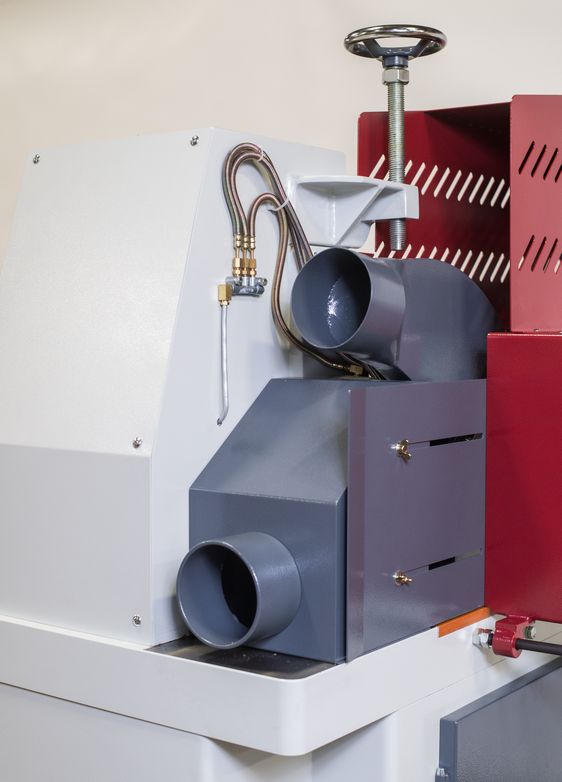

Dust Collection = 681 CFM @ Extraction Point
Dust Port Out = 2- 5” Top 2- 5” Bottom
Arbor Diameter = 2″ Arbor
Cycles/Minute = 14 Cuts Per Minute
Hold Down Style = T Clamp

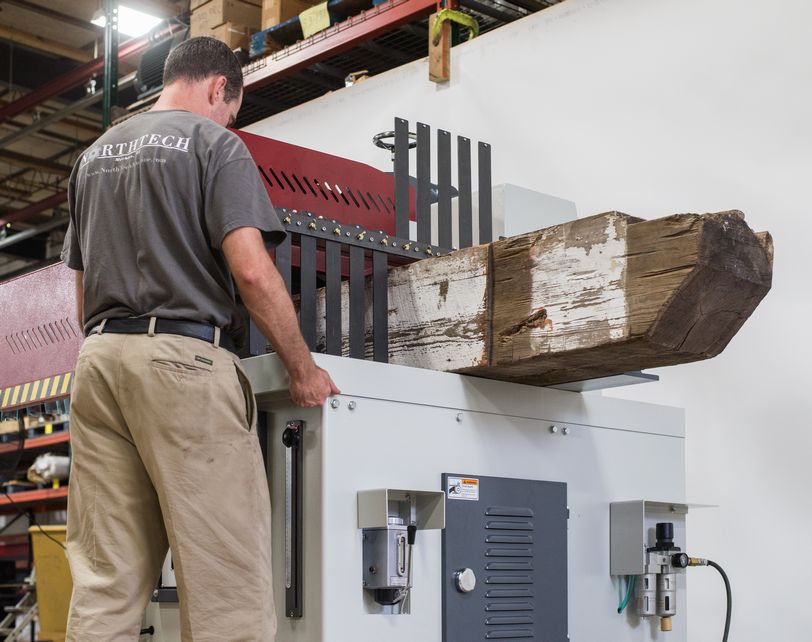

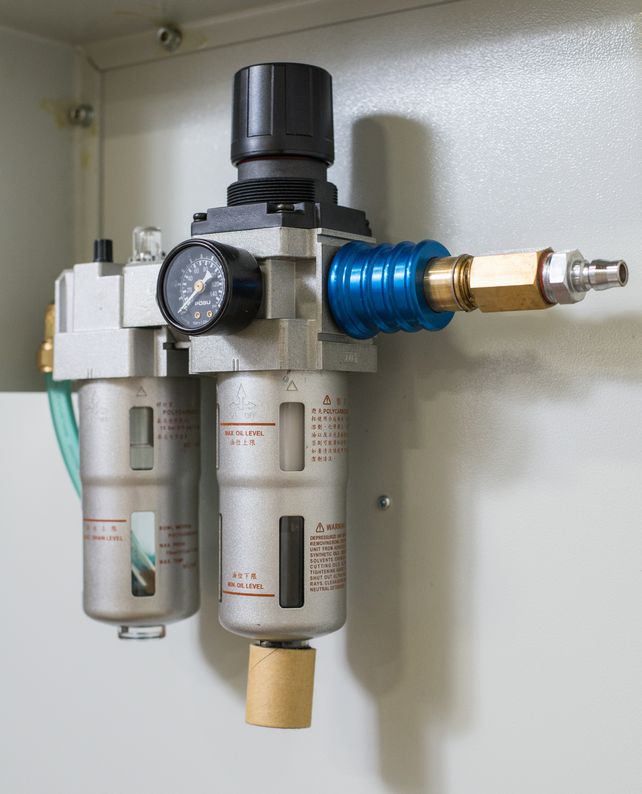

FLR Included = Filter, Lubricator, Regulator
Recommended CFM = 3/8” Supply Line @ 90 Psi

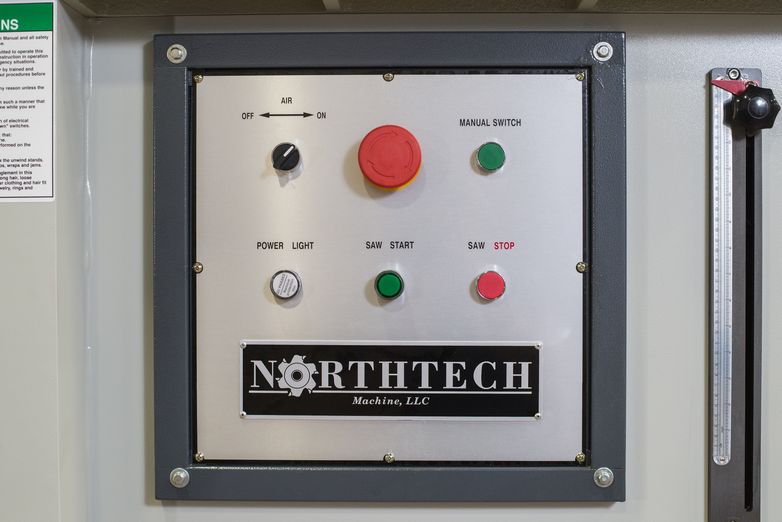

Emergency Stop = Push Button

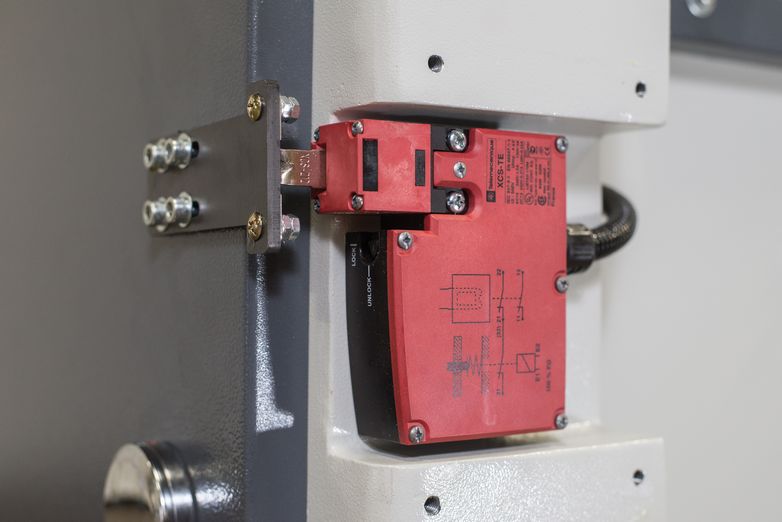

Safety Feature = Safety Interlock Switch
Guarding = High Visibility Guarding

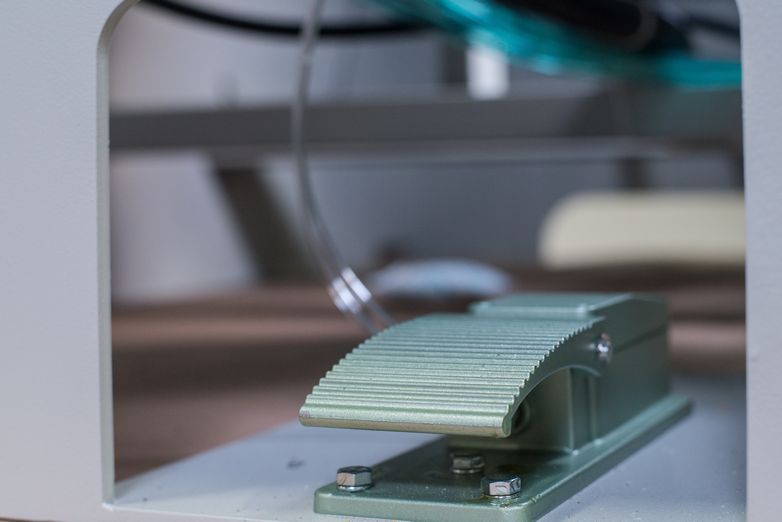

Operation Style = Pneumatic Foot Pedal
Fence Type = Adjustable
Fence Dims. = 3” x 39-3/4”
Frame Const. = 1/4” Steel Construction
Worktable Dims. = 34-3/4” x 57-3/4”
Table Const. = Cast Iron
Decible Rating = 79 dB
Net Weight = 2605 Lbs.
Gross Weight = 2900 Lbs.
Machine Dims. = 66” x 58” x 78”
Packaging Dims = 62” x 45” x 79”
