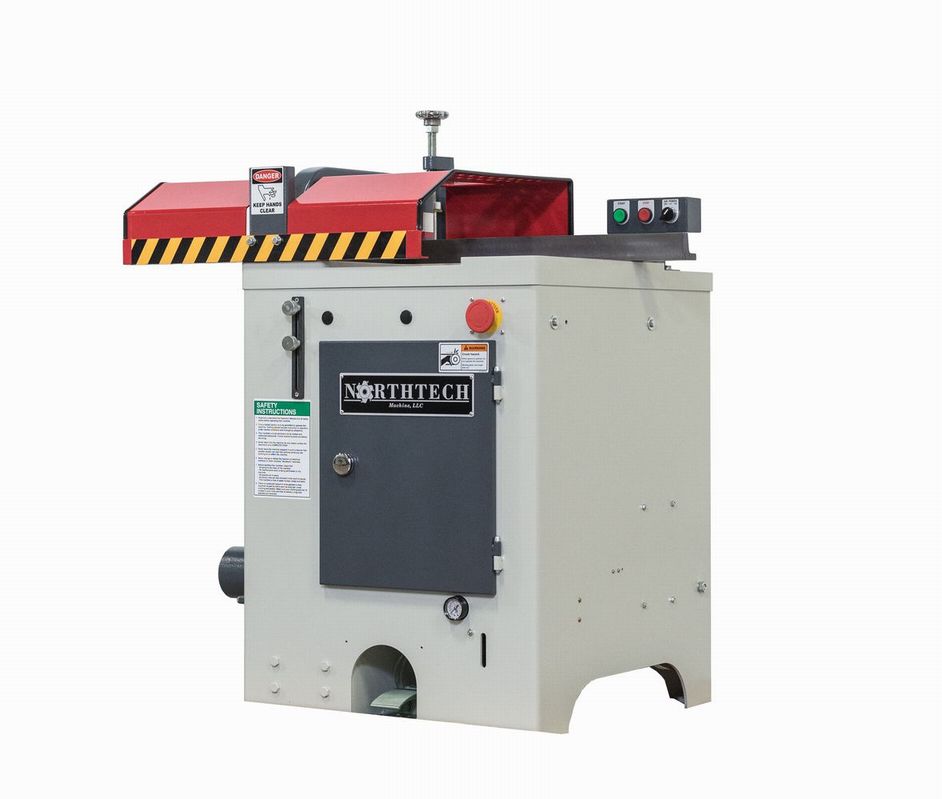

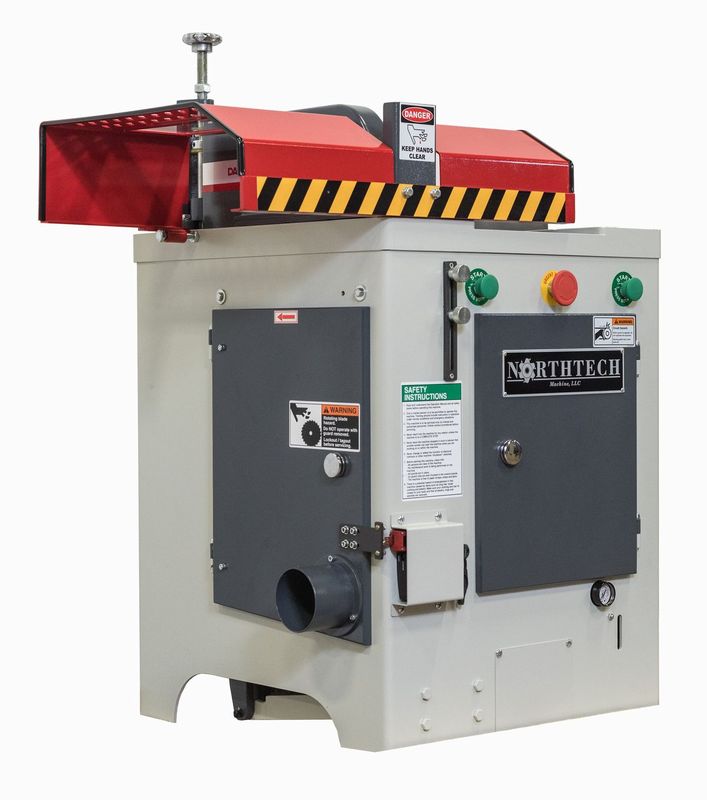

Northtech NT CS18LPBA‑1032 18″ 10 HP Upcut Saw With Dual Palm Buttons (Left‑Hand Cut) 230V

Northtech NT CS18LPBA‑1032 18″ 10 HP Upcut Saw With Dual Palm Buttons (Left‑Hand Cut) 230V

Categories , , , , Tags , Brand:

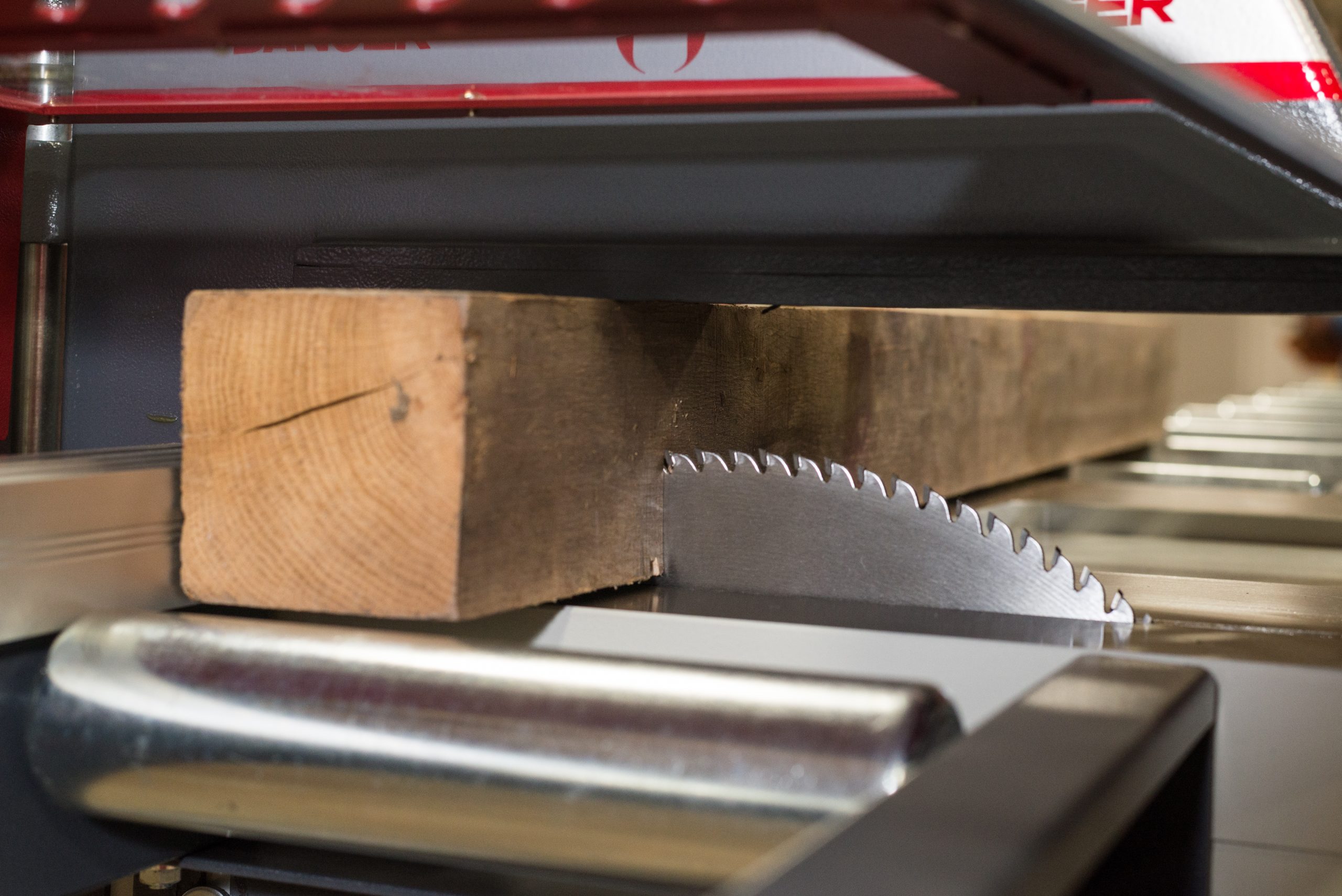

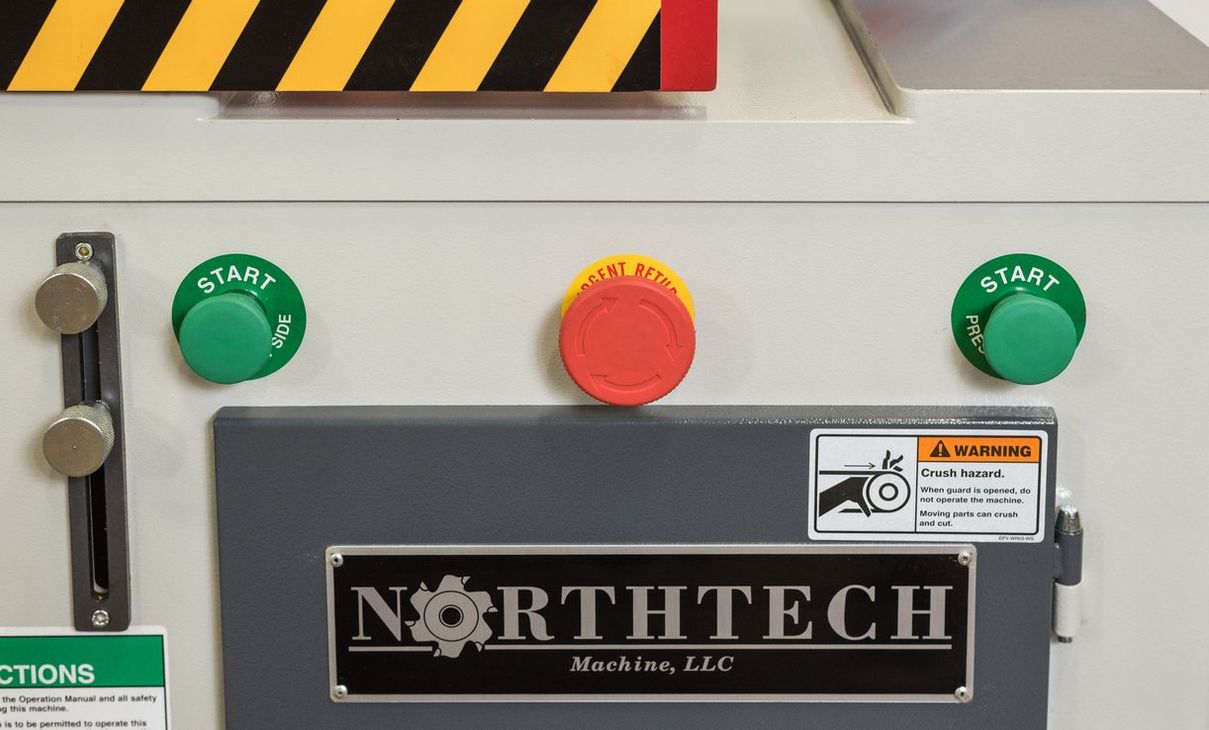

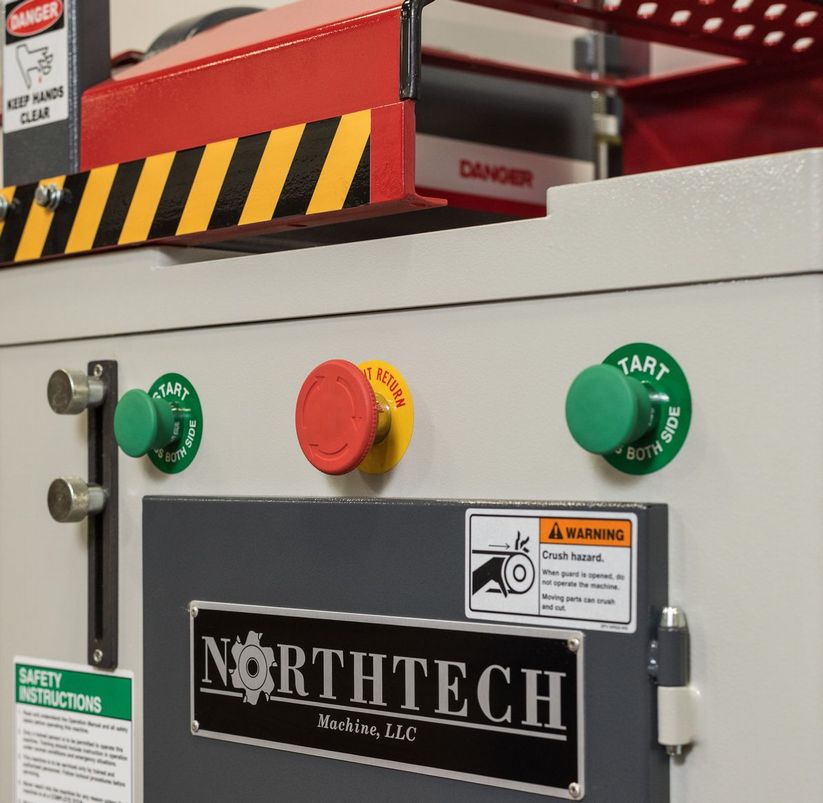

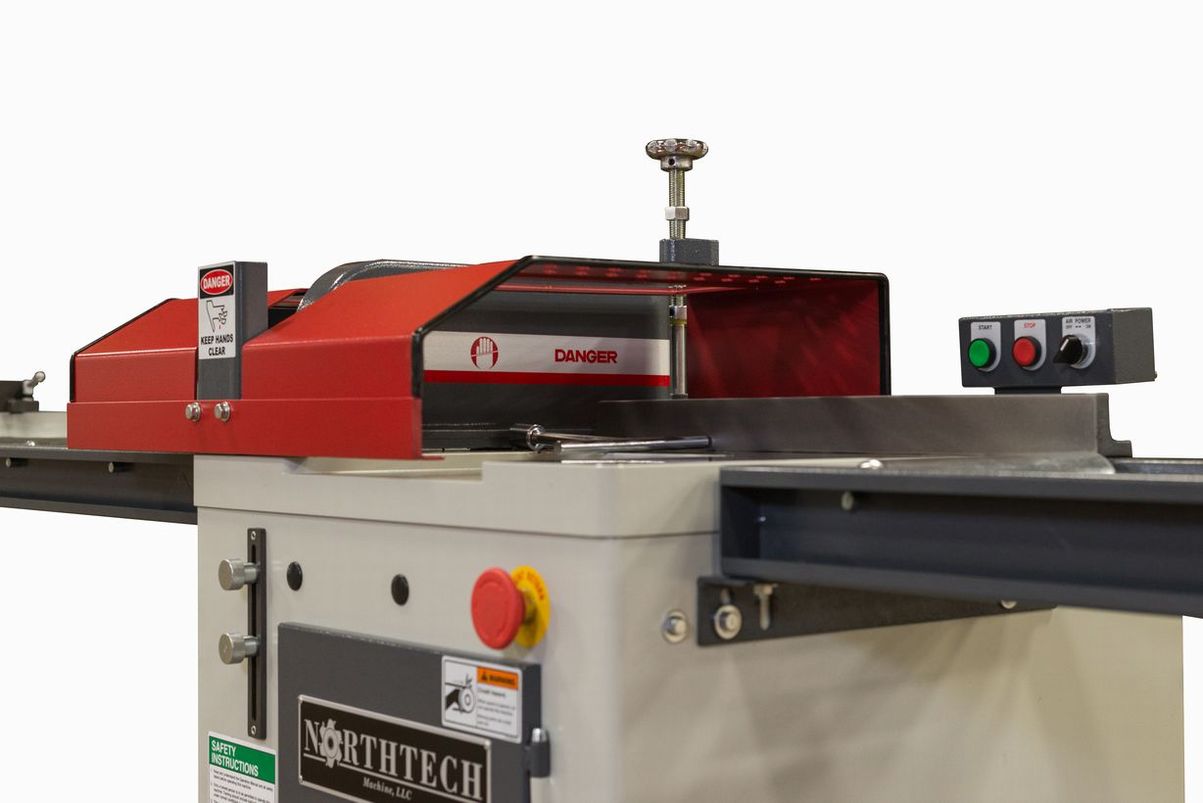

This innovative up-cut saw from Northtech quickly and safely cuts boards up to 13-1/2 inches wide or 4 inches high. The powerful 10 HP soft-start motor and 18″ diameter blade consistently produce clean and accurate results. This model is equipped with a double-palm button start for increased safety. Up to 16′ infeed/outfeed tables with flip-stops are optionally available to further improve operator precision and productivity.

*Be sure to ask us about Northtech’s new “UCS” up-cut saw models, which offer advanced features such as extra dust collection and a full zero-clearance fence to help eliminate tear-out!

Add to Quote Request

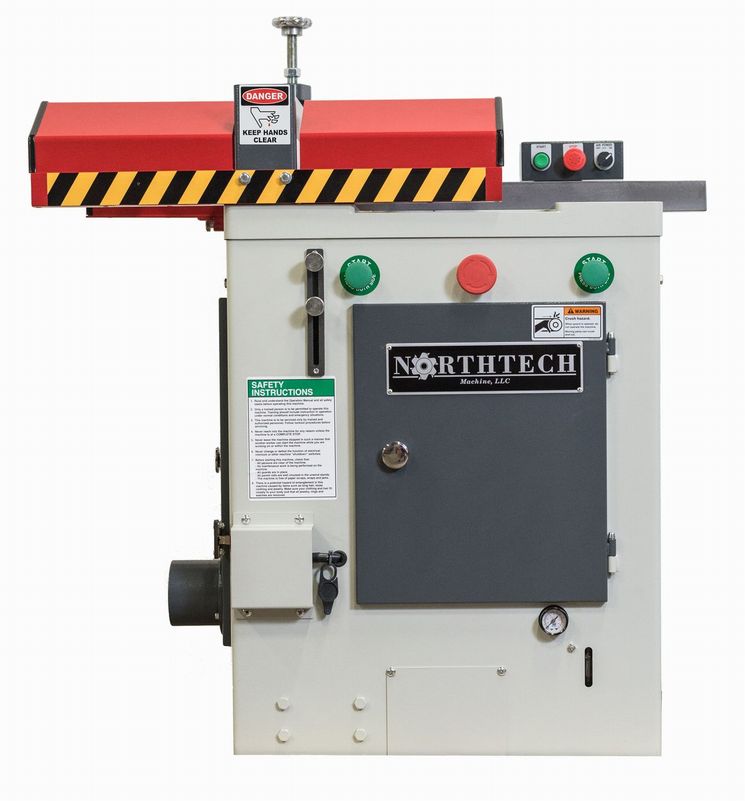

Features

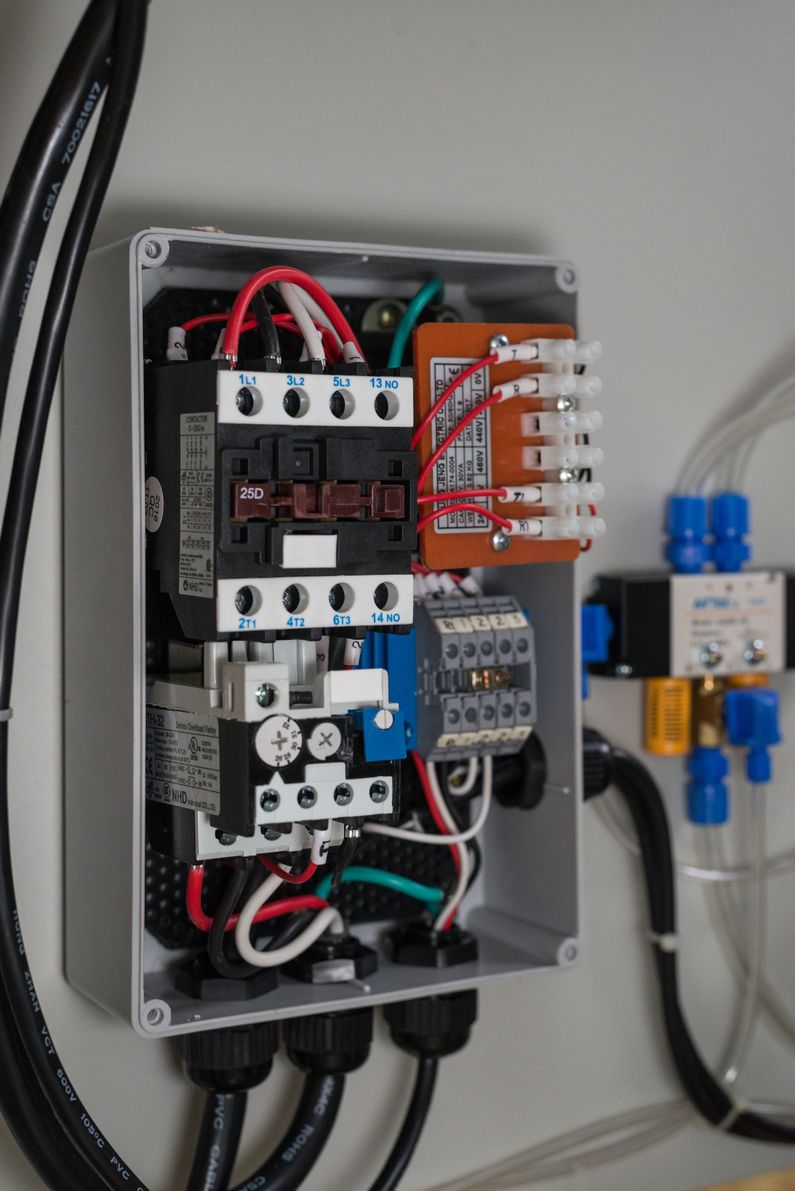

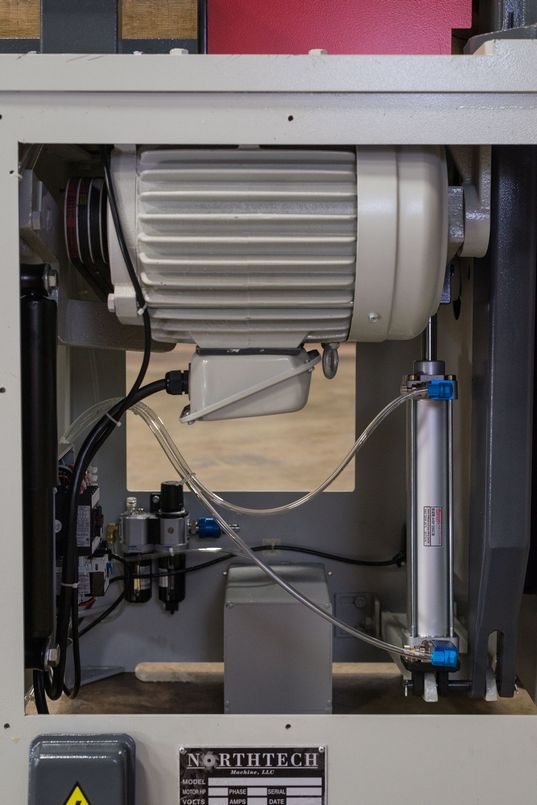

  •    10HP motor, 3PH  230V with 24V magnetic controls

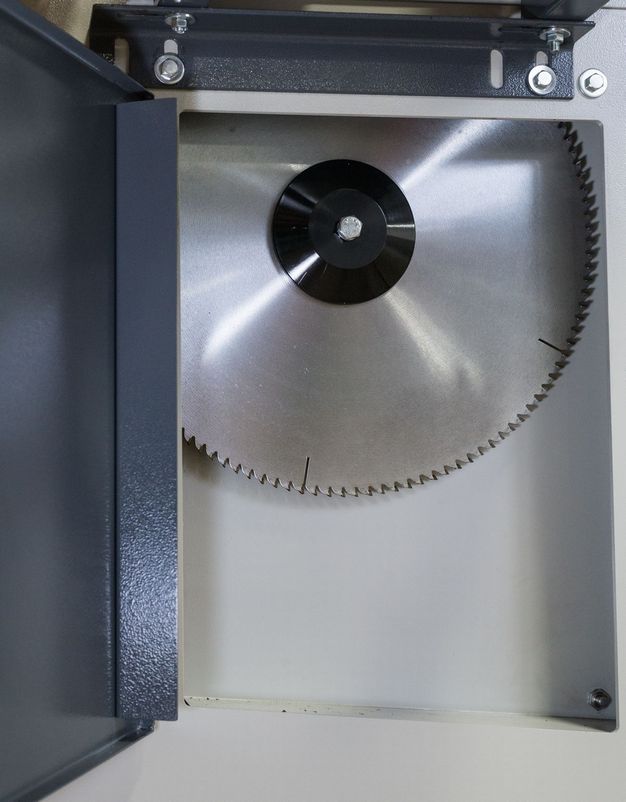

  •    18” 120T Carbide tipped blade included
  •    1” Saw arbor diameter

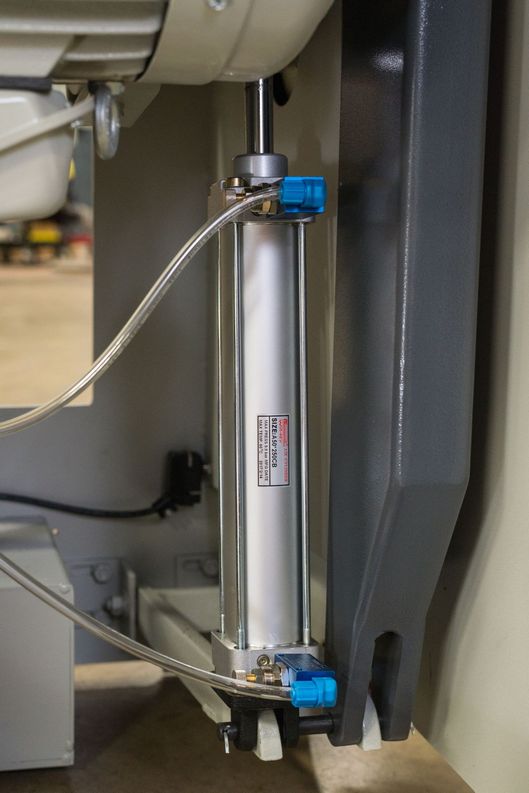

  •    Cycle operation:  Pneumatic
  •    Table size:  26” x  27.25”
  •    Quick access in the front of the machine to adjust blade stroke.
  •    Dust requirements:  (1) 4″ dust port requiring 450 CFM at point of extraction
  •    Net weight:   730 lbs.
  •    Gross weight:   890 lbs.
  •    Packing dimensions:  (L) 33″ x (W) 33″ x (H) 46″
  •    (1) Toolbox and manual
  •    Warranty is one-year parts
  •    All machines are tested stateside prior to shipment providing trouble-free start-up.
Cut Capacities
  •    Max cutting capacity: 1” x 13-1/2”,  2″ x 12″, 3″ x 11″, 4″ x 10″
Options

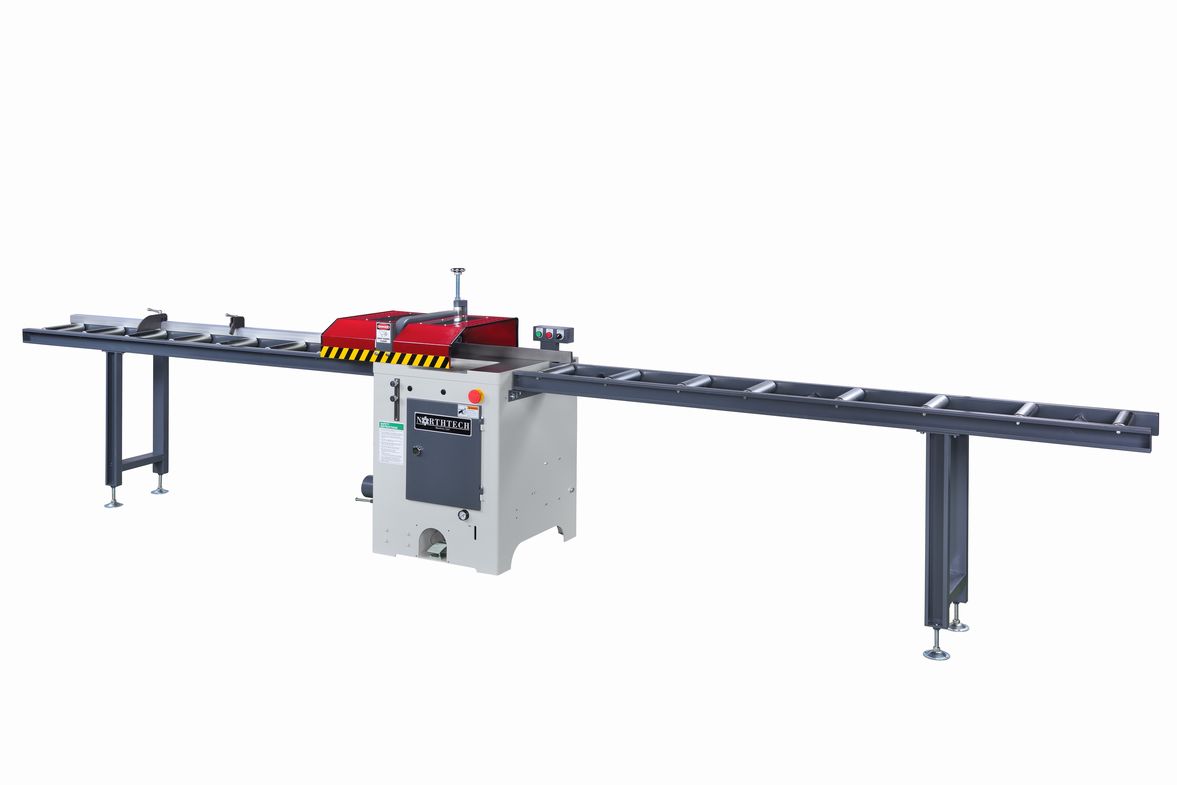

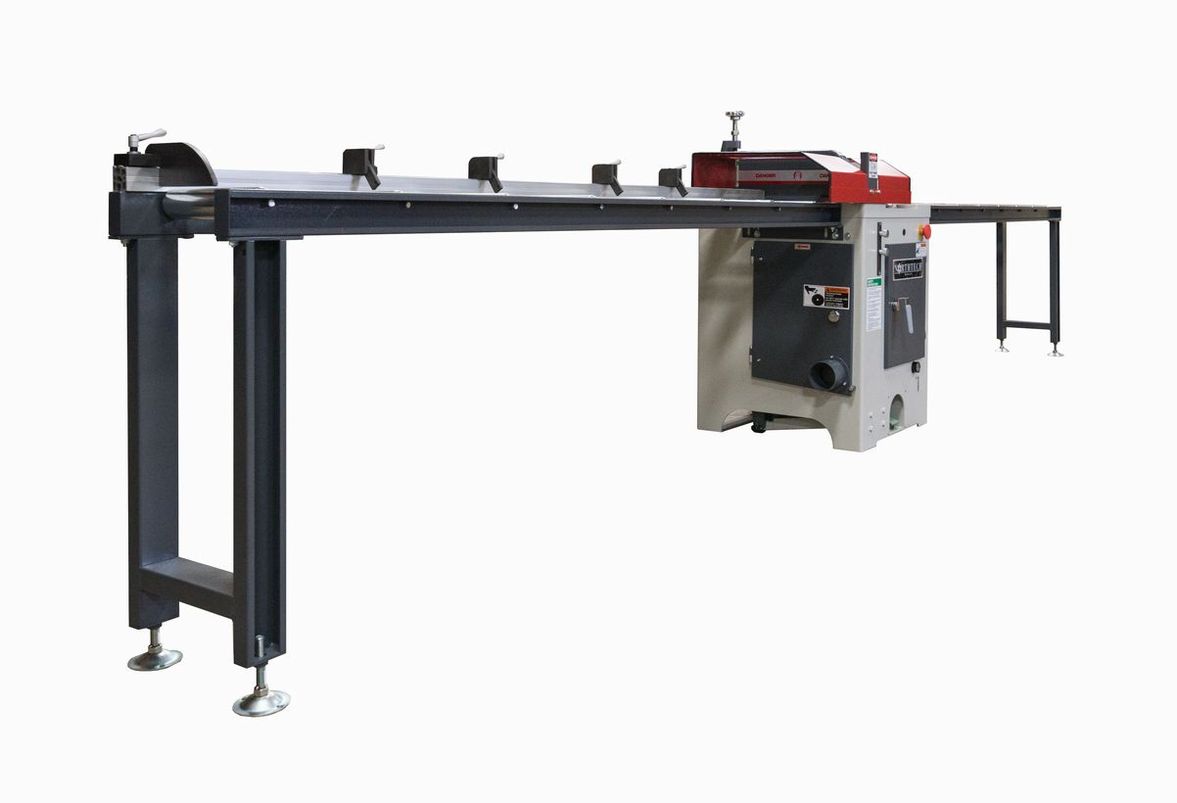

  •  8’ infeed and 8’ outfeed with fence, legs, (2)gravity flip stops
  •  16’ infeed and 16’ outfeed with fence, legs (4) sets, (2) gravity flip stops
  •  Custom infeed/outfeed rollers up to 40’
  •  18″ x 80T carbide-tipped blade
  •  18” x 100T carbide-tipped blade
  •  18” x 120T carbide-tipped blade
  •  (1) Gravity flip stop
  •  460V  3-phase power
  •  Safety interlock for blade access
  •  Rigid stop

Specifications

  • Main Motor Hp. = 10 hp.
  • Voltage/ Freq. = 230 Volt 60Hz
  • Phase = 3 Phase
  • Amp Requirement = 24 Amps
  • Electronics = CE Approved Components
  • Dual Voltage = 230/460 Volt
  • Control Voltage = 24 Volt Control Voltage
  • Cut Envelope = 1” x 13” 2” x 12” 4” x
  • Min. Length = 14” from Blade to Gaurd Edge
  • Max. Width = 1” x 13”
  • Max. Thickness = 5”
  • Arbor Rpm = 3600 Rpm
  • Blade Size = 18” Tungsten Carbide-Tipped
  • No. of Teeth = 120 Tooth
  • Tooth Spacing = 15/32 In.
  • Blade Kerf = .135 In.
  • Dust Collection = 4” 450 CFM

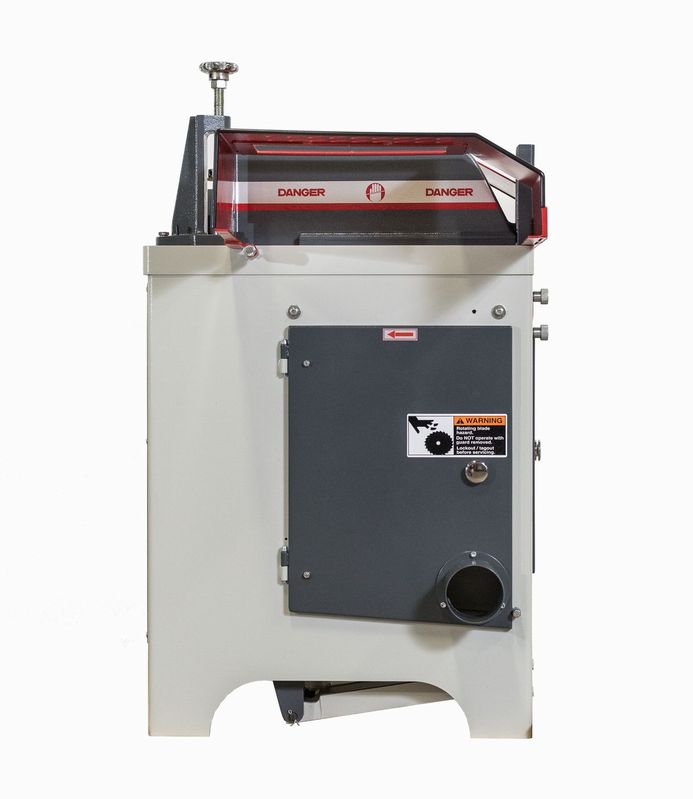

  • Dust Port Out = 4” Bottom
  • Arbor Diameter = 1”
  • Cycles/Minute = 45 Cuts Per Minute

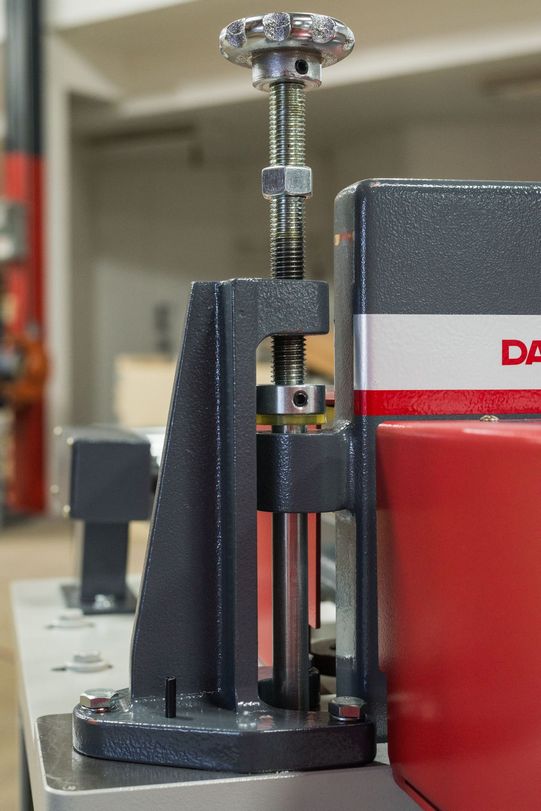

  • Hold Down Style = T Clamp

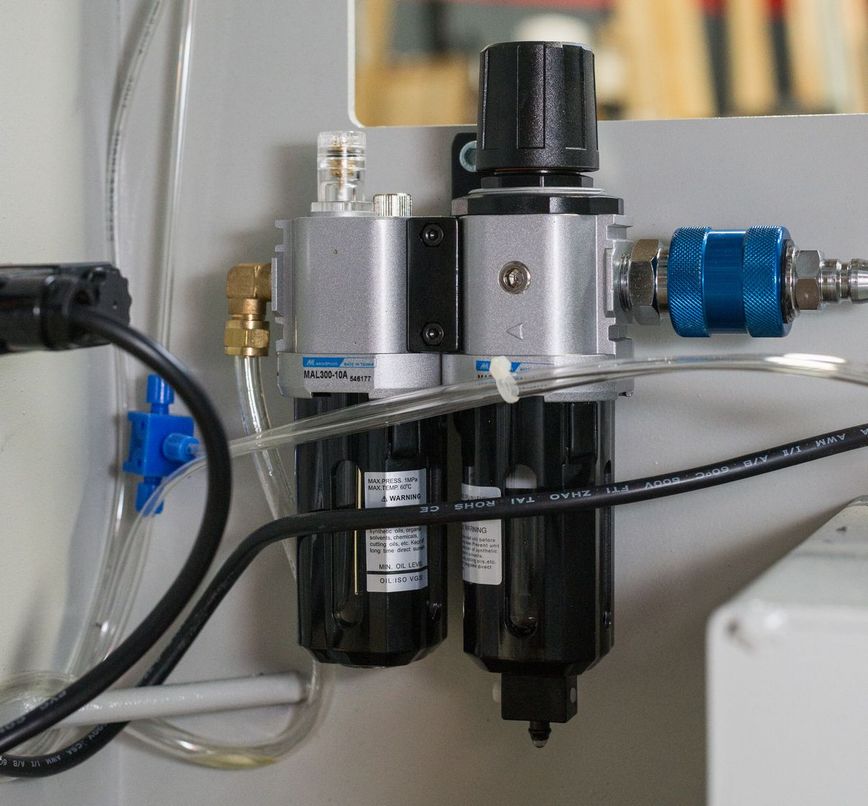

  • FLR Included = Filter, Lubricator, Regulator
  • Recommended CFM = 480 nl/min

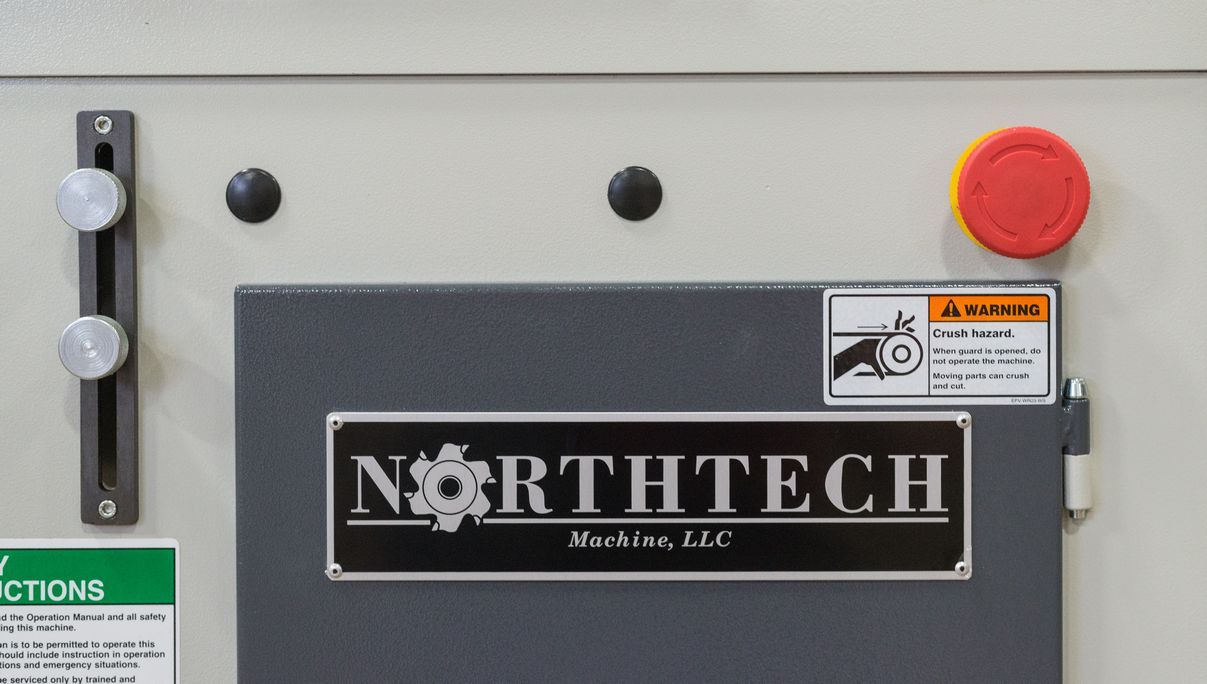

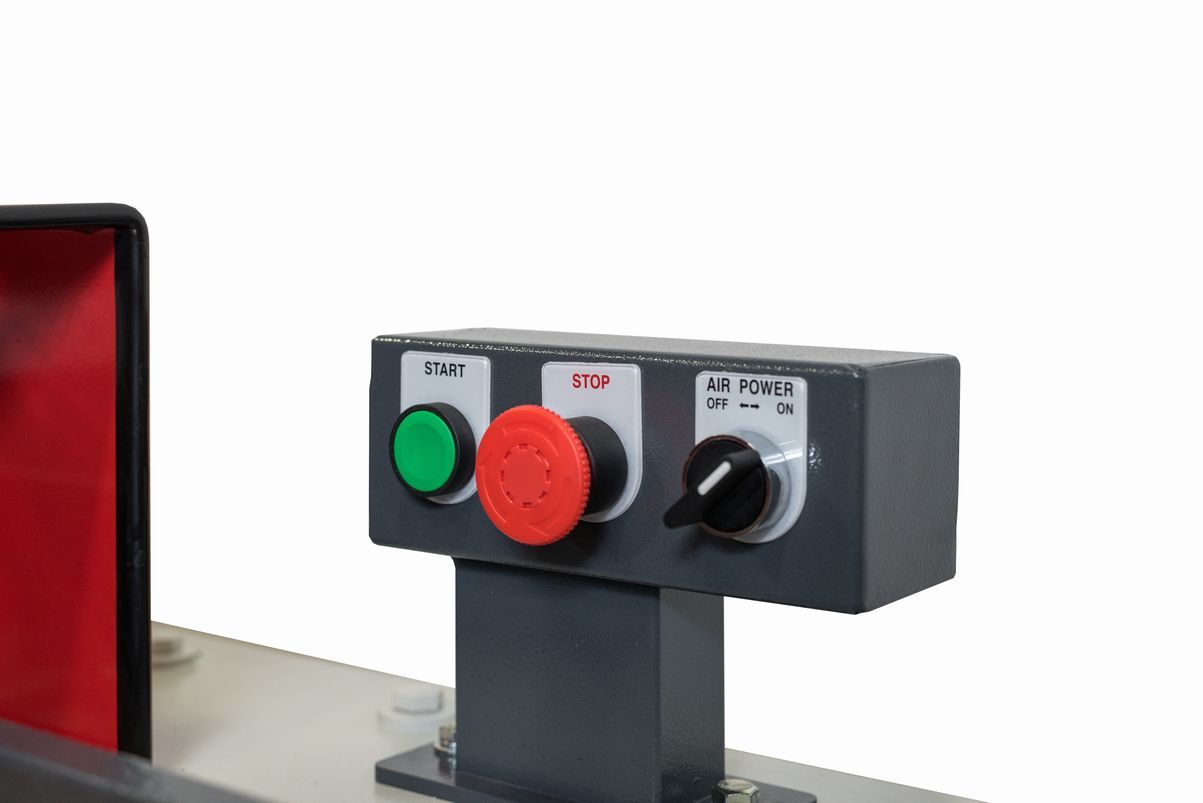

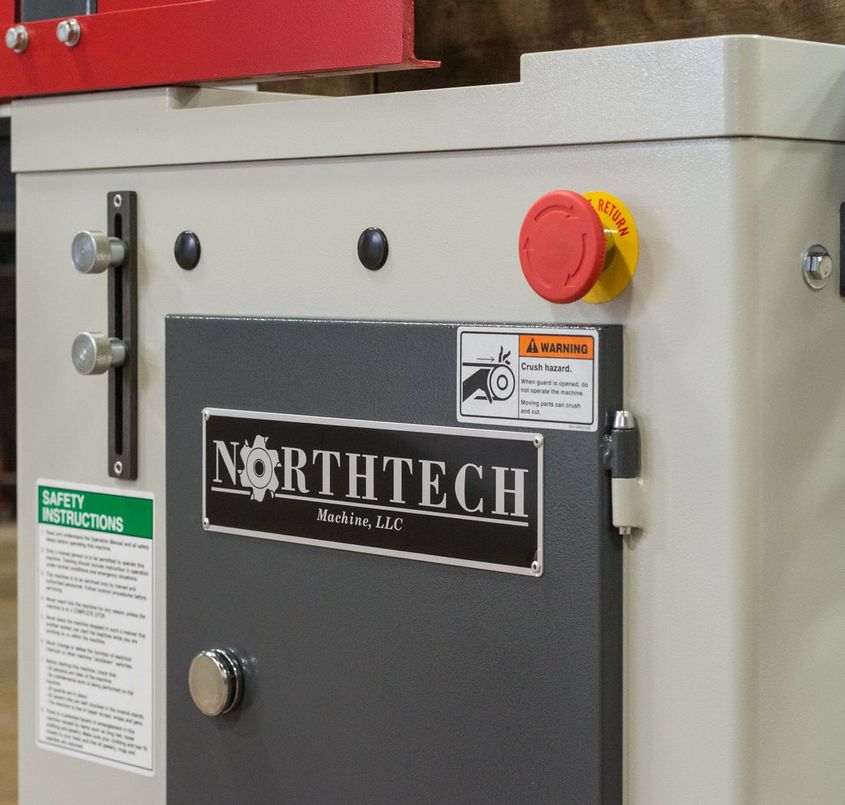

  • Emergency Stop = Push Button

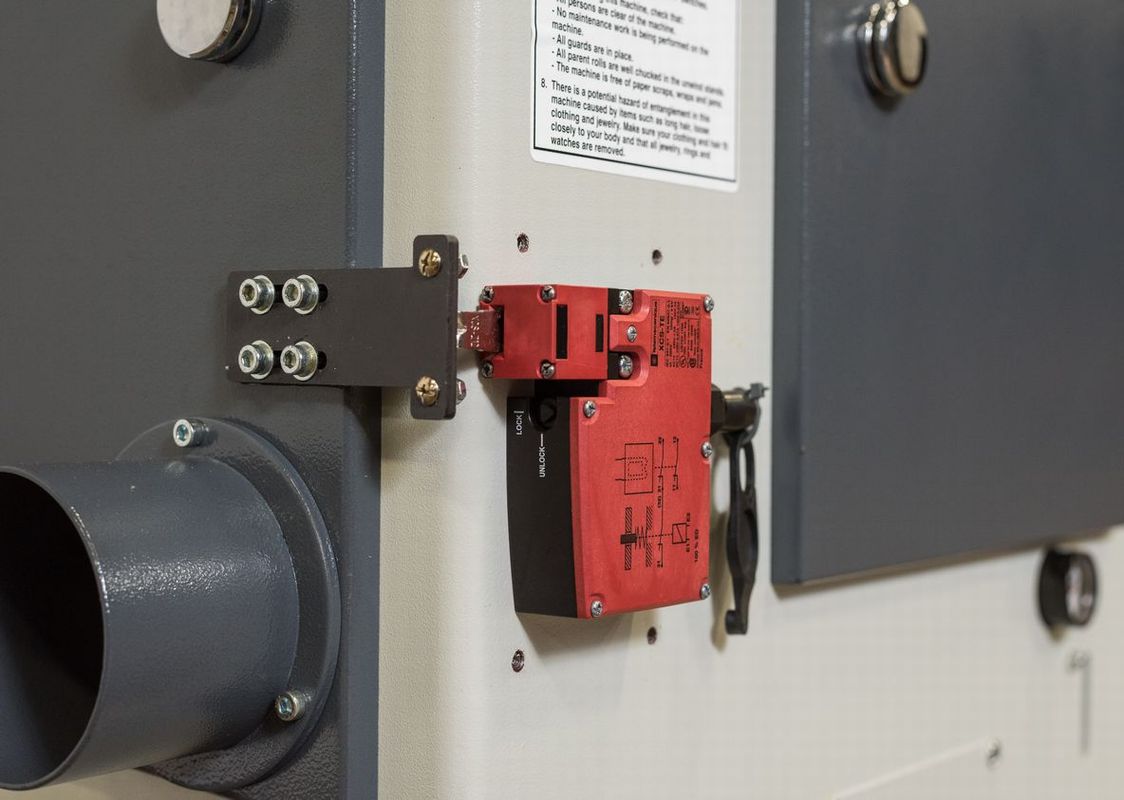

  • Safety Feature = Safety Interlock Switch
  • Guarding = High Visibility Guarding

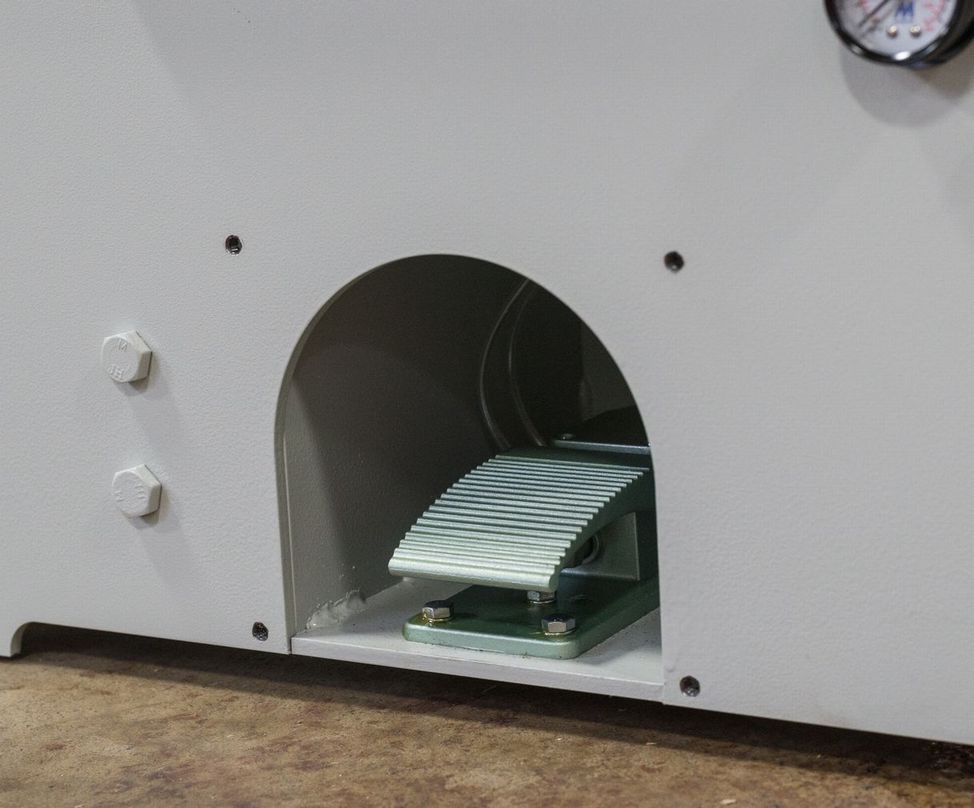

  • Operation Style = Pneumatic Foot Pedal
  • Fence Type = Adjustable Fence
  • Fence Dims. = 2″ x 25”
  • Adjust. Stroke = 2-3/4” Adj. on Arbor Stroke
  • Frame Const. = 1/4” Steel Construction
  • Worktable Dims. = 26” x 27-1/4”
  • Table Const. = Machined Steel
  • Decible Rating = 78 dB
  • Net Weight = 730 Lbs.
  • Gross Weight = 890 Lbs.
  • Machine Dims. = 26” x 27-1/4” x 49-1/2”
  • Packaging Dims = 40” x 48” x 55”

FREE SHIPPING DOES NOT APPLY TO PRE-OWNED MACHINERY

Please Contact us for a shipping quote for Pre-Owned Machinery and or New machinery below $6,000.

***Some restrictions apply for free freight on NEW machinery over $5,999. FREE freight is to a commercial address with a dock and or forklift. EXTRA FEES may apply to accessorials like restricted access, residential drops, liftgates, and excessive lengths.

Applies to lower 40 of the contiguous states only. AZ, CA, ID, MT, NV, OR, UT, & WA do not qualify for free shipping. We can split ship to these states from $5,999 and up. Free shipping does not apply to RazorGage, Oliver, nor JLT Machinery or other machines listed as not free shipping.

Financing & Leasing Options for Your Convenience!

360 Degree Machinery offers financing solutions with competitive rates, flexible terms, and a simple application. Take the hassle out of machinery purchases. Click Here to learn more now!

Features
  •    10HP motor, 3PH  230V with 24V magnetic controls
  •    18” 120T Carbide tipped blade included
  •    1” Saw arbor diameter
  •    Cycle operation:  Pneumatic
  •    Table size:  26” x  27.25”
  •    Quick access in the front of the machine to adjust blade stroke.
  •    Dust requirements:  (1) 4″ dust port requiring 450 CFM at point of extraction
  •    Net weight:   730 lbs.
  •    Gross weight:   890 lbs.
  •    Packing dimensions:  (L) 33″ x (W) 33″ x (H) 46″
  •    (1) Toolbox and manual
  •    Warranty is one-year parts
  •    All machines are tested stateside prior to shipment providing trouble-free start-up.
Cut Capacities
  •    Max cutting capacity: 1” x 13-1/2”,  2″ x 12″, 3″ x 11″, 4″ x 10″
Options
  •  8’ infeed and 8’ outfeed with fence, legs, (2)gravity flip stops
  •  16’ infeed and 16’ outfeed with fence, legs (4) sets, (2) gravity flip stops
  •  Custom infeed/outfeed rollers up to 40’
  •  18″ x 80T carbide-tipped blade
  •  18” x 100T carbide-tipped blade
  •  18” x 120T carbide-tipped blade
  •  (1) Gravity flip stop
  •  460V  3-phase power
  •  Safety interlock for blade access
  •  Rigid stop

Specifications

  • Main Motor Hp. = 10 hp.
  • Voltage/ Freq. = 230 Volt 60Hz
  • Phase = 3 Phase
  • Amp Requirement = 24 Amps
  • Electronics = CE Approved Components
  • Dual Voltage = 230/460 Volt
  • Control Voltage = 24 Volt Control Voltage
  • Cut Envelope = 1” x 13” 2” x 12” 4” x
  • Min. Length = 14” from Blade to Gaurd Edge
  • Max. Width = 1” x 13”
  • Max. Thickness = 5”
  • Arbor Rpm = 3600 Rpm
  • Blade Size = 18” Tungsten Carbide-Tipped
  • No. of Teeth = 120 Tooth
  • Tooth Spacing = 15/32 In.
  • Blade Kerf = .135 In.
  • Dust Collection = 4” 450 CFM
  • Dust Port Out = 4” Bottom
  • Arbor Diameter = 1”
  • Cycles/Minute = 45 Cuts Per Minute
  • Hold Down Style = T Clamp
  • FLR Included = Filter, Lubricator, Regulator
  • Recommended CFM = 480 nl/min
  • Emergency Stop = Push Button
  • Safety Feature = Safety Interlock Switch
  • Guarding = High Visibility Guarding
  • Operation Style = Pneumatic Foot Pedal
  • Fence Type = Adjustable Fence
  • Fence Dims. = 2″ x 25”
  • Adjust. Stroke = 2-3/4” Adj. on Arbor Stroke
  • Frame Const. = 1/4” Steel Construction
  • Worktable Dims. = 26” x 27-1/4”
  • Table Const. = Machined Steel
  • Decible Rating = 78 dB
  • Net Weight = 730 Lbs.
  • Gross Weight = 890 Lbs.
  • Machine Dims. = 26” x 27-1/4” x 49-1/2”
  • Packaging Dims = 40” x 48” x 55”

Additional information

Maximum Blade Diameter

18"
Horsepower

10
Voltage

230V
Power Phase

Three Phase
