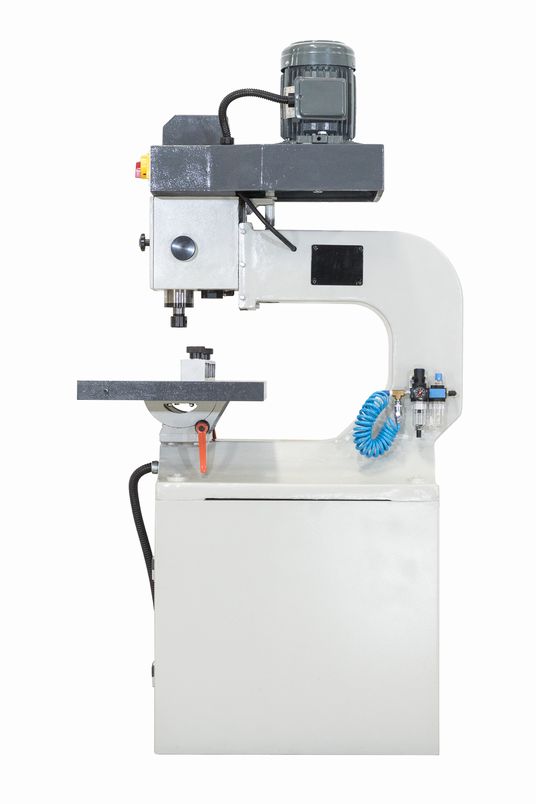

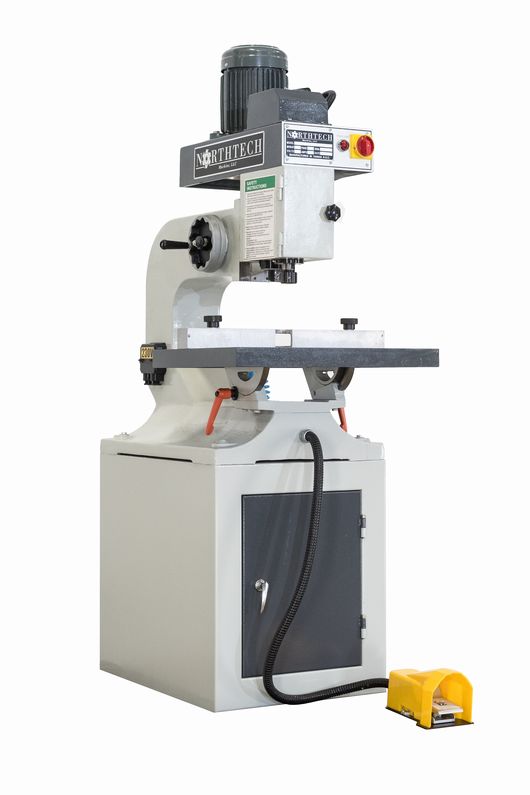

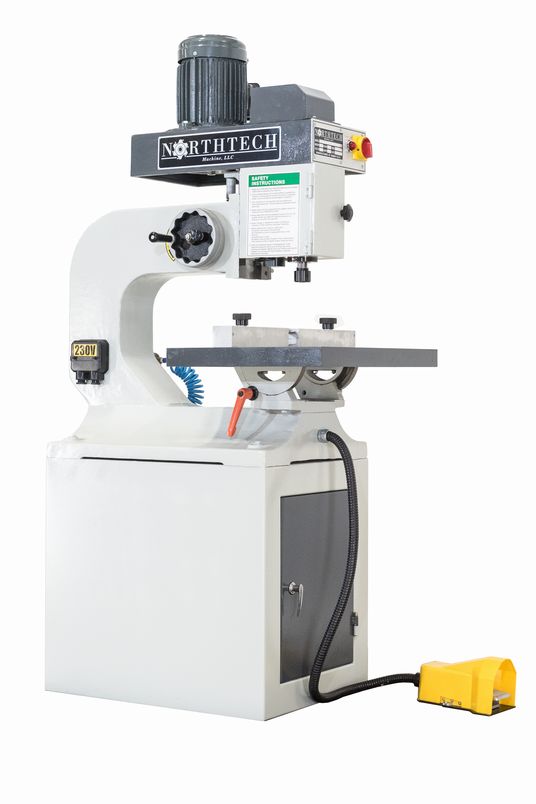

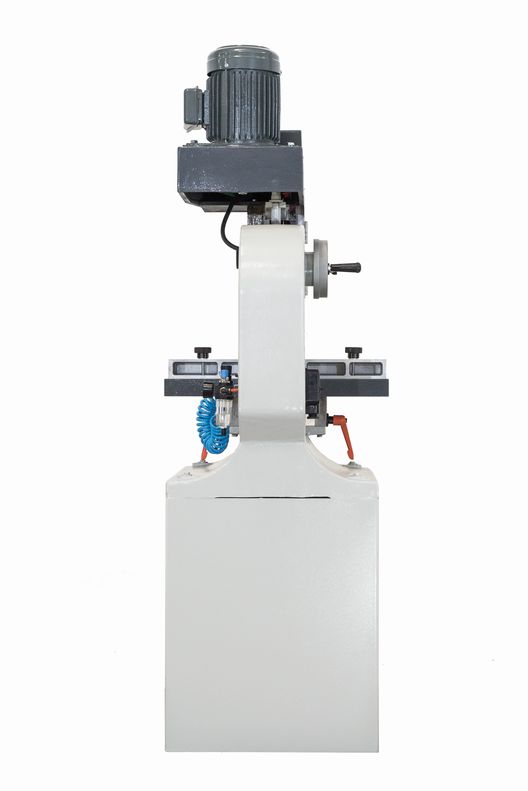

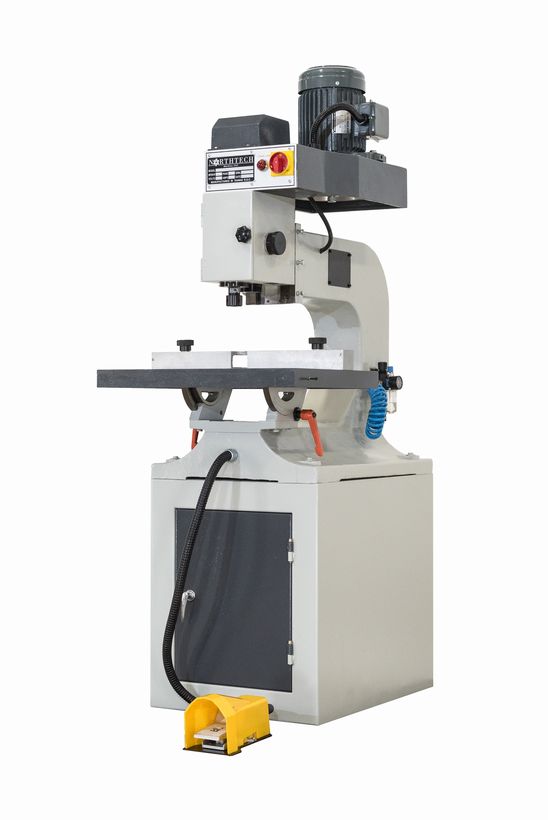

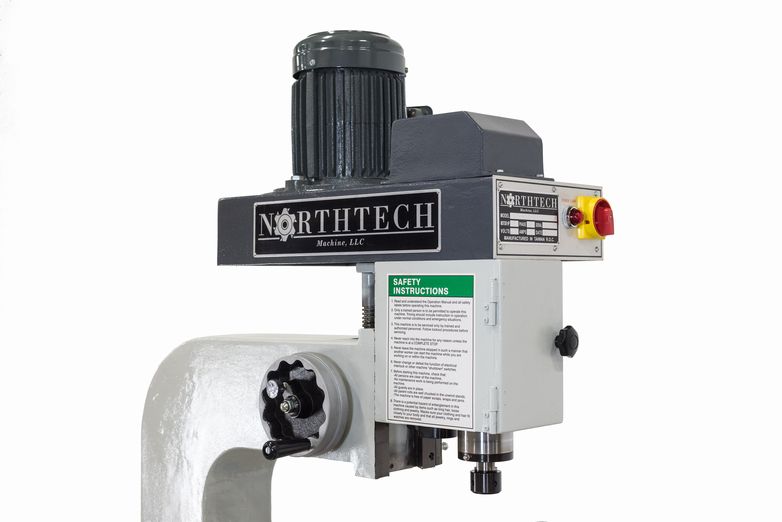

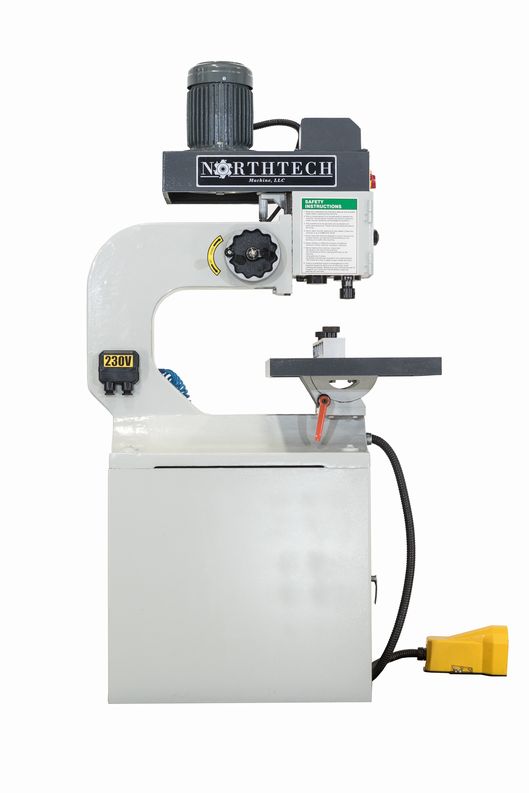

Northtech NT 555 Overarm Pin Router
Northtech NT 555 Overarm Pin Router
The Northtech NT 555-532 Overarm Pin Router sports an efficient three-phase 5 HP motor with a maximum spindle speed of 17,800 RPM. The machine comes standard with ¼”, ⅜”, and ½” collets (and matching guide pins) to accommodate a variety of tooling. Vertical spindle movement is pneumatically controlled via foot pedal and allows for custom adjustment to both initial and final plunge speed.
Specs & Features
Features:

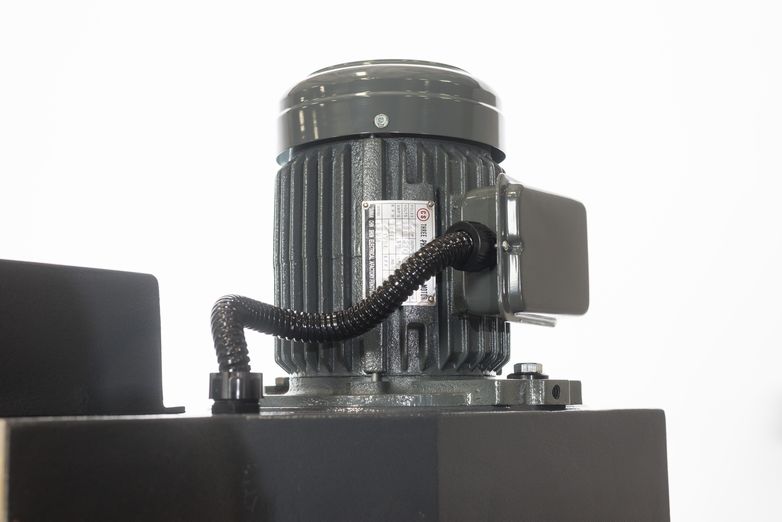

- 5 HP spindle
- Precision high-speed spindle bearings

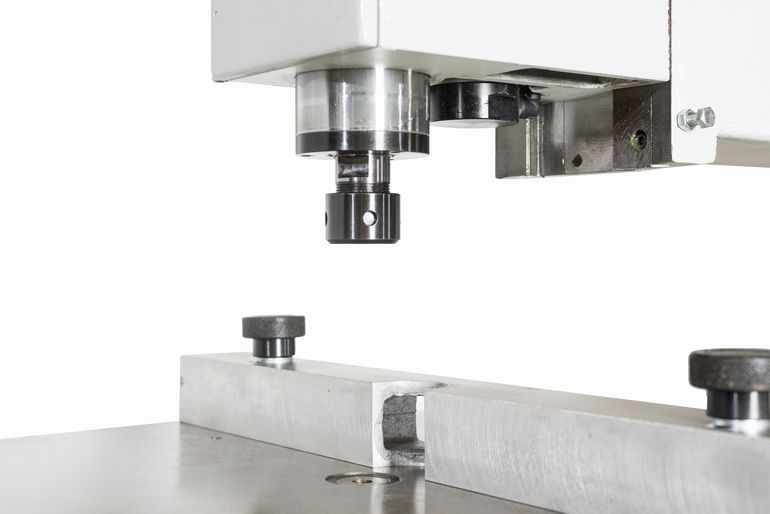

- ¼”, ⅜”, and ½” collets

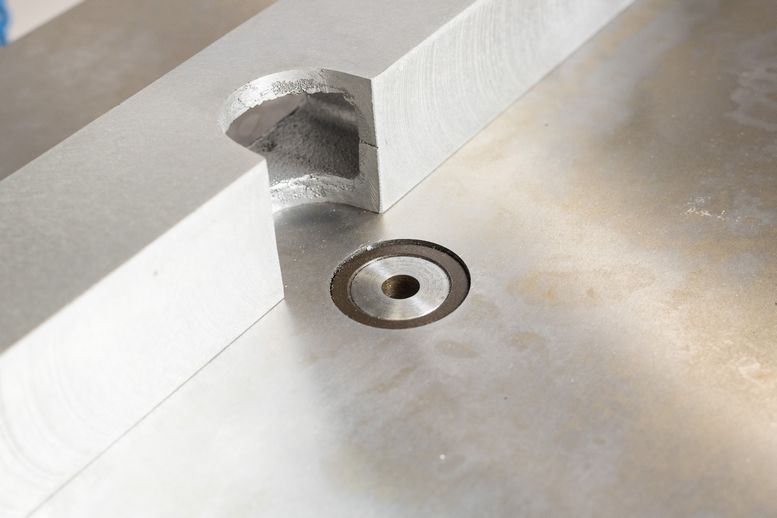

- ¼”, ⅜”, and ½” guide pins
- Guide fence with adjustable position
- Spindle speed of 8,900 & 17,800 RPM
- Spindle moves up and down pneumatically (3-3/8” stroke)

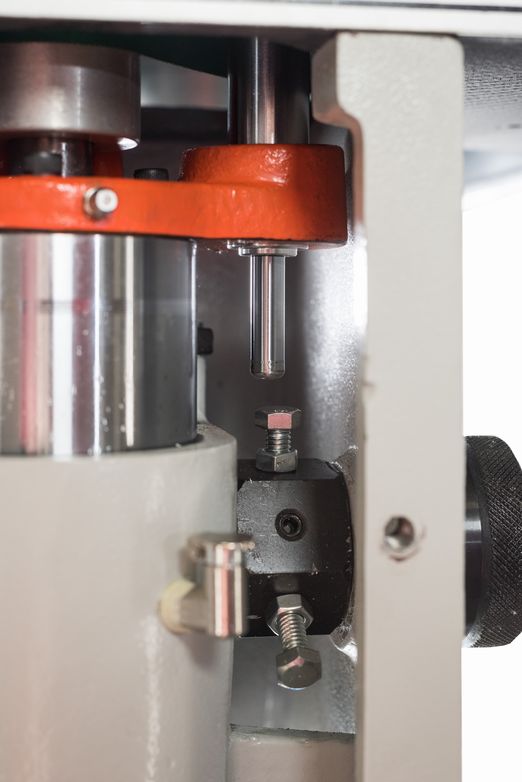

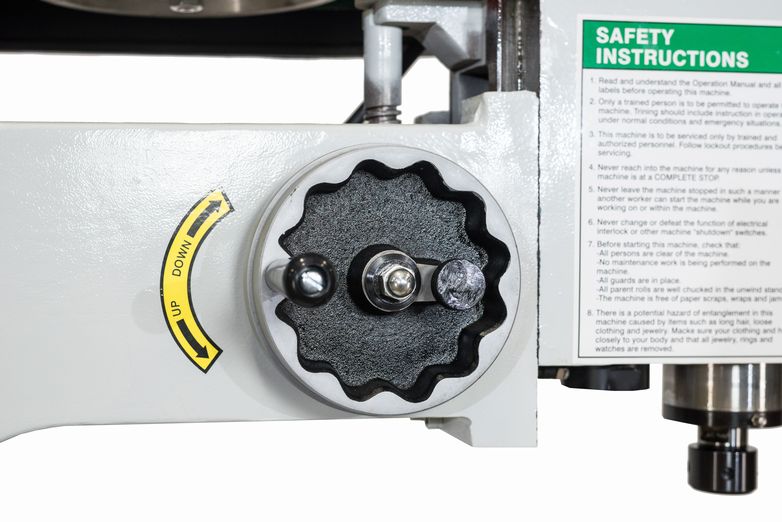

- Three depth-of-cut adjustments easily set with turret gauge – micro-adjustment

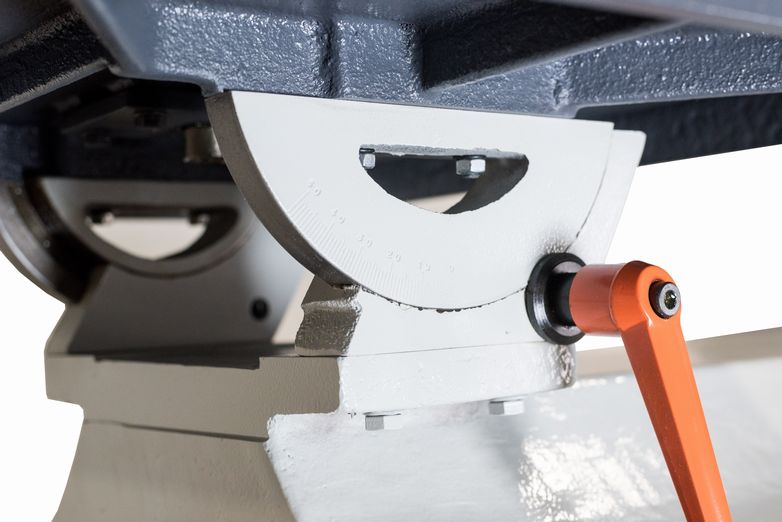

- Tilting table (0 – 45°)

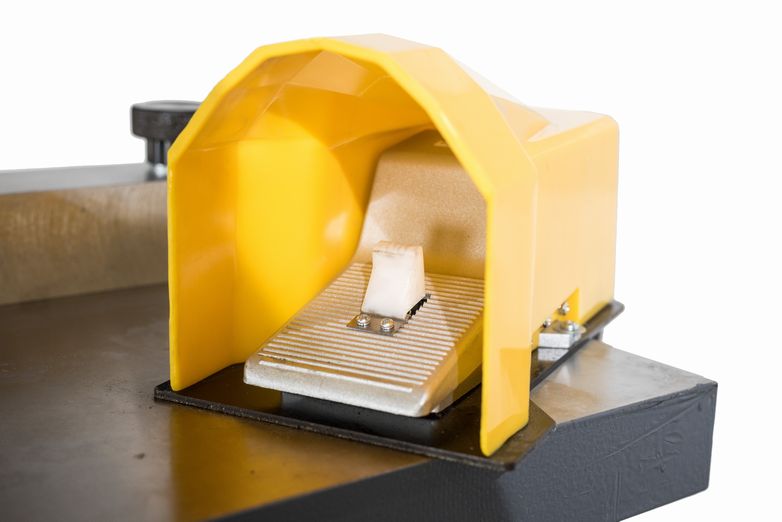

- Pneumatic foot control of spindle
- Air-line control to adjust initial plunge speed
- Restrictor in head to adjust final plunge speed

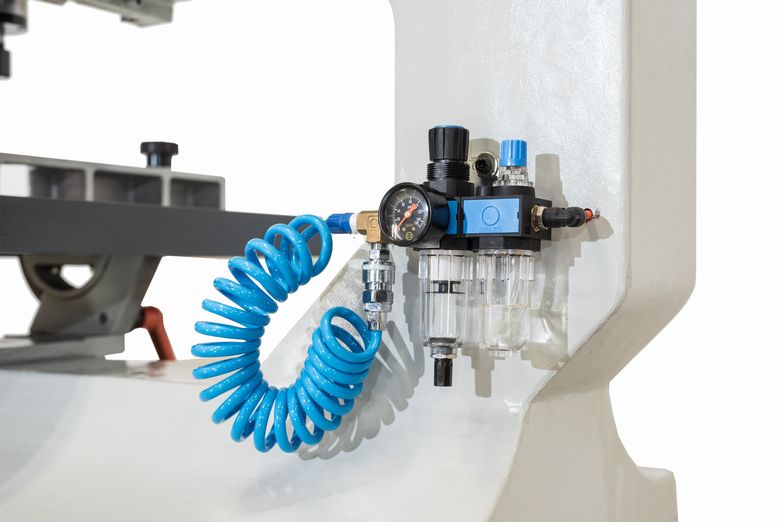

- Blowgun and hose included for additional cleaning
- Oiler to facilitate smooth movement of the spindle
- 660 lbs. cast iron construction
- One-year parts warranty
- All machines are tested prior to shipping to ensure trouble-free start-up
Specifications:
| Motor: | 5 HP |
| Voltage: | 230/460V 3ϕ |
| Amperage: | 15/7.5 Amps |
| Spindle Speed: | 8900 / 17800 RPM |
| Control Voltage:: | 230V |
| Minimum Thickness: | 2-¾” Collet to Table |
| Maximum Thickness: | 8-½” Collet to Table |
| Vertical Travel: | 5-¾” |
| Cycle Speed: | 40 Cuts Per Minute |
| Fence Dimensions: | 2-¼” x 24” |
| Worktable Dimensions: | 18” x 24” |
| Tiltable: | 45 Degrees |
| Net Weight: | 660 lbs |
| Gross Weight: | 745 lbs |
| Machine Dimensions: | 38” x 24” x 74” |
| Packaging Dimensions: | 43” x 28” x 74” |
