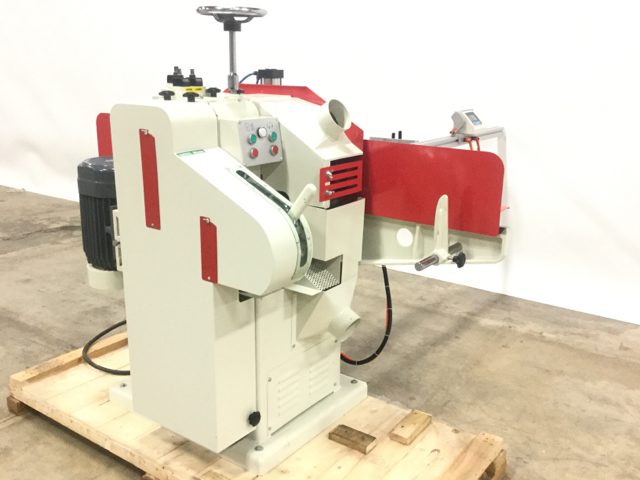

Tenon Cutterhead

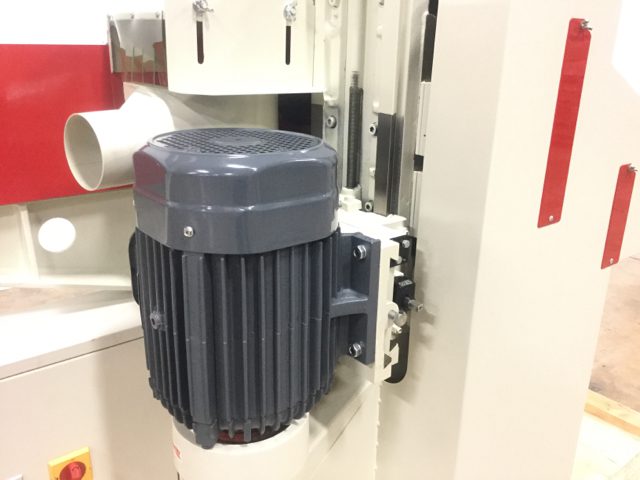

- Both top and bottom tenon heads can be individually or simultaneously vertically adjusted.
- Individual cross adjustment in 1″ distance.
- Helical and straight tenon cutter heads on the 152 series provide excellent quality results on a range of materials.
Cope Head
- For fitting with pattern cutter producing various end patterns.
- The cope spindle may be vertically or crosswise adjusted.
- Vertical movement distance is 3.625”
- Forward and backward movement distance is 3.4”.
Cutoff Saw
- The saw mechanism is mounted in front of tenon heads for cutting stock to the desired length.
- The saw blade may be vertically adjusted.
- The saw head accepts a 12″ maximum blade diameter.
Sliding Table
- Table slides on precision machined “V” ways, precise sliding accuracy is assured.
- The bearing support permits for effortless hand moving of the table.
Extended Aluminum Ruler
- Use the extendable aluminum ruler to measure the required length of the workpiece.
- Equipped with two work stops for convenient repetitive cutting.
Saw Blade Guard and Dust Filter
- An added saw blade guard offers added safety for the operator.
- A filter screen is provided in front of the dust hood to prevent chips from entering the dust collector.
Specifications:
- Machine Hp. = 12.5 hp.
- Voltage/ Freq. = 230 Volt 60Hz
- Phase = 3 Phase
- Amp Requirement = 36.6 Amp
- Spindle Diam. = (3) 1-1/4”
- 1st Head = 12” 2900 Rpm 100T Cutoff Saw
- 2nd Head = 4” x 6” 3400 RPM Tenon Head
- 3rd Head = 4” x 6” 3400 RPM Tenon Head
- 4th Head = 6” 6000 RPM Cope Head
- Feed System = Sliding Table
- Drive System = Manual
- Electronics = CE Approved Components
- Dual Voltage = 230/460 Volt
- Control Voltage = 110 Volt
- Pass-Line = 32”
- Cut Envelope = 4-1/8” x 14-1/2”
- Min. Length = 8”
- Max. Length = Infinite
- Min. Width = 1″
- Max. Width = 14-1/2”
- Min. Thickness = 3/16″
- Max. Thickness = 4-1/2”
- Rows of Cutters = 6 Rows
- No. of Inserts = 39 Inserts
- Insert Size = 15 x 15 x 2.5 mm
- Dust Collection = (3) 4” @ 1308 CFM
- Dust Port Out = (3) 4” Outlets
- Hold Down Style = Pneumatic Clamp
- FLR Included = Filter, Lubricator, Regulater
- Recommended CFM = 1350 Total CFM
- Emergency Stop = Push Button
- Guarding = High Visibility Guarding
- Operation Style = Manual
- Fence Type = Adjustable Fence
- Fence Dims. = 2” x 72”
- Sliding Table = 43-3/4” Travel
- Frame Const. = 1/2” Steel Construction
- Worktable Dims. = 39” x 15-1/2” x 32”
- Table Const. = Machined Steel

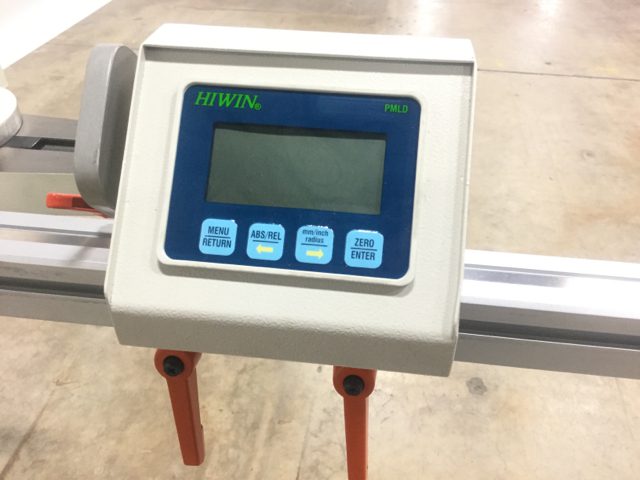

- Measure Meth. = Digital Position Readout
- Decible Rating = 82 dB
- Net Weight = 1322 Lbs.
- Gross Weight = 1587 Lbs.
- Machine Dims. = 94” x 72” x 58”
- Packaging Dims = 66” x 30” x 53”
