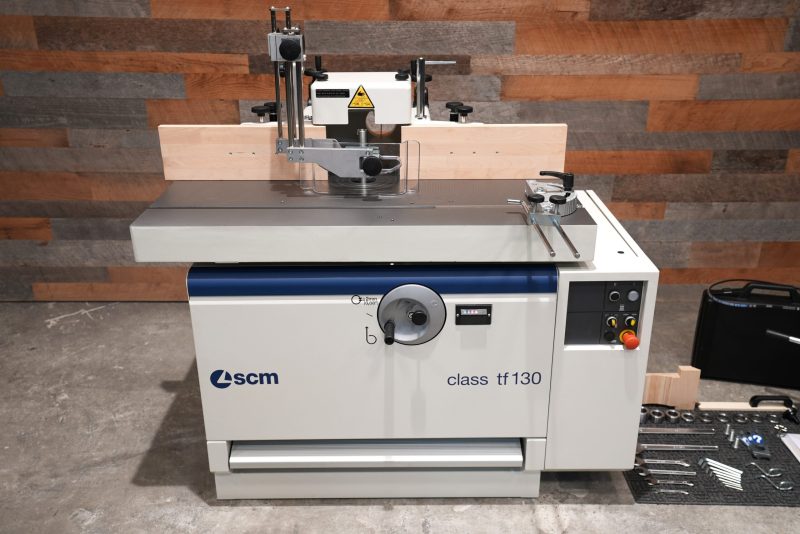

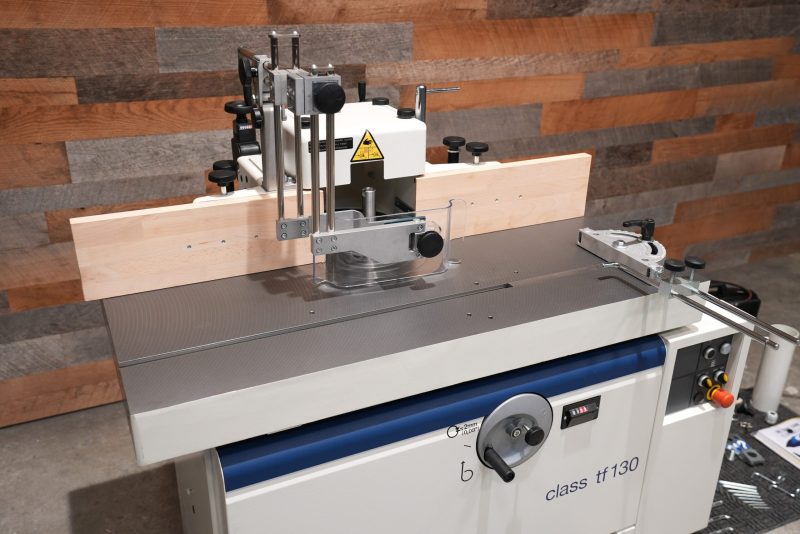

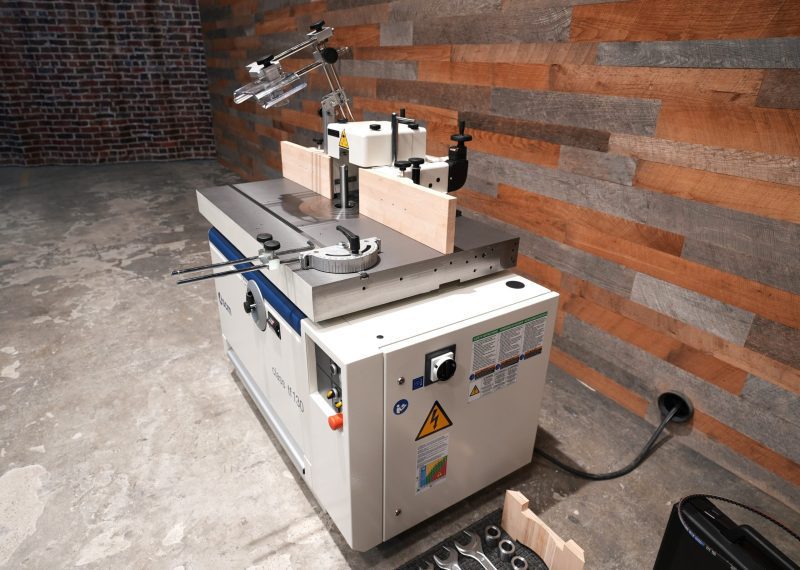

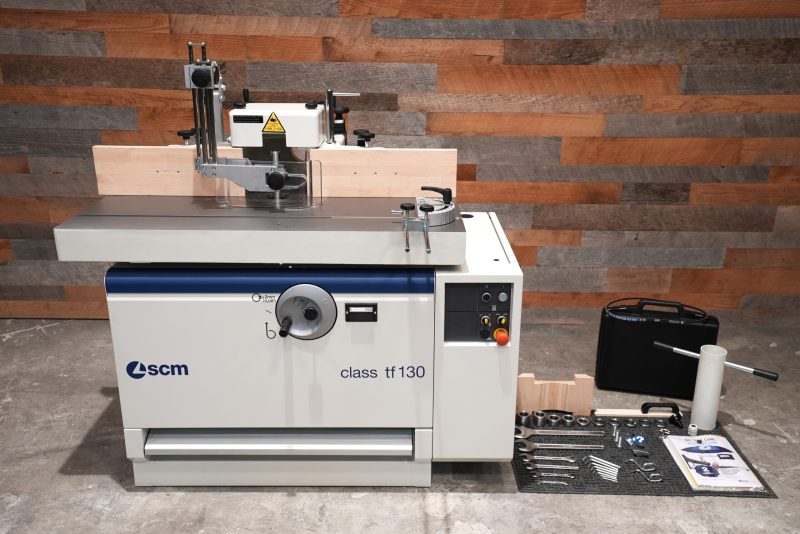

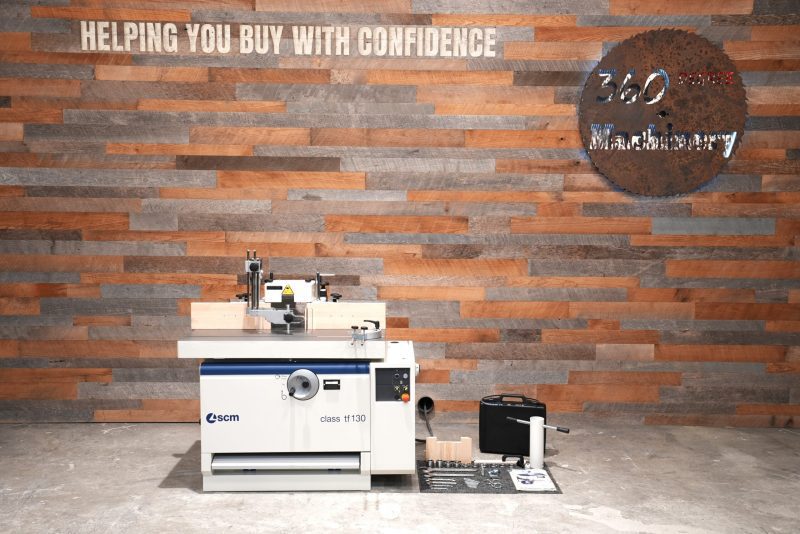

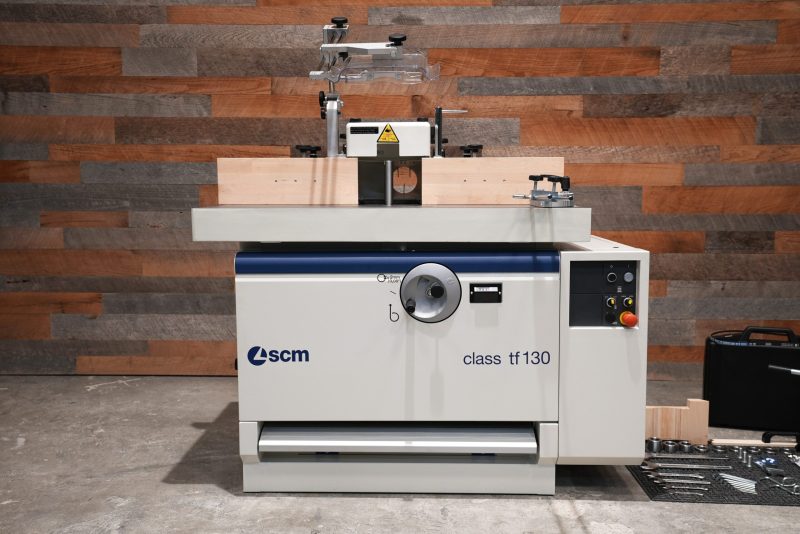

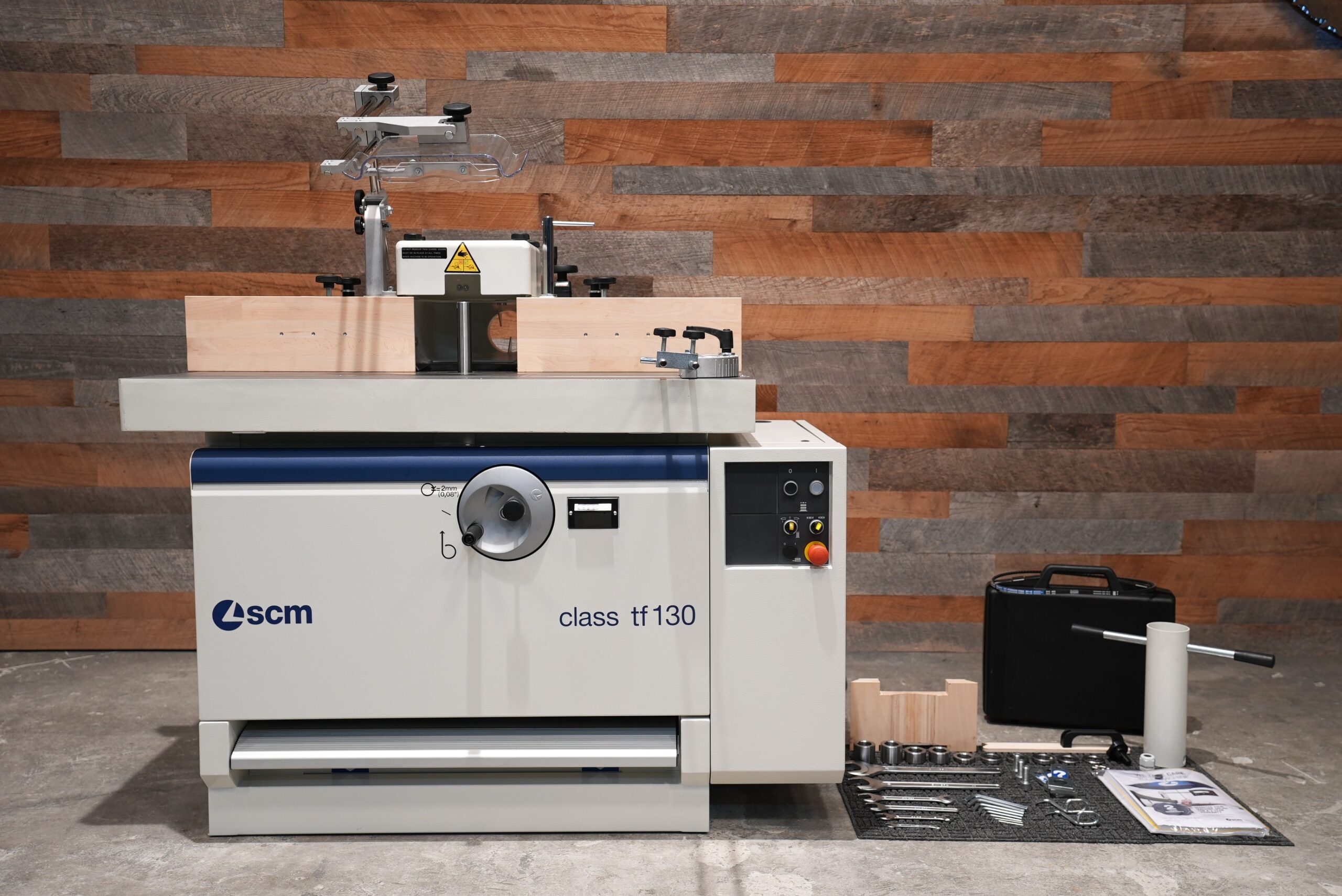

NEW SCM Class tf 130 Spindle Shaper

NEW SCM Class tf 130 Spindle Shaper

$14,475.00

Category

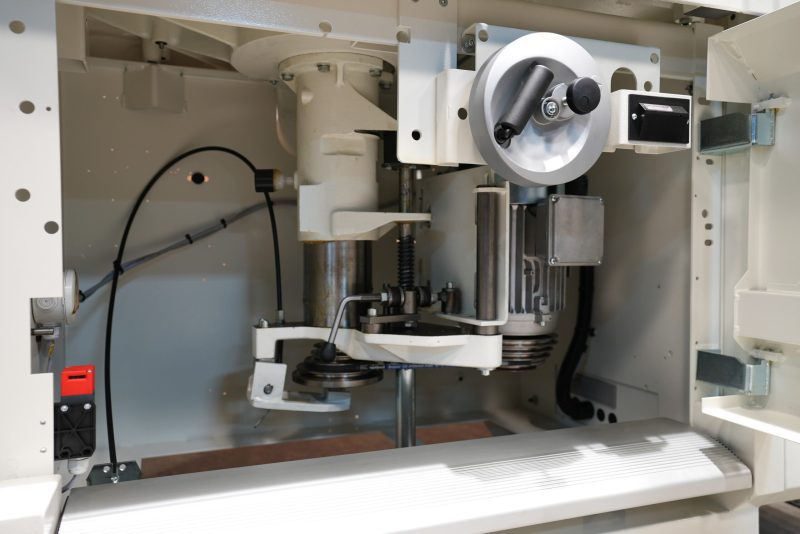

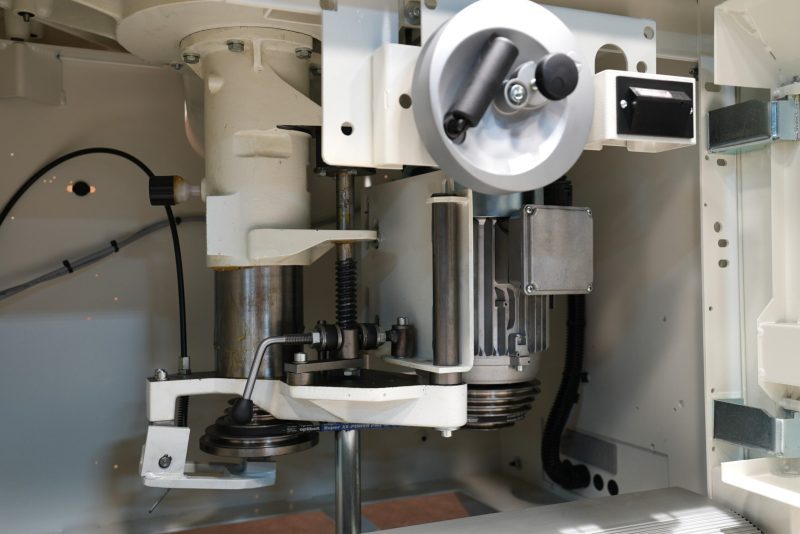

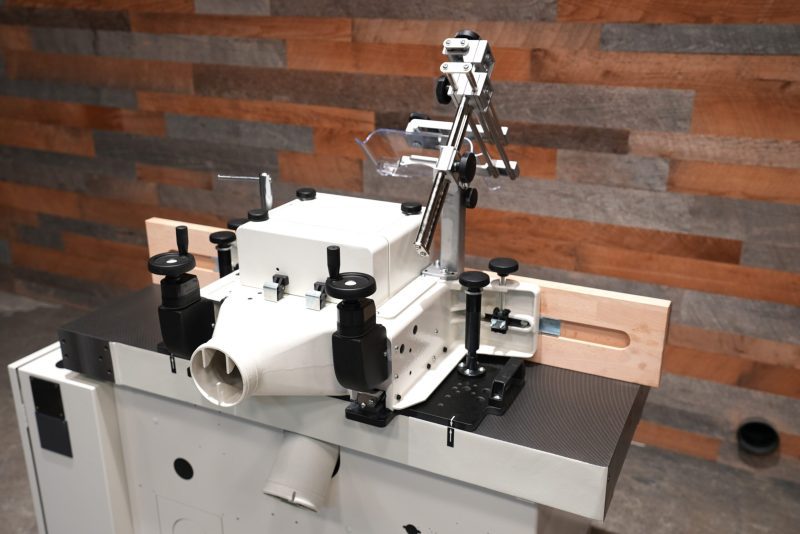

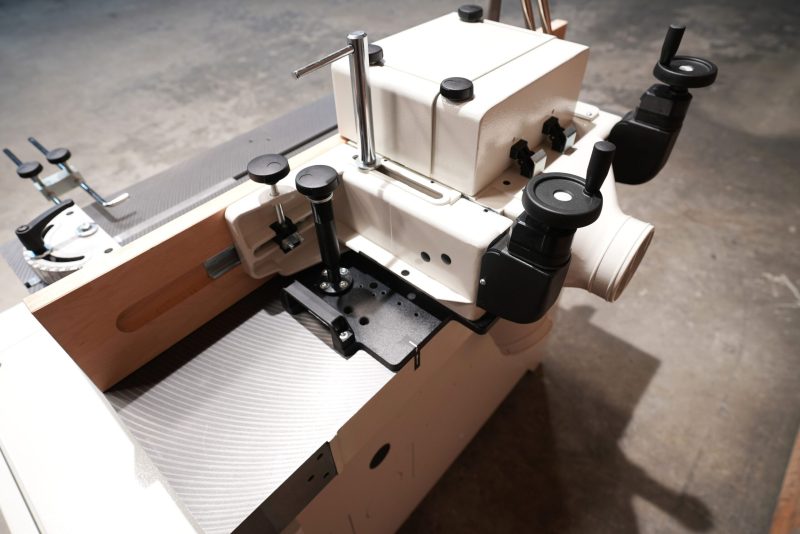

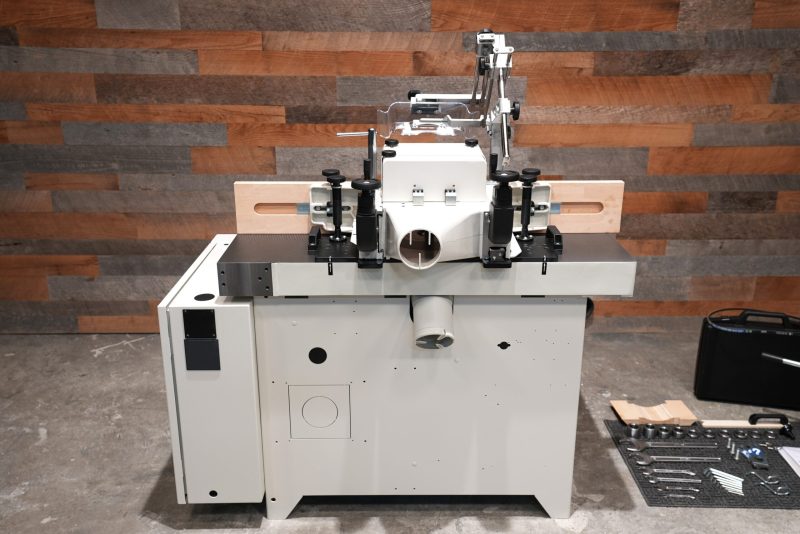

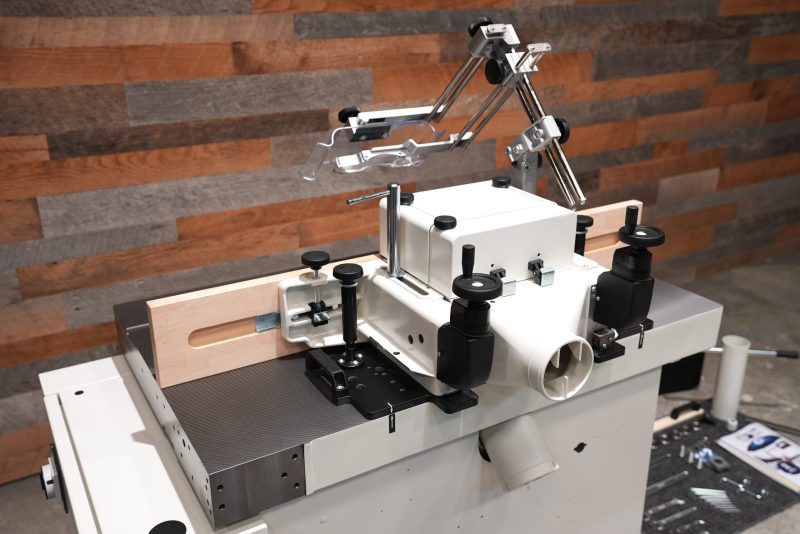

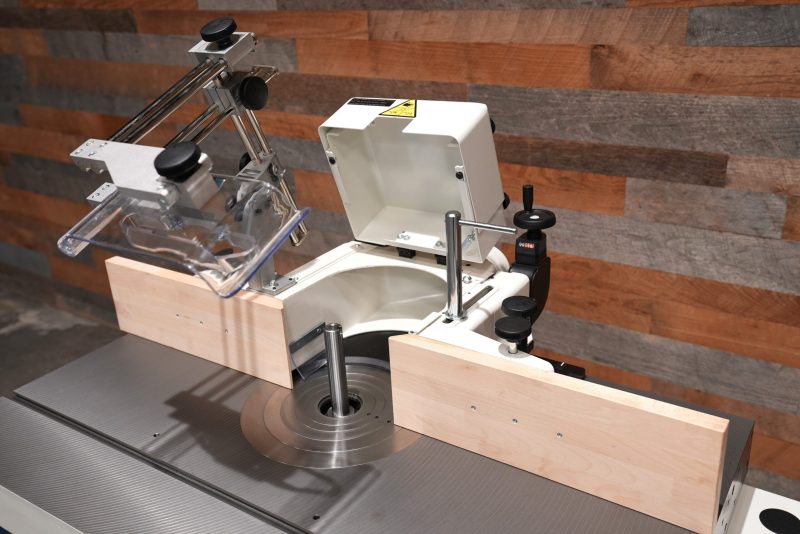

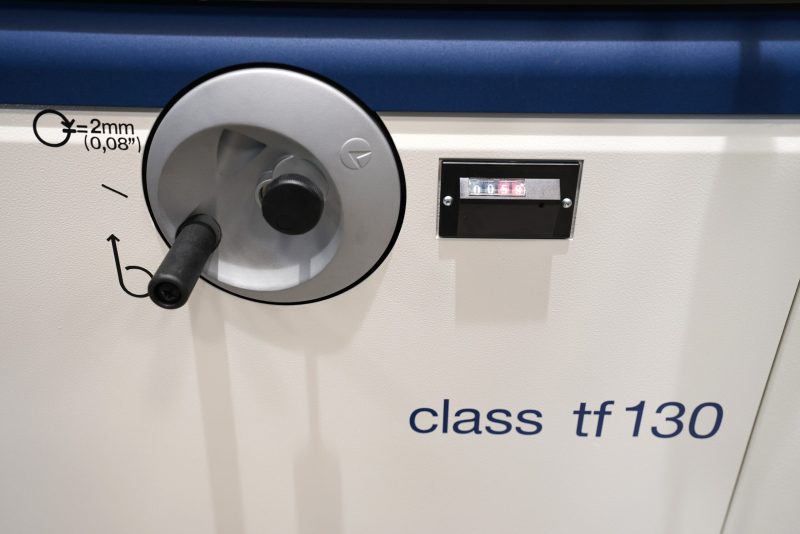

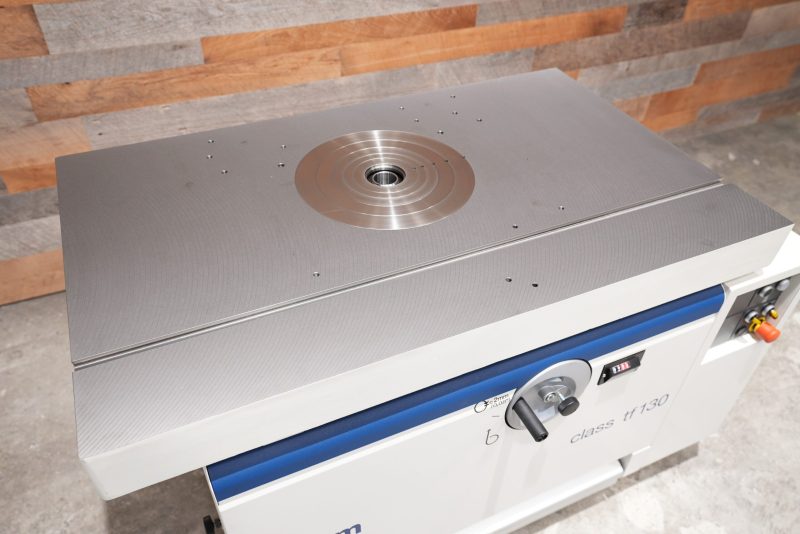

This is the best version of SCM’s class tf 130 that we have seen to date. 1-1/4″ interchangeable spindle with a numeric height read out and a 180mm/7.06″ capacity powered by an 11 hp main motor. The fences feature micro adjustability and also have numeric read outs on both sides. The main hand wheel and numeric read out are positioned higher for better ergonomics. You have full access to the interior as the front door is full height. Easy to remove fence. A really nice package! Watch our full video for a full walk through of this tf 130!

Advertised Price Configuration:

3ph, 11HP, fixed 1 – 1/4″ MK5 interchangeable spindle, 5-speeds, aluminum fence w/ mechanical adjustments

Add to Quote Request
TECHNICAL FEATURES
Spindle moulder diameter mm(in) 1 1/4″
Max. useful spindle length mm(in) 180 (7.06”)
Spindle moulder speeds rpm 3000/4500/6000/7000/10.000
Max. tool diameter when profiling mm(in) 250 (9.81”)
Max. diam. of tool lowered under the table at 90° mm(in) 300 (11.81”)
Three-phase motor mm(in) 8kW (11hp) 60Hz
Exhaust outlets diameter mm(in) 120 (4.75”)
MINIMUM INSTALLATION REQUIREMENTS
Power absorption 25
Voltage frequency 230V – 60Hz

Please Contact us for a shipping quote for Pre-Owned Machinery and or New machinery below $6,000.

***Some restrictions apply for free freight on NEW machinery over $5,999. FREE freight is to a commercial address with a dock and or forklift. EXTRA FEES may apply to accessorials like restricted access, residential drops, liftgates, and excessive lengths.

Applies to lower 40 of the contiguous states only. AZ, CA, ID, MT, NV, OR, UT, & WA do not qualify for free shipping. We can split ship to these states from $5,999 and up. Free shipping does not apply to RazorGage, Oliver, nor JLT Machinery or other machines listed as not free shipping.

Financing & Leasing Options for Your Convenience!

360 Degree Machinery offers financing solutions with competitive rates, flexible terms, and a simple application. Take the hassle out of machinery purchases. Click Here to learn more now!

TECHNICAL FEATURES
Spindle moulder diameter mm(in) 1 1/4″
Max. useful spindle length mm(in) 180 (7.06”)
Spindle moulder speeds rpm 3000/4500/6000/7000/10.000
Max. tool diameter when profiling mm(in) 250 (9.81”)
Max. diam. of tool lowered under the table at 90° mm(in) 300 (11.81”)
Three-phase motor mm(in) 8kW (11hp) 60Hz
Exhaust outlets diameter mm(in) 120 (4.75”)
MINIMUM INSTALLATION REQUIREMENTS
Power absorption 25
Voltage frequency 230V – 60Hz
