Motor: 14 HP (11 kW), 3-phase, 220V
Circuit Required: 49A, 3-phase
Motor Start: Automatic star-delta
Working Width: 24.8″ (630mm)
Table Length: 39.37″ (1,000mm)
Max Working Thickness: 11.75″ (300mm)
Min Working Thickness: 0.12″ (3.5mm)
Min Stock Length: 10.24″
Max Depth of Cut: 5/16″ (8mm)
Cutterhead Type: Tersa — 4 straight knives, 630mm
Cutterhead Diameter: 4.7″ (120mm)
Cutterhead Speed: 4,500 RPM
Feed Speed: Variable, 13–66 FPM (4–20 m/min), inverter-controlled

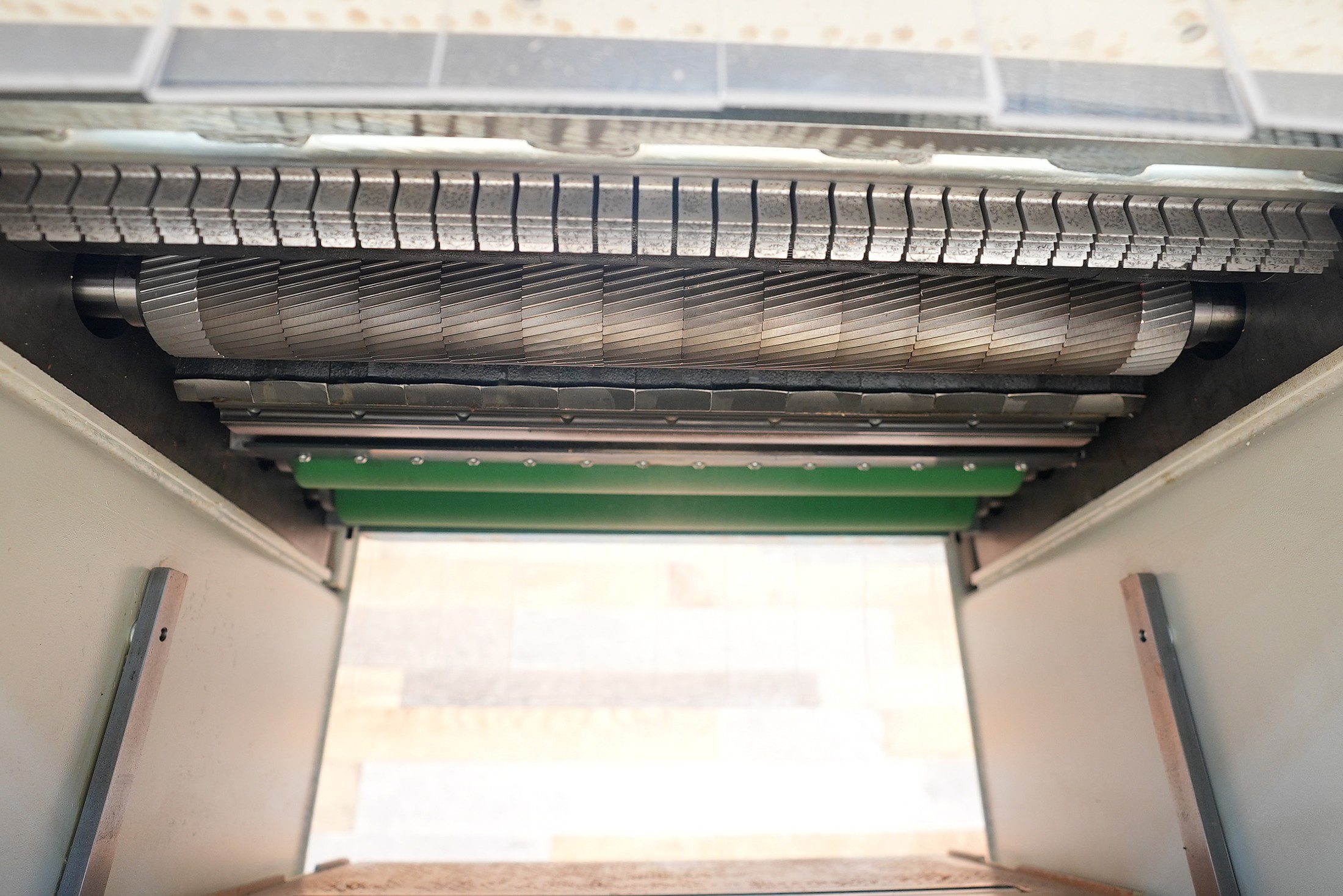

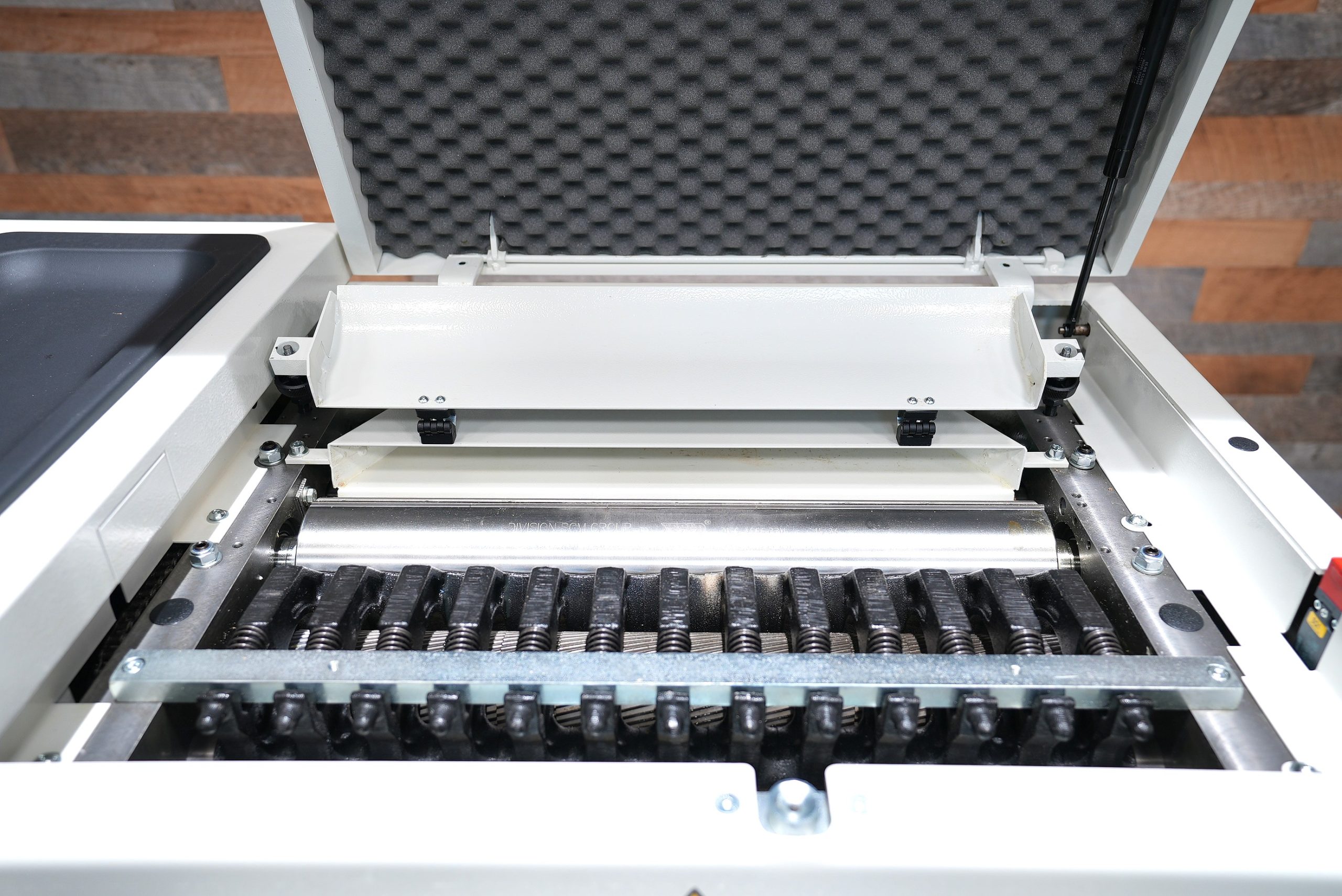

Infeed Roller: Sectioned steel, power-driven
Outfeed Rollers: 2× rubber-coated steel, power-driven
Bed Rollers: 2 adjustable idle rollers, standard
Table Support: 4 Acme-thread jack screws with dust protection

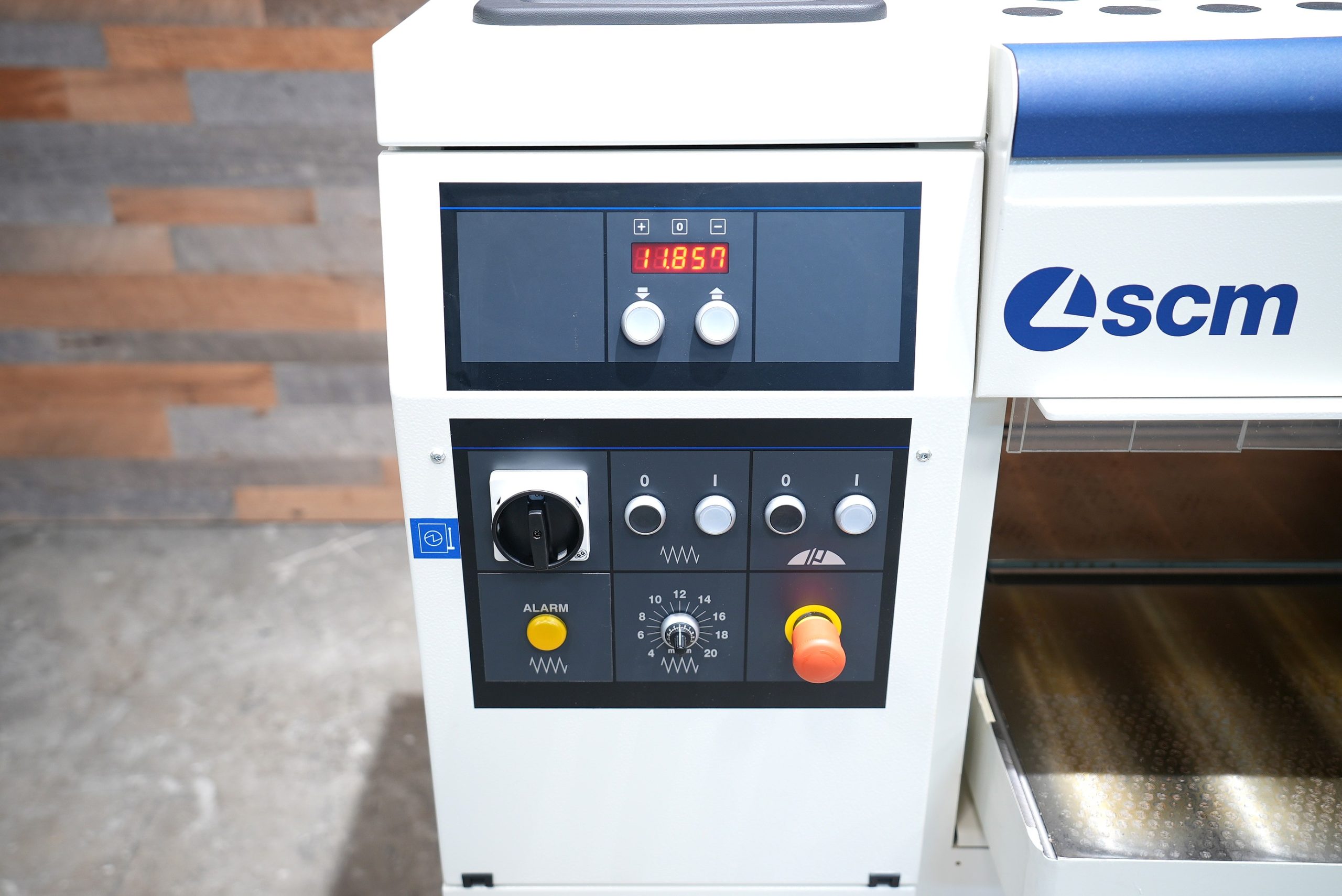

Table Lift: Powered, 2-speed with micrometric adjustment and digital readout
Base: Monoblock welded steel, heat-treated (normalized)
Dust Port: 6″ (150mm)
Dust Extraction Minimum: 754 CFM (1,300 m³/h)
Overall Dimensions: 50.4″ W × 43.1″ D × 48.0″ H (1,280 × 1,095 × 1,219mm)
Net Weight: 2,015 lbs (914 kg)
Shipping Weight: 2,220 lbs (1,007 kg)

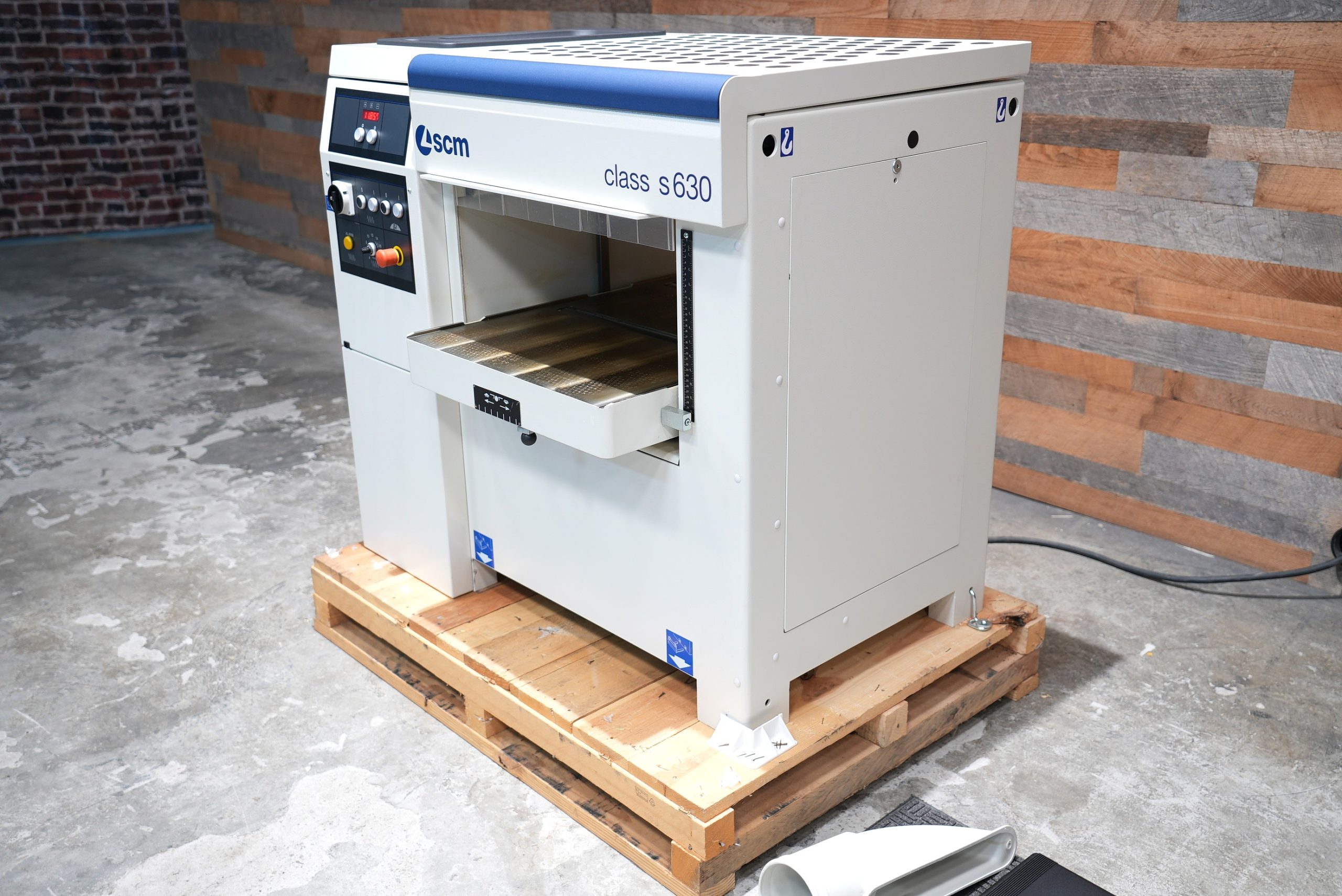

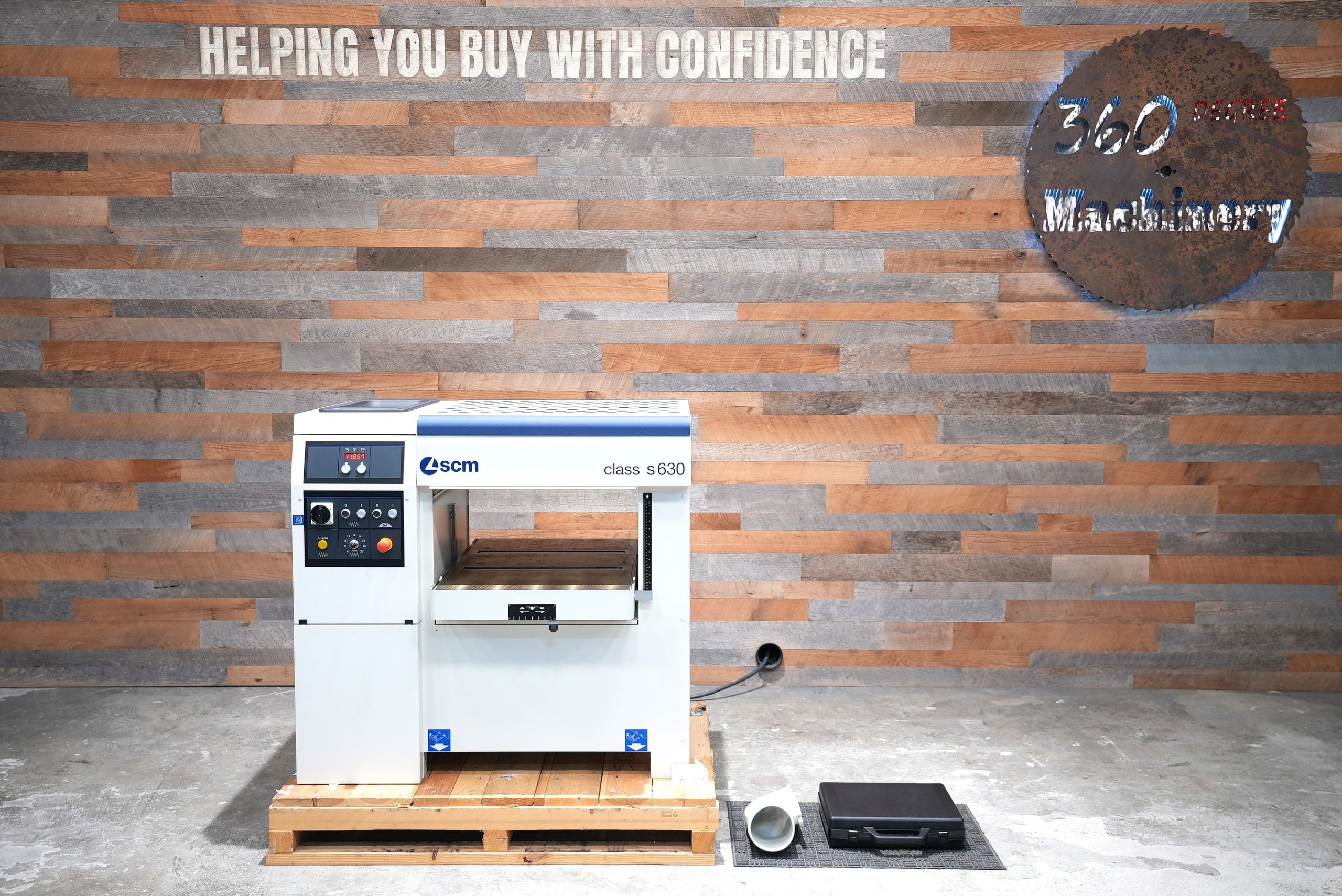

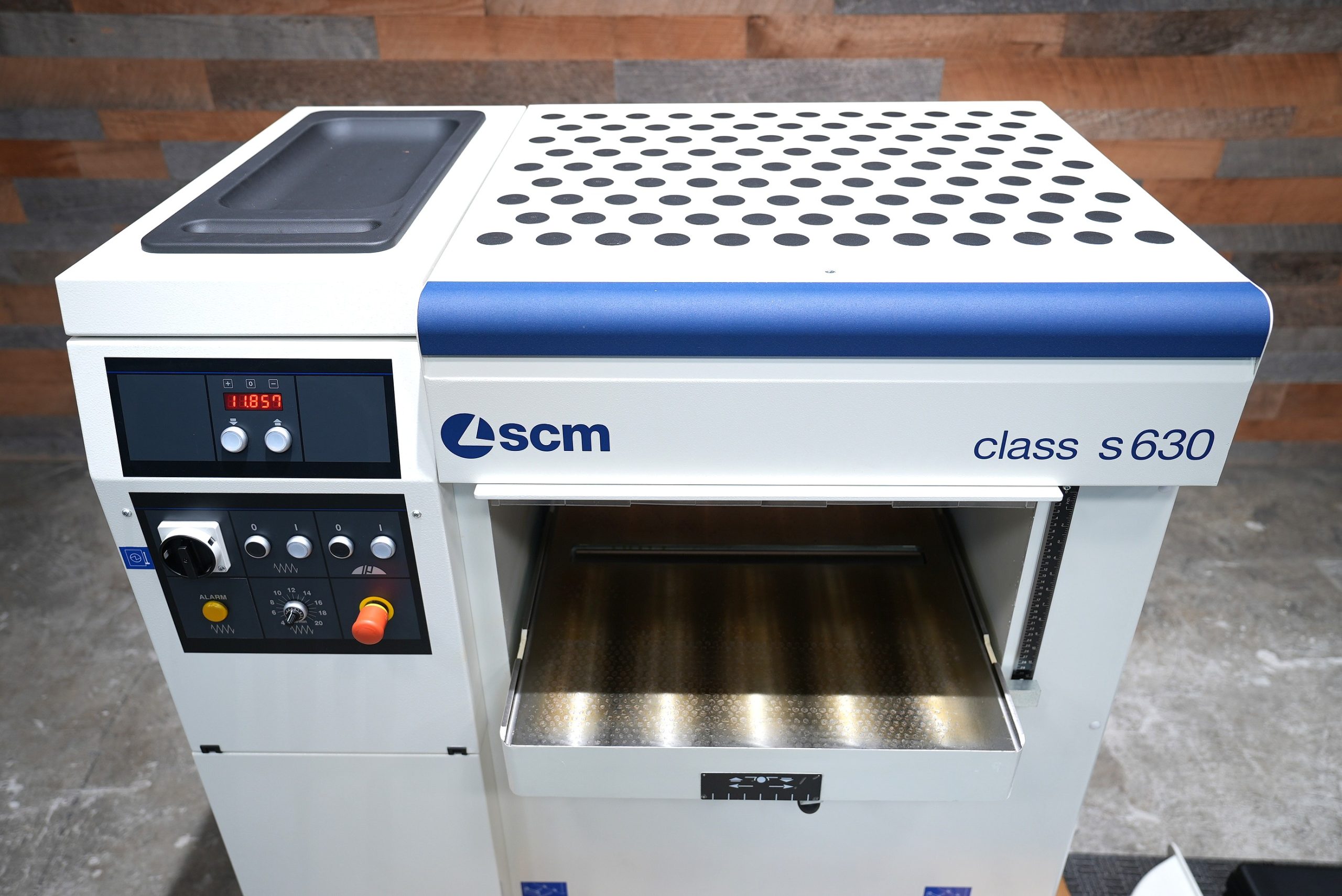

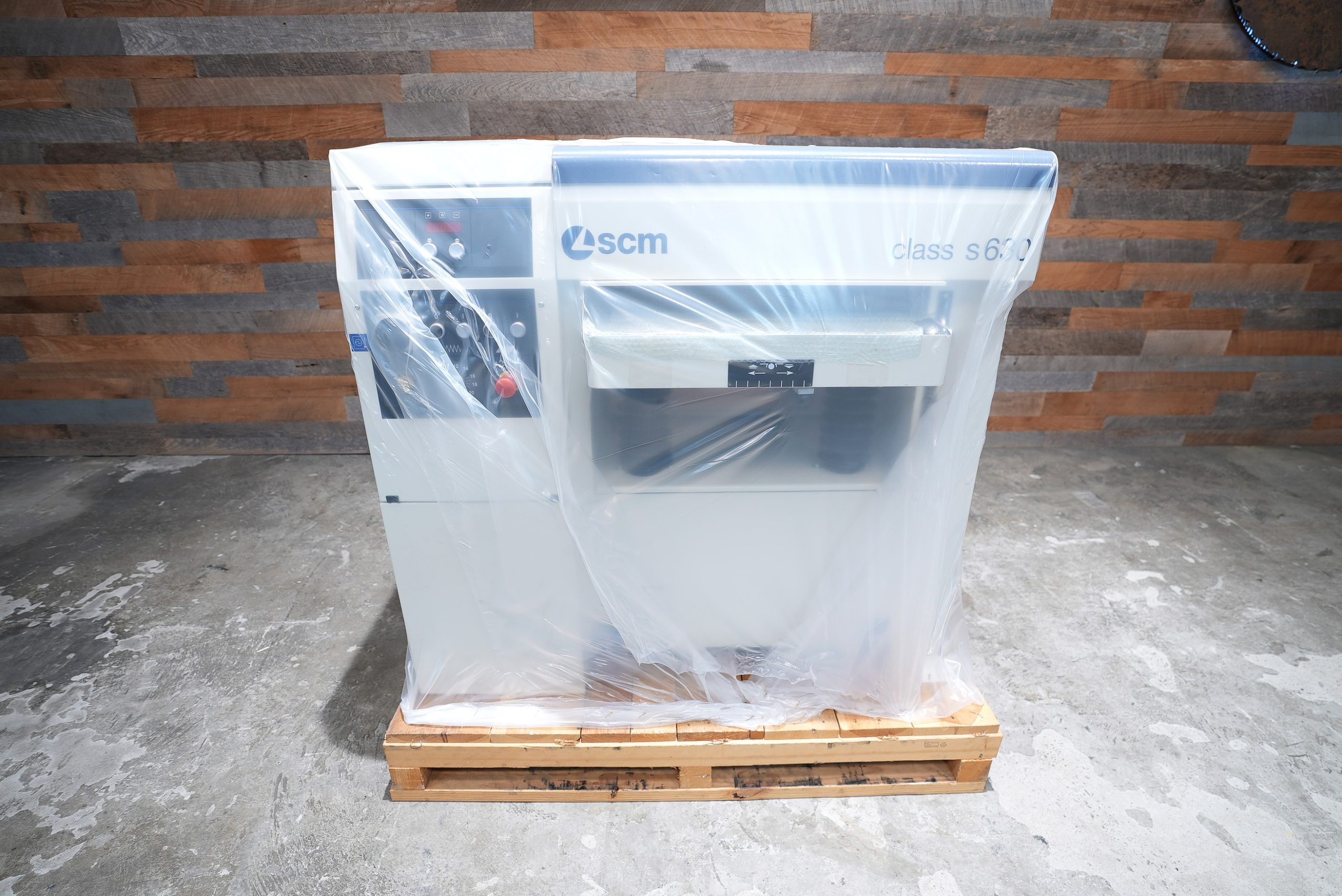

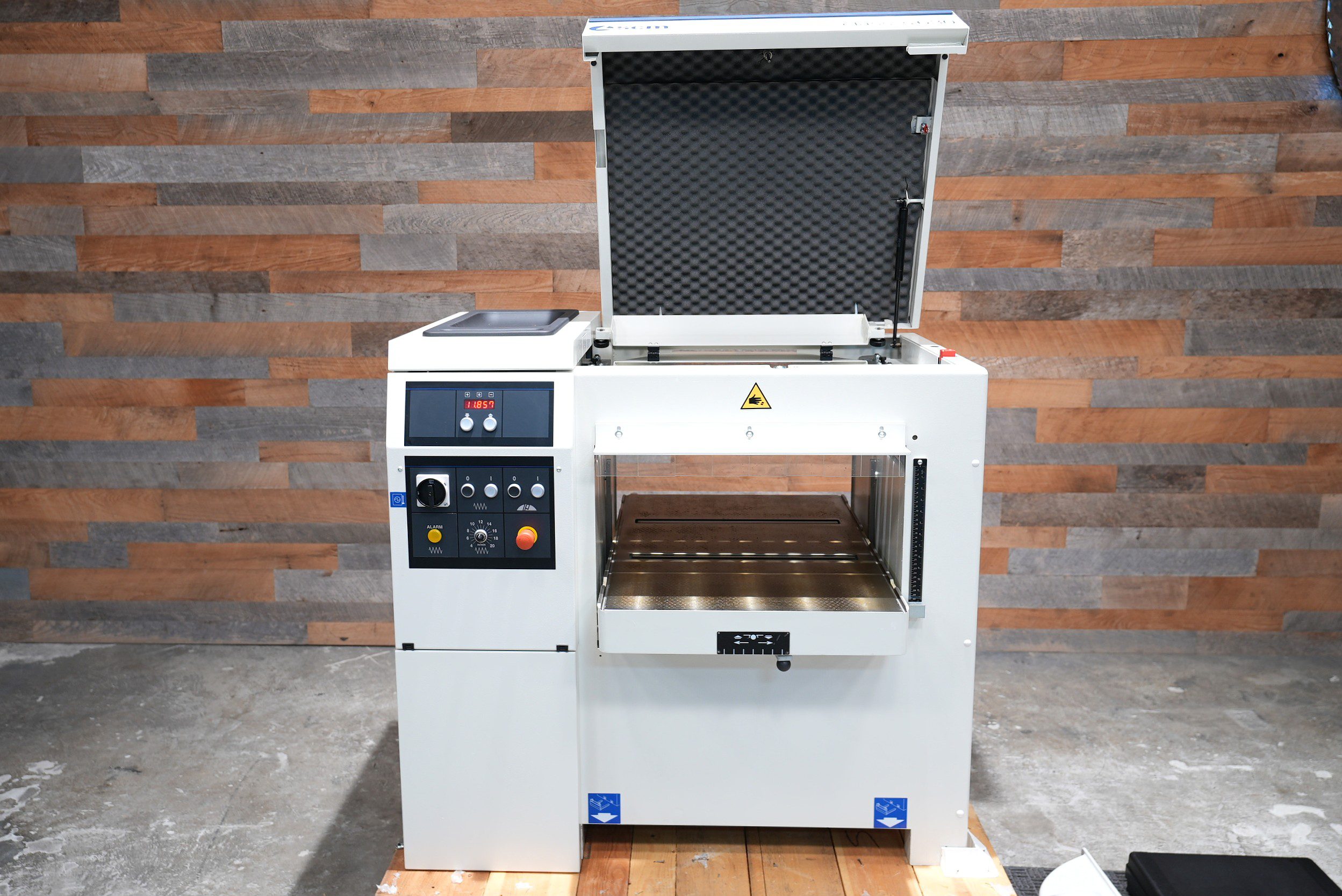

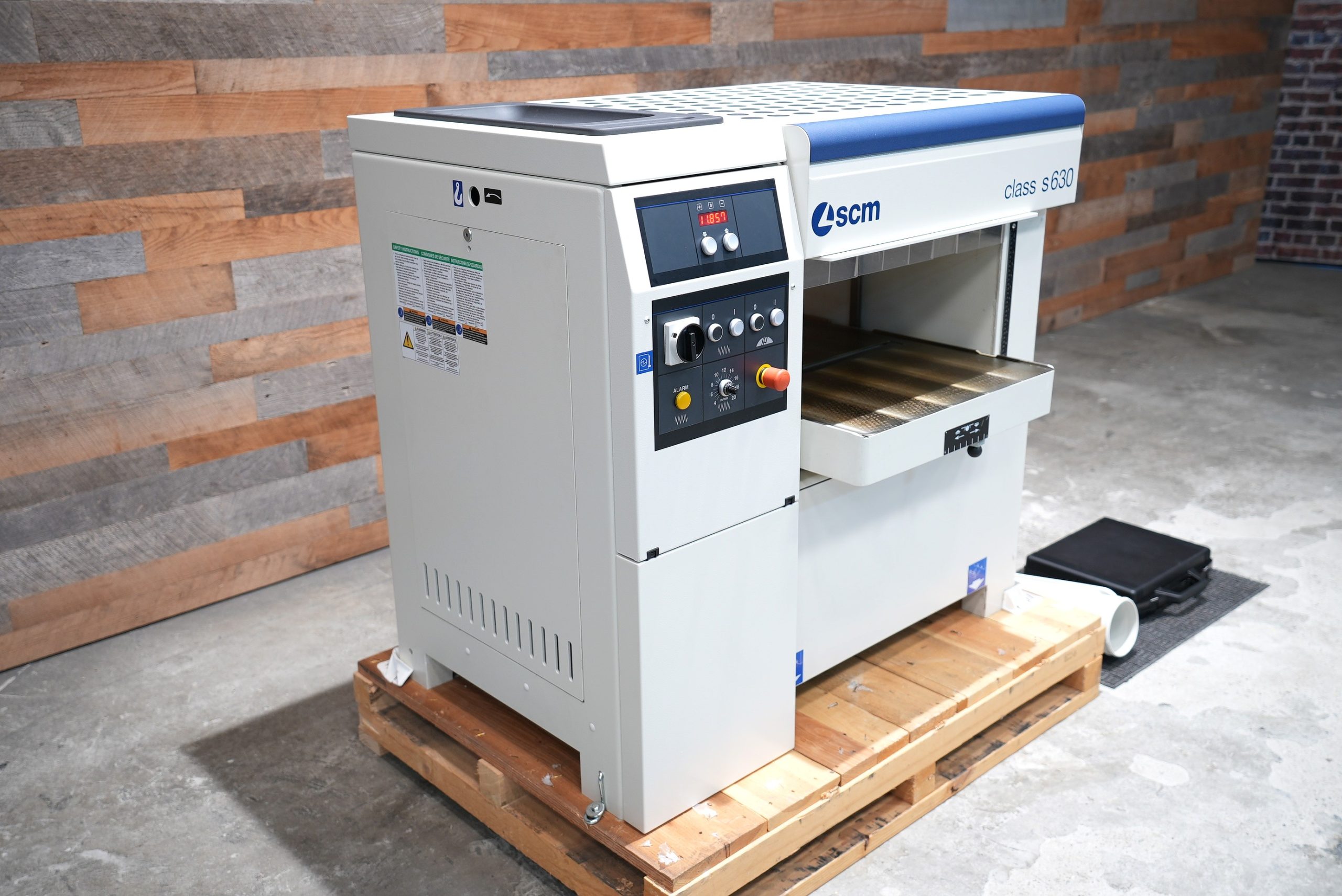

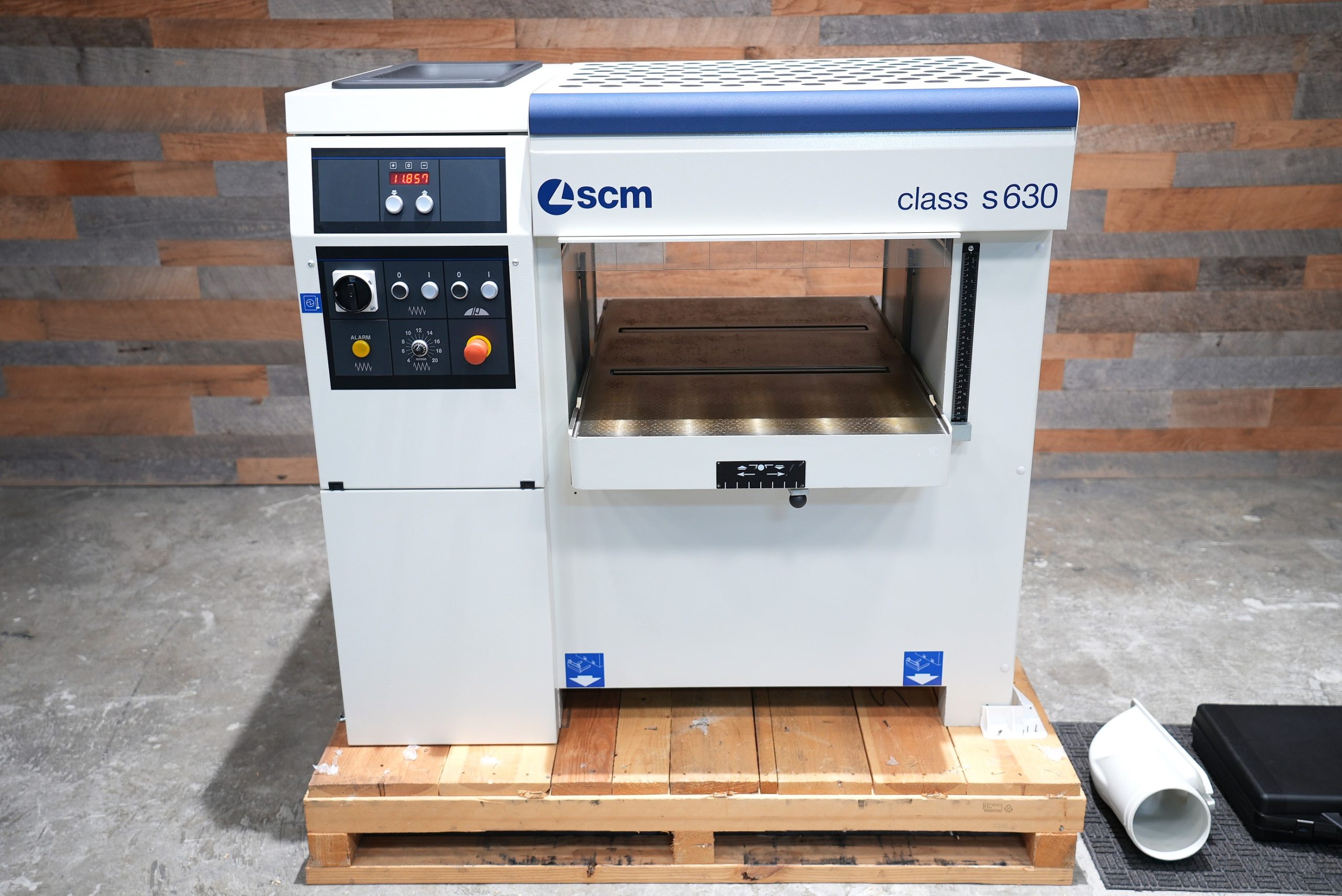

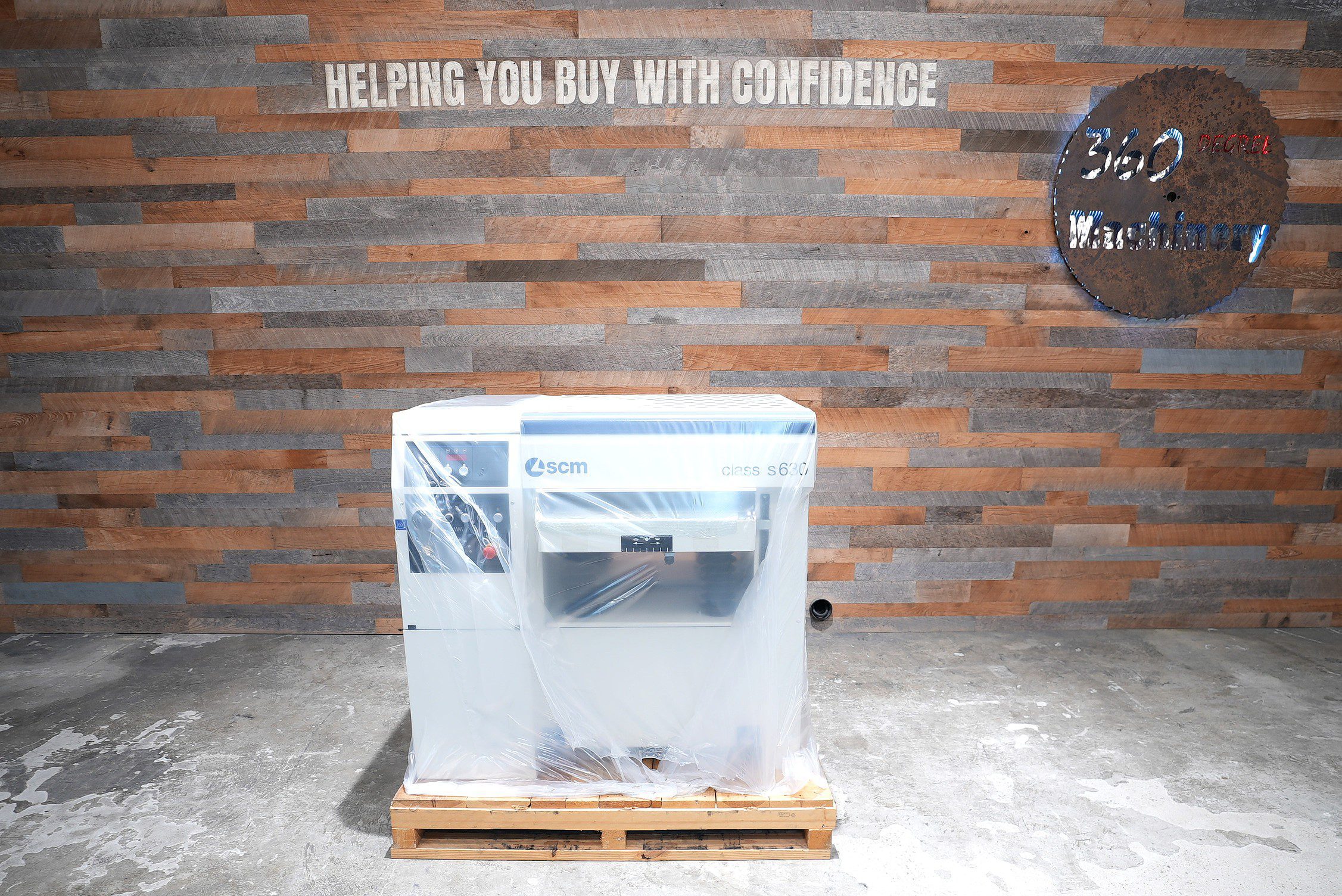

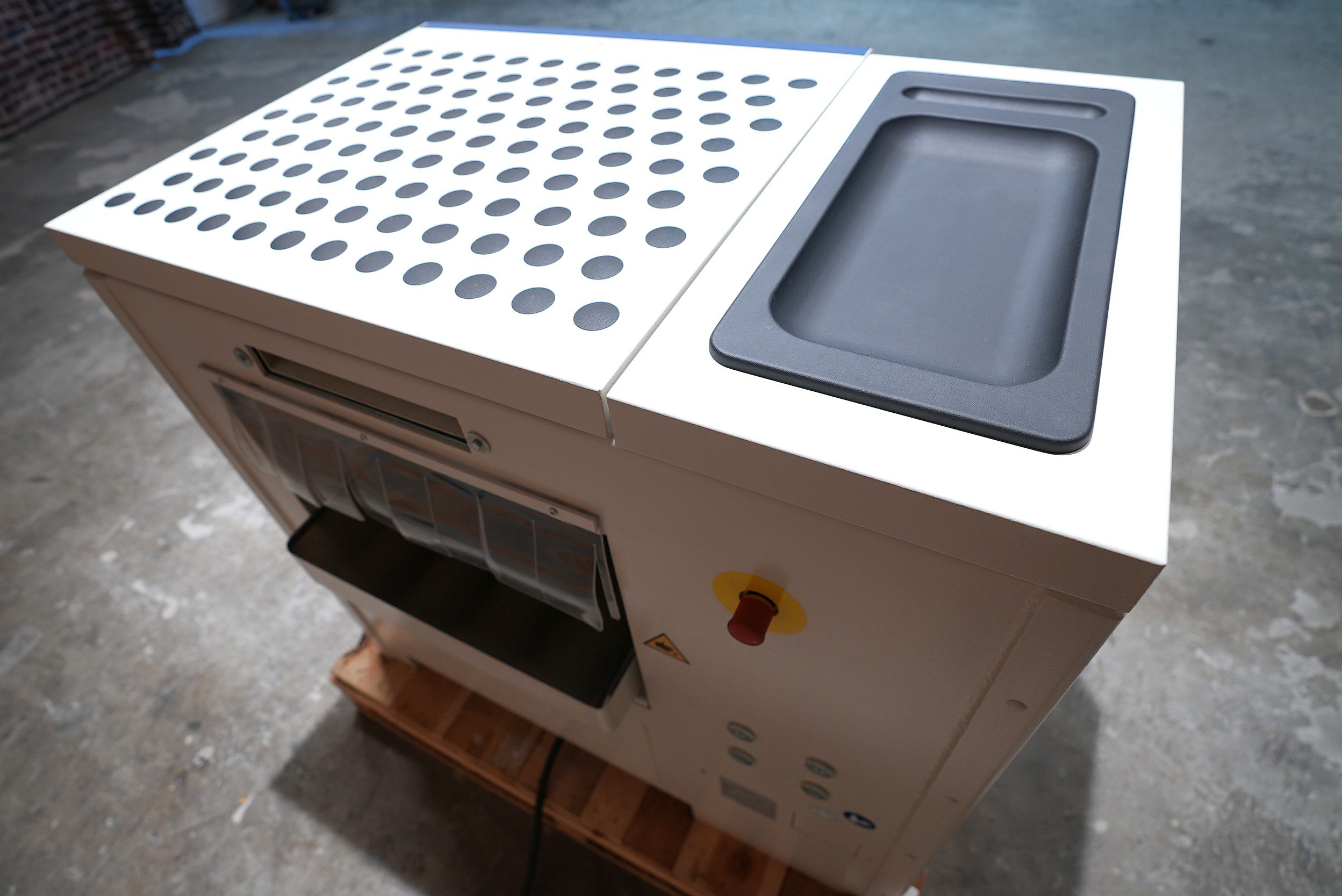

NEW SCM Class S 630 – 24″ Tersa Head Planer SAVE $2,000 + FREE SHIPPING
NEW SCM Class S 630 – 24″ Tersa Head Planer SAVE $2,000 + FREE SHIPPING
$23,975.00 Original price was: $23,975.00.$21,975.00Current price is: $21,975.00.

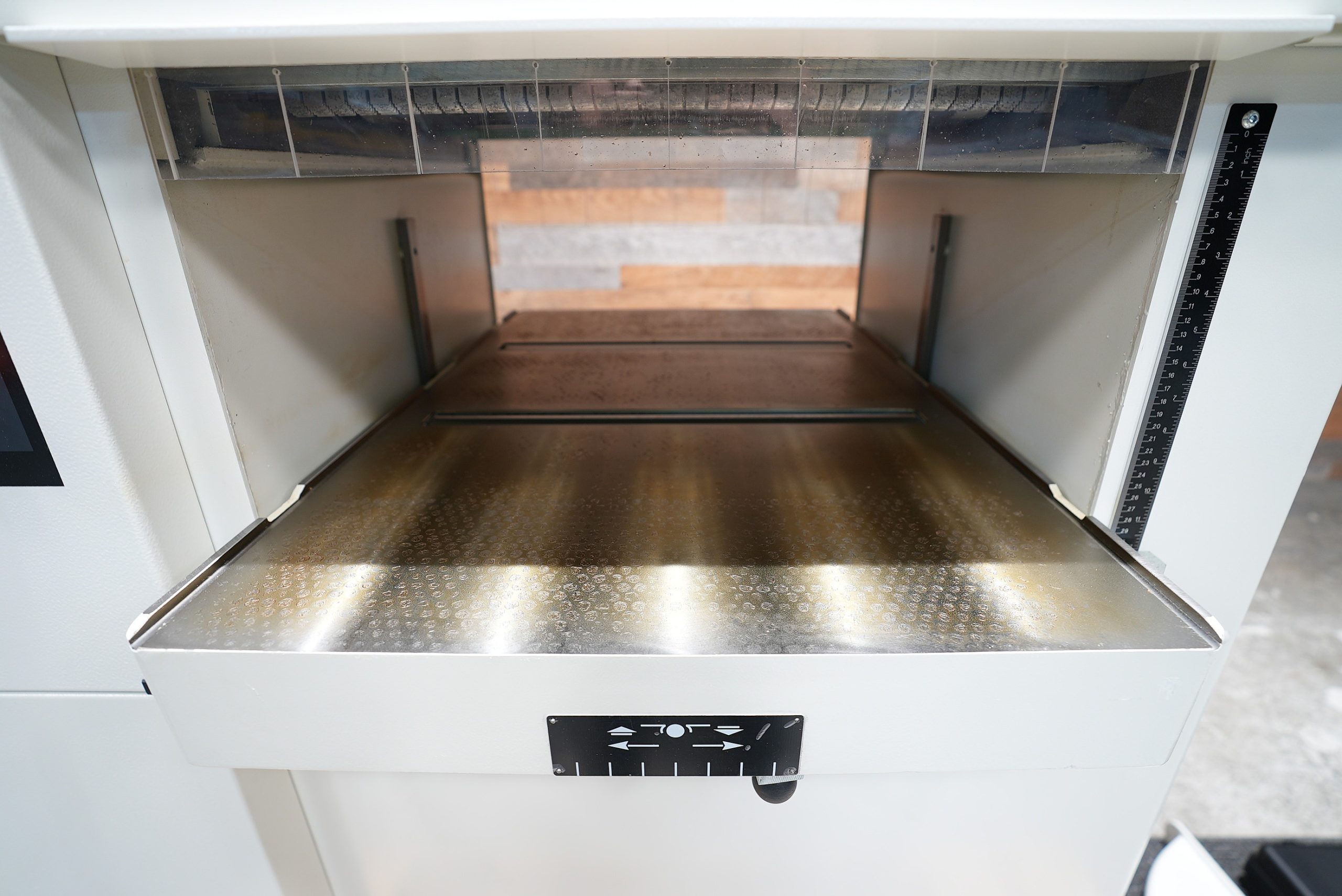

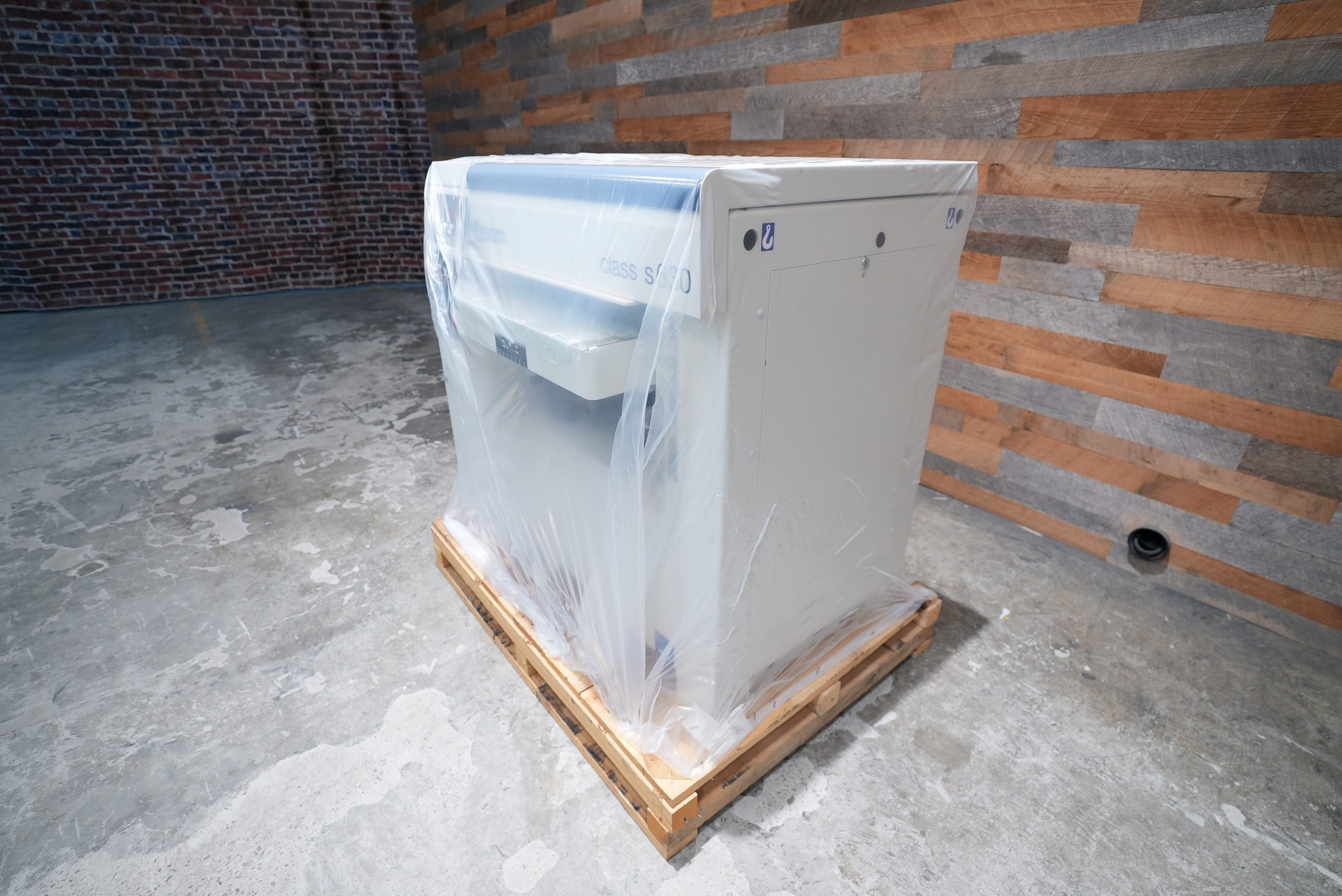

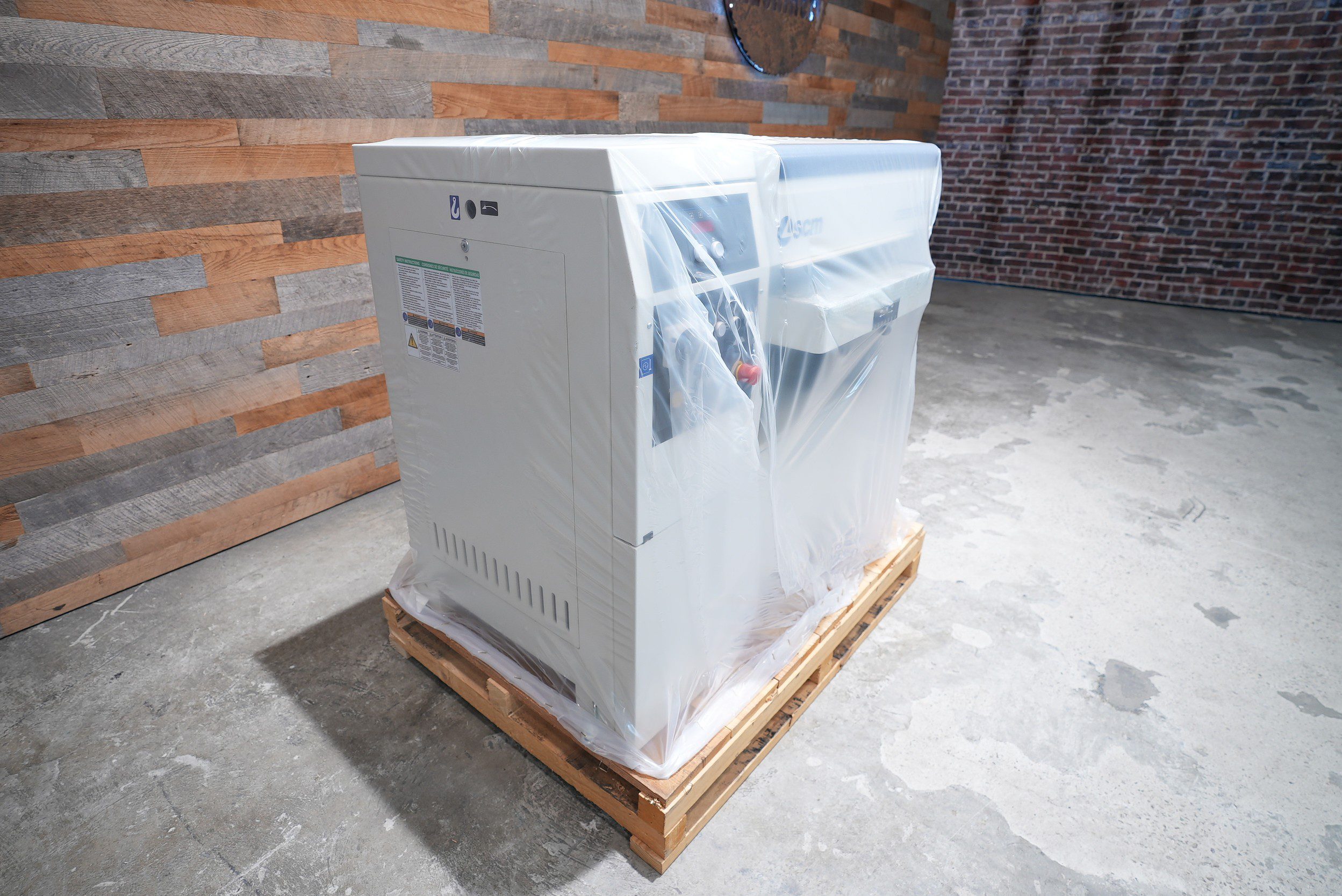

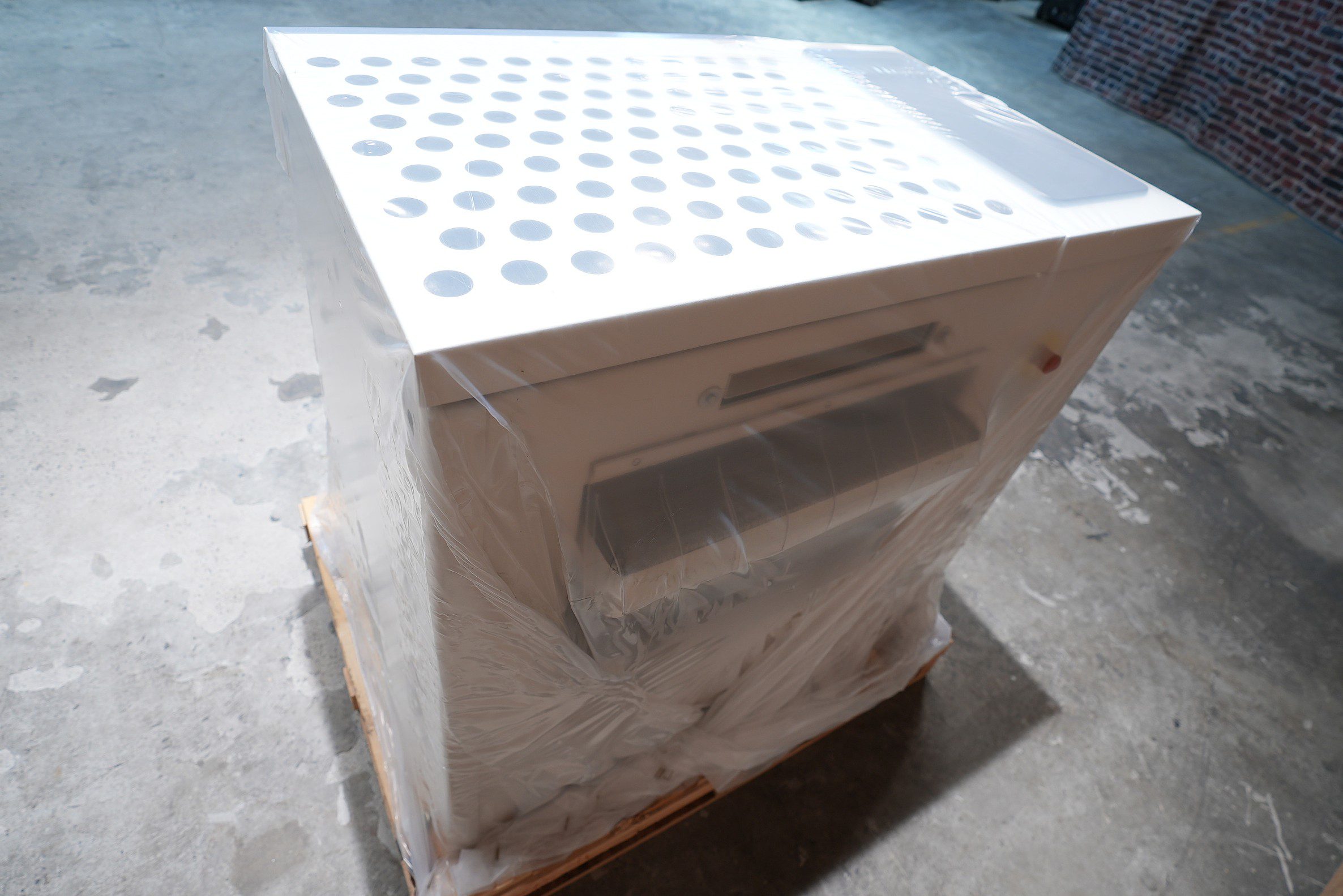

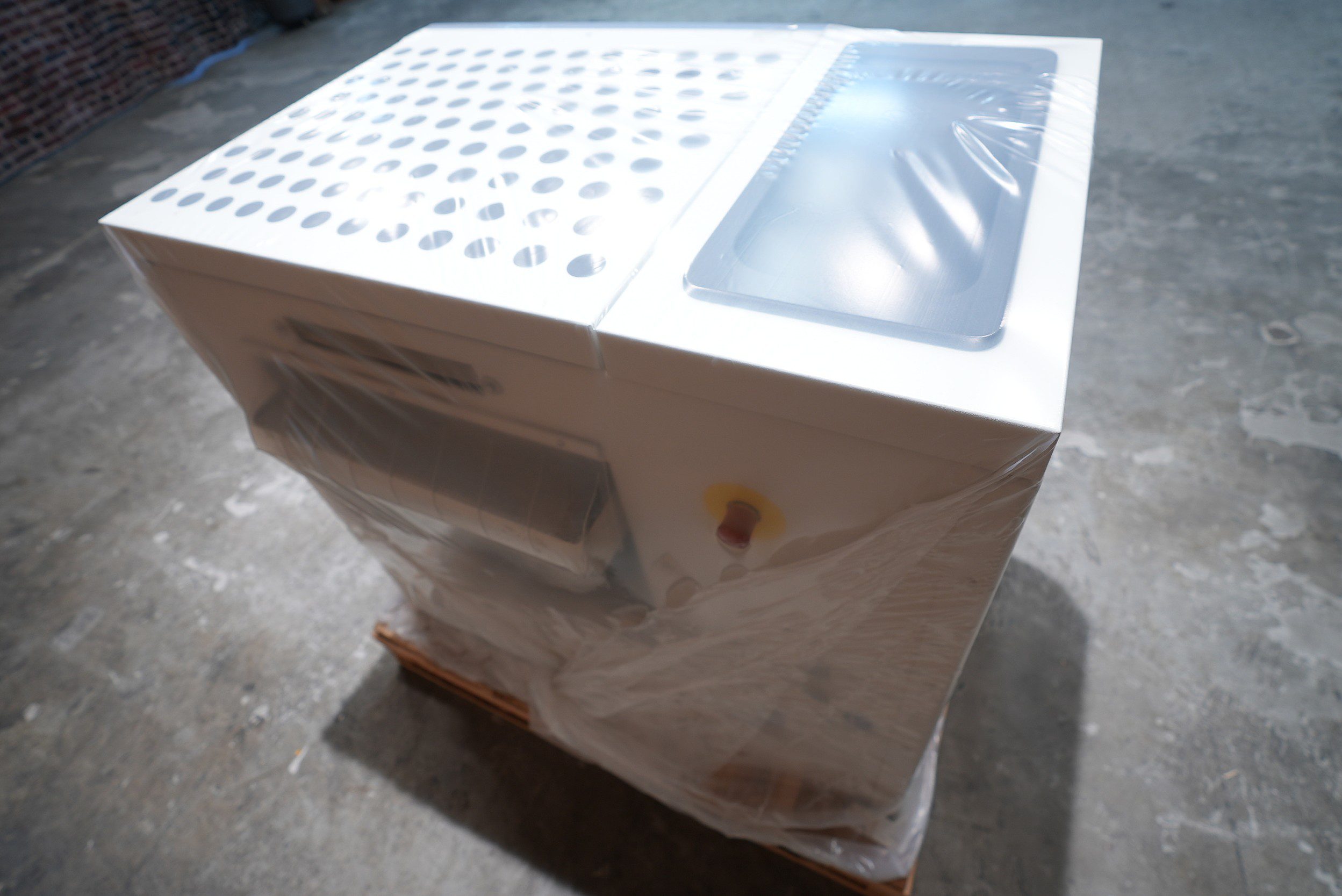

What is even better than a NEW SCM Class S 630 with a Tersa head? $2,000 OFF PLUS FREE shipping! PLEASE NOTE: Tables still have factory protective coating on them. What you are seeing is not corrosion or rust rather protectant. The Tersa head is the top choice for many woodworkers as it is the Swiss Army Knife of cutter-heads. Allowing you to switch between (4) different types of double sided knives with in minutes. Choose between:
*M+ Tersa Planer Knives are an HSS knife with a custom cutting angle to the blade that makes the knives more durable. Suitable for smaller runs of hardwoods like maple or oak.
**High Speed Steel (HSS) Tersa Planer Knives are our most popular knife, and are the best choice for general woodworking on softwoods like fir, pine, and cedar.
***Tersa Carbide planer knives are the perfect match for daily and extended use with all hardwoods, exotic woods and material with glue lines. Although the carbide steel is more brittle than high speed steel, if used on clean wood, it typically lasts 8-10 times as long.
****Chrome Steel Tersa Planer Knives are offered at a lower price than HSS and M+. Intended for working with soft woods and less likely to chip if used on dirty wood. A set of chrome blades can be used to clean the surface of dirty wood, then changed over quickly for HSS, M+ or carbide blades.
Specs & Features
Motor: 14 HP (11 kW), 3-phase, 220V
Circuit Required: 49A, 3-phase
Motor Start: Automatic star-delta
Working Width: 24.8″ (630mm)
Table Length: 39.37″ (1,000mm)
Max Working Thickness: 11.75″ (300mm)
Min Working Thickness: 0.12″ (3.5mm)
Min Stock Length: 10.24″
Max Depth of Cut: 5/16″ (8mm)
Cutterhead Type: Tersa — 4 straight knives, 630mm
Cutterhead Diameter: 4.7″ (120mm)
Cutterhead Speed: 4,500 RPM
Feed Speed: Variable, 13–66 FPM (4–20 m/min), inverter-controlled

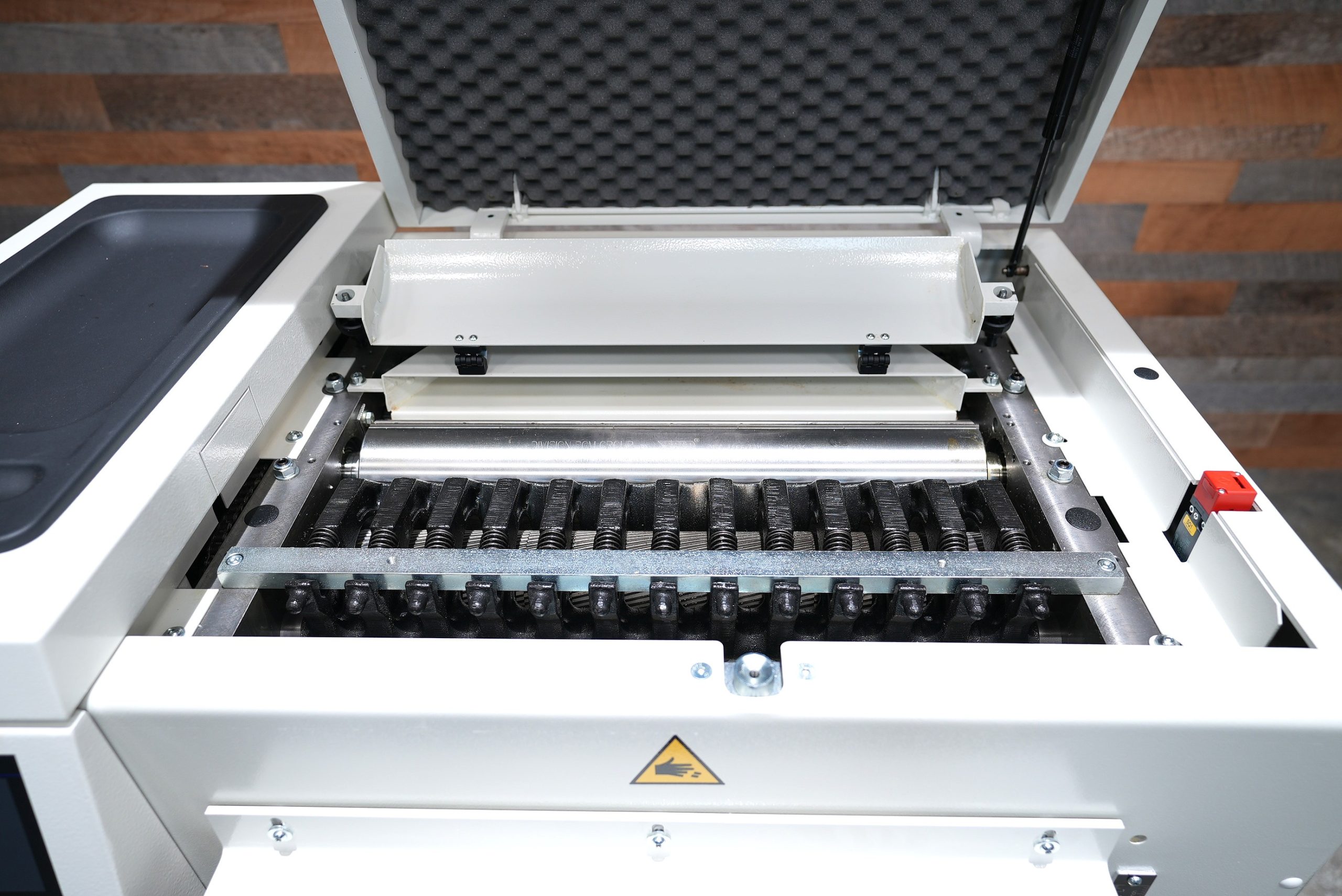

Infeed Roller: Sectioned steel, power-driven
Outfeed Rollers: 2× rubber-coated steel, power-driven
Bed Rollers: 2 adjustable idle rollers, standard
Table Support: 4 Acme-thread jack screws with dust protection
Table Lift: Powered, 2-speed with micrometric adjustment and digital readout
Base: Monoblock welded steel, heat-treated (normalized)

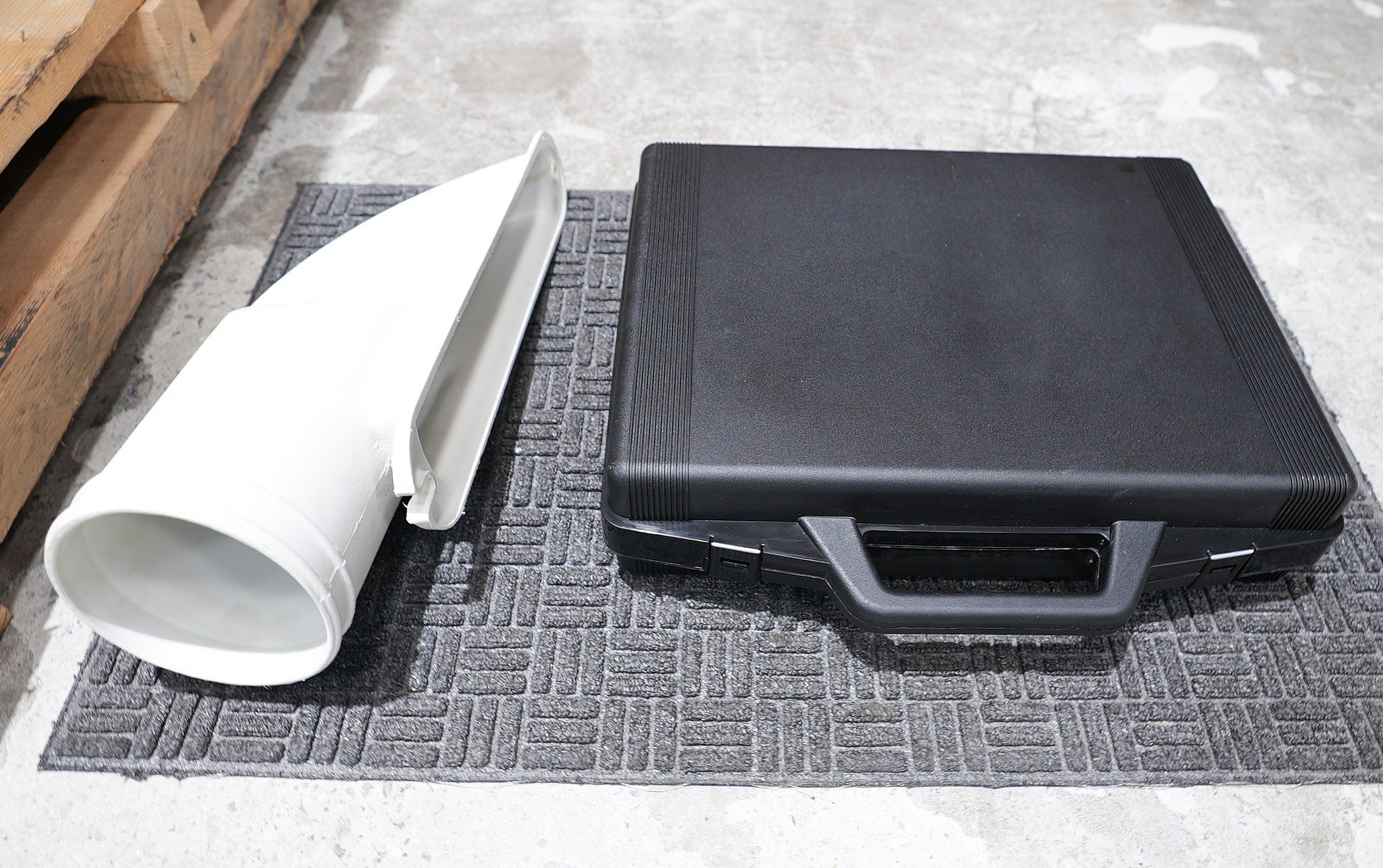

Dust Port: 6″ (150mm)
Dust Extraction Minimum: 754 CFM (1,300 m³/h)
Overall Dimensions: 50.4″ W × 43.1″ D × 48.0″ H (1,280 × 1,095 × 1,219mm)
Net Weight: 2,015 lbs (914 kg)
Shipping Weight: 2,220 lbs (1,007 kg)
