Larick Model 410 Shaper/Sander

Larick Model 410 Shaper/Sander

Categories , , Tag Brand:

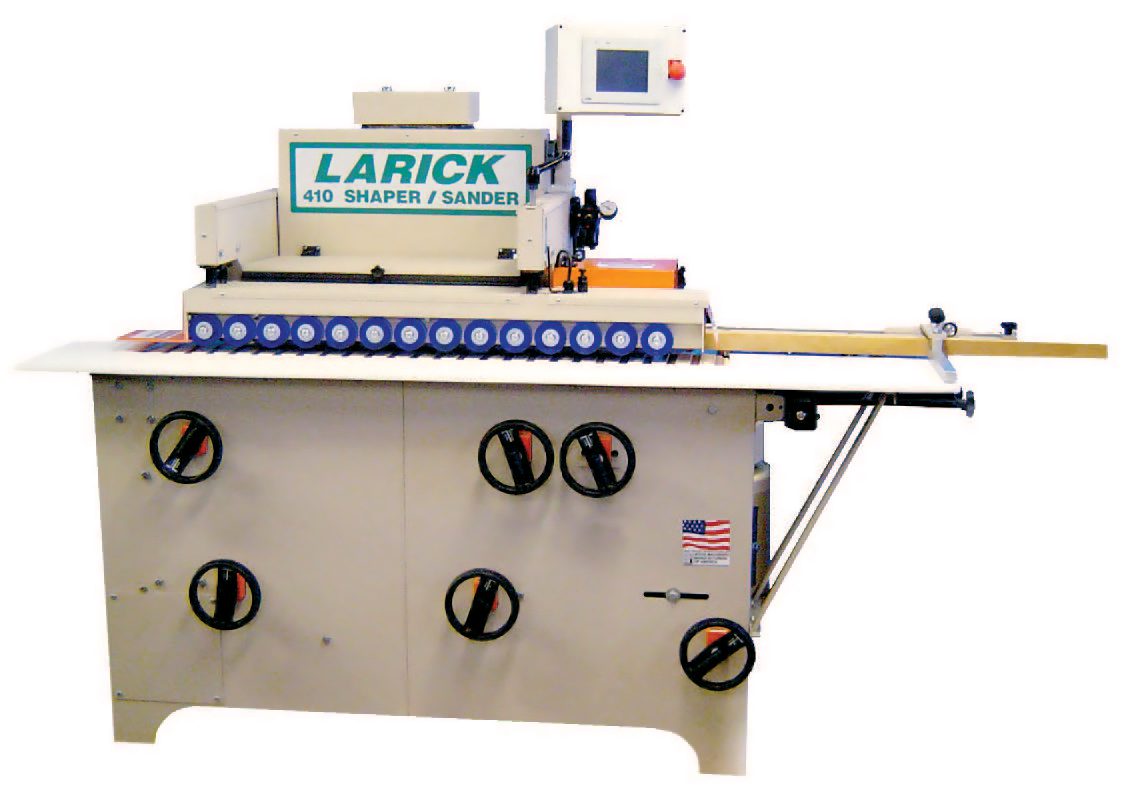

Larick 410 Shaper/Sander

Designed and manufactured to give years of dependable service, the Larick 410 will shape and sand a wide variety of workpieces. It features a 6″ wide feed chain with four staggered rows of hold down tires; front adjusting handwheels with digital readouts for horizontal and vertical shaper and sander positions; AC inverter controlled variable speed for shaper, sanders, and feed featuring digital readouts for speed and load; floating heads are optional which allow shaping and sanding of arched panels. The user-friendly design and small footprint make setup and profile changeovers quick and easy.

Add to Quote Request

Features:

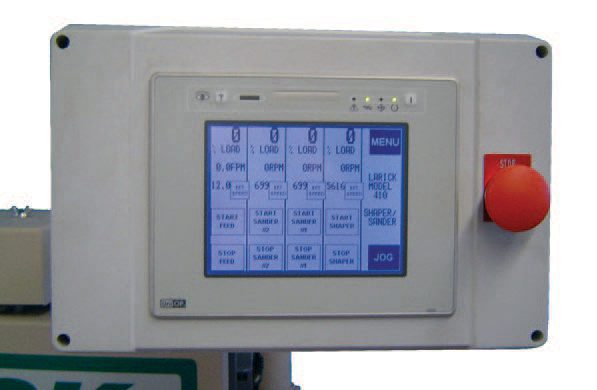

Control Unit:
AC inverter controlled variable speed for Shaper, Sanders, and Feed
NEW, easy-to-use touchscreen displays RPM and Load for each motor
Shaper brake is standard for safer operation
Backlit LCD screen with adjustable height swivels to
provide for a better view.
208-230 or 460 volt/3PH/50-60 HZ

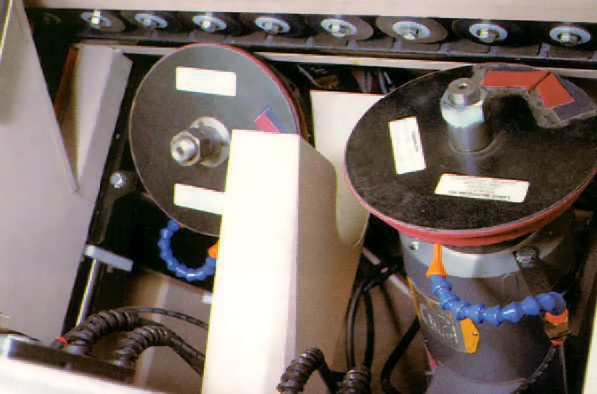

Sanding Stations:
Two sanding stations with 1” counter-rotating spindles
2 HP motors, 400 to 1800 RPM variable speed
Each station tilts forward 60o and backward 40o
Horizontal and verticle adj. with digital position indicators
Air jet cleaning/cooling devices at each station
Will accommodate up to 9” diameter sanding wheels
Optional: Floating heads for sanding arched panels
Shaper Station & Fence:
7 1/2 HP Shaper Motor
Variable speed from 4000 to 7000 RPM
Horizontal and Vertical adj with digital position indicators
11/4” spindle dia., 4” to 7” dia. cutter capacity
Optional: floating head for shaping arched panels
5 adjustable preset fence positions
“Chipbreaker” fence almost eliminates splintering without a messy, costly, 2nd hogging shaper
Push bar to feed arched panels squarely

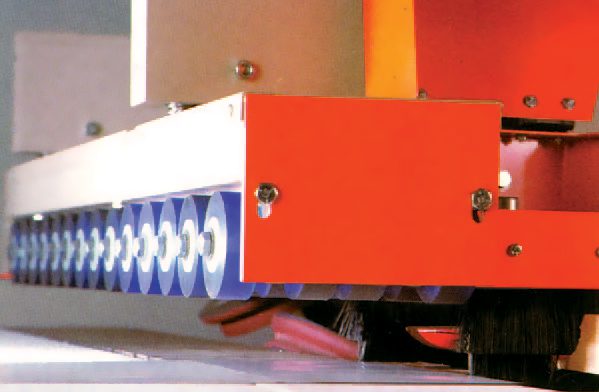

Conveyor System:
6 inch wide heavy duty track with 4 staggered rows of hold down tires for part stability
3/4 HP feed motor, 0 to 20 FPM
141/2” wide table for product support
Handles workpieces up to 13/4” thick

Specifications:

Motor:
 7.5 HP Belt Driven
Shaper Spindle Speed:
 4000-7000 rpm
Shaper Spindle:
 1-¼” Dia.
Sander Motors:
 1.5 HP Direct Drive
Sander Spindle Speed:
 400-1800 rpm
Sander Spindles:
 1″ Dia. by 4″ Tall
Voltage:
 208-240V 3ph, 30A
208-240V 1ph, 40A
440V 3ph, 15A
Conveyor:
 6″ Wide, 4 rows of tires
Vertical Adjustment:
 Yes, with digital counters
Horizontal Adjustment:
 Yes, with digital counters Sanding Wheel
Tilt:
 60º Forward; 40º Back
Fence:
 5 adjustable stops
Table Height:
 36 inches
Size:
 75″ x 36″ x 54″
Weight:
 1325 lbs
