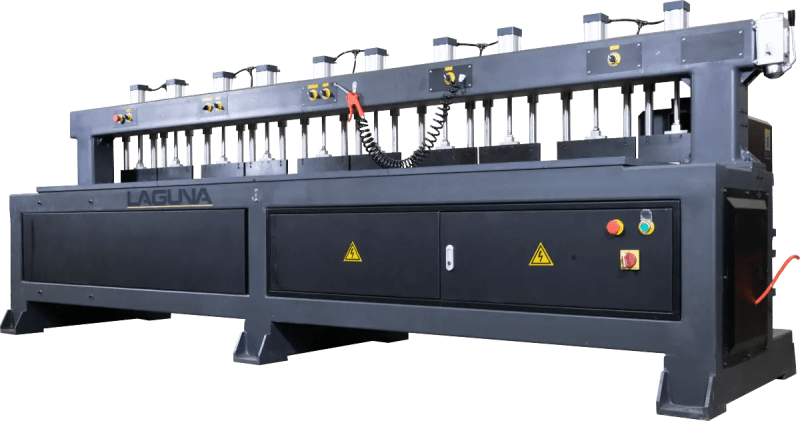

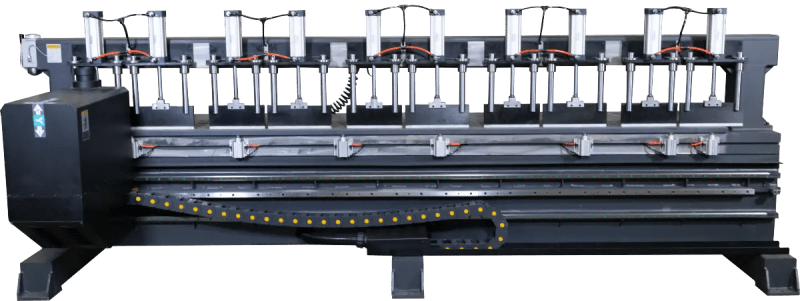

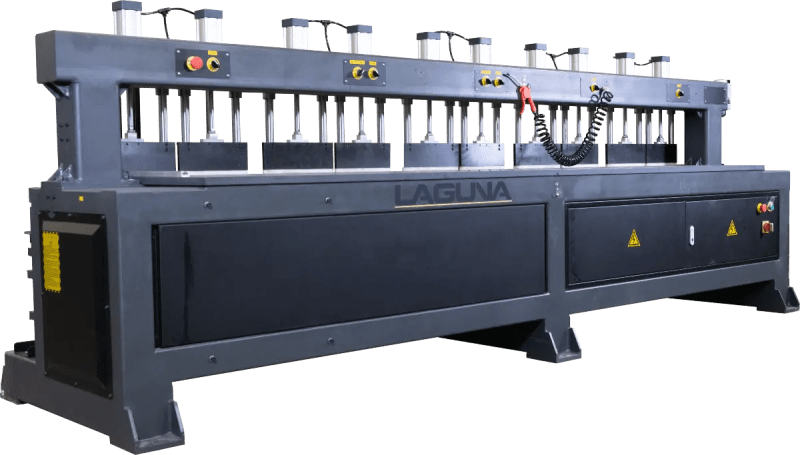

Laguna SmartShop® J Joinery CNC Router

Laguna SmartShop® J Joinery CNC Router

$37,000.00

The newest model in the SmartShop lineup, the J is able to precisely and consistently route several types of standard joints. From classic mortise and tenon joinery to lockset and hinge mortising, the J comes with a 4.5HP air-cooled spindle, Delta Servo Motors and Drivers, a central lubrication system, pneumatic positioning pop-up pins, and a DSP handheld control system.

Features:
  • Strengthened Steel Structure
  • 4.5HP Air Cooling Spindle
  • 5HP Delta Inverter
  • DSP Control System
  • 750w Delta Servo Motor And Driver
  • Bakelite Table

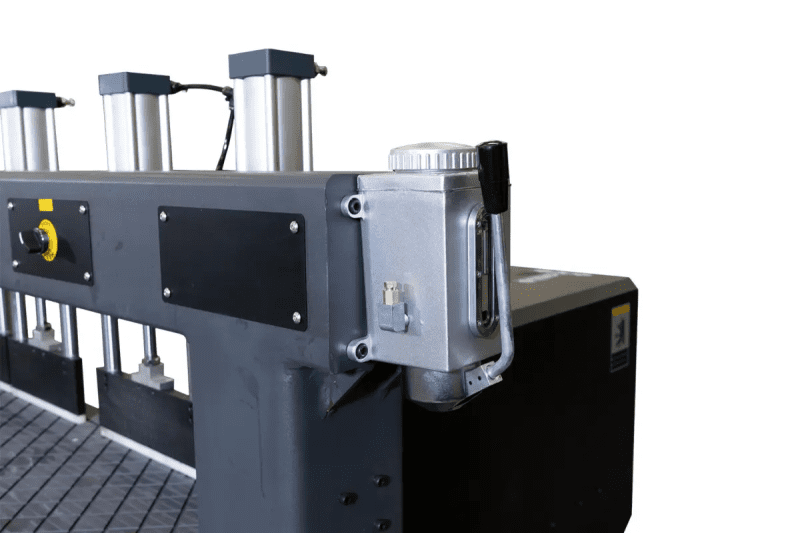

  • Lubrication System

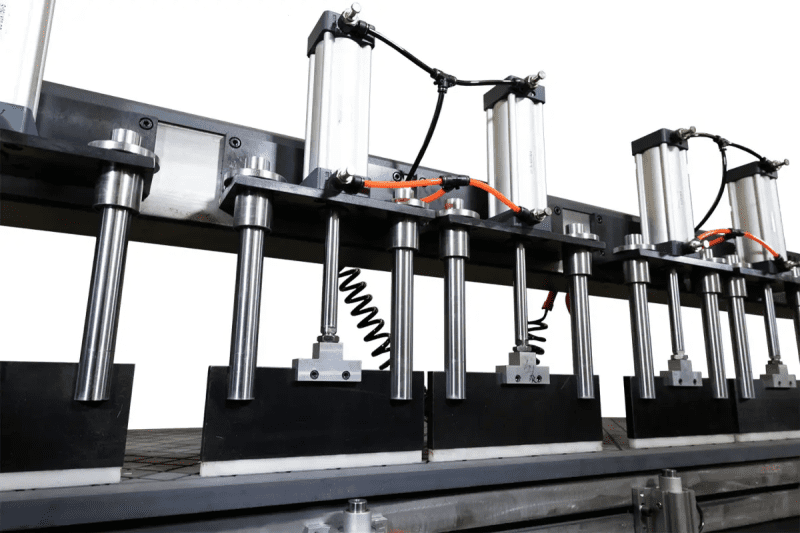

  • Pneumatic Pop Up Pins
  • UL Cable And Electric Components
Add to Quote Request

Spindle & Power Details

  • 4.5HP Air-Cooled Spindle
  • 5HP Delta Inverter
  • 750W Delta Servo Motor and Drive



Frame & Gantry

  • Welded once piece steel frame
  • Helical Rack and pinion drive system X-axis
  • Precision ground ball screw on Y and Z axis
  • Delta servos
  • Shipping Weight: 2500 lbs
  • Shipping Dimensions (W x L X H): 42.3″ x 49″ x 43″

Applications

  • Classic Mortise and Tenon
  • Floating Mortise and Tenon
  • Finger Joints
  • Louvered Grooves
  • Lockset Mortising
  • Hinge Mortising
  • Drilling
  • Doweling

Please Contact us for a shipping quote for Pre-Owned Machinery and or New machinery below $6,000.

***Some restrictions apply for free freight on NEW machinery over $5,999. FREE freight is to a commercial address with a dock and or forklift. EXTRA FEES may apply to accessorials like restricted access, residential drops, liftgates, and excessive lengths.

Applies to lower 40 of the contiguous states only. AZ, CA, ID, MT, NV, OR, UT, & WA do not qualify for free shipping. We can split ship to these states from $5,999 and up. Free shipping does not apply to RazorGage Machines nor JLT Machinery or other machines listed as not free shipping.

360 Degree Machinery offers financing solutions with competitive rates, flexible terms, and a simple application. Take the hassle out of machinery purchases. Click Here to learn more now!

Spindle & Power Details

  • 4.5HP Air-Cooled Spindle
  • 5HP Delta Inverter
  • 750W Delta Servo Motor and Drive



Frame & Gantry

  • Welded once piece steel frame
  • Helical Rack and pinion drive system X-axis
  • Precision ground ball screw on Y and Z axis
  • Delta servos
  • Shipping Weight: 2500 lbs
  • Shipping Dimensions (W x L X H): 42.3″ x 49″ x 43″

Applications

  • Classic Mortise and Tenon
  • Floating Mortise and Tenon
  • Finger Joints
  • Louvered Grooves
  • Lockset Mortising
  • Hinge Mortising
  • Drilling
  • Doweling
