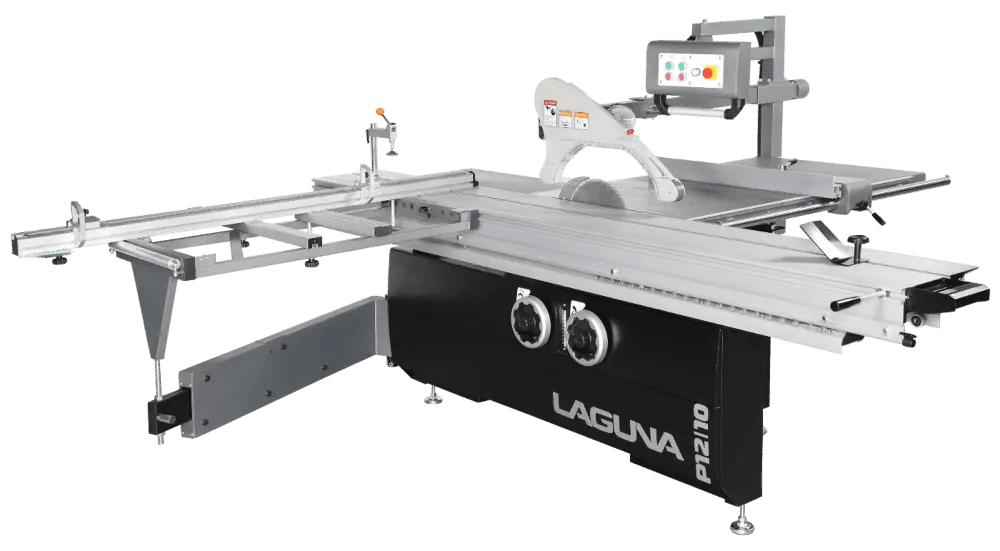

Laguna Tools P12|10 Panel Saw
Laguna P12|10 Panel Saw
$15,999.00
Request a call back

Laguna P12|10 Panel Saw

Laguna P12|10 Panel Saw

$15,999.00

Categories , , , , Tags , , , Brands ,

The 126″ sliding table is constructed of anodized aluminum. The dumbbell design is widely recognized as the superior choice for high-end sliders today. Ultra-smooth movement allows you to move the table effortlessly.The European-style 51″ rip fence consists of a heavy-duty casting riding on a micro-polished solid steel bar. On the backside of the casting is a small adjustable wheel to make sideways movement a breeze. The rip fence is outfitted with a micro adjustment for fine-tuning; simply lock it in place and adjust fence incrementally. The overhead guard comes standard with quick-change 90° and 45° guards; you can switch from one to the other in a matter of seconds. A nice detail is the swing-away function that allows you to quickly move the guard out of the way. Dust collection hookup is out of the way at the end of gantry (5″).

Features:
  • Motor: 7.5HP 3ph or 5 HP 1ph
  • Voltage: 220v 60 HZ
  • Blade Capacity: 12″, 14″/300mm, 355mm
  • Max. Blade: 16″/400mm (minimum height when lowered: 1″/25mm)
  • Max Scoring Blade: 4-3/4″ /120mm
  • Scoring Adjustment: T-Handle through Cast Top
Add to Quote Request

The heavy-duty anodized aluminum crosscut fence features two solid flip-stops, telescoping function (max 108″), 45° miter and is ergonomically designed to make it easier to read the tape.

Inside the P12|10 you will find the saw unit is moving on micro-polished solid steel rods for ultimate precision.

The heavy duty motor is equipped with soft start to minimize initial amperage draw.

The P12|10 comes standard with hold-down clamp, rip shoe and push handle.

Arbor: 30mm(Main), 20mm (Scoring)

Max Cutting Height 90° 14″/355mm Blade: 4-½″ (115mm)

Max Cutting Height 90° 16″/400mm Blade: 5-⅛″ (130mm)

Max Cutting Height 45° 14″/355mm Blade: 2-¾″ (70mm)

Max Cutting Height 45° 16″/400mm Blade: 3-½″ (90mm)

Main Blade Speed: 4000 RPM

Scoring Blade Speed: 8000 RPM

Dust Collection Port Saw: 4¾″ (120mm)

Dust Collection Port Guard: 4″ (100mm)

Sliding Table: 126″ (3200mm)

Sliding Table Width: 14.88″ (378mm)

Main Cast Table: 21-½″ x 35-¼″

Rip Fence: 51″ (1300mm)

Rip Fence Micro Adjust: Included

Rip Fence Bar: 1-⅝″ (40mm) Solid Steel Micro Polished

Overhead Guard With Swing-Away

Push Handle: Included

Rip Shoe: Included

Hold Down Clamp: Included

Crosscut Fence: 2 x Flip-Stops

Crosscut Fence Readout: Inch/Metric

Crosscut Fence Max Collapsed: 77″

Crosscut Fence Max Extended: 140″

Table Lock Positions: 2 Tabs, 20 Notches = 40 Total

Ship Dimensions Body: 83″ x 47″ x 46″

Ship Dimensions Table: 137″ x 20″ x 15″

Weight (Net/Ship): 1815/2112 lbs
