Laguna Tools Fiber Marker | OM
Laguna Fiber Marker | OM
$8,999.00 – $32,999.00Price range: $8,999.00 through $32,999.00
Request a call back

Laguna Fiber Marker | OM

Laguna Fiber Marker | OM

Price range: $8,999.00 through $32,999.00

Categories , , , Tags , , , , Brands ,

Laguna Fiber laser marking machines are a new generation laser marking system made with the newest laser technology, designed for permanently marking and engraving metal as well as industrial polymers.

Features:
  • 20,30, 50 and 100 Watt Options
  • 110 x 110mm Lens
  • Laser Wavelength: 1064nm
  • Up to 10,000mm/s Marking Speed
  • Resolution: 0.001mm
  • Repositioning Precision: 0.003mm
  • Air cooling system
Add to Quote Request

Laser Specs

Parameters

  • 1064nm Wavelength
  • 20W/30W/50W Average Power Output
  • 20kHz – 80kHz Modulation Frequency Range
  • File Formats: .plt, .dst, .bmp, .dwg, .ai, .las, supports AutoCAD, CoreDraw Direct output
Type

  • Raycus Q-Switch or JPT MOPA (Optional)

Galavanometer Specs

Parameters

  • 10,000mmm/s Maximum Speed
  • 0.001mm Resolution
  • 0.003mm Repositioning Precision
  • 0.01mm Minimum Line Width
  • 0.2mm Minimum Height of Characters

Optical Output

Marking Range

  • F = 160mm
  • Range: 110 x 110mm (with standard)
  • 0.5KW
  • AC: 220V
  • 50Hz
Minimum Line Width

  • 0.01mm
Marking Range

  • 150mm x 150mm
  • 200mm x 200mm
  • 220mm x 220mm
  • 300mm x 300mm
Minimum Height Of Characters

  • 0.2mm
Cooling Systems

  • Air-Cooled
Environmental Requirements

  • 0 ~ 35 ℃, 90% Humidity

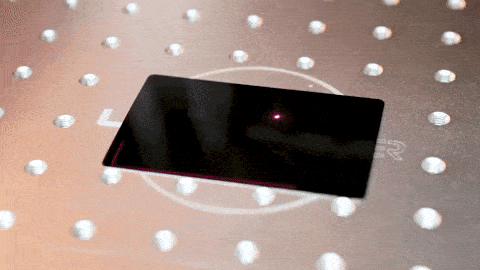

Fiber Laser GIF 1

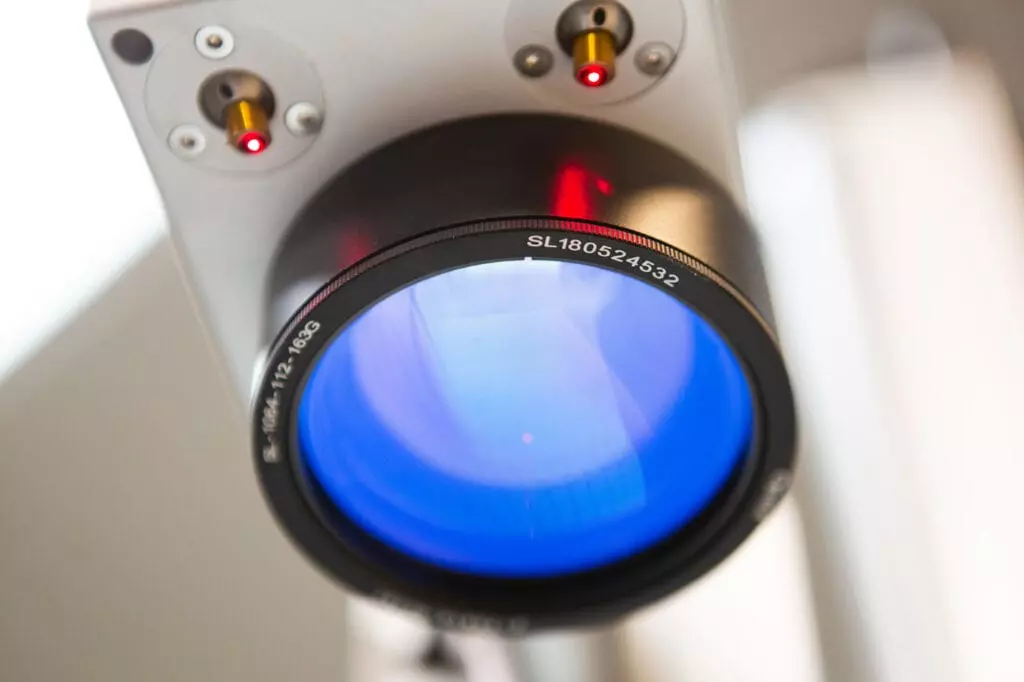

Excellent Beam Quality

The OM Fiber Marker achieves superb beam quality by minimizing the condensation diameter to less than 20um. And with a divergence angle that is ¼ of the semiconductor pumping source laser, the OM achieves consistent precision. This exceptional accuracy can be run at a marking speed of up to 10,000mm/s.

Low-Use Cost & Maintenance Free

Because the Fiber OM has a high turnover ratio between electricity and laser usage, you’ll save on your usage and power bill. Up to the machine’s lifetime of 100,000 hours, the OM will keep your run costs as low. As well as having a minimal operating cost, the OM laser lens is completely maintenance free

laser head
Small Fiber Marker Laser Focusing 1 1

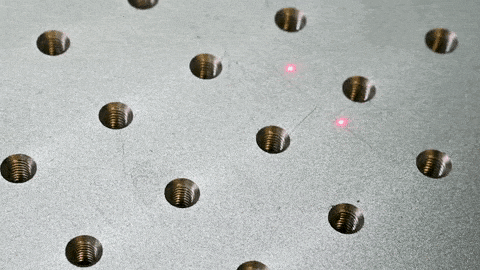

Dual-Laser Focusing System

To ensure the best possible outcome, the EM comes with a focusing system. You can manually adjust either before or during the operation to fine tune your project to your liking.

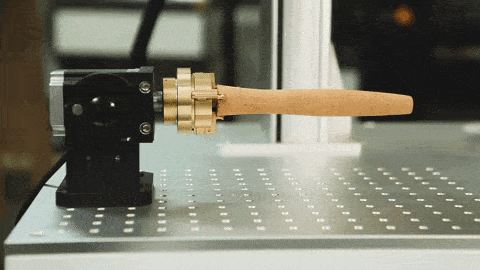

Rotary Worktable Optional

With an installation of a rotary table for multiple axis, you’ll be able to work on cambered surfaces.

Fiber Marker Rotating GIF 01 1 1
