Features;
- Heavy-duty lower frame with direct AC drive motors
- Heavy-duty transport chain assemblies in 3-3/16 inch
- Rubber drive pads vulcanized to steel plates and mechanically fastened to carrier blocks
- Electronic variable speed forward/reverse drive with digital line speed
- Upper beam(s) with a double row of 2 -3/4 inch diameter serrated rollers
- Upper beam adjustment with pointer and scale
- Power width adjustment
- Infrared heater(s) with electronic temperature controls
- 90° and 180° quick-change forming roller assemblies with adjustable spring-loaded silicone rollers
- 90° and 180° compression rollers with adjustable spring-loaded silicone rollers
- Forming and compression roller assemblies are mounted on infinitely adjustable linkages to accommodate a large variety of profiles
- Gas spring-operated enclosure door(s) with viewing windows and safety interlock
- Operator interface (HMI) with color monitor
- Special infeed and outfeed conveyor systems
- Optional PVA spray system for applying adhesive to the edge of core and laminate
- Optional high-frequency trimming and finishing units
- Optional floating slitter saw units
- Custom tooling packages to customer specifications
[featured_box pos=”left” img=”https://360degreemachinery.com/wp-content/uploads/2021/05/Evans-Midwest-Logo-EM-270×270-1.jpeg” img_width=”” link=”https://360degreemachinery.com/product-category/new-machines/evans-midwest-countertop-machinery/”]

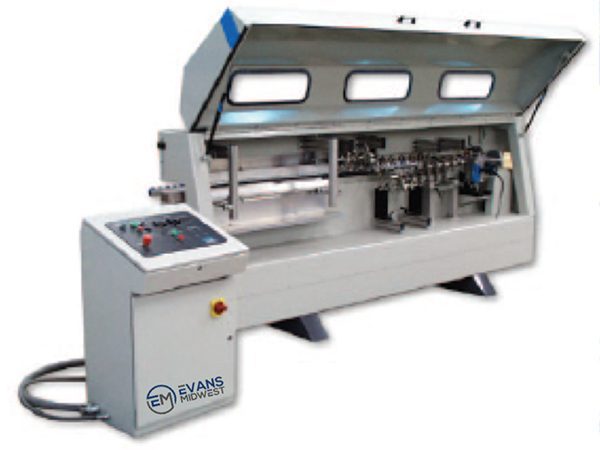

The Evans Midwest family of postforming machines is the largest in the world with over twelve (12) models from which to choose. Static, automatic and feed-through models are available in single- and double-sided configurations. Designed for a wide variety of manufacturing requirements from small custom postforming shops too large multi-shift manufacturers of kitchen countertops and office furniture. Midwest machines offer solutions for any application and production environment and have been extensively used in the kitchen countertop industry for over 50 years.
Bottom line? Evans Midwest helps you laminate better, increase productivity, and improve quality!
