SPECIFICATIONS
| MODEL | AIRFLOW | FAN MOTOR | WORKING BOOTH FACE | OVERALL WIDTH | OVERALL HEIGHT | EXHAUST DUCT |
|---|---|---|---|---|---|---|
| CVS-D-1 | 1,200 CFM | 0.75 HP | 39″ | 47″ | 102″ | ø10″ |
| CVS-D-1.5 | 1,800 CFM | 1 HP | 59″ | 67″ | 102″ | ø10″ |
| CVS-D-2 | 2,400 CFM | 1.5 HP | 79″ | 86″ | 106″ | ø12″ |

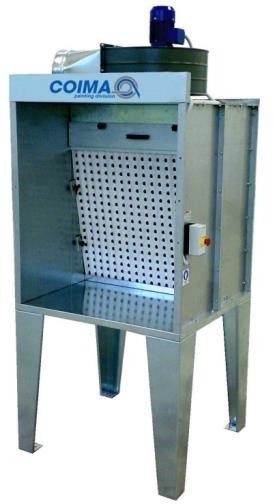

The CVS-D Dry Spray Paint Bench is suitable for the extraction and capture of pigments and fumes emitted from paint spray made with synthetic solvents, organic compounds or water. The fumes and particles are extracted through a primary layer wall of cardboard inertial filters and a secondary layer with “Paint-Stop” filter drawers.
The CVS-D Bench-Type Booth is constructed of press-bent galvanized steel panels on a sturdy steel frame with an integral working surface. This unit is ideal for schools, small workshops, and facilities where smaller piece work or limited painting tasks are typical. CVS-D booths are an economical alternative to a larger booth, and require less infrastructure to install. This unit is great for spot or touch-up work on smaller parts or post-production quality assurance fixes.
Standard Equipment:
- Anti-Spark Centrifugal Fan
- Energy Efficient Fan Motor (IE2)
- Emergency Stop Button
- Primary Inertial Cardboard Filters (H900)
- Metallic Drawers with “Paint-Stop” Filters
Optional Equipment:
- Activated Carbon VOC’s After-filter
- ATEX-Rated Non-Sparking Fan
- Fan Inverter for Added Efficiency and Speed Control
