Dake Bench Model Drill Presses

Dake Bench Model Drill Presses

Price range: $1,450.00 through $2,395.00

SKU N/A Categories , , , , Tags , Brand:

Model TB-16 and Model TB-16V

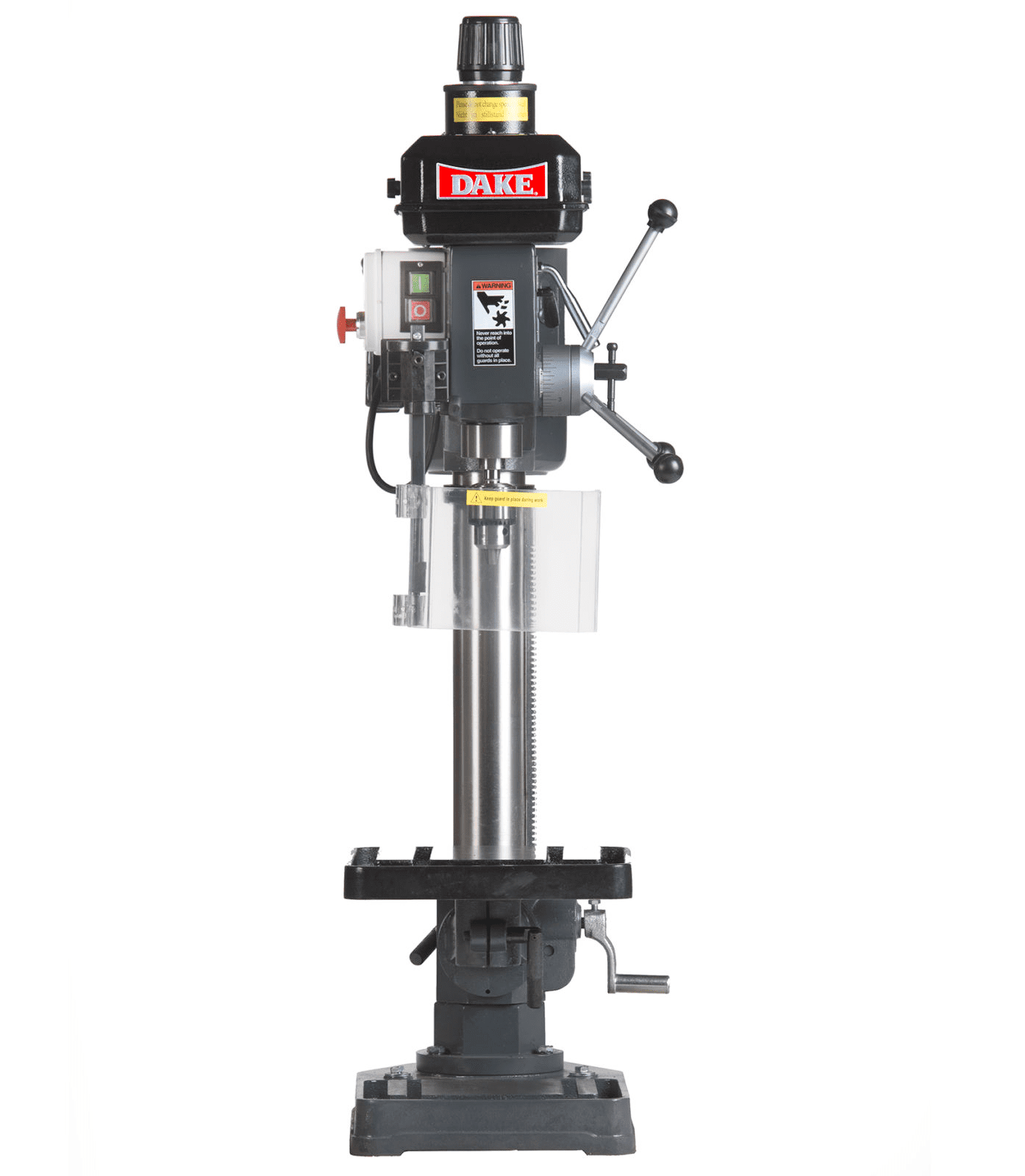

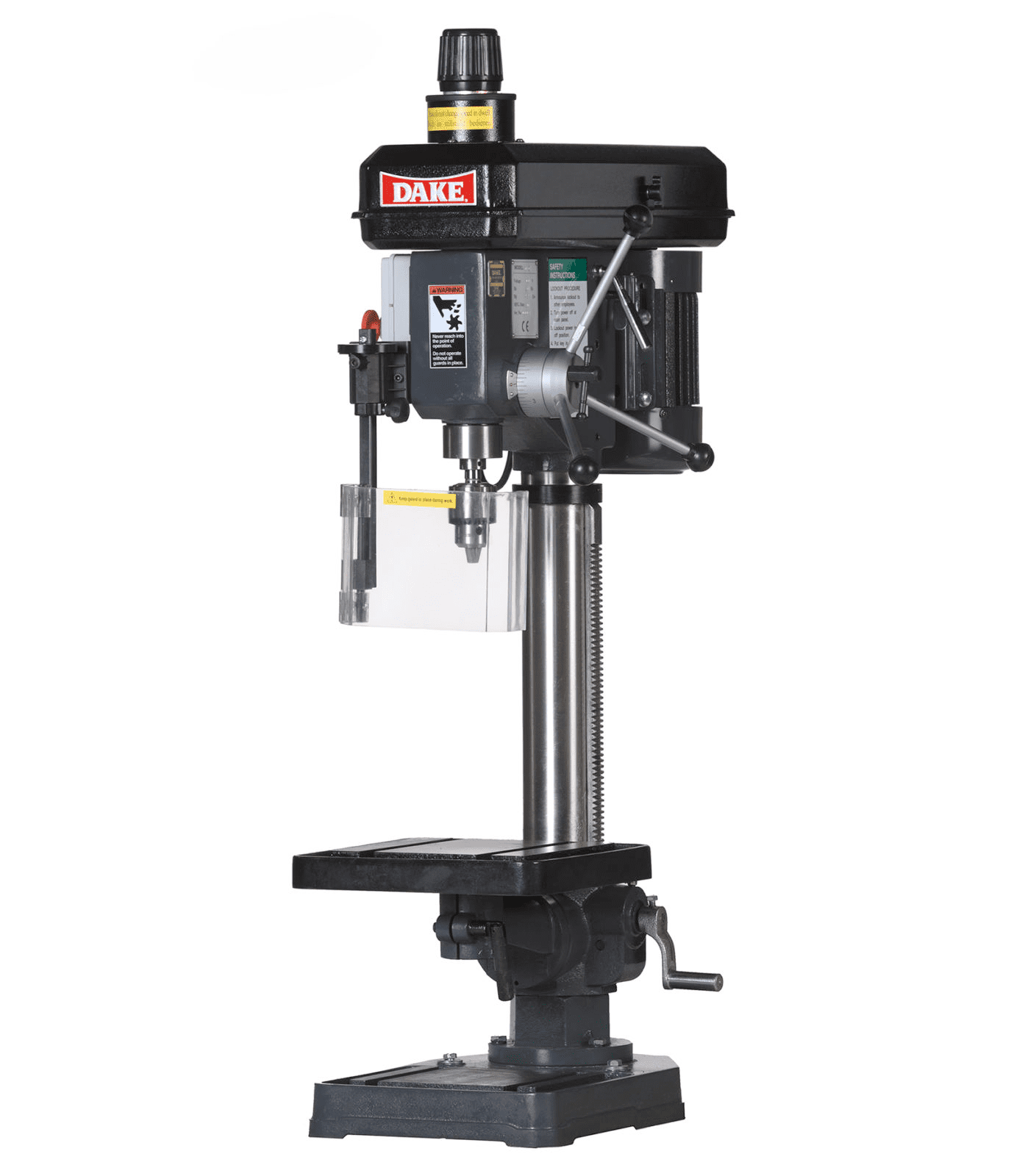

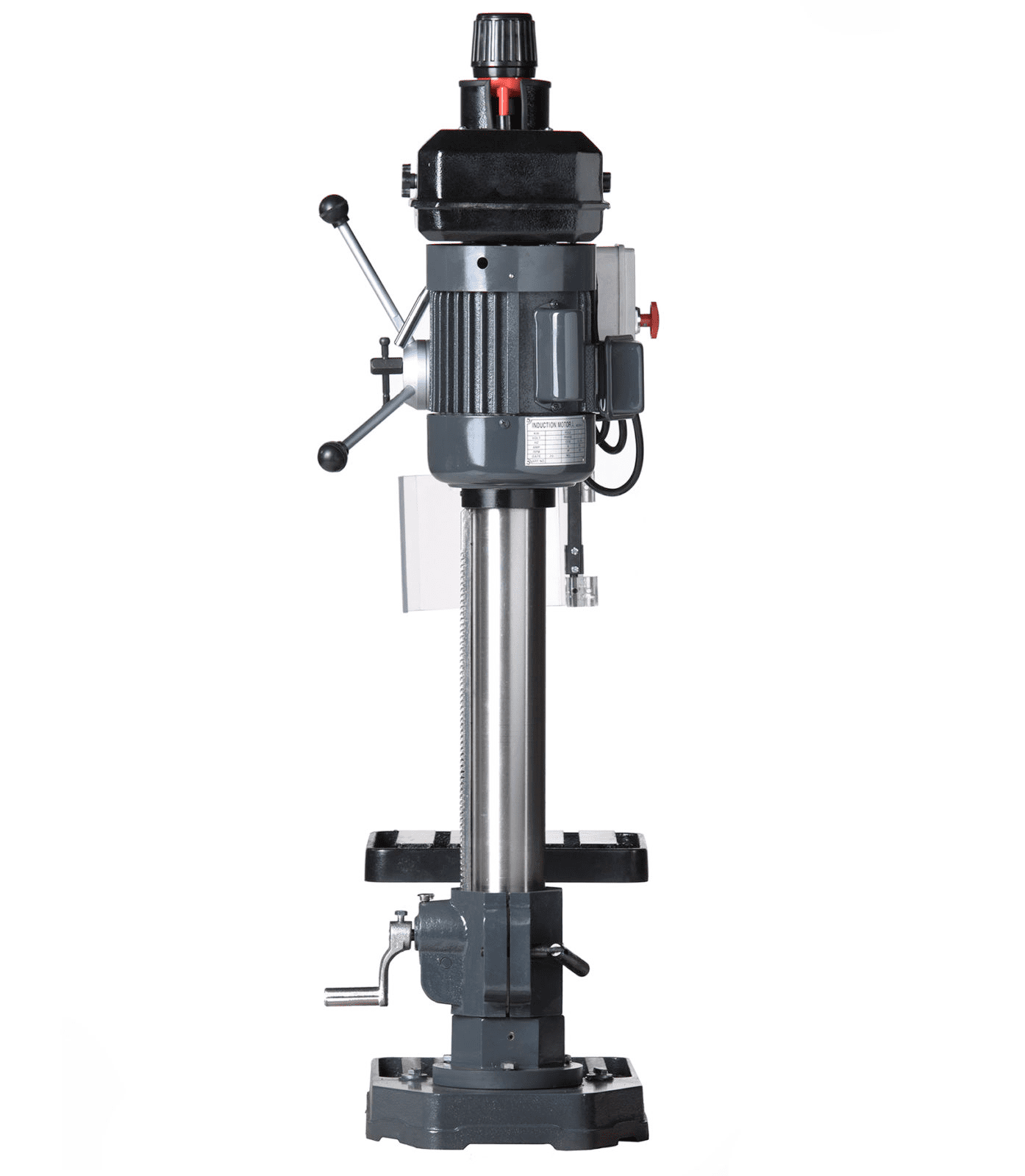

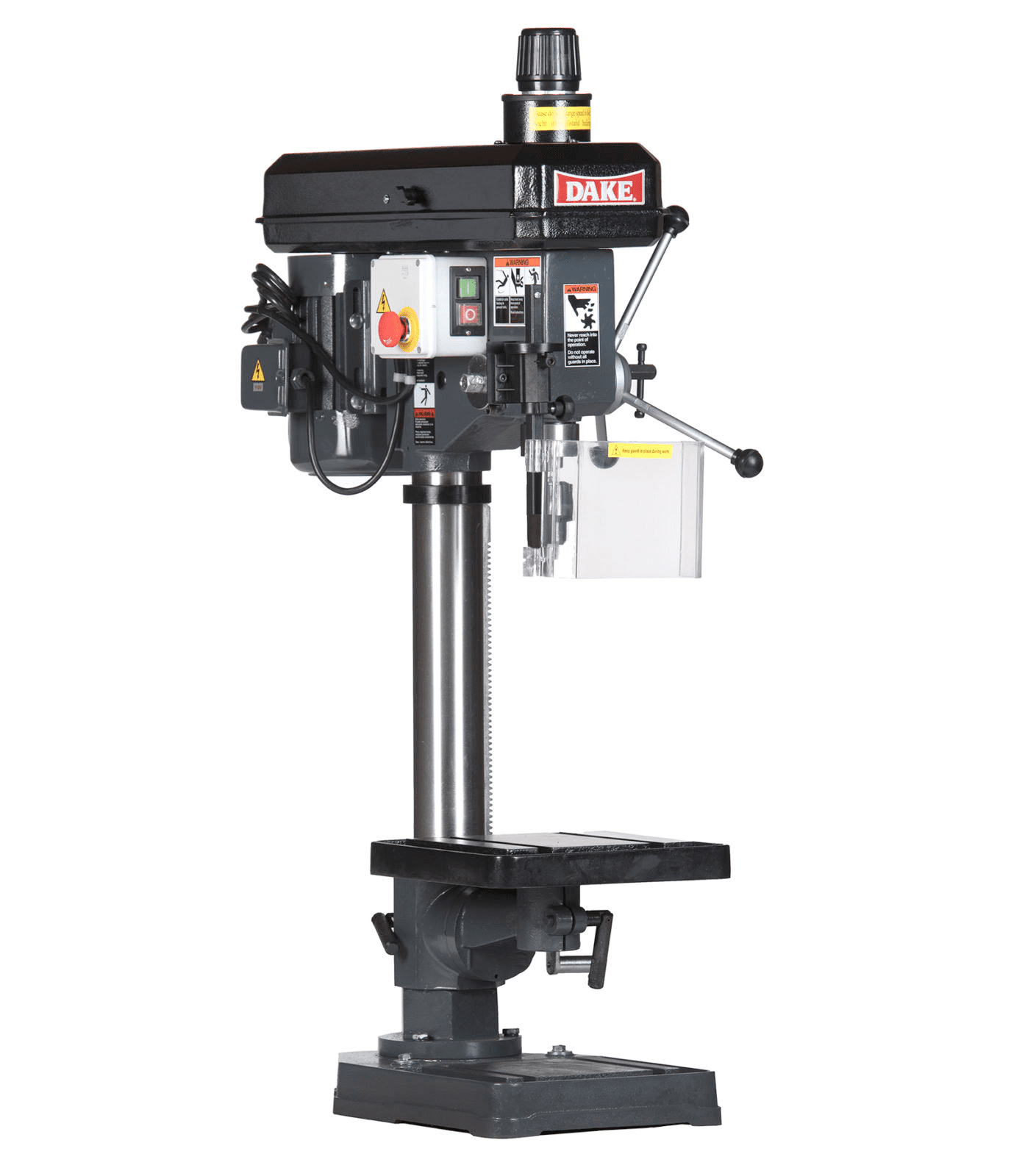

Model TB-16V

SKU: 977102

Bench top variable speed drill press that is ideal for cell applications requiring fast tooling changes. Featuring a locking handle hub for repeatable depth, CE safety electrical package, a large diameter sturdy spindle, and a massive cast head. The speed can be easily adjusted while drilling by turning the large selector knob on the top of the drill.

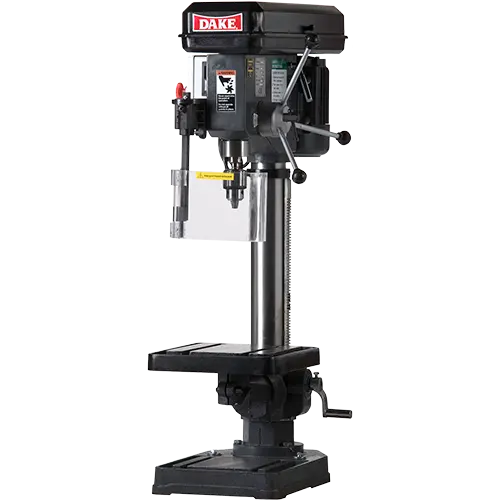

Model TB-16

SKU: 977100

Bench model drill press featuring a locking handle hub, CE safety electrical package, a large diameter sturdy spindle, and massive cast head. Capable of quick bit changes and quick belt tension release for easy speed changes.

Add to Quote Request
Model Number TB-16V TB-16
Part Number 977102 977100
Drill capacity (in) 5/8 5/8
Horsepower 1/2 1/2
Motor n/a n/a
Spindle Taper MT2 MT2
Working Diameter (in) 14–1/8 14–1/8
Number Of Speeds Mechanical Variator 9
Spindle Speed Range 545–4,000 240–3,400
Electrics 110V 1PH CE 110V
Weight (lbs) 175 175
Spindle Travel (in) 3–1/8 3–1/8
Column Diameter (in) 3–1/8 3–1/8
Table Depth (in) 11–3/4 11–3/4
Table Width (in) 11–3/4 11–3/4
Base Depth (in) 17–3/4 17–3/4
Base Width (in) 12–1/4 12–1/4
Spindle To Table (in) 16–1/2 16–1/2
Spindle To Base (in) 26–1/2 26–1/2
Overall Height (in) 42–1/2 42–1/2
