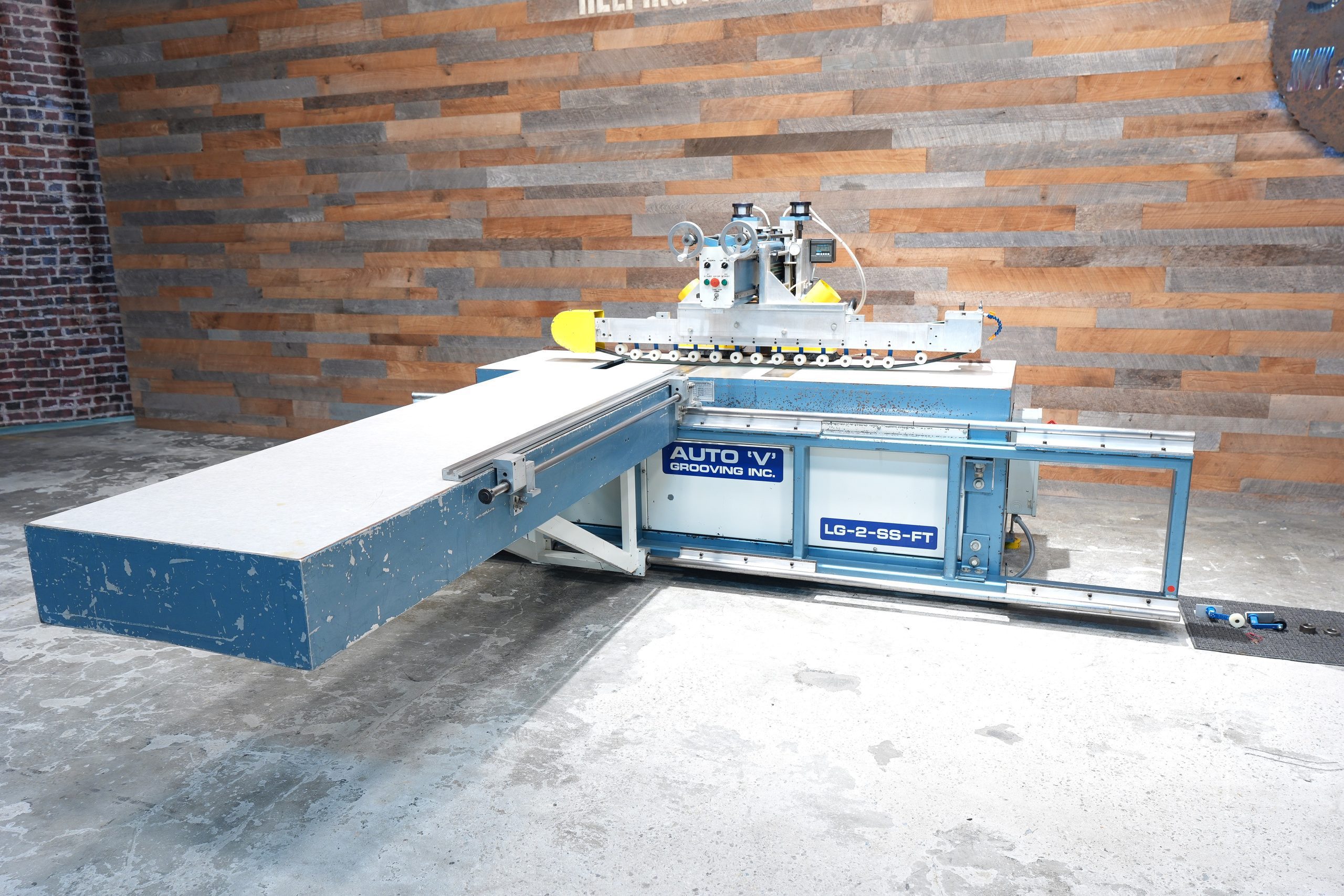

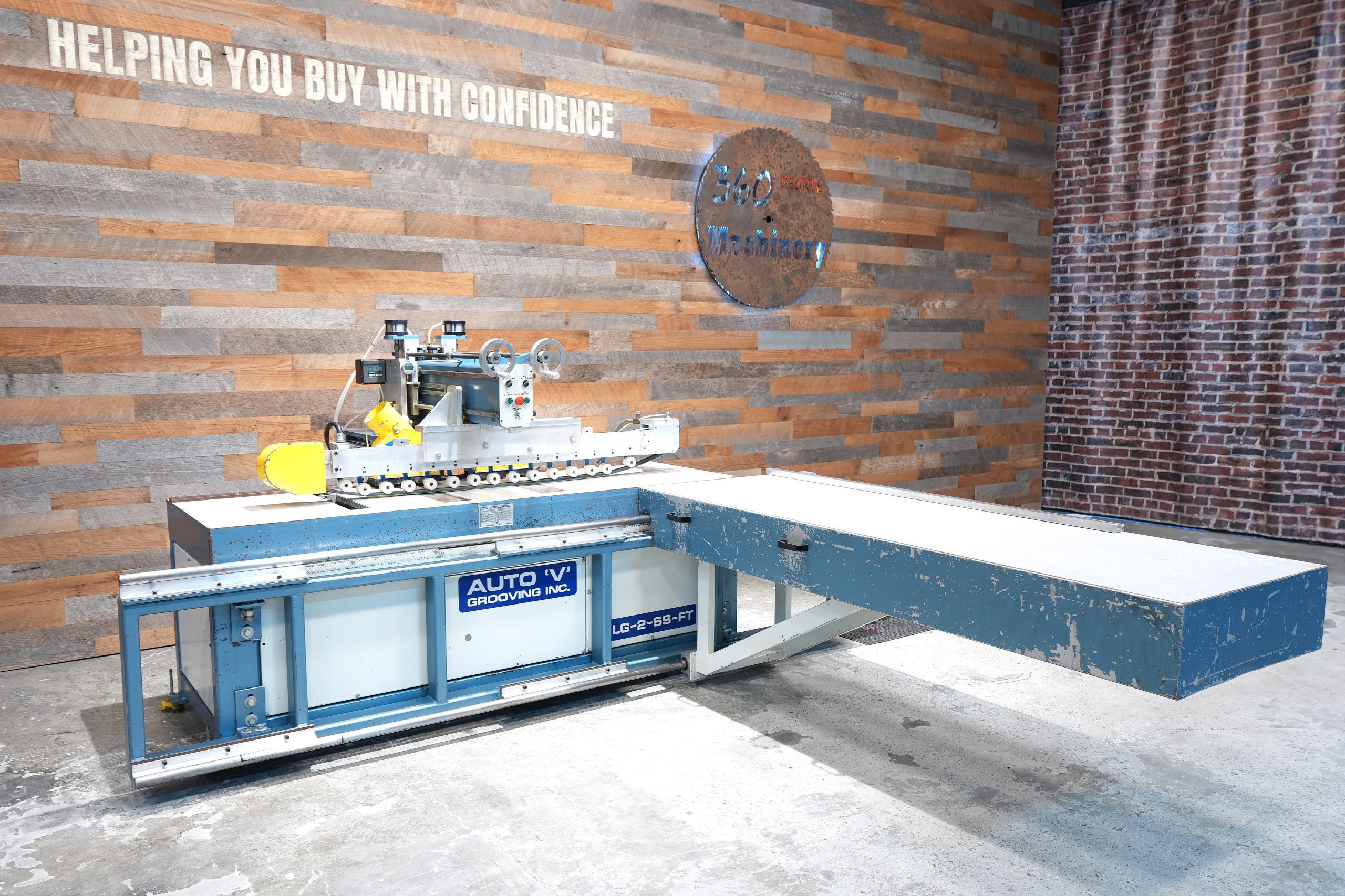

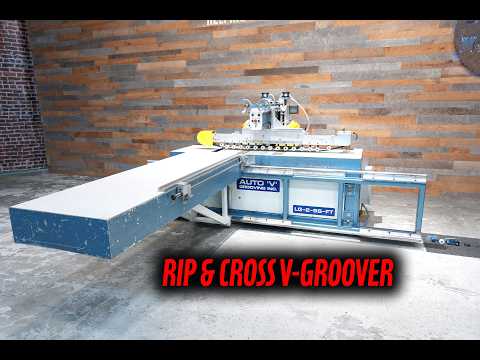

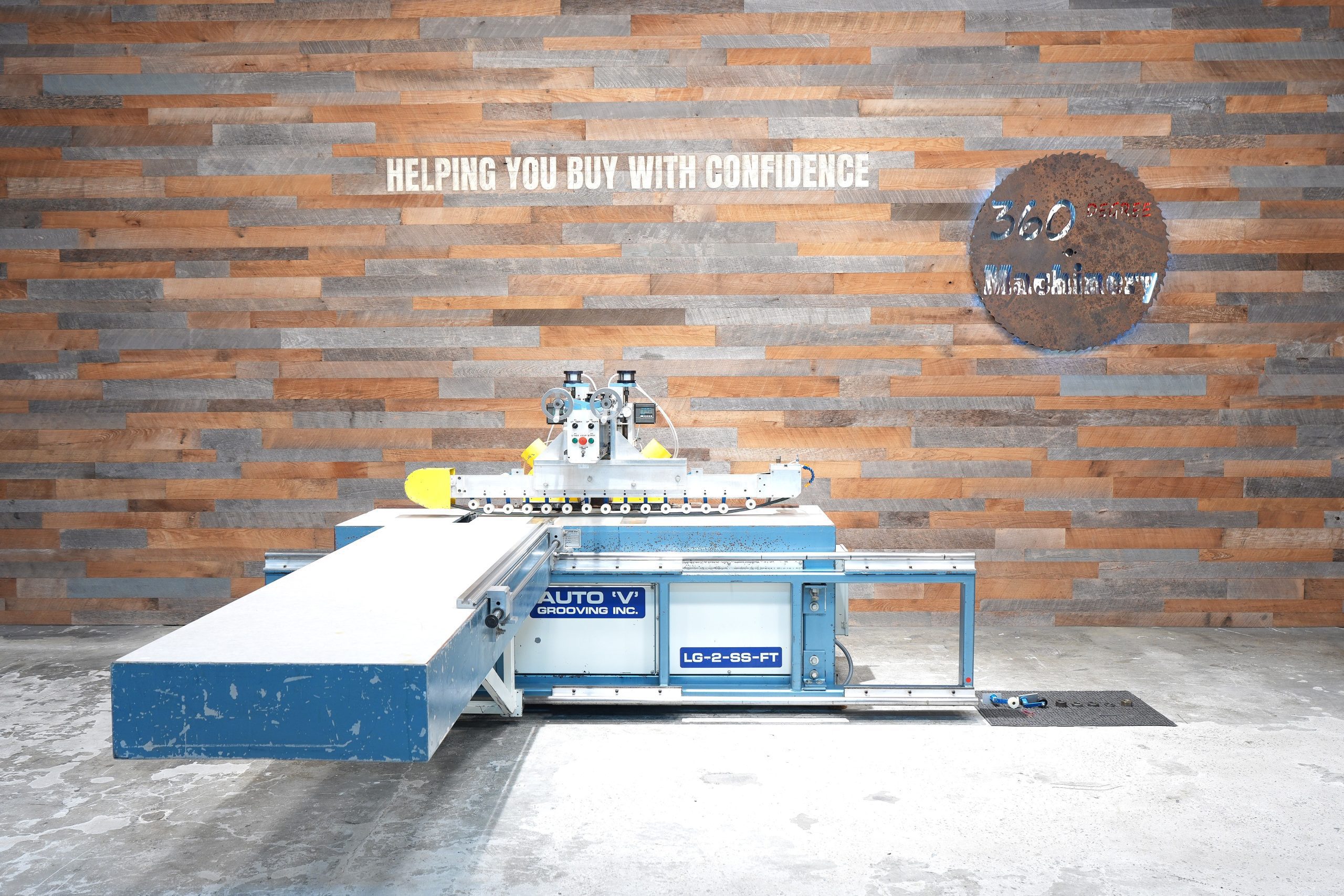

Auto V Grooving Inc LG-2SS-FT Multi Head Linear V-Groover

Auto V Grooving Inc LG-2SS-FT Multi Head Linear V-Groover

$12,000.00

Categories , , Tag

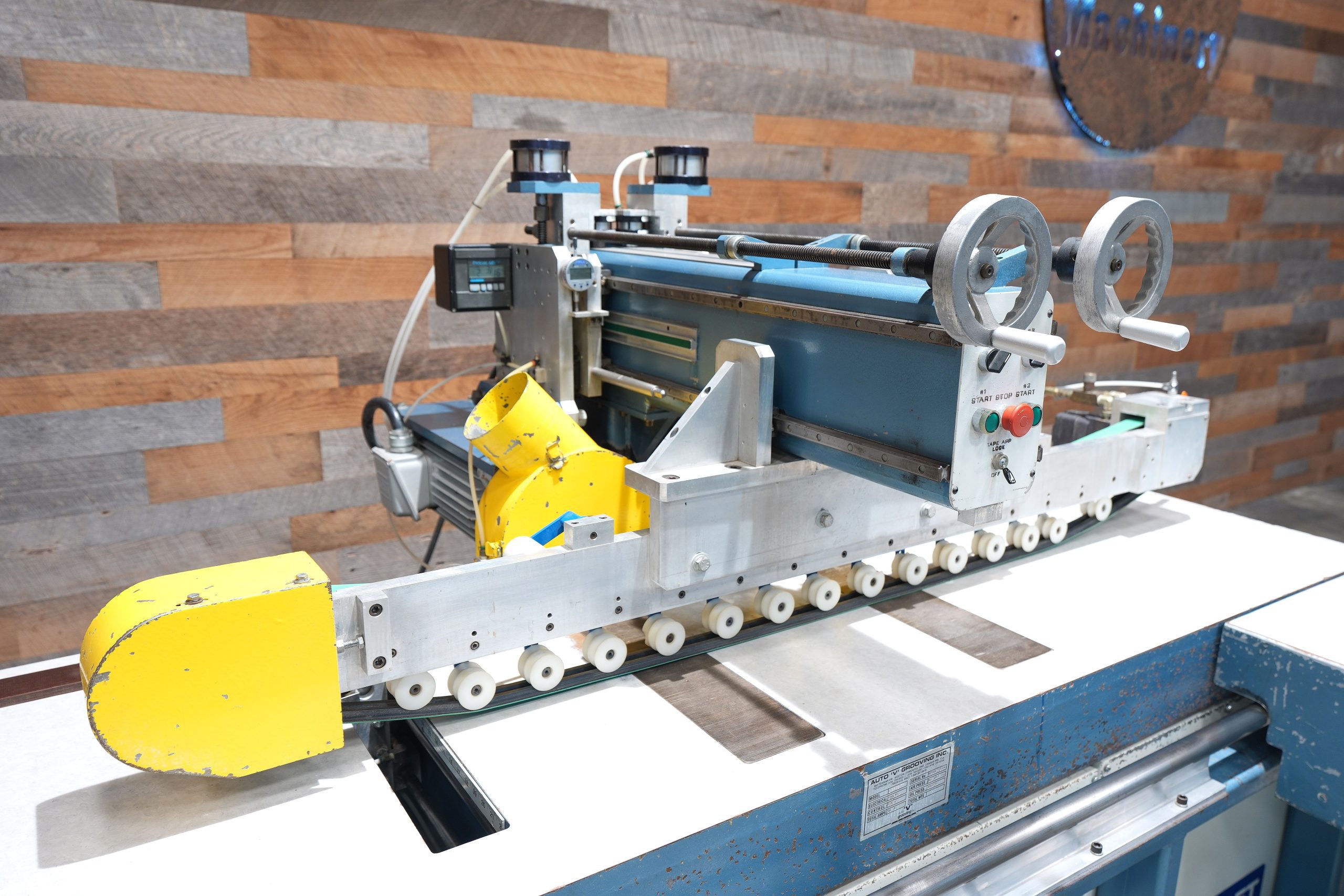

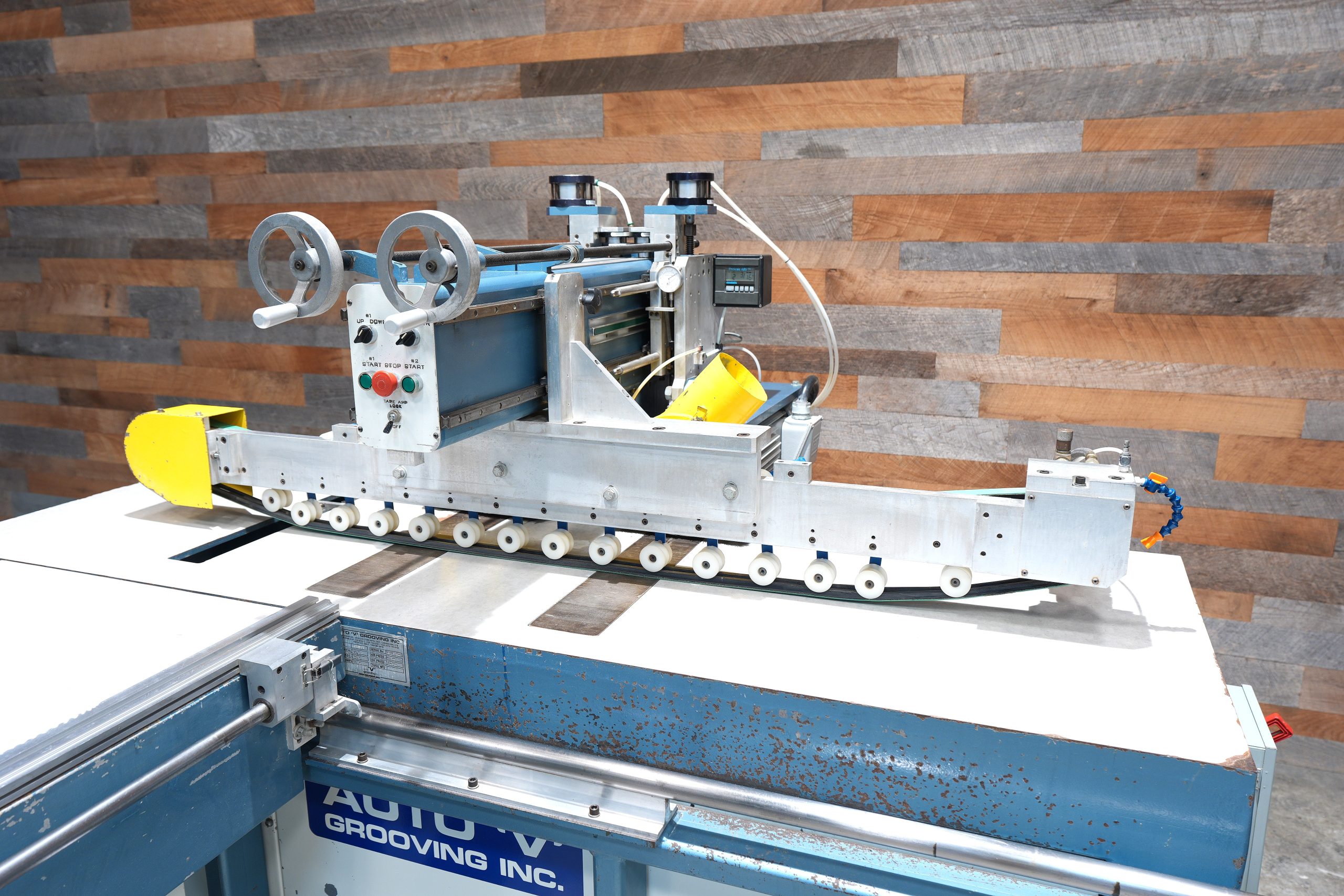

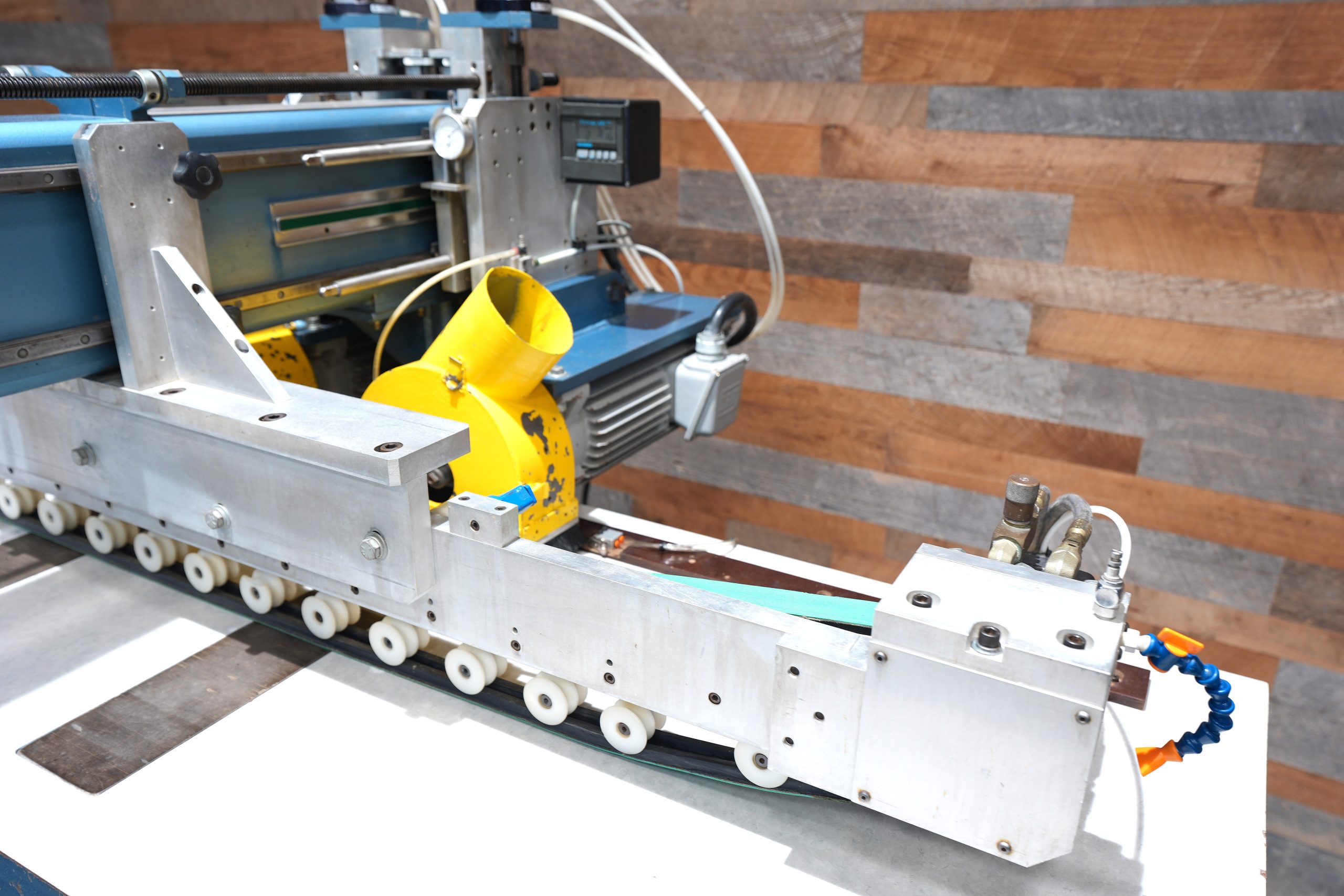

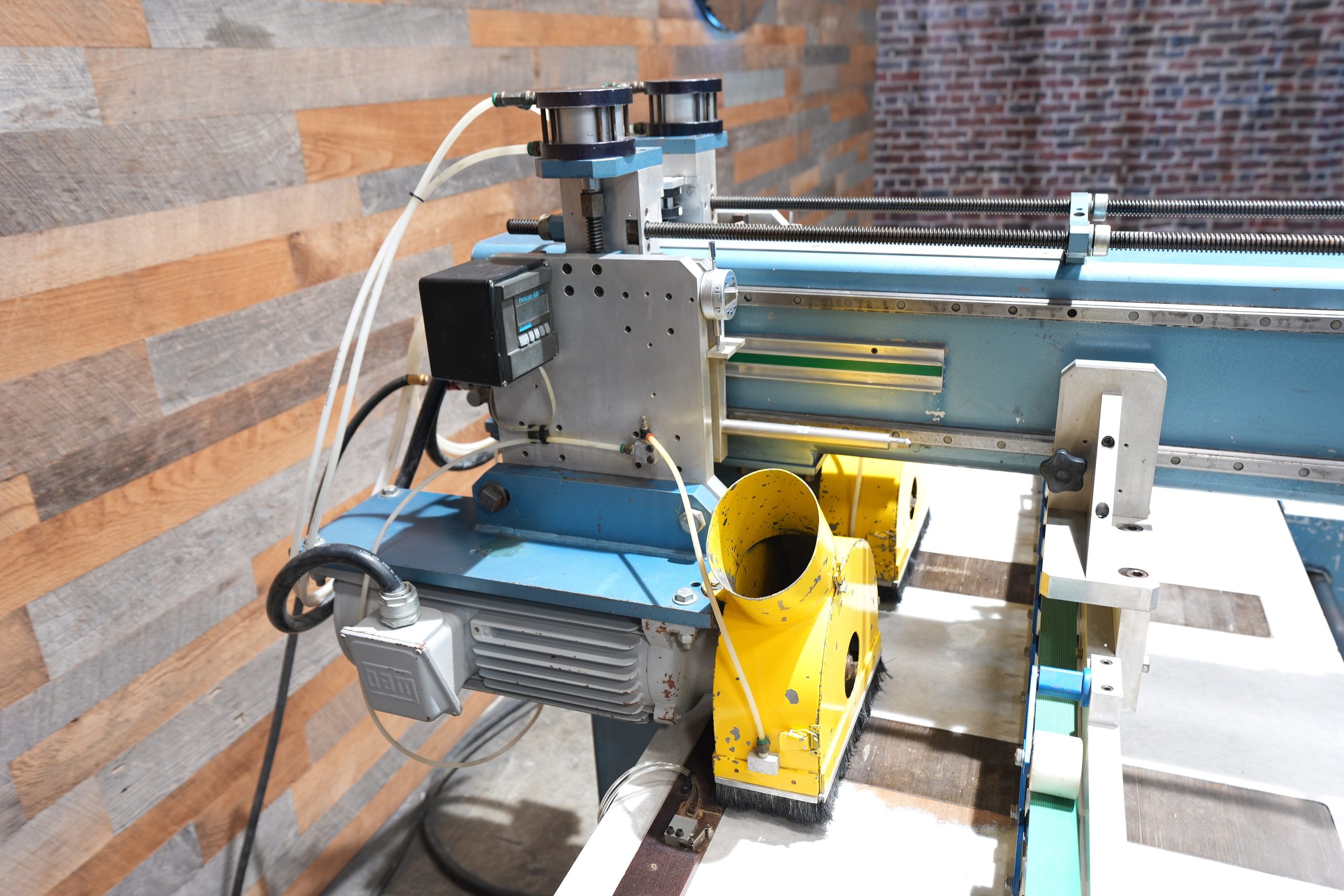

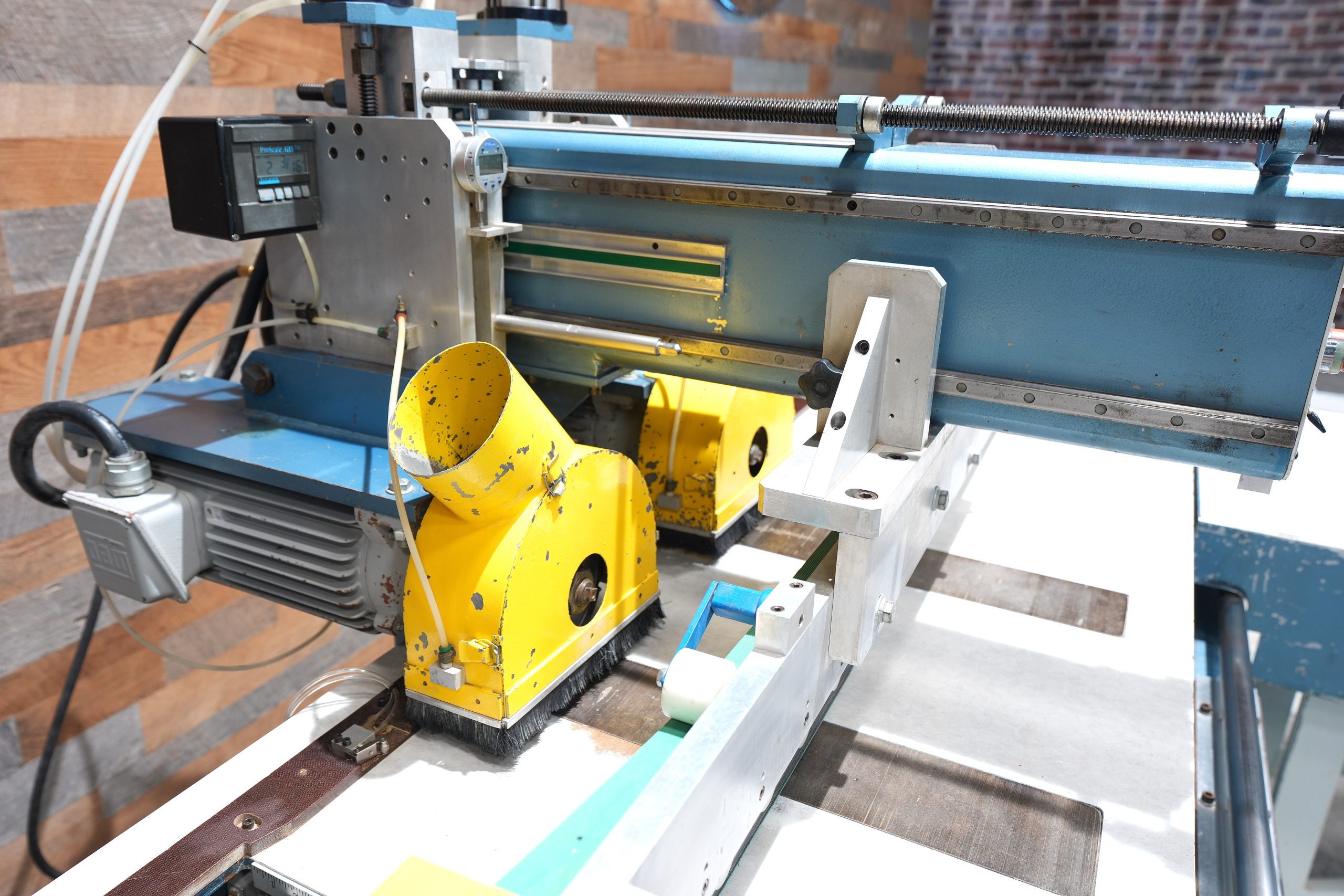

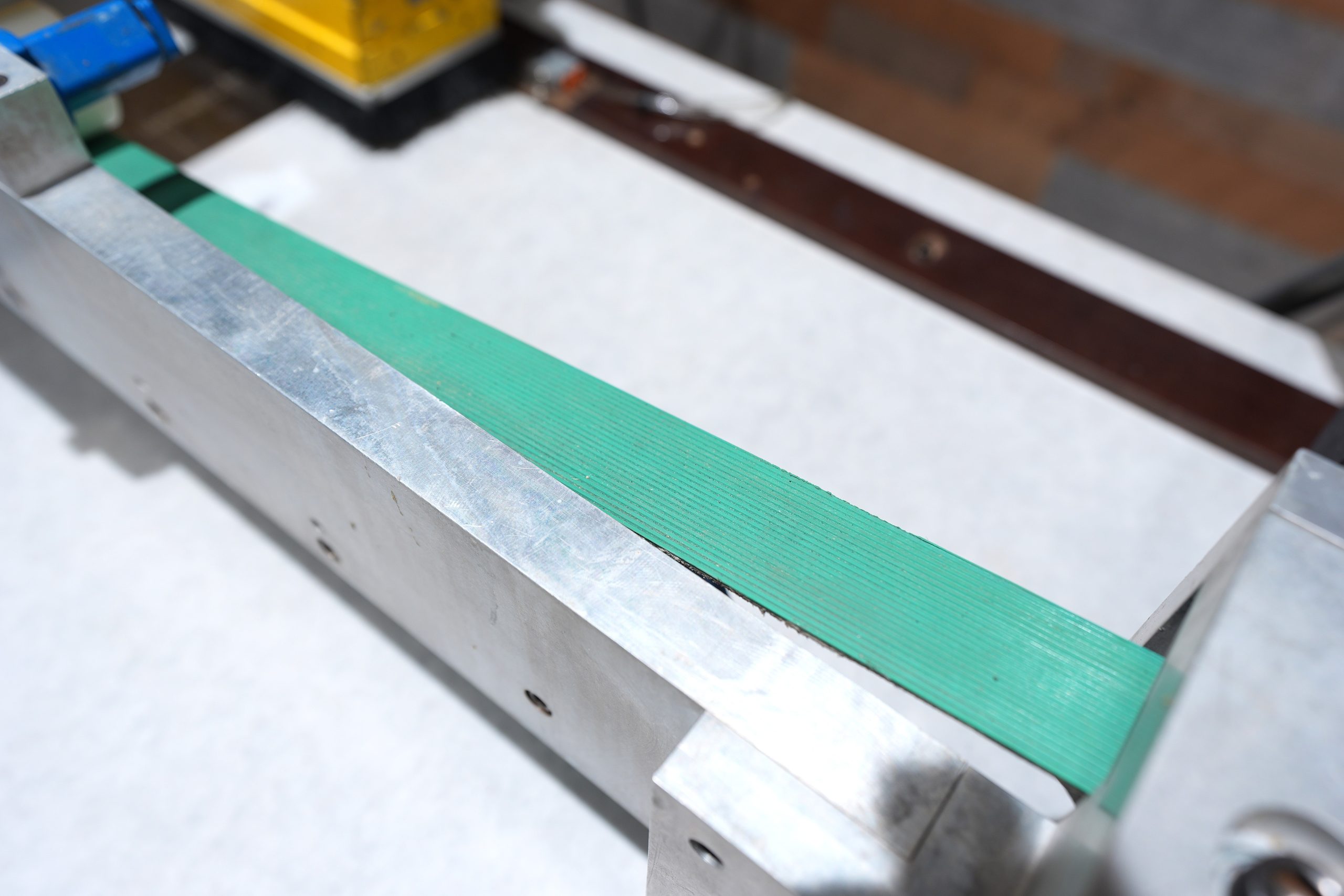

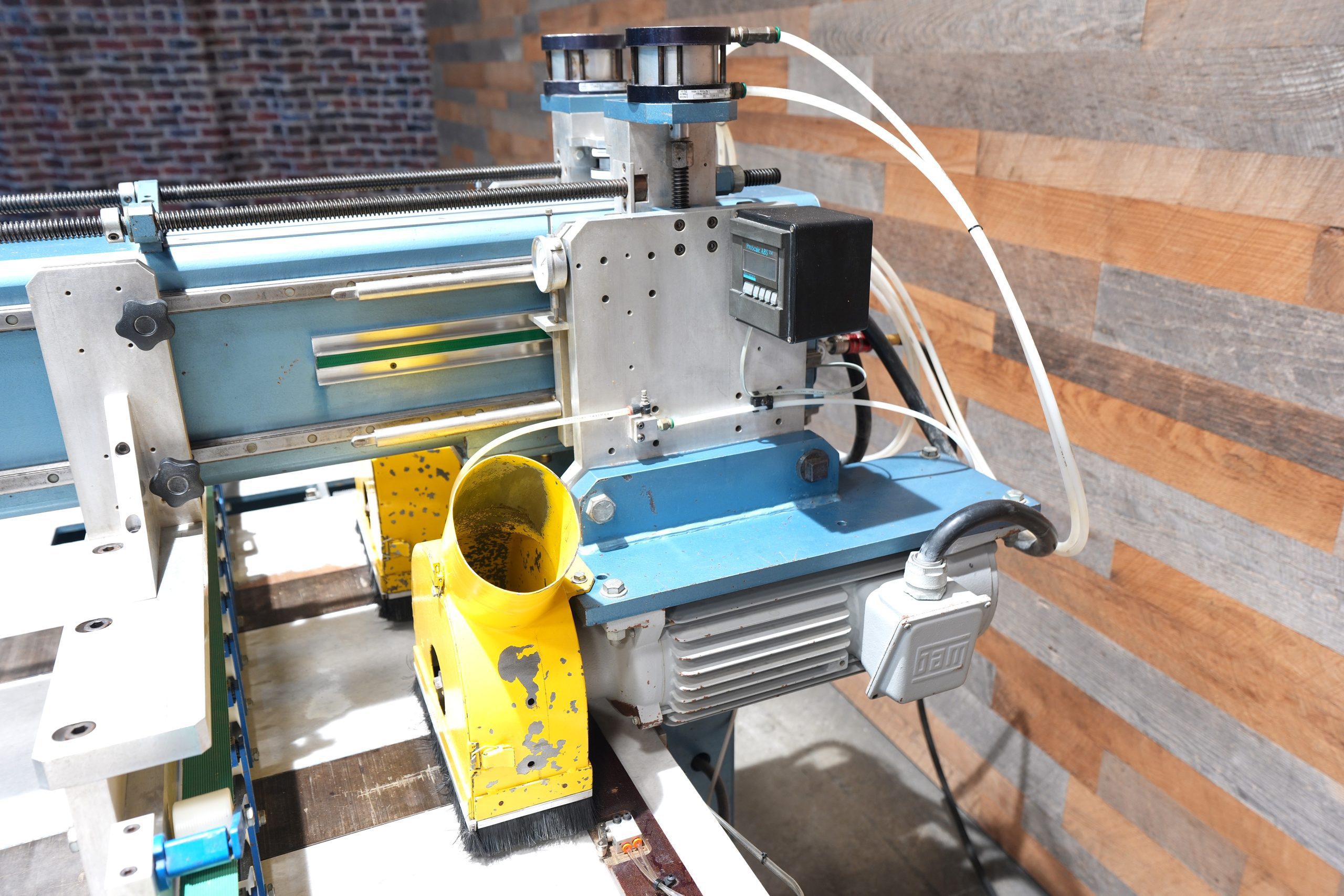

This LG-2-SS-FT has both a 10 hp Coving Head and a 10 hp V-Grooving Head. It also has both rip and cross grooving capabilities. This one is priced at about 10% of New! Both heads are adjustable and sport Accurate Technologies Pro Scales. For cross grooving you have a max. distance of 19.5″away from the rear fence with an endless length. When grooving with the hydraulic feeder you have an endless length. The feed belt is brand new. The feeder allows for speeds from 0-60 FPM. There is also a tape applicator.

This fully functional machine has been fully cleaned, checked, and is ready to work from the time you receive it. This is our guarantee to both you and your company. It is owned by 360 Degree Machinery and located in our inventory in Kingston, TN.

Add to Quote Request

Brand: Auto ‘V’ Grooving
Model: LG-2-SS-FT
Approx. Shipping Weight: 5,000
Approx. Shipping Dimensions: 108″ L x 84″ W x 60″ H

Specifications:

V-Grooving Head: 10HP
V-Grooving Head Speed: 3,600RPM
Coving Head: 10HP
Coving Head Speed: 3,600RPM
Material Thickness: 1″ Max
Material Width: 4″ Min – No Max
Material Length: 12″ Min- No Max
Cross Grooving: 19.5″ Max from fixed fence
Cross Grooving Length: No Max

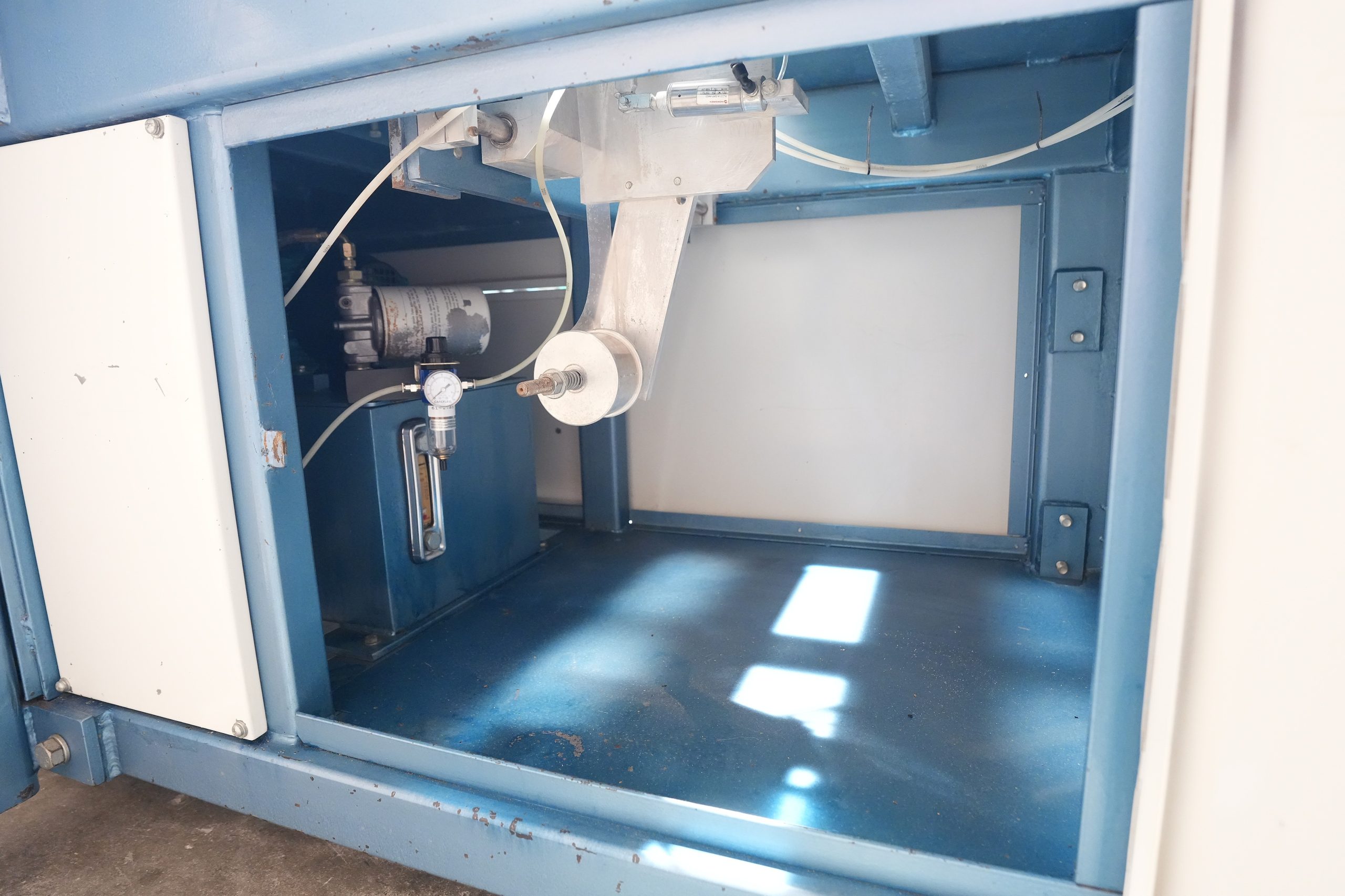

Feed Power: Hydraulic-2HP
Feed Rate: 0-60 FPM
Table: 96″L
Cross Grooving Table: 96″L X 32″W
Voltage: 220/480/3PH

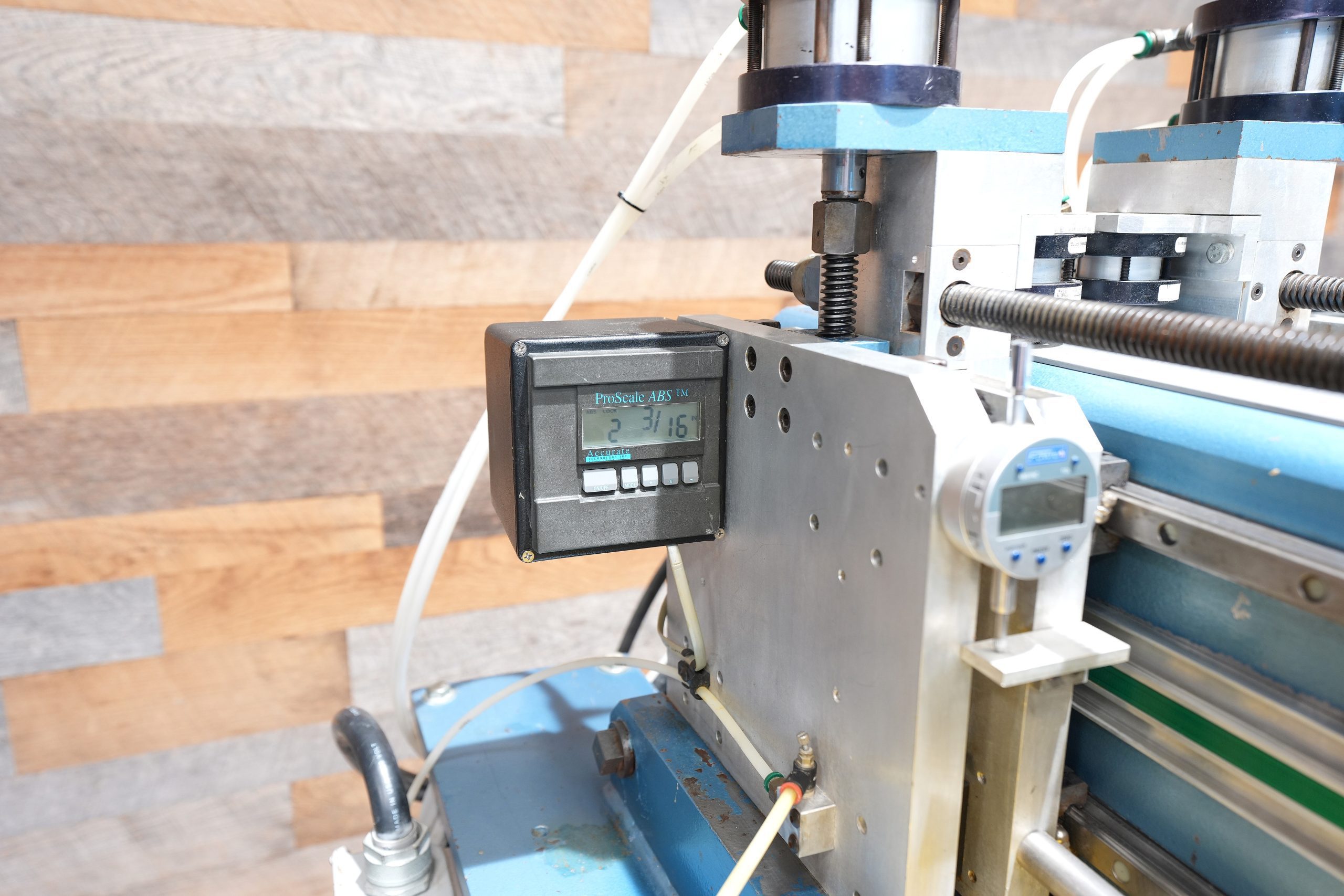

(2) Accurate Technologies Pro-Scale Digit Read Outs,
Tape Applicator and Pneumatic Head Positioning
