Specs:
X Axis Travel: 145″
Y Axis Travel: 61″
Z Axis Travel: 10″
Spindle Speed: 24,000RPM
Key Features:

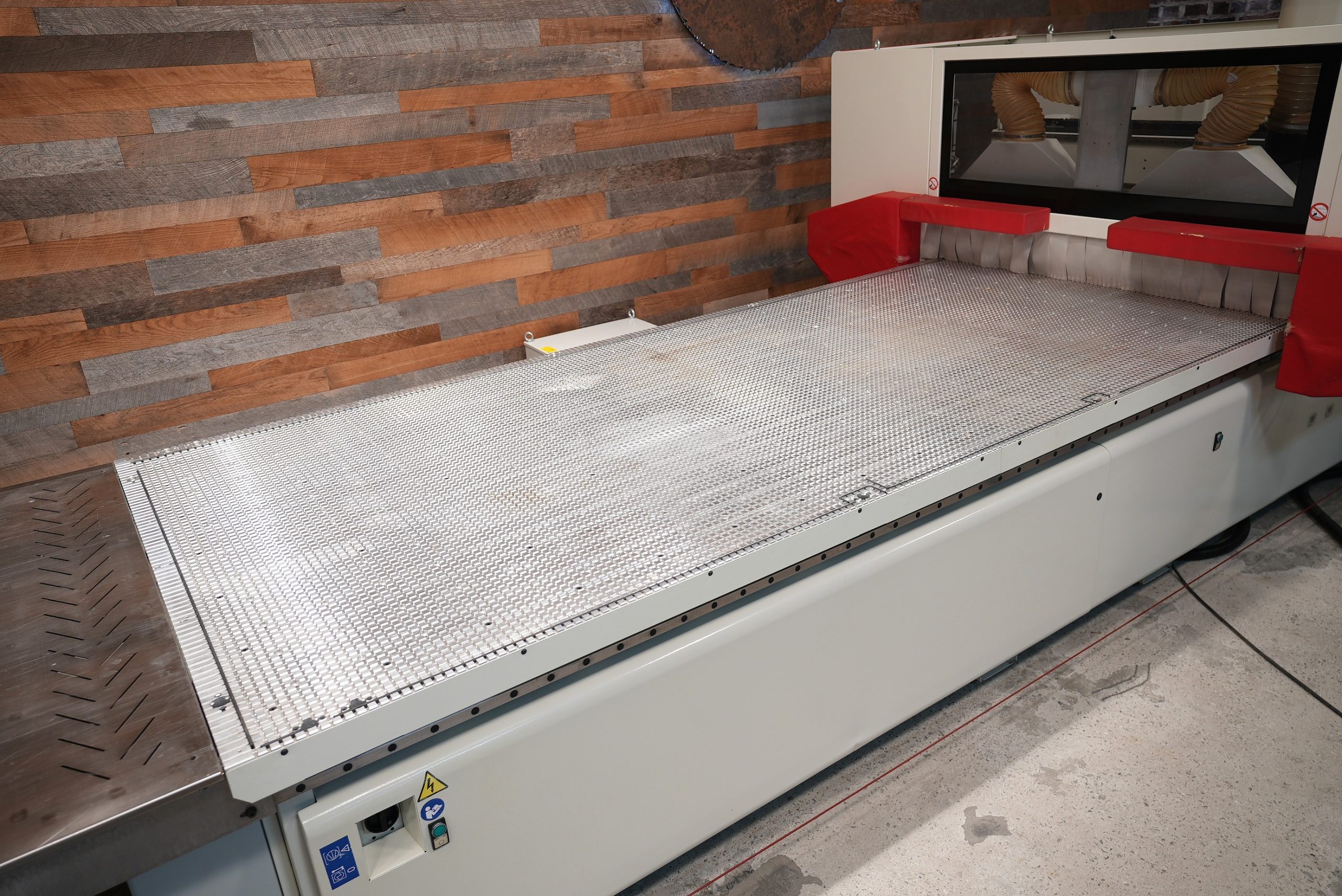

Vacuum Rake System: Includes aluminum vacuum table with MATRIX square grid pattern for versatile fixturing.

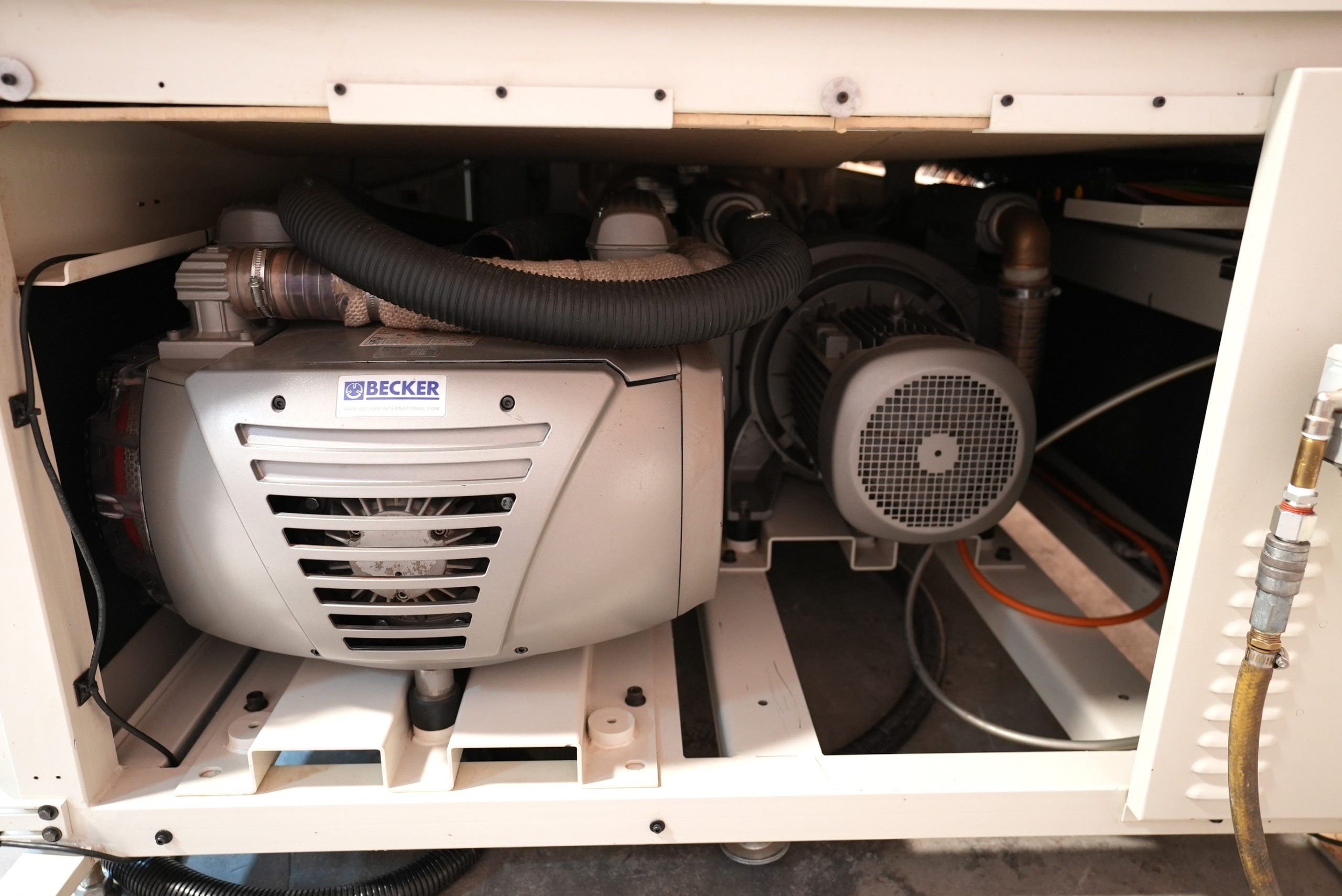

Vacuum Pumps: (2) 6.4 KW/8.5 HP Becker VTLF 2.250/0-79.1 (stored under grid table/rear)

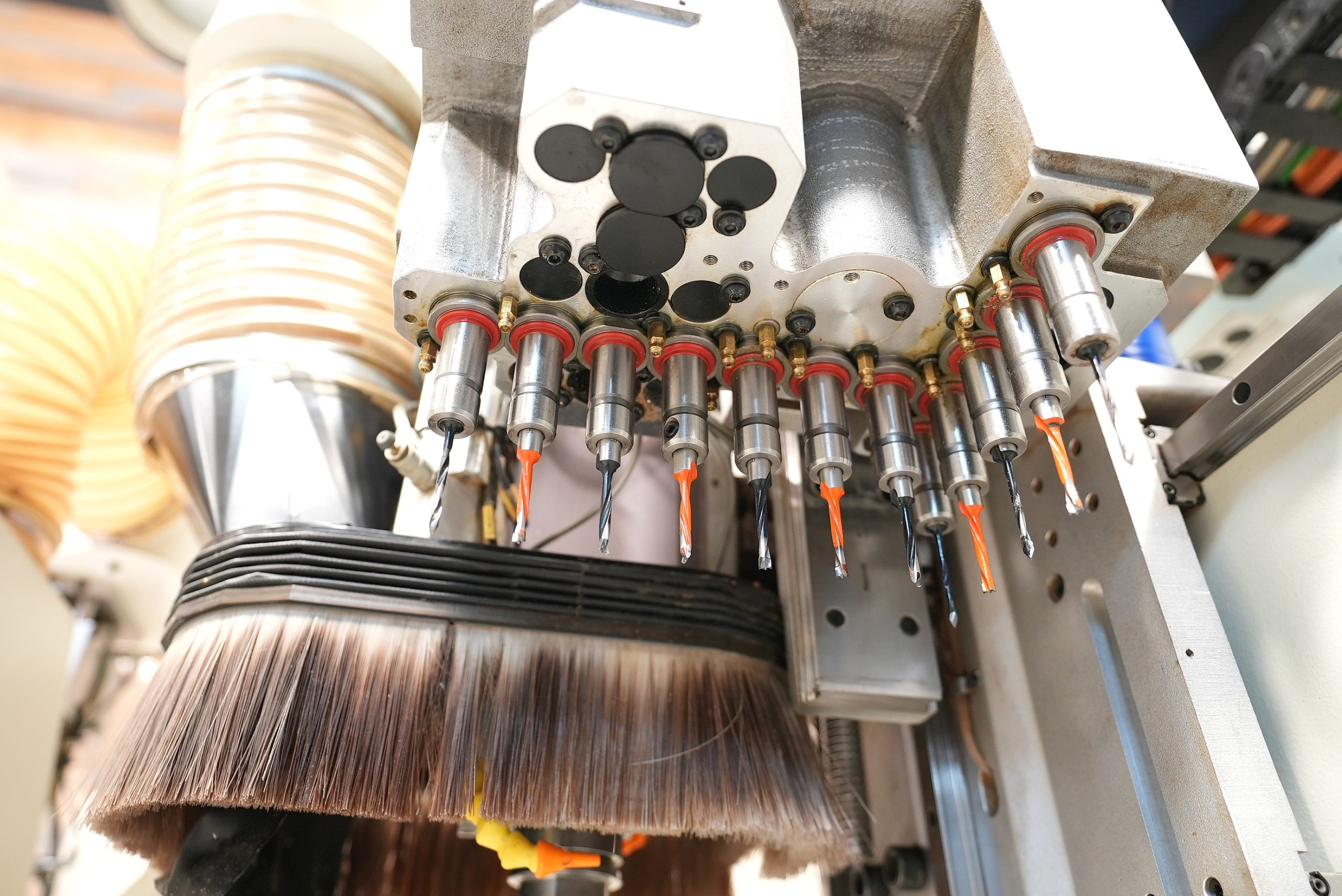

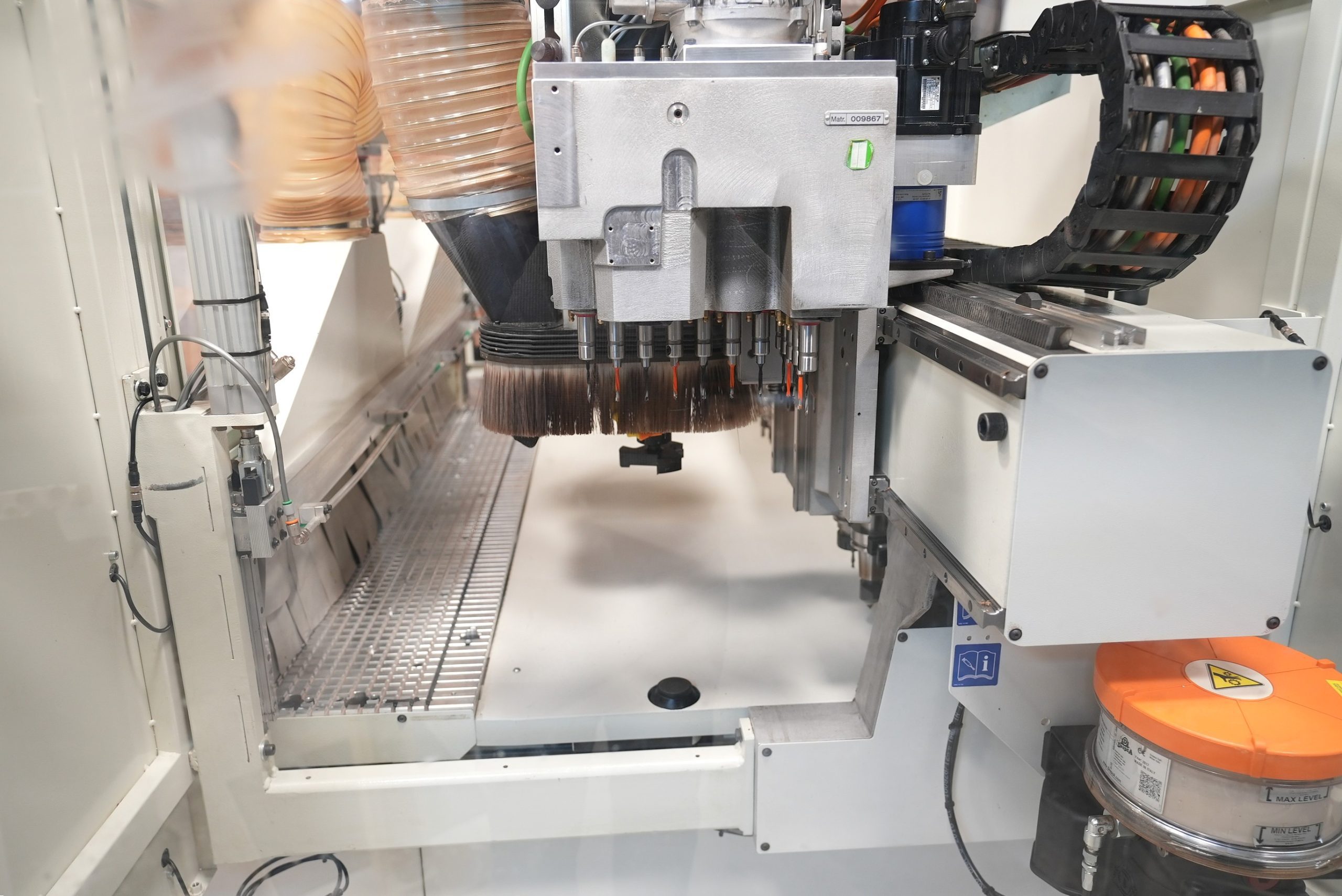

Boring Head: 2.2 KW/3 HP motor, 6,000 RPM with 12 vertical spindles (7 on X-axis, 5 on Y-axis).

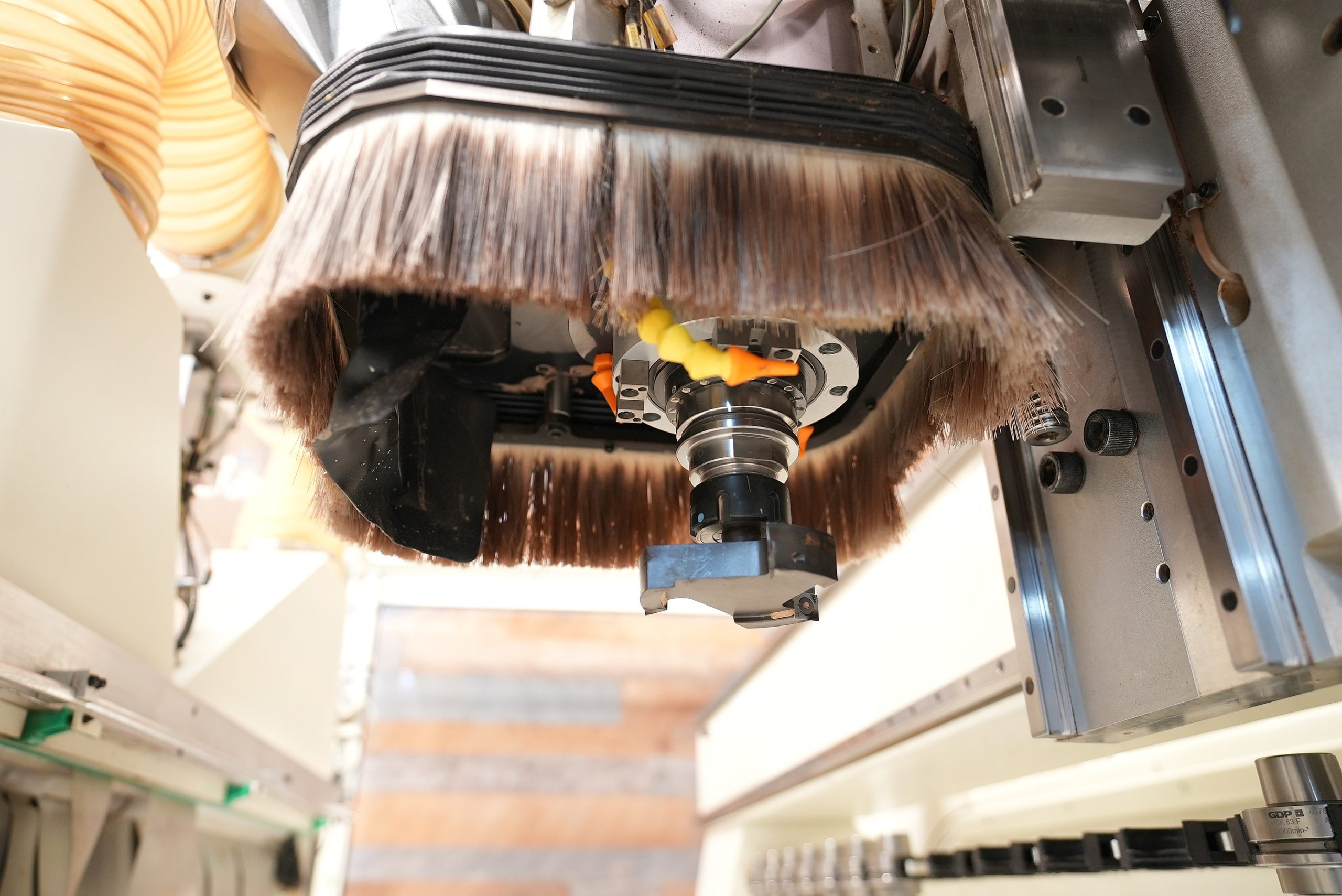

Routing: 11 HP electro spindle (8 kW), speeds 1,500-24,000 RPM.
Automatic Tool Changer (ATC): 14-position tool rack for efficient tool swaps.
High-Speed Precision: X/Y Axis at 115 FPM (35 MPM), Z Axis at 82 FPM (26 MPM).
Closed Loop AC Servo Drive: High precision with rack & pinion system in X & Y, and ground ball screw in Z.
Working Field: X-axis 145.2” (3,686 mm), Y-axis 61.2” (1,555 mm), Z-axis stroke 9.8” (250 mm). Max material thickness 4” (100 mm).

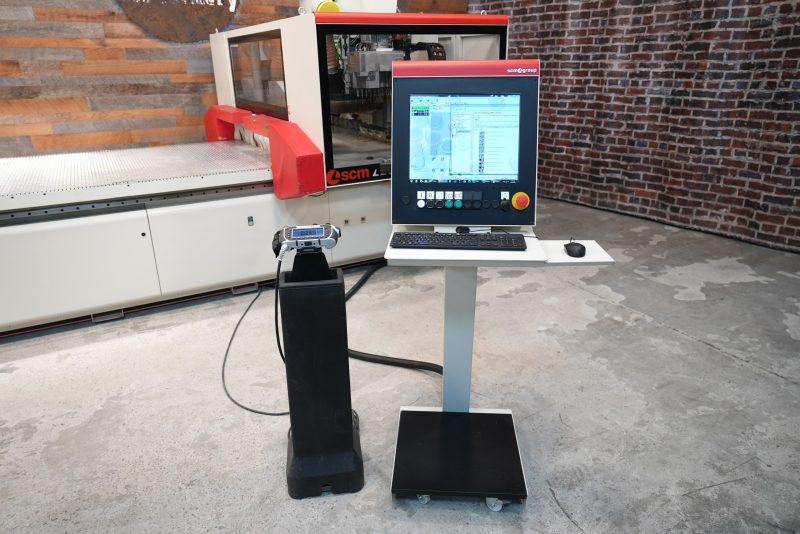

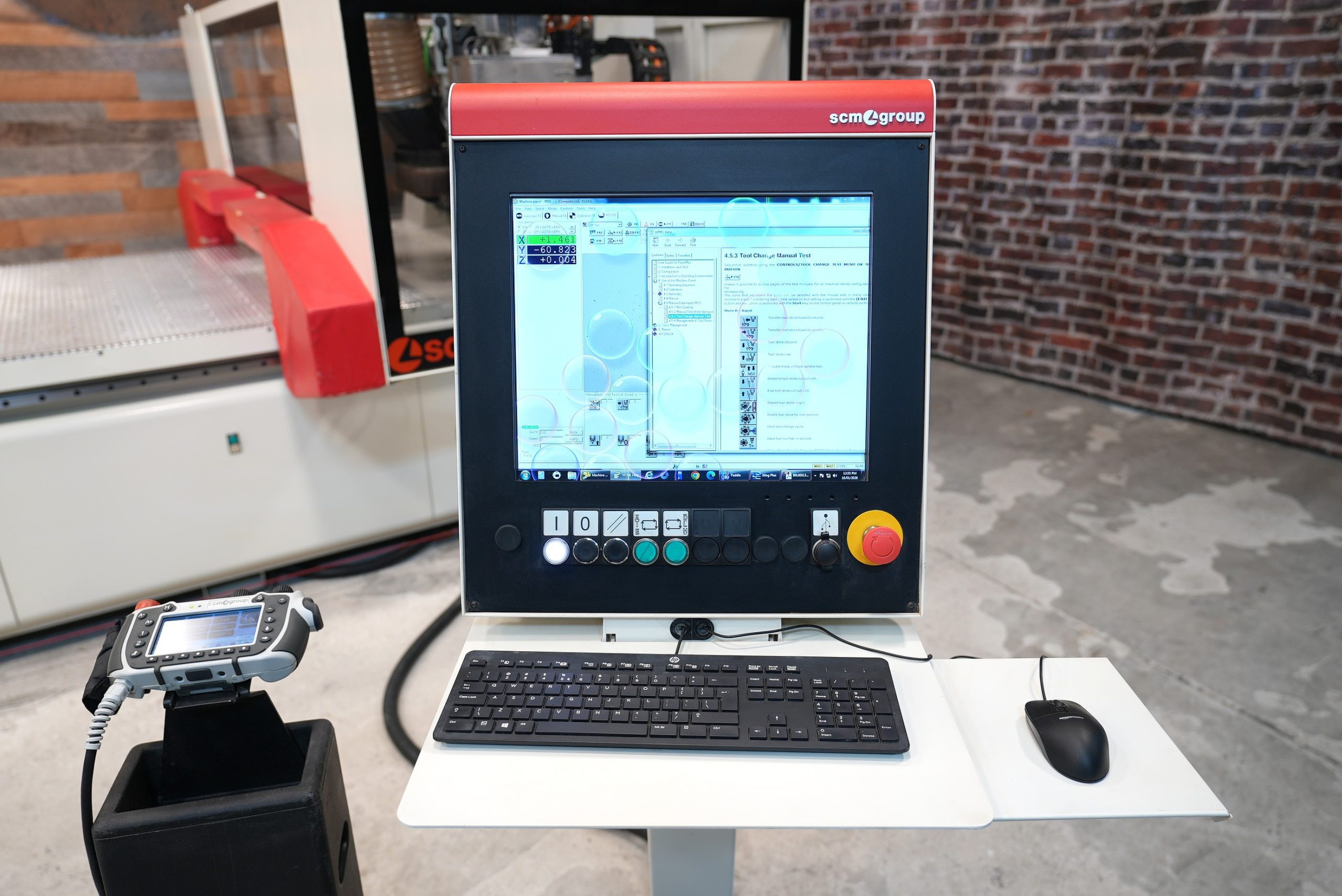

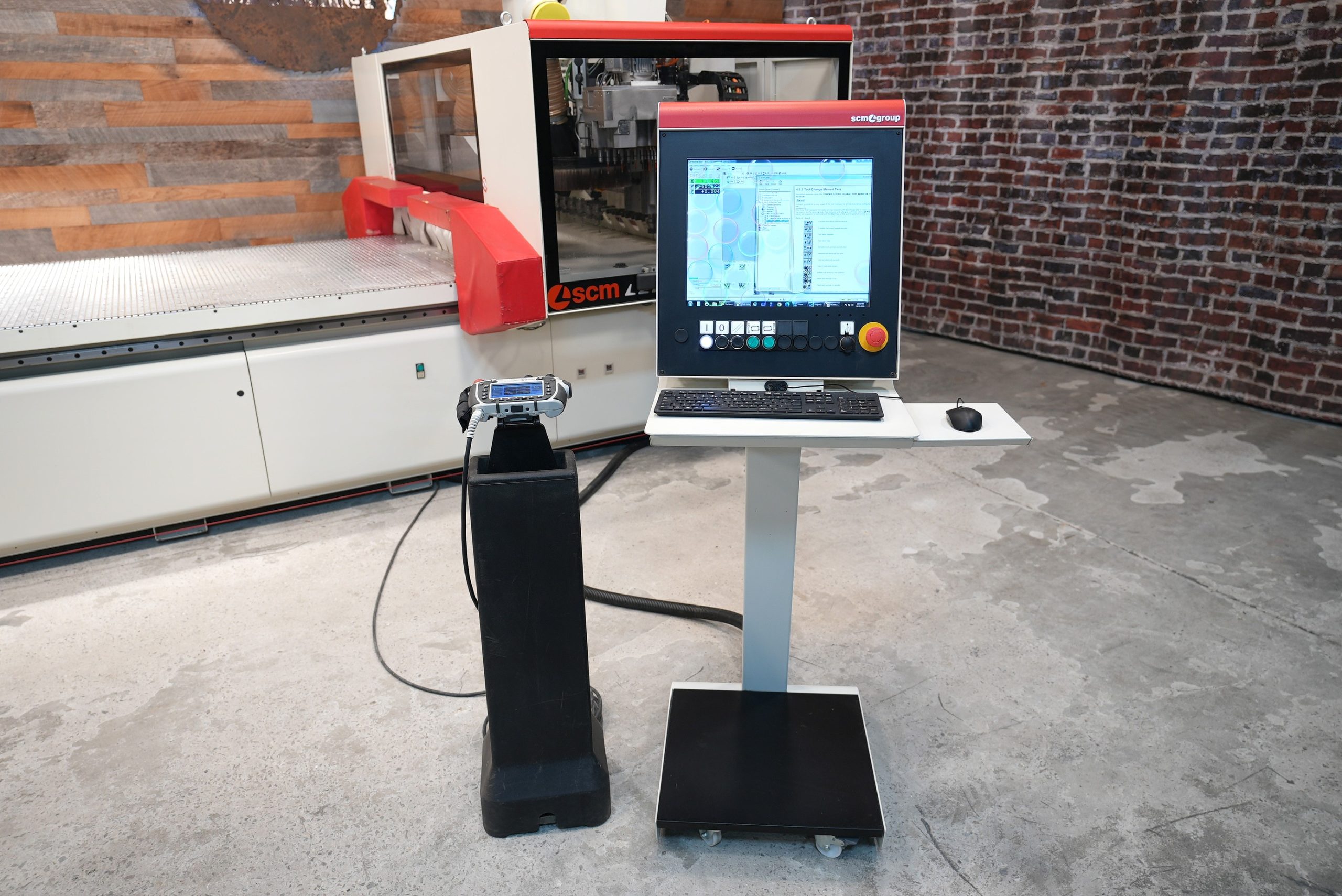

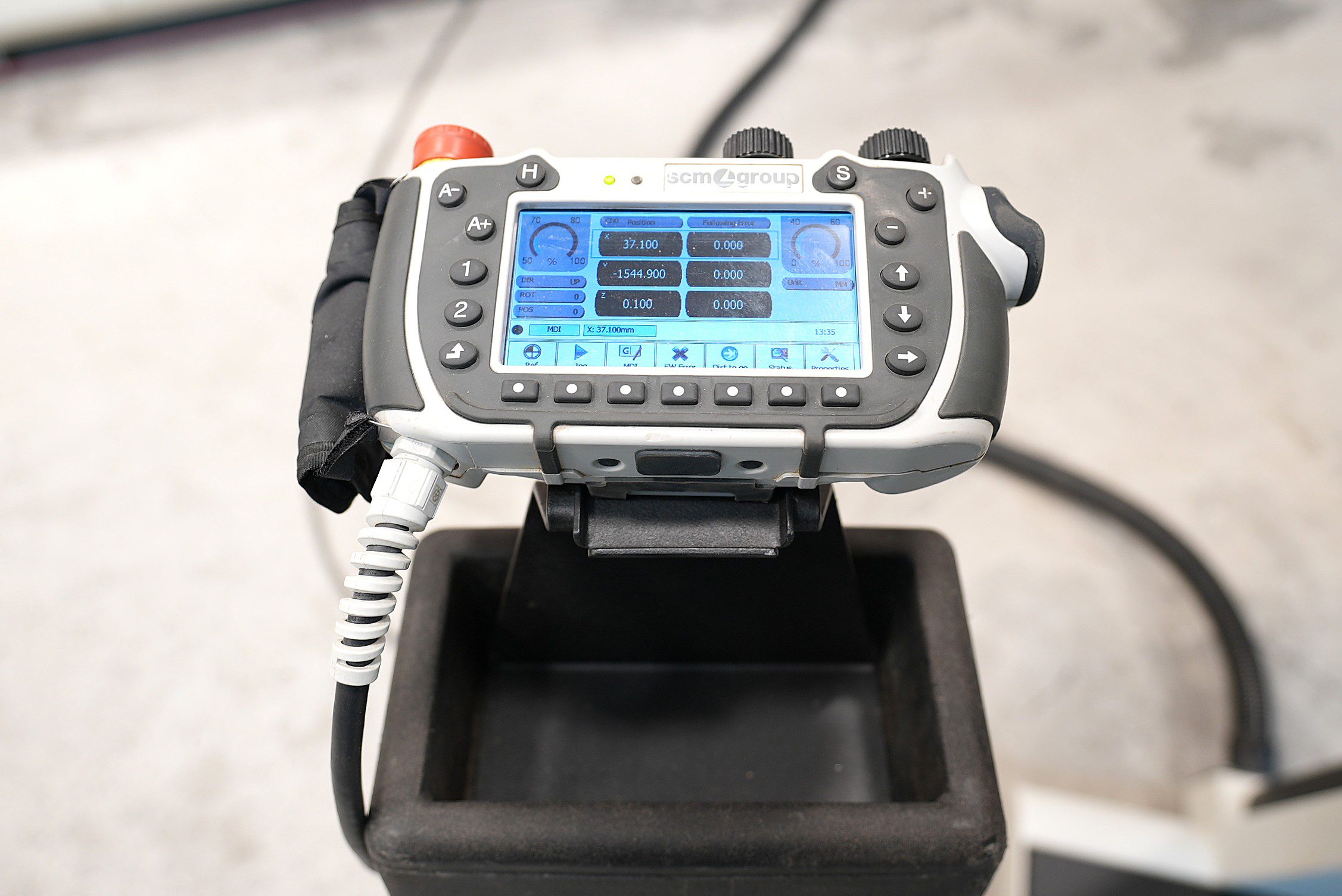

PC Front-End: 17” LCD display, ergonomic keypad, USB ports, RS-232
Y Axis Travel: 61″
Z Axis Travel: 10″
Spindle Speed: 24,000RPM
Key Features:
Vacuum Rake System: Includes aluminum vacuum table with MATRIX square grid pattern for versatile fixturing.
Vacuum Pumps: (2) 6.4 KW/8.5 HP Becker VTLF 2.250/0-79.1 (stored under grid table/rear)
Boring Head: 2.2 KW/3 HP motor, 6,000 RPM with 12 vertical spindles (7 on X-axis, 5 on Y-axis).
Routing: 11 HP electro spindle (8 kW), speeds 1,500-24,000 RPM.
Automatic Tool Changer (ATC): 14-position tool rack for efficient tool swaps.
High-Speed Precision: X/Y Axis at 115 FPM (35 MPM), Z Axis at 82 FPM (26 MPM).
Closed Loop AC Servo Drive: High precision with rack & pinion system in X & Y, and ground ball screw in Z.
Working Field: X-axis 145.2” (3,686 mm), Y-axis 61.2” (1,555 mm), Z-axis stroke 9.8” (250 mm). Max material thickness 4” (100 mm).
PC Front-End: 17” LCD display, ergonomic keypad, USB ports, RS-232
Probe – Tool Length Detector
Includes (10) HSK Tool Holders
