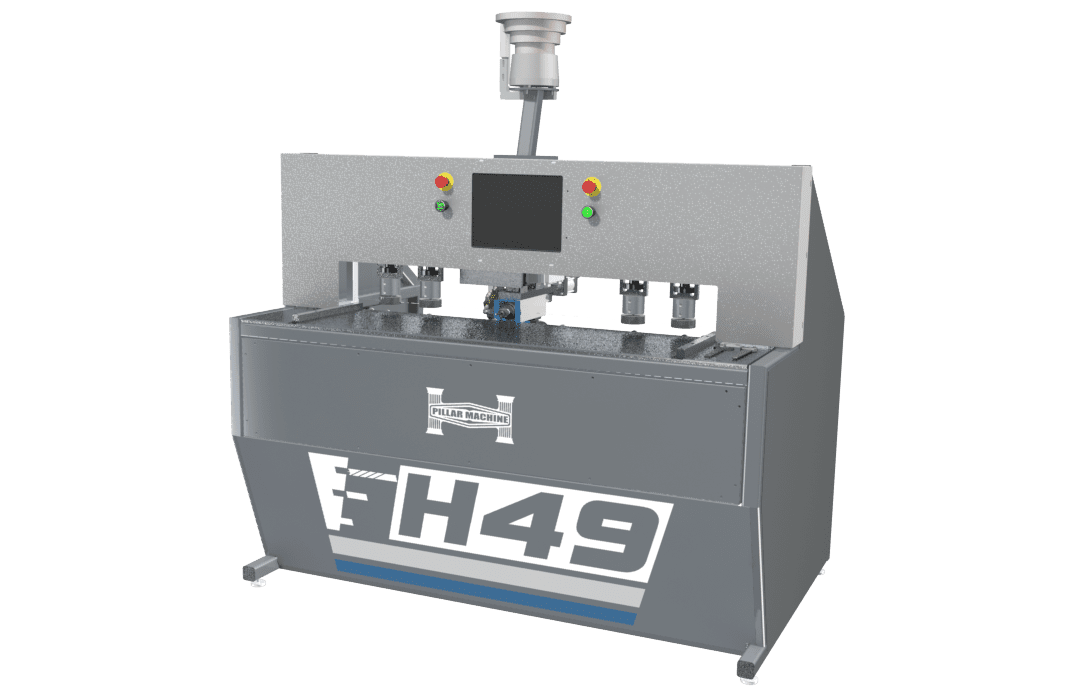

Pillar H49: Horizontal Bore and Dowel Insertion Machine
Revolutionize your woodworking shop with the Pillar Machine H49, a state-of-the-art horizontal point-to-point bore and dowel insertion machining center. Designed for precision and efficiency, the H49 automates the process of boring holes and inserting dowels, making it an essential tool for cabinetmakers, furniture manufacturers, and woodworking professionals. With its CNC-controlled spindle and dowel inserter, the H49 eliminates complicated setups, reduces production times, and ensures consistent, high-quality results. Available now at 360 Degree Machinery, this machine is built to elevate your craft and streamline your operations.
Key Features and Benefits
- CNC Precision: Automatically positions the spindle to bore holes and the inserter to inject glue (or water for pre-glued dowels) and insert dowels with pinpoint accuracy.
- Quick Cycle Times: Completes each bore, glue, and dowel insertion in less than 1 second when holes are spaced at 64 mm intervals, maximizing productivity.
- Dual Work Zones: Features two zones for pendulum processing, allowing you to load one part while machining another, minimizing downtime.
- User-Friendly Interface: A 15″ industrial touchscreen with intuitive graphics enables quick programming and easy operation, even for less experienced users.
- Customizable Options: Can be outfitted with additional horizontal and vertical spindles, horizontal dowel inserters, and hardware inserters for expanded capabilities.
- Built for Durability: Constructed with a welded main frame and high-quality components, ensuring long-term reliability in demanding shop environments.
Applications
The H49 is ideal for:
- Case construction in cabinet and furniture manufacturing.
- Woodworking shops needing precise, efficient horizontal boring and dowel insertion.
- Operations seeking to shift boring and doweling tasks from CNC routers or point-to-point machines for faster production.
Technical Specifications
| Specification | Details |
|---|---|
| Machine Type | Horizontal point-to-point bore and dowel insertion machining center |
| Work Zones | 2 (standard) |
| Max Width Capacity | 49″ (1245 mm) |
| Cycle Time | <1 second per bore, glue, and dowel insertion (at 64 mm intervals) |
| Spindle Control | CNC positioning |

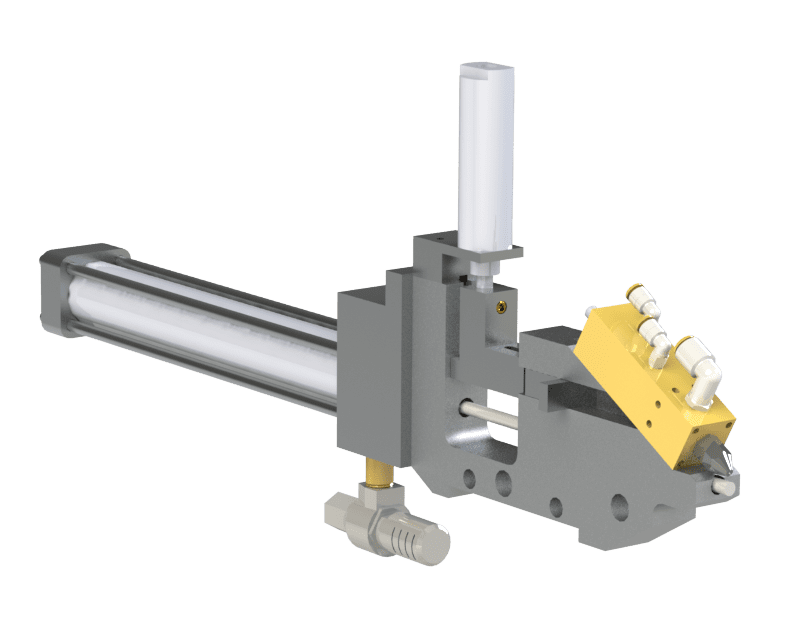

| Dowel Inserter | CNC-controlled with glue or water injection |
| Interface | 15″ industrial color touchscreen |
| Software Features | Parametric programming, pattern drilling/inserting, online diagnostics |

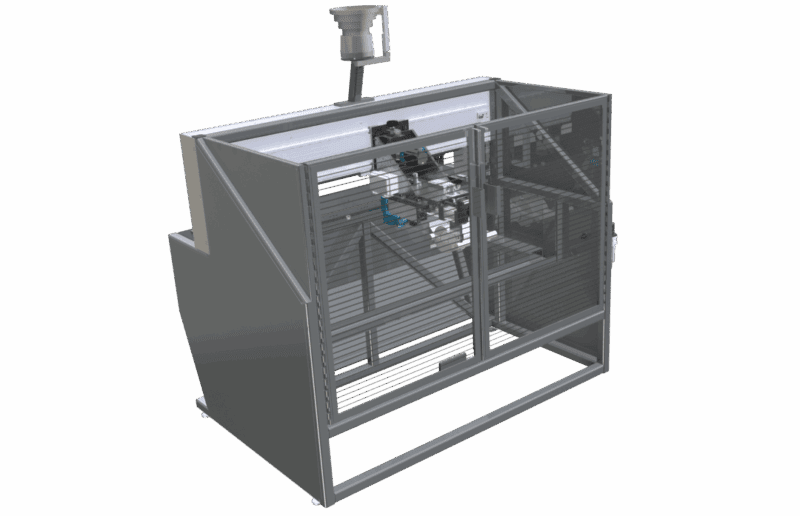

| Construction | Welded main frame, tubular frame construction |
| Additional Options | Multiple spindles, horizontal dowel inserters, hardware inserters |
Software and User Interface
The H49’s 15″ touchscreen interface is designed for ease of use, allowing operators to write, store, and recall programs quickly. The open-architecture software integrates with design systems via .xml files or barcodes (with optional reader), streamlining workflow. Features include:
- Graphic interface for easy hole and dowel placement.
- Parametric programming for flexible adjustments.
- Pattern drilling and inserting for complex designs.
- Password protection and online diagnostics for maintenance.
Why Choose Pillar Machine?
Pillar Machine, based in Salt Lake City, Utah, is a leader in woodworking machinery innovation. Known for their award-winning designs and commitment to quality, Pillar’s machines are built in the USA with a focus on durability, precision, and customer satisfaction. With a one-year warranty and comprehensive support, Pillar ensures your investment delivers long-term value. Customers like Brandom Cabinets and Sollid Cabinetry praise Pillar’s reliability and service, making the H49 a trusted choice for woodworking professionals.
