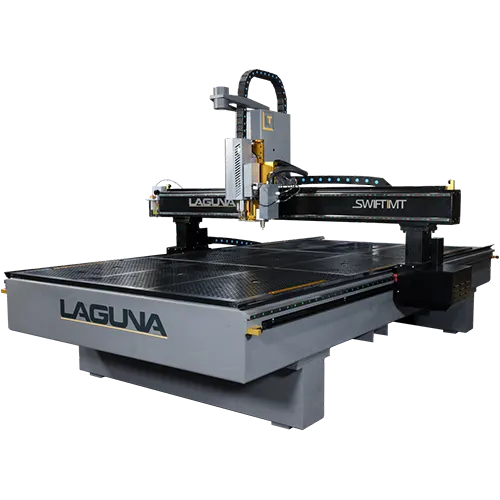

Laguna Swift MT CNC router, full front view with gantry and vacuum table
Laguna Swift MT (Multi-Tool) CNC Router
$50,600.00 – $58,212.00Price range: $50,600.00 through $58,212.00
Request a call back

Laguna Swift MT (Multi-Tool) CNC Router

Laguna Swift MT (Multi-Tool) CNC Router

Price range: $50,600.00 through $58,212.00

Categories , , , , Tags , , , , Brands ,

The Laguna Swift MT has everything you need to handle your routing, cutting and creasing operations. With the Laguna Vision System, you can quickly find registration marks to identify parts and adjust the cutting path, giving you perfect cutouts in printed shapes.

Features:
  • 3HP Liquid-Cooled Industrial Spindle
  • LAGUNA Vision System
  • Tangential Knife System
  • One-Piece Welded All-Steel Frame
  • 4 to 6-Zone Phenolic Vacuum Table
  • Helical Rack and Pinion On X and Y-Axis
  • Ground Ball Screw On Z-Axis
  • 7″ Gantry Clearance

Optional Units

  • Laguna Vision System
  • Tangential Knife
  • Oscillating Knife
  • Rotary Creasing Wheel
Add to Quote Request

Work Table Size (W x H)

4′ x 4′

4′ x 8′

5′ x 10′

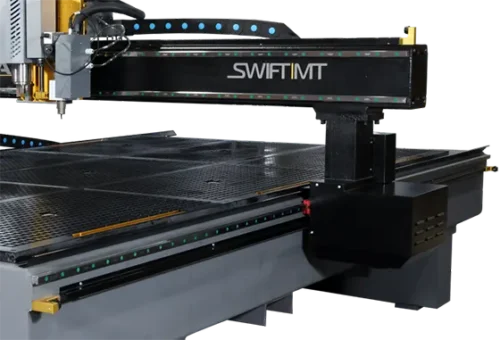

Gantry Details

Rapid Travel: 900″/min

Max Cut Speed: 600″/min

Gantry Height: 8″

Gantry Clearance: 7″

20mm Heavy Duty Linear Bearing On All Axes

Helical Rack-And-Pinion Drive System X & Y Axes

Cooling Systems

Liquid-Cooling

Machine Footprint (W x L x H)

57.99″ x 67.92″ x 75.12″

57.99″ x 135.83″ x 75.12″

69″ x 160″ x 78″

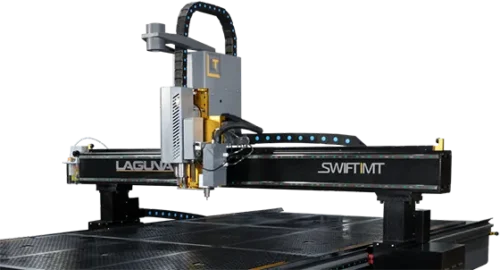

Spindle Details

3HP Liquid-Cooled Spindle

RPM: 6,000 – 24,000

Dust Port Diameter: 4″

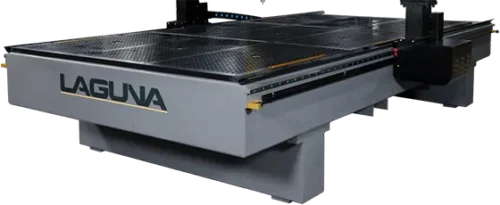

Type Of Table

Phenolic Universal Grid-Type Vacuum Table With T-Slot Feature

Four (4) – Six (6) Independently Controlled Vacuum Zones

FREE SHIPPING DOES NOT APPLY TO PRE-OWNED MACHINERY

Please Contact us for a shipping quote for Pre-Owned Machinery and or New machinery below $6,000.

***Some restrictions apply for free freight on NEW machinery over $5,999. FREE freight is to a commercial address with a dock and or forklift. EXTRA FEES may apply to accessorials like restricted access, residential drops, liftgates, and excessive lengths.

Applies to lower 36 of the contiguous states only. AZ, CA, CO, ID, MT, ND, NV, OR, SD, UT, WA, & WY do not qualify for free shipping. We can split ship to these states from $5,999 and up. Free shipping does not apply to RazorGage, Oliver, nor JLT Machinery or other machines listed as not free shipping.

PDFOwner's Manual
