Pillar TSS: Trim Score Saw for Tear-Free Woodworking
Revolutionize your cutting process with the Pillar TSS, a trim score saw engineered for woodworking professionals seeking flawless, tear-out-free cuts on delicate materials like veneered plywood, melamine, and MDF. Featuring dual counter-rotating blades, this machine pre-scores parts to prevent chipping, delivering pristine edges in a single pass. With a robust 1,400 lb. frame, optional TigerStop integration for CNC positioning, and safety-focused pneumatic clamps, the TSS is perfect for cabinet shops and furniture makers aiming for precision and efficiency. Its ability to pack-cut multiple parts at once makes it a shop essential for high-volume production.
Standout Features and Advantages
- Tear-Free Cutting: Dual counter-rotating blades (300 mm top, 150 mm bottom) pre-score and cut, ensuring chip-free edges on sensitive materials.
- High-Speed Efficiency: Horizontal blade movement with linear bearings and adjustable flow controls delivers fast, precise cuts in seconds.

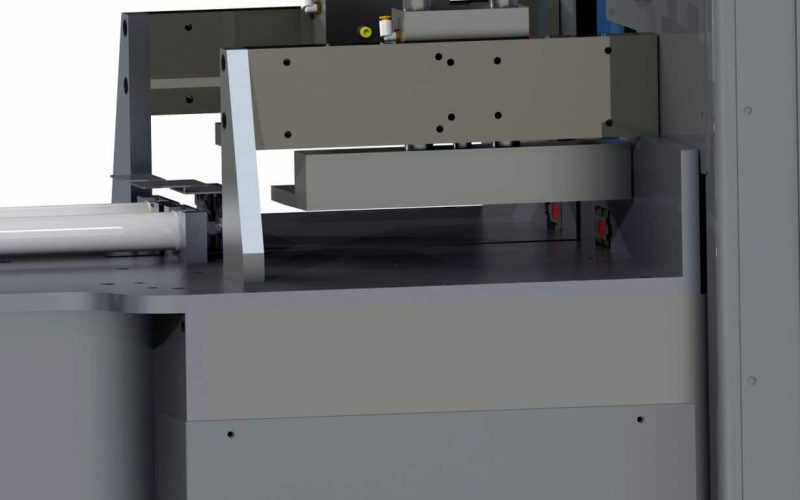

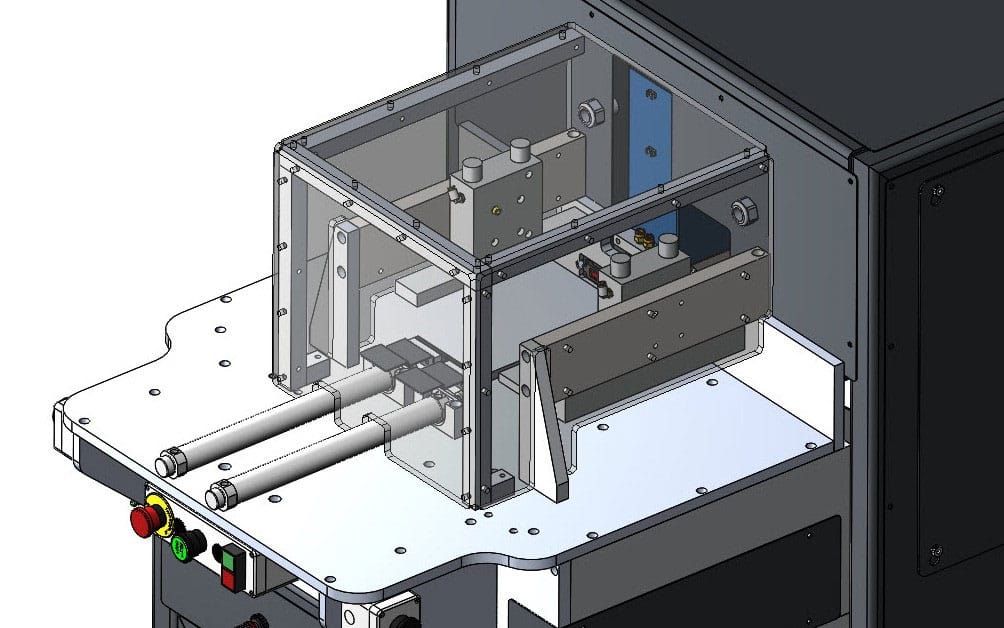

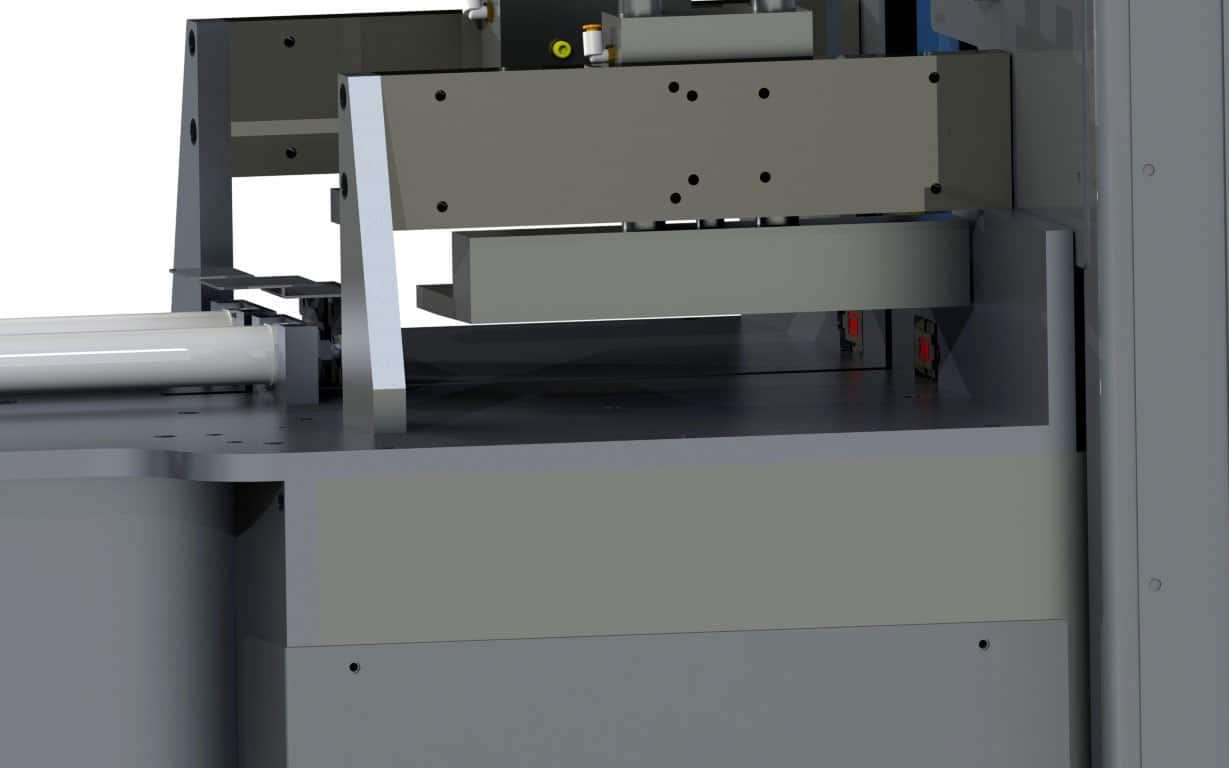

- Enhanced Safety: Pneumatic clamps with proximity switches release only after blade retraction, prioritizing operator safety.
- Versatile Frame Design: Adjustable to sit flat or tilted at 10°, with optional 8′ or 10′ TigerStop for automated positioning.

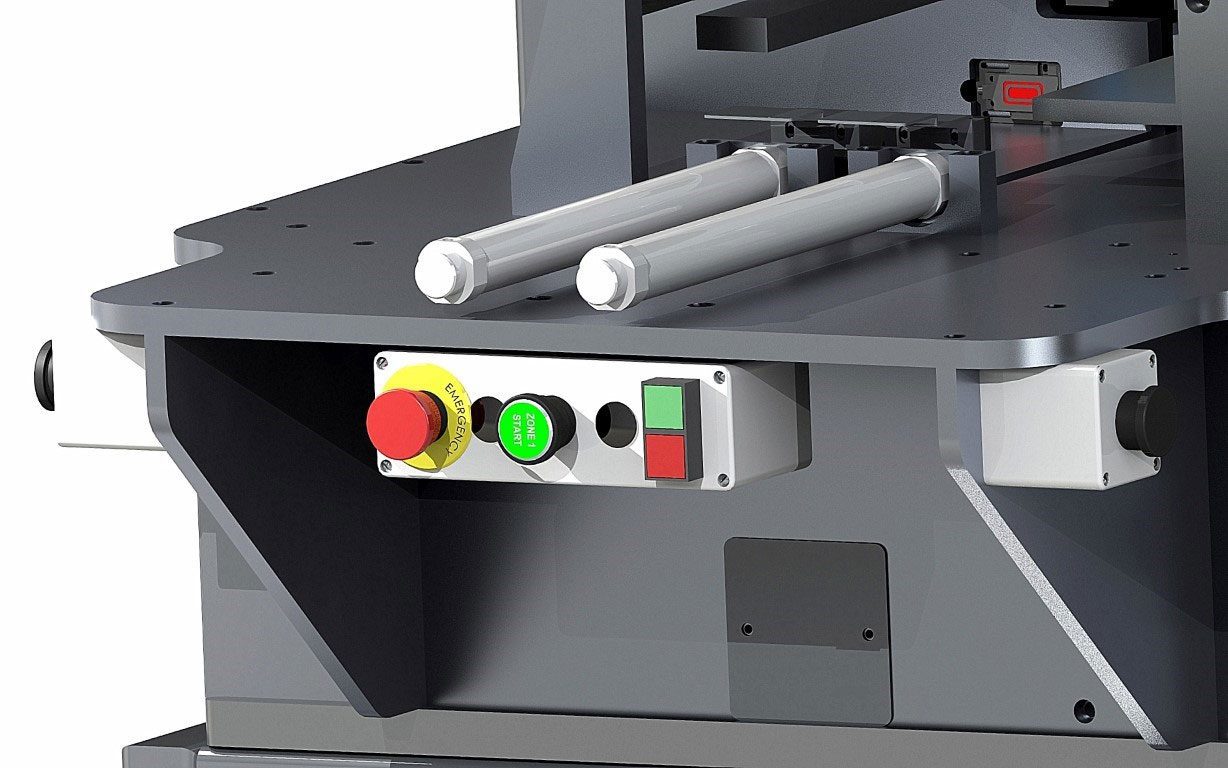

- Operator-Friendly Controls: Dual palm buttons or optional foot pedal start switch simplify operation for all skill levels.
- Durable Build: 1,400 lb. frame with high-precision components ensures reliability in demanding shop environments.
Technical Breakdown
| Feature | Specification |
|---|---|
| Machine Type | Trim score saw with dual counter-rotating blades |
| Top Blade | 300 mm diameter, 96 teeth, 1″ bore, ATB, 10° hook, 4700 RPM |
| Bottom Blade | 150 mm conical, 24 teeth, 30 mm bore, ATB, 8° hook, 4700 RPM |
| Top Spindle Motor | 3 HP |
| Bottom Spindle Motor | 1.5 HP |
| Blade Movement | Horizontal, linear bearings, pneumatic cylinder |
| Max Opening | 15″ (with optional upgrade) |
| Controls | Dual palm buttons (optional foot pedal) |
| Electrical | 3-phase, 208-230V, 60 cycles, 20 amps |
| Compressed Air | 90 PSI at 10 CFM |
| Dust Collection | 2 x 4″ ports, 696 CFM total |
| Dimensions | 38″ W x 72″ D x 57″ H |
| Weight | 1,400 lbs. (approx.) |

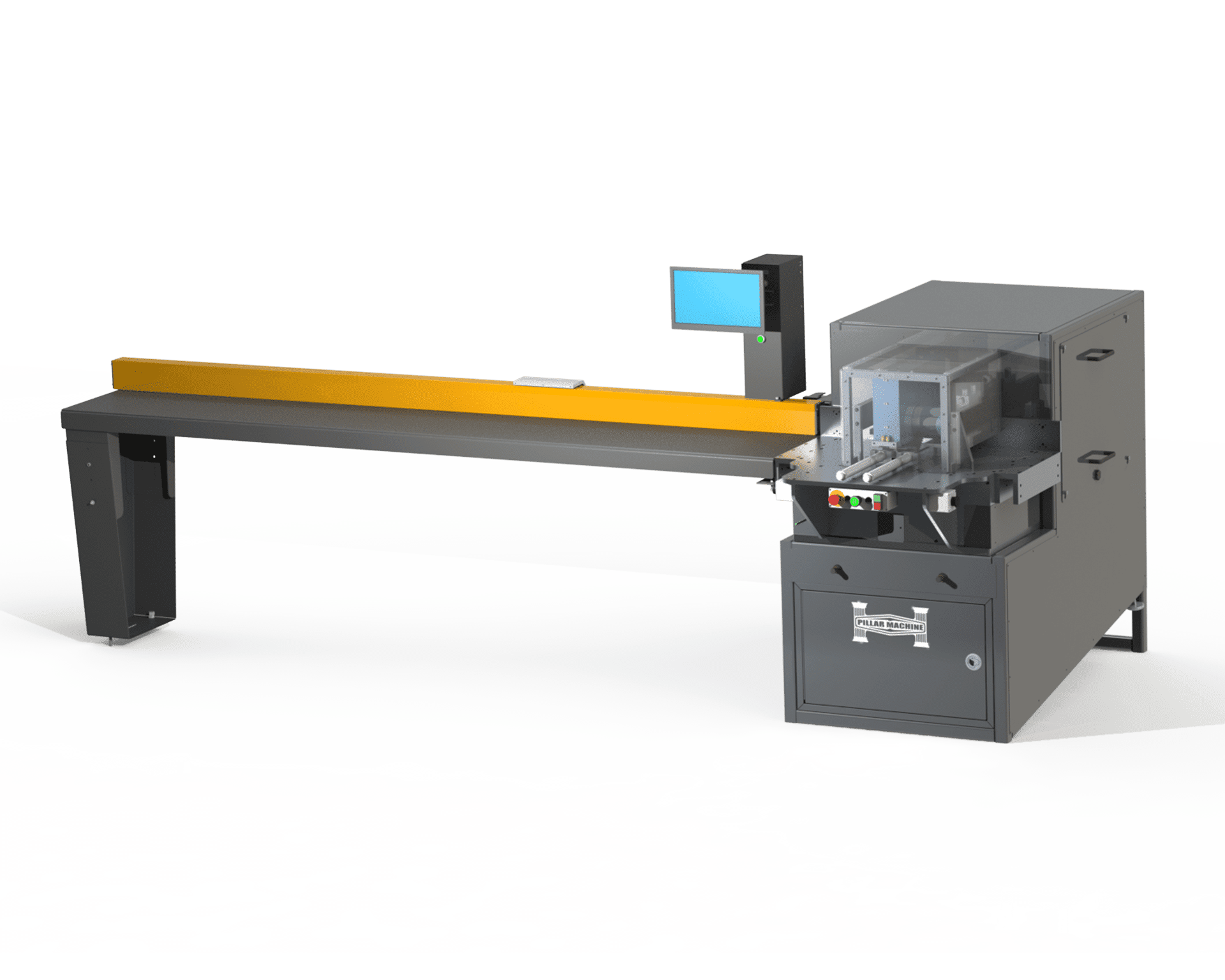

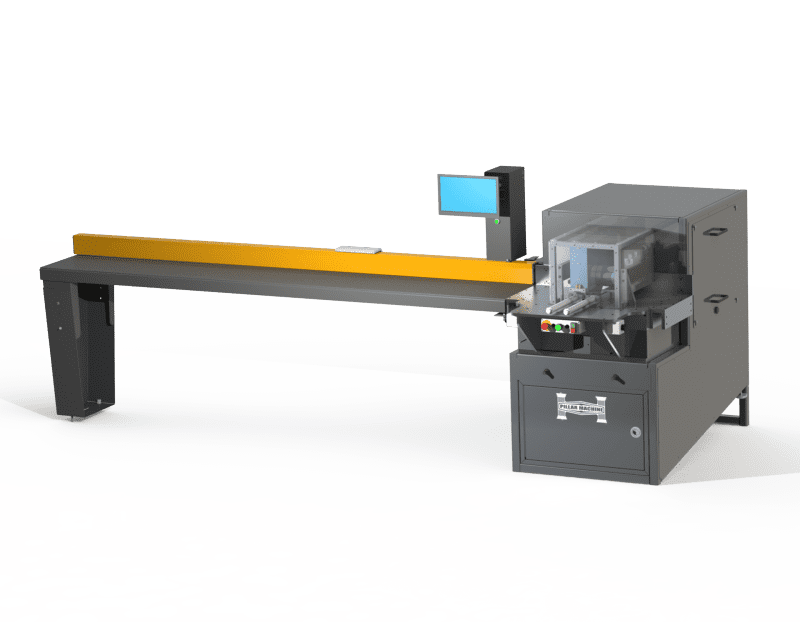

Available TSS TigerStop Options
The TSS is a trim score saw with dual counter-rotating blades: a 300 mm, 3 HP top blade and a 150 mm, 1.5 HP conical bottom blade that pre-scores the material before the main cut. The scoring action prevents chipping on veneered plywood, melamine, and MDF. The frame adjusts flat or tilts to 10°, and optional 8′ or 10′ TigerStop integration adds CNC-positioned stops for automated length cutting.
10‑Foot TigerStop System
Features a 10′ version of the TigerStop CNC stop/pusher, complete with an in-feed table and a 6′ out-feed table with back fence. Comes with necessary mounting hardware for integration into the TSS controls. Note: standard fence position is right-side—left-side available on request; additional freight charges apply; TigerStop handles warranty.
About Pillar Machine
Pillar Machine is based in Salt Lake City, Utah and builds all of its equipment in the USA. Machines come with a one-year warranty and free online training direct from the factory.
