Features:

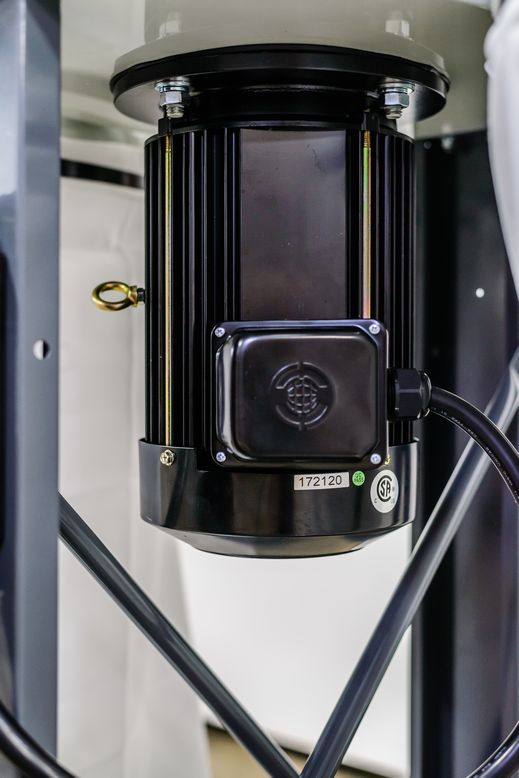

- 7.5HP 230/460V 3PH Motor
- Impeller diameter: 14”

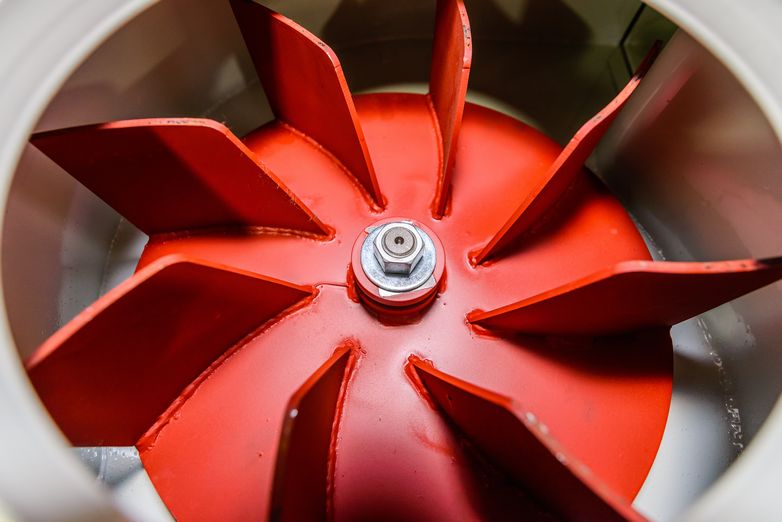

- 14” Curved impeller fan
- 4900 CFM

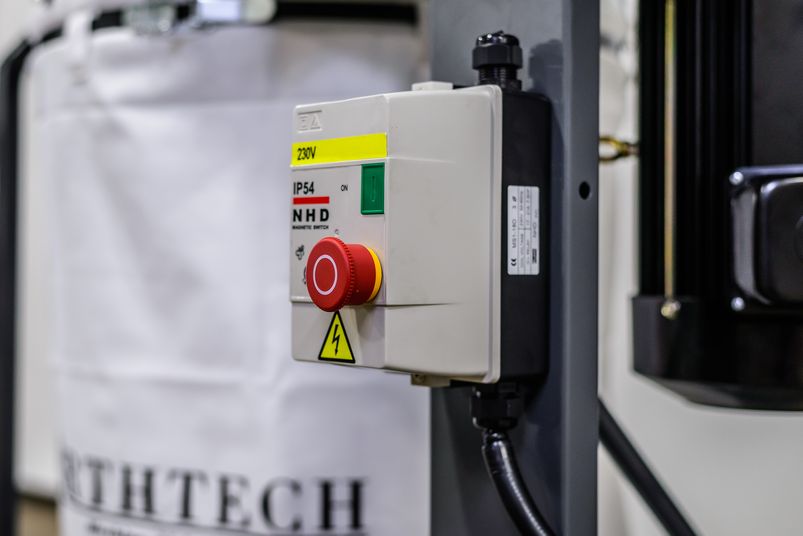

- Magnetic starter
- Mushroom stop button
- Velocity: 138 FPS
- Multi-pleated top filtering with low air/cloth ratio
- 30-micron nylon woven filtering media

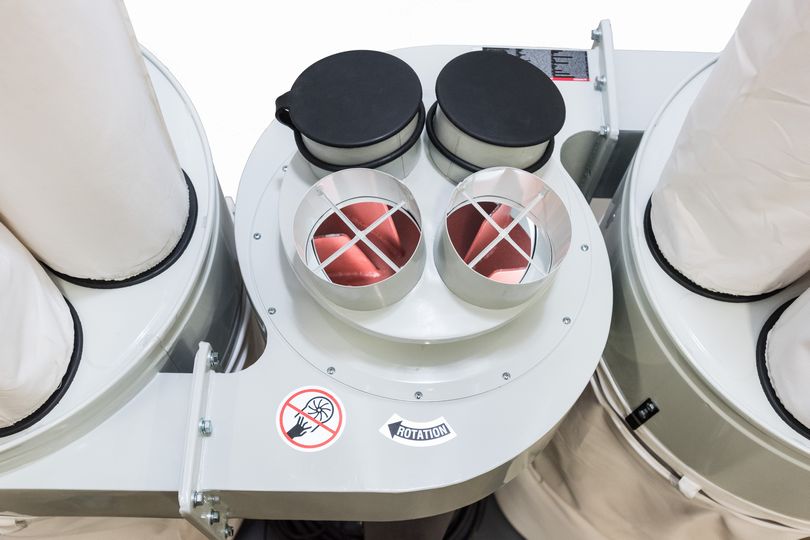

- 10” inlet with (4) 5” manifold
- Plastic collection bags are standard (optional cloth bags are 24” x 36”).

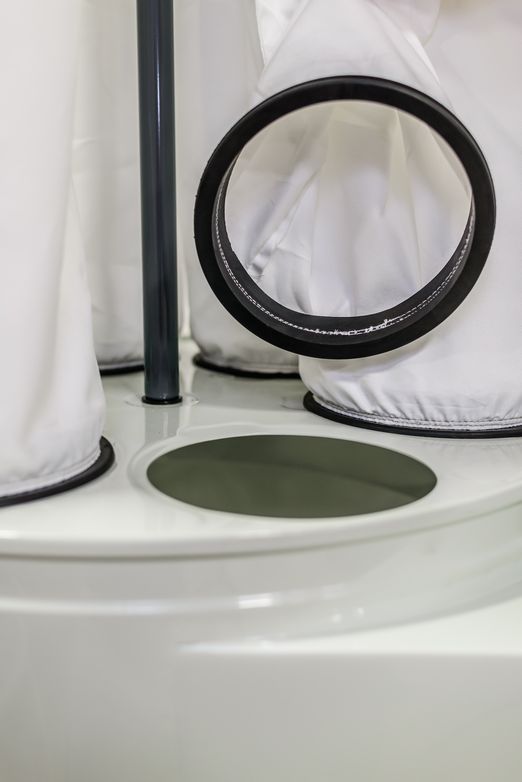

- (12) Filter bags are 5’ high with sewn-in rubber seals
- Packing dimensions: (L) 42″ x (W) 48″ x (H) 35″
- Gross weight: 350 lbs.
- Warranty is one-year parts
- All machines are tested stateside before shipment providing trouble-free startup.
Specifications:
- Main Motor Hp. = 7.5 hp.
- Direct Drive = Direct Drive
- Machine Hp. = 7.5 hp.
- Voltage/ Freq. = 230/460 Volt 60Hz
- Phase = 3 Phase
- Amp Requirement = 17.6/8.8 Amps
- Electronics = UL Approved Components
- Dual Voltage = 230/460 Volt
- Control Voltage = 460 Volt
- Dust Port In = 10” or (4) 5” Inlets
- Free Air CFM = 4900 CFM
- Impeller = 4” x 14” Steel Impeller
- Frame Const. = 1/16” Steel Construction
- Mobile Unit = (7) Caster Cart
- Upper Bags = 6” x 59”
- Lower Bags = 39” x 46”
- Decible Rating = 83 dB
- Net Weight = 280 Lbs.
- Gross Weight = 350 Lbs.
- Machine Dims. = 65” x 24” x 113”
- Packaging Dims = 40” x 48” x 36”
