Laguna U|15 Metal Dust Collector
Laguna U|15 Metal Dust Collector
$2,399.00
The Laguna U|15 is a compact 1.5 HP metal dust collector that moves up to 490 CFM, pulling grinding dust and metal fines from one or two machines through two 3-inch inlets. Its steel cabinet, fire-resistant galvanized micro-mesh filter, and pull-out metal drawer keep a small metalworking shop clean, running quietly at 71.5 dB on standard 110V power.
Specs & Features
Laguna U|15 Metal Dust Collector Overview
Metal dust is abrasive and a fire risk, so it needs collection built for the job, not a repurposed wood collector. The U|15 is Laguna’s compact, single-phase answer for a small fabrication or finishing shop: enough suction for a machine or two, in a footprint that plugs into a standard 110V outlet. The sections below cover its power and reach, the fire-resistant filtration, and how quietly it runs. 360 Degree Machinery is an authorized Laguna distributor.
Right-Sized Power for Small Shops

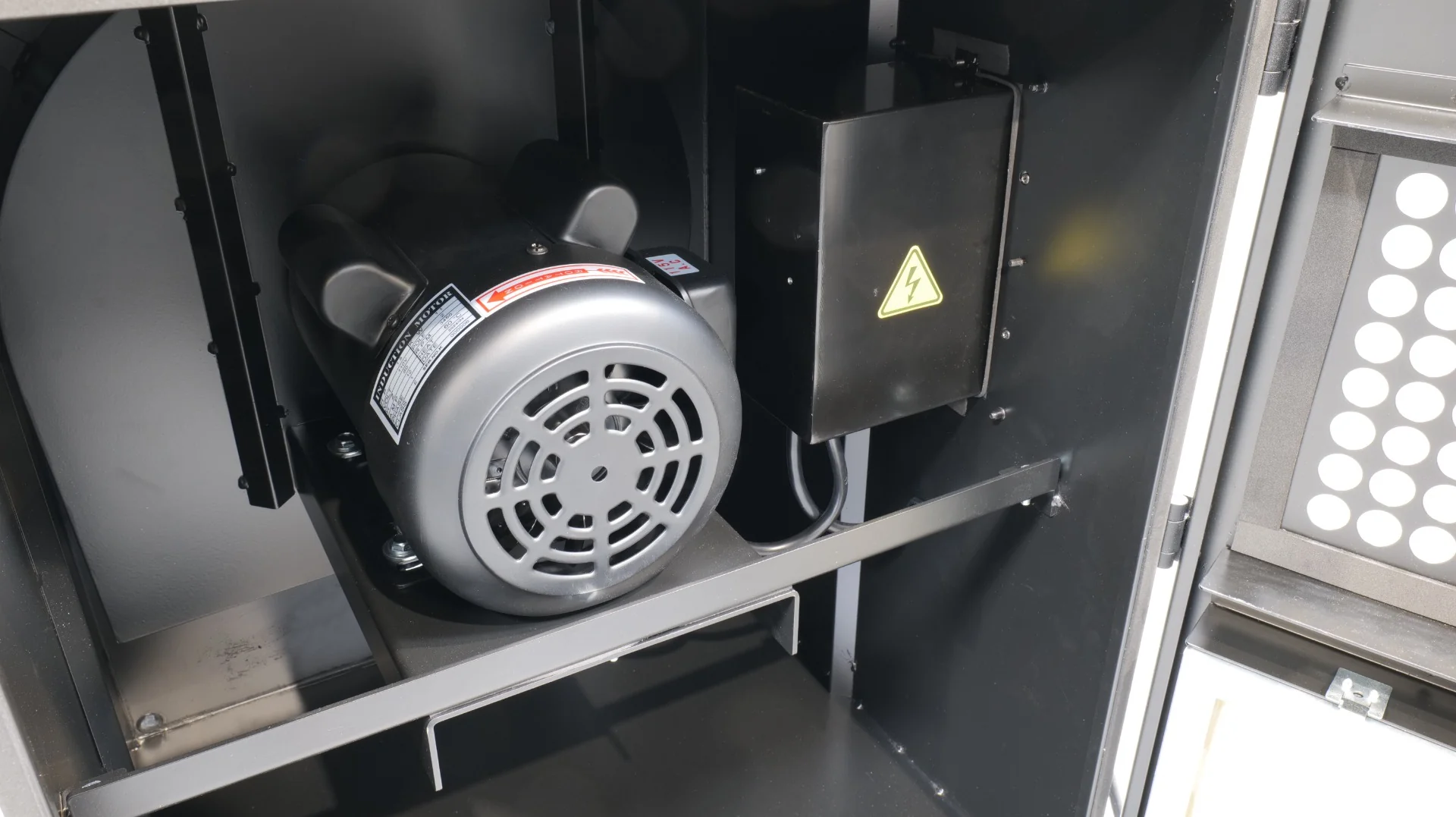

A 1.5 HP induction motor spins an 11-inch aluminum impeller to move up to 490 CFM of air (maximum, free-air). Two 3-inch inlets let you hook up a pair of machines, and an included 2-inch adapter steps a port down for smaller tools. It is a practical match for a grinder, belt sander, or deburring station in a one- or two-person shop.
Built for Metal Dust

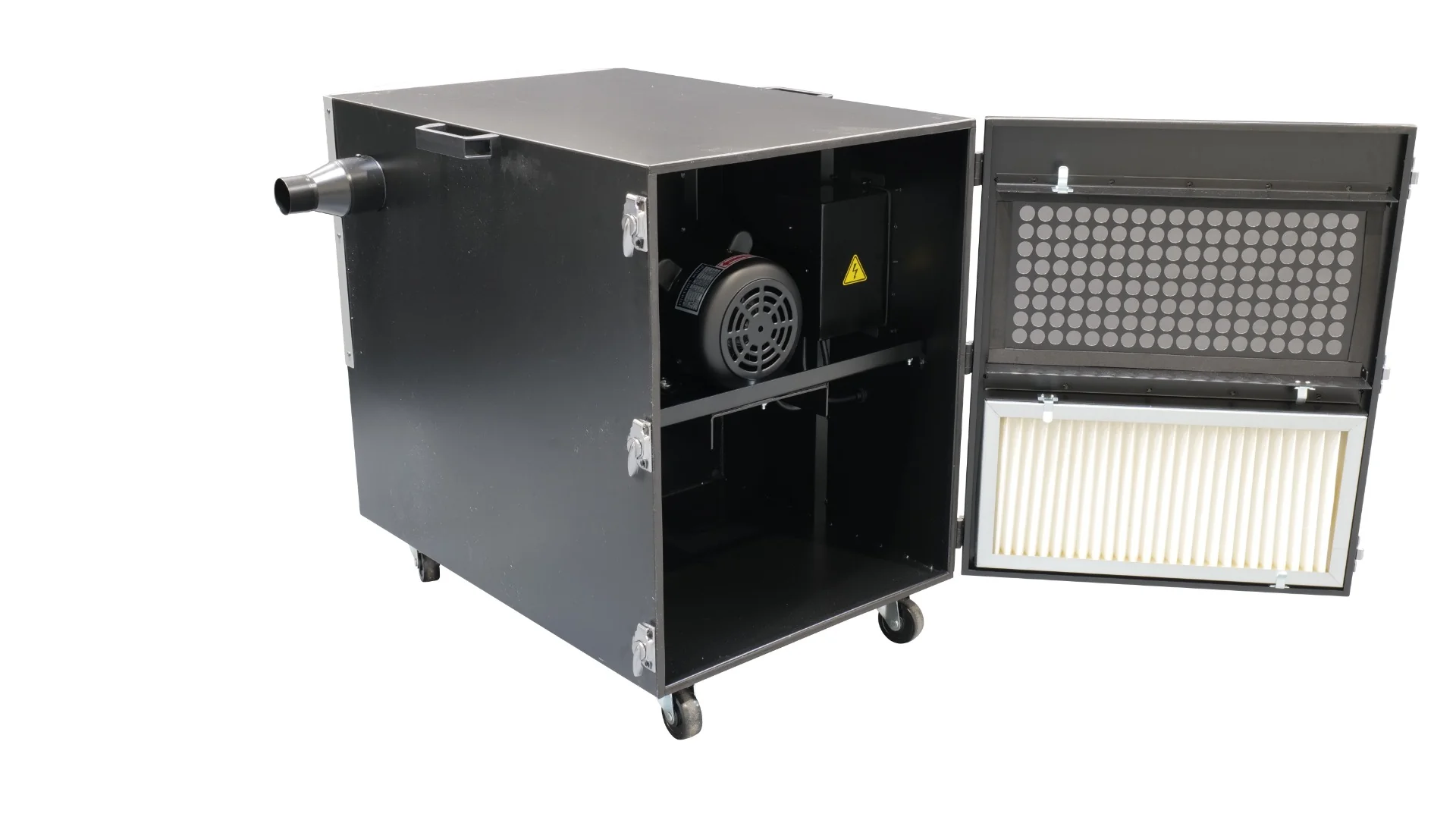

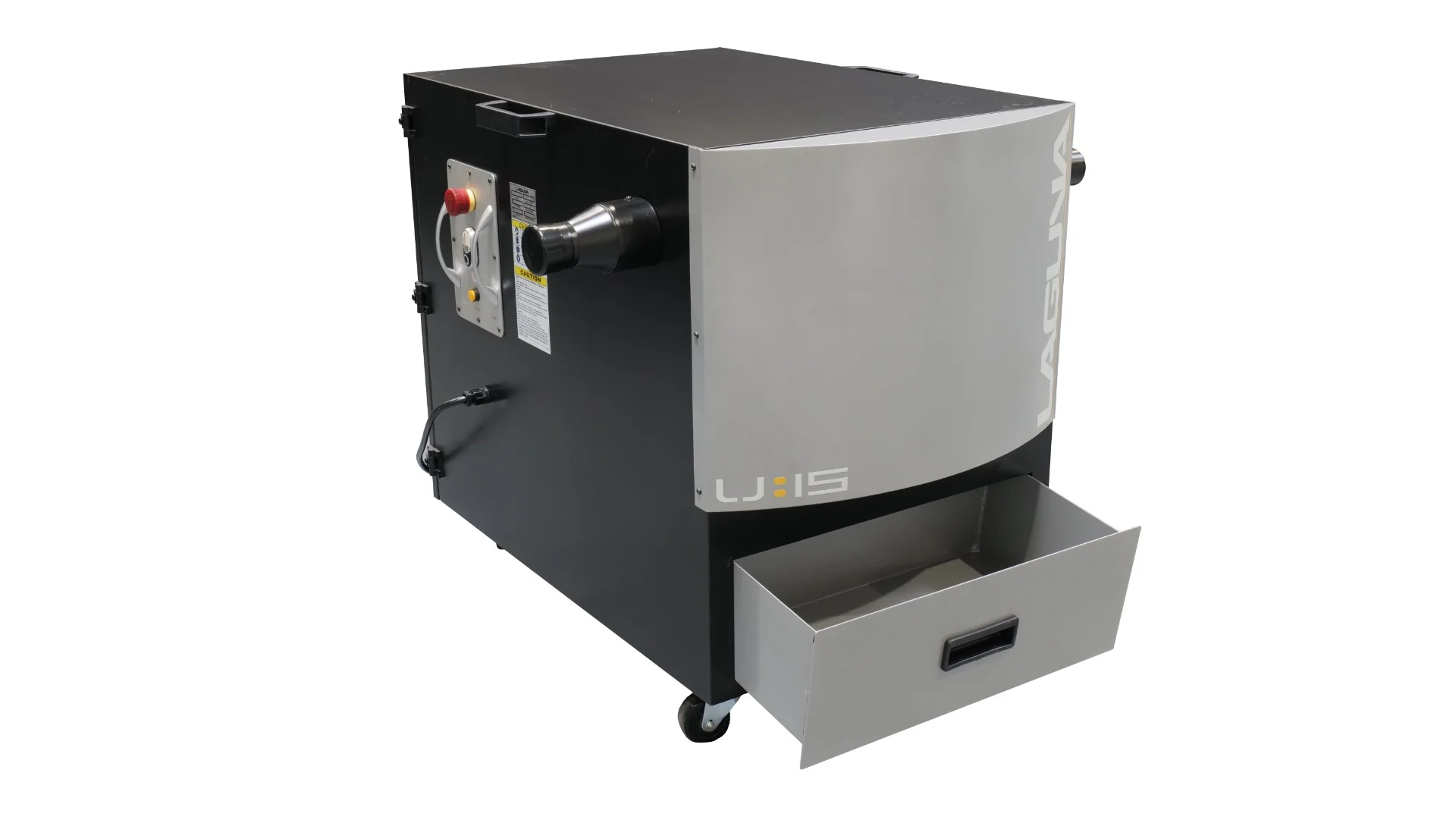

Metal dust is abrasive and can be a fire hazard, so the U|15 uses a galvanized micro-mesh filter that resists sparks and traps fine particles for cleaner air. The steel cabinet stands up to daily use, and the 4.4-gallon metal collection drawer pulls out for quick, tidy emptying. Smooth-rolling 2.5-inch casters let you reposition it wherever the work is.
Quiet, Tidy Operation
At 71.5 dB the U|15 runs quietly enough to sit beside an operator without drowning out the shop. A magnetic switch protects the motor, and the enclosed cabinet keeps collected dust contained until you empty the drawer.
Specifications
| Motor | 1.5 HP |
|---|---|
| Motor Speed | 3,450 RPM |
| Electrical | 110V / 60 Hz / 1 Ph |
| Amps | 10.7 A |
| Switch | Magnetic |
| Power Cord | 6 ft (5-15P plug) |
| Inlets | (2) 3″ (+2″ adapter) |
| Maximum Air Flow | 490 CFM |
| Static Pressure | 2.95″ H2O |
| Impeller | 11″ diameter, aluminum |
| Collection Volume | 4.4 gallons |
| Filter Material | Galvanized micro-mesh (fire-resistant) |
| Filter Size | 19.25″ x 9.5″ x 1.8″ |
| Construction | Steel cabinet, aluminum impeller |
| Noise Level | 71.5 dB |
| Casters | 2.5″ swiveling |
| Start Capacitor | 200 µF / 125V |
| Run Capacitor | 300 µF / 250V |
| Footprint (L×W×H) | 33.5″ x 32″ x 29.5″ |
| Shipping Size (L×W×H) | 35″ x 26″ x 31″ |
| Net Weight | 165 lb |
| Gross Weight | 185 lb |
Contact 360 Degree Machinery
360 Degree Machinery is an authorized Laguna distributor. Call us at 630-229-6705 for current pricing, a recommendation, or to request a quote on the Laguna U|15 Metal Dust Collector.
Shipping
FREE SHIPPING DOES NOT APPLY TO PRE-OWNED MACHINERY
Please Contact us for a shipping quote for Pre-Owned Machinery and or New machinery below $6,000.
***Some restrictions apply for free freight on NEW machinery over $5,999. FREE freight is to a commercial address with a dock and or forklift. EXTRA FEES may apply to accessorials like restricted access, residential drops, liftgates, and excessive lengths.
Applies to lower 36 of the contiguous states only. AZ, CA, CO, ID, MT, ND, NV, OR, SD, UT, WA, & WY do not qualify for free shipping. We can split ship to these states from $5,999 and up. Free shipping does not apply to RazorGage, Oliver, nor JLT Machinery or other machines listed as not free shipping.

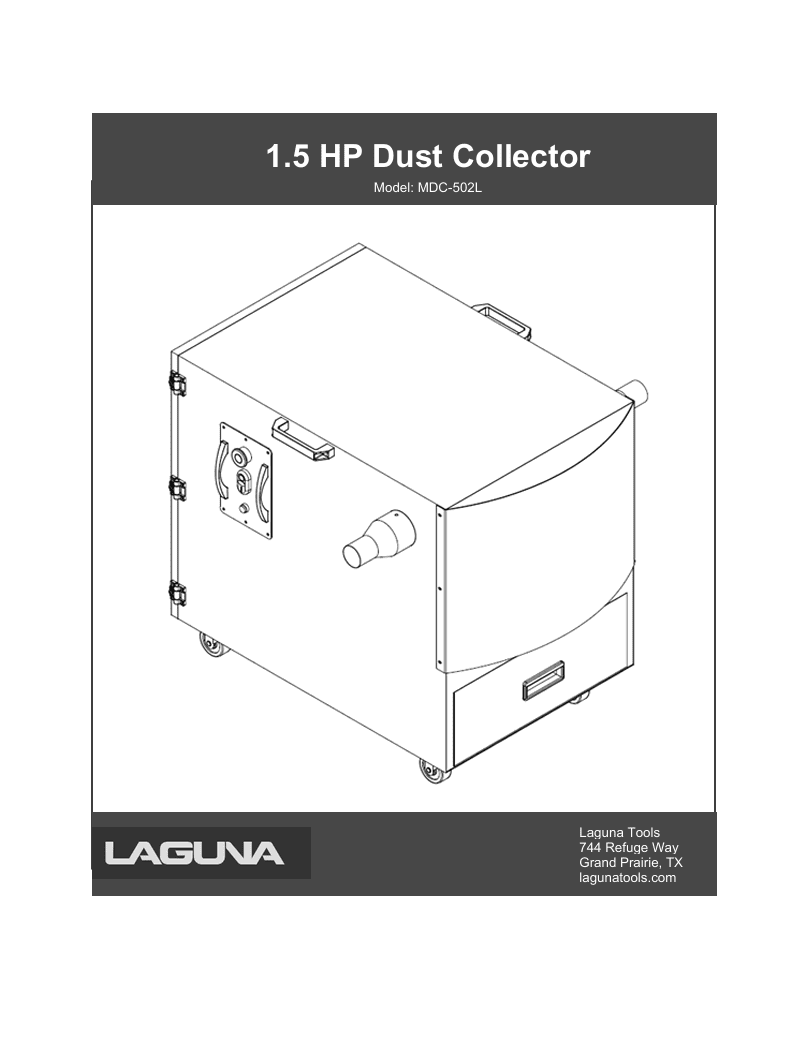

Manuals & Technical Documents
