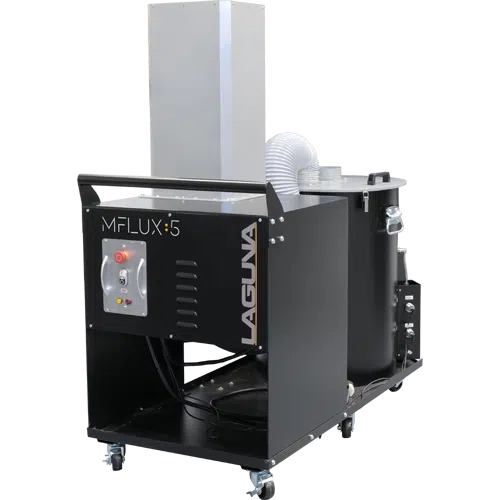

Laguna M|Flux 5 Wet Metal Dust Collector
Grinding and sanding metal throws sparks, and sparks plus a bag full of fine metal dust is a fire waiting to happen. The M|Flux 5 is a wet collector: the dust is pulled into water rather than a filter, so hot particles are quenched on contact instead of collecting somewhere they can ignite.
Airflow and Power
A 5 HP motor turning at 3,450 RPM drives a 13-inch impeller for 3,103 CFM at 16.2 inches of water static pressure. Power is 208V single phase at 34 amps, so the machine runs without three-phase service.
Connections and Controls
The inlet is 5 inches and the outlet 6 inches. A magnetic switch handles start and stop.
Footprint
The machine stands 60 by 28 by 66 inches and weighs 493.5 pounds net, so it takes a defined corner of the shop rather than a whole bay.
Specifications
| Type | Wet dust collector, metalworking |
|---|---|
| Model | MCDCWDC-5 |
| Motor | 5 HP, 3,450 RPM |
| Suction capacity | 3,103 CFM |
| Static pressure | 16.2 in H2O |
| Power | 208V / 60 Hz / 1 phase, 34 A |
| Impeller | 13 in |
| Inlet / outlet | 5 in / 6 in |
| Switch | Magnetic |
| Footprint (L x W x H) | 60 in x 28 in x 66 in (1,520 x 710 x 1,670 mm) |
| Net weight | 493.5 lb (223.3 kg) |
| Gross weight | 541.5 lb (245.5 kg) |
| Shipping dimensions | 57 in x 32.5 in x 38 in |
