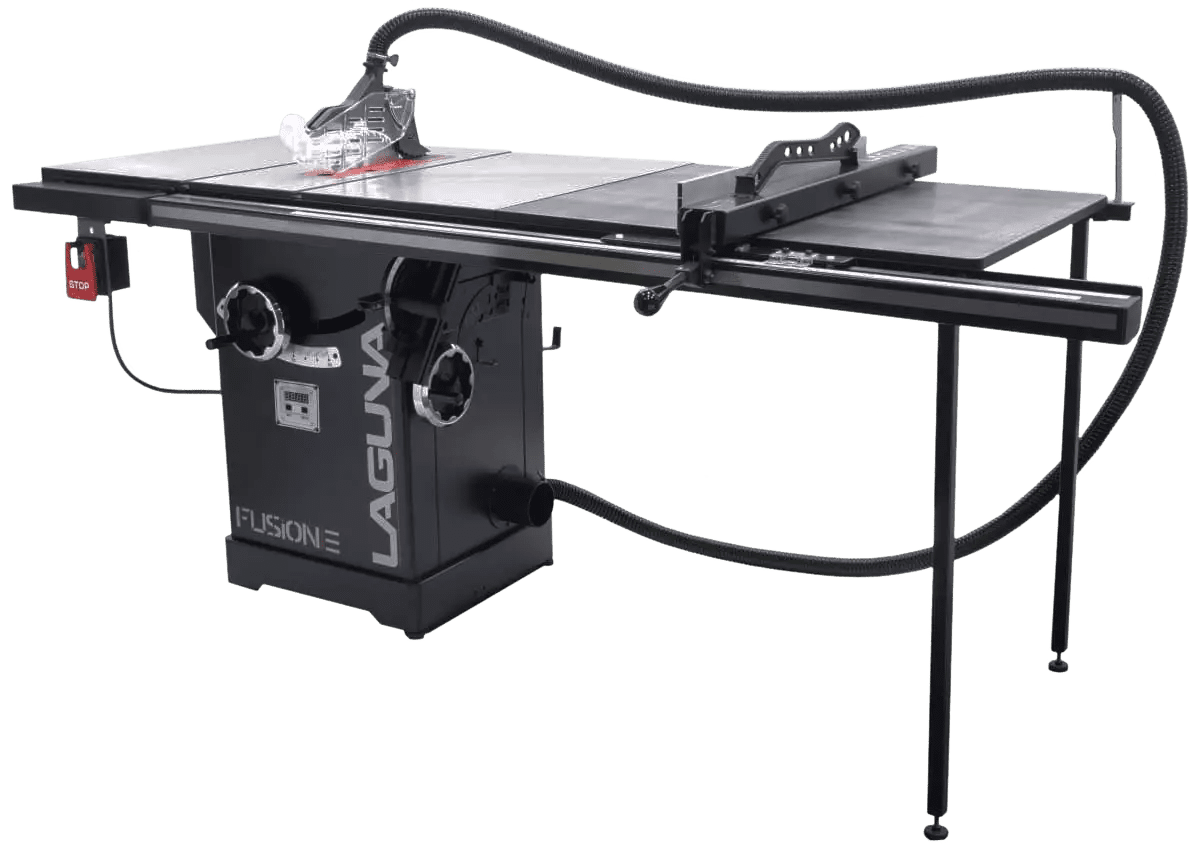

F3 52″ Features
- 52″ Rip Capacity
- Industrial 14 Gauge Cabinet
- Accessory Tables (Outfeed & Rip)
- Industrial Fence Rail
- Industrial Fusion Fence
- Premium Electrical & Hardware Components
- Premium Miter Gauge
- Cast Iron Fusion Trunnions
- Cabinet Mounted Arbor
- Cast Iron Table & Wings
- European Hi-Lo Fence
- Premium Zero Clearance Throat Plate
- Fusion Hi-Lo Dust Collection
- Maginetic Contractor Switch
- Quick-Release Blade Guard & Spreader
- Riving Knife Included
- Push Stick Included
- Miter Gauge Included
- Blade Changing Tool Included
- 10 x 40T Carbide-Tipped Blade Included
- Premium Arbor & Motor Bearing
- Mobility Built Into Cabinet
Additional Specs
Dust Port Size: 4″
Blade Guard Dust Port Size: 1-½″
Table Saw Type: Cabinet
Maximum Blade Diameter: 10″
Arbor Size: ⅝″
Arbor Speed: 4500 RPM
Maximum Width Of Dado: ¾″
Blade Tilt Direction: Left
Max Blade Tilt: 45°
Maximum Depth Of Cut At 90°: 3-⅛″
Maximum Depth Of Cut At 45°: 2-⅛″
Max Rip Right Of Blade With Included Fence & Rails: 52″ *
* The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on LEFT side is provided only to make the ON/OFF switch position adjustable.
