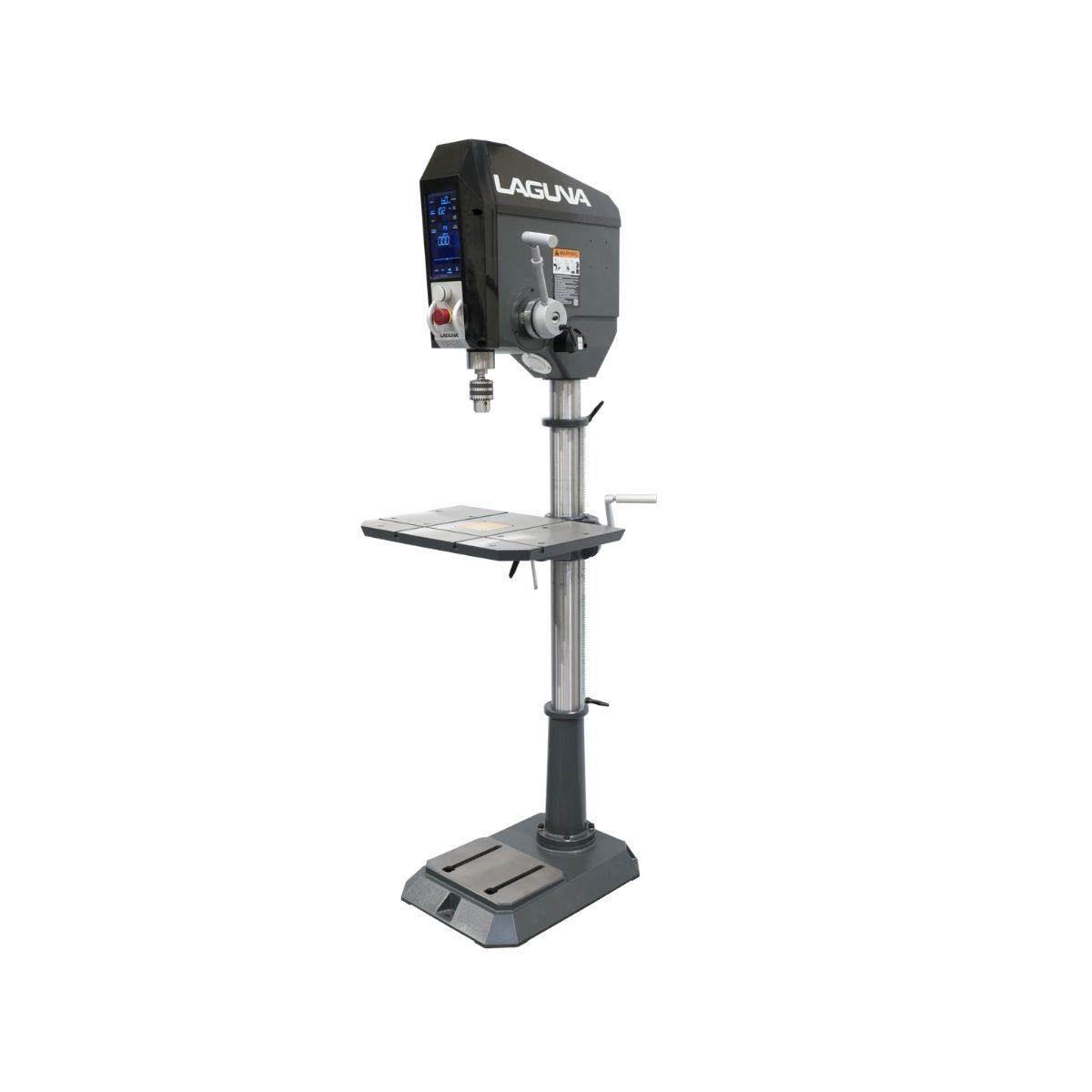

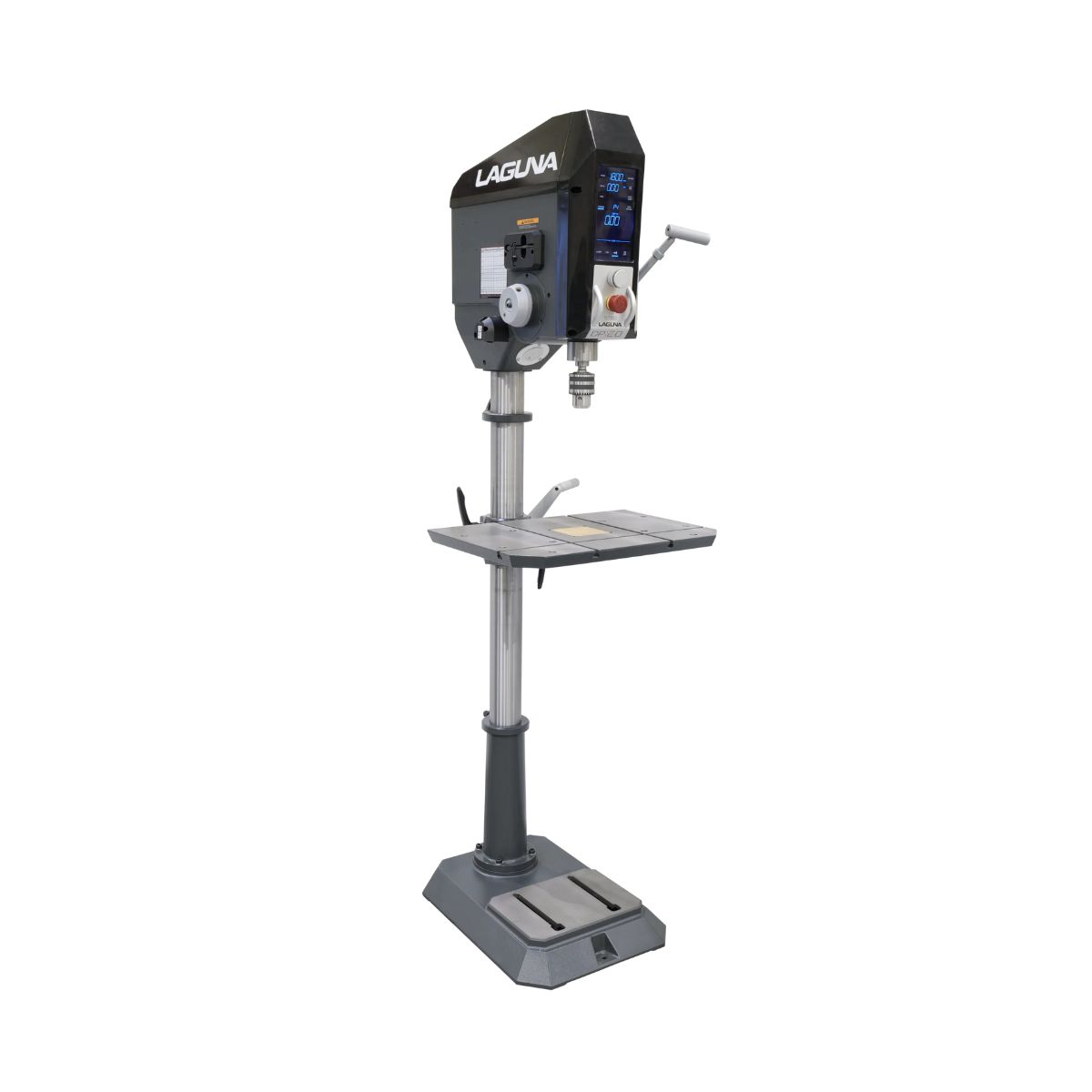

Laguna DP:20 Drill Press

Laguna DP:20 Drill Press

$2,414.00

Categories , , Tag Brands ,

Introducing the new DP:20 – Where Industrial Power Meets Modern Design. The DP20 is the latest innovation in our classic line, engineered for industrial-grade performance. At its heart is a robust 1.5 hp Pulse Width Modulation (PWM) motor, delivering constant torque across a full speed range of 60 to 3600 RPM, making it perfect for the most demanding applications in wood, metal, plastics, and other material applications. The state-of-the-art Touch Screen Smart Panel, featuring a unique blue LCD digital readout, provides real-time RPM, Load, and Quill Depth, enhancing functionality and aesthetics. The large 3-3/4″ x 6-7/8″ touch screen is a standout feature among drill presses in this range, surpassing competitors with its size and touch capability.

Key Features:
  • Touch Screen Smart Panel: Intuitive interface with blue LCD digital readout.
  • 1.5 hp PWM Motor: Constant torque with forward and reverse functions.
  • Auto-Start Function: Starts and stops with the movement of the quill.
  • Precision Depth Control: Electronic depth setting.
Add to Quote Request

Motor

  • DC Brushed
  • PWM (Pulse Width Modulation)

Power

  • 1.5 HP
  • 15 AMP

Voltage

  • 110-120 volt

Frequency

  • 60 Hz

Wheel Speed

  • Electronic Variable 60 – 3600 RPM Forward / Reverse

Power Transfer

  • Poly-groove drive belt

Machine Control

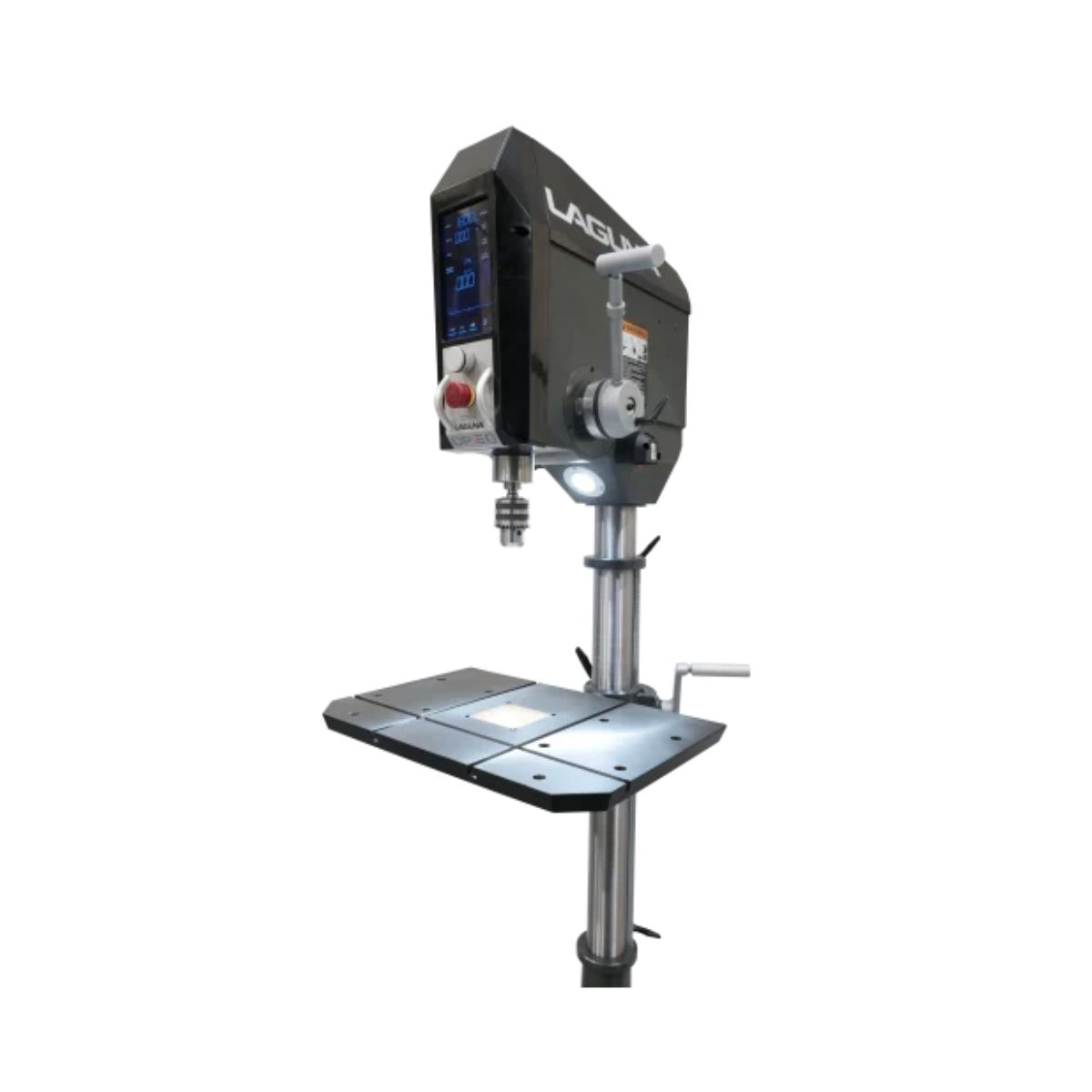

  • LCD Touch Screen Smart Panel

Base Size

  • 22.83″ x 16.92″



Column Diameter

  • 3.15″ (80 mm)

Weight

  • Net wt 304 lbs. (138 kg)
  • Gross wt 326 lbs. (148 kg)

Packing Dimensions

  • 72.5″ x 28.5″ x 20″
  • 1840 x 725 x 406mm

Memory Settings

  • 5 Memory Settings

Swing

  • 20″ (1830 mm)

Spindle Taper

  • MT2

Quill

  • 6″ Travel – 2.6″ Diameter

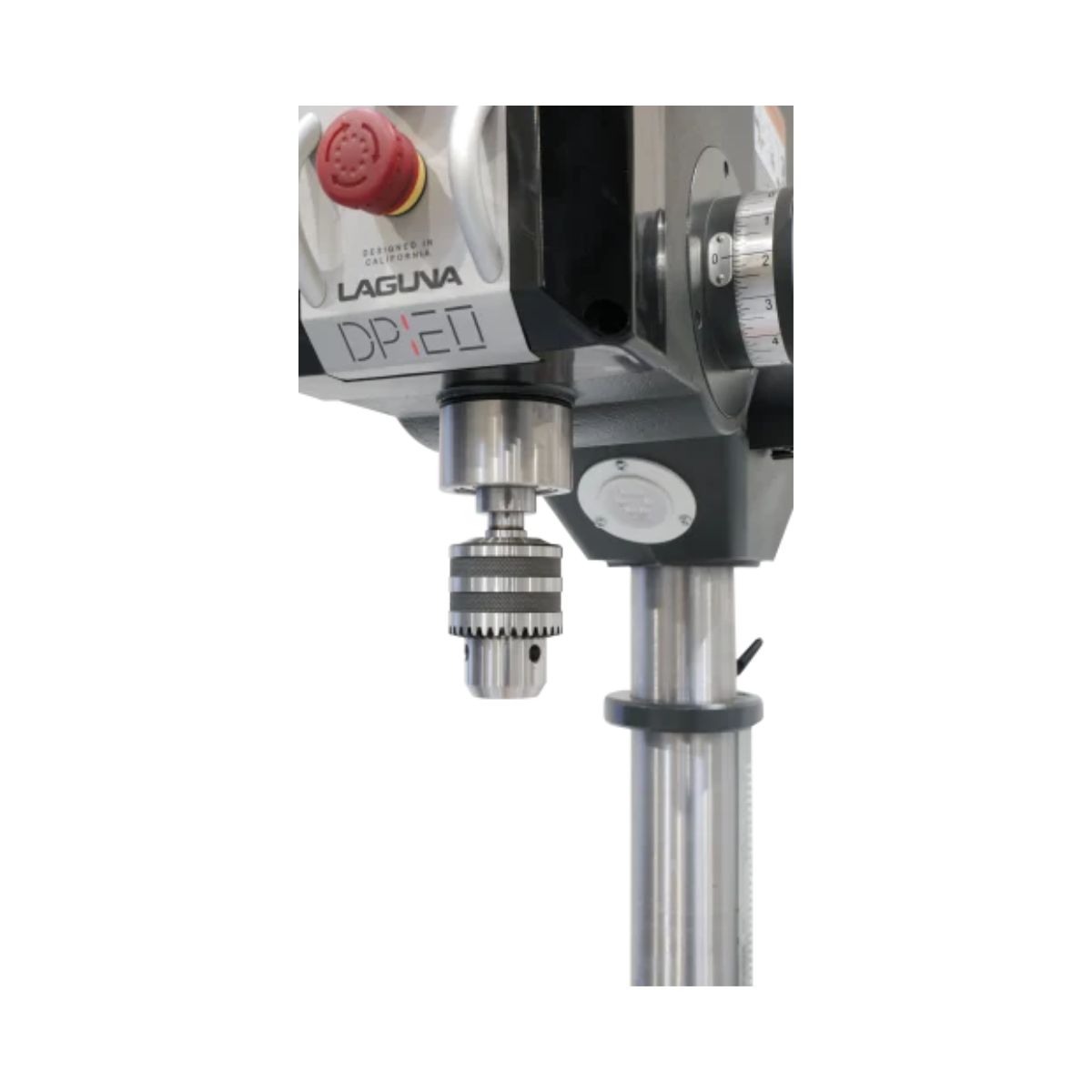

Chuck Capacity

  • 5/64 – 5/8″ (2 – 16 mm)

Table

  • 15″ x 22″
  • 3 T-slots
  • 10 Clamp Holes

Table Movement

  • +/- 90 Degree Tilt
  • 360 Degree Swivel around column

Spindle to Table

  • 30″ Max

Spindle to Base

  • 49.5″ Max



Optional Accessories

  • Work clamps for T-slot
  • Quick clamps for Clamp Holes
  • Bolt-on Work Lamps

Digital Screen Controls

FWD / REV Inch / mm Speed Setting
Depth Setting Material Zero Auto Start
Auto Reverse Memory Programming and Selection



*Pricing and specifications subject to change without notice
