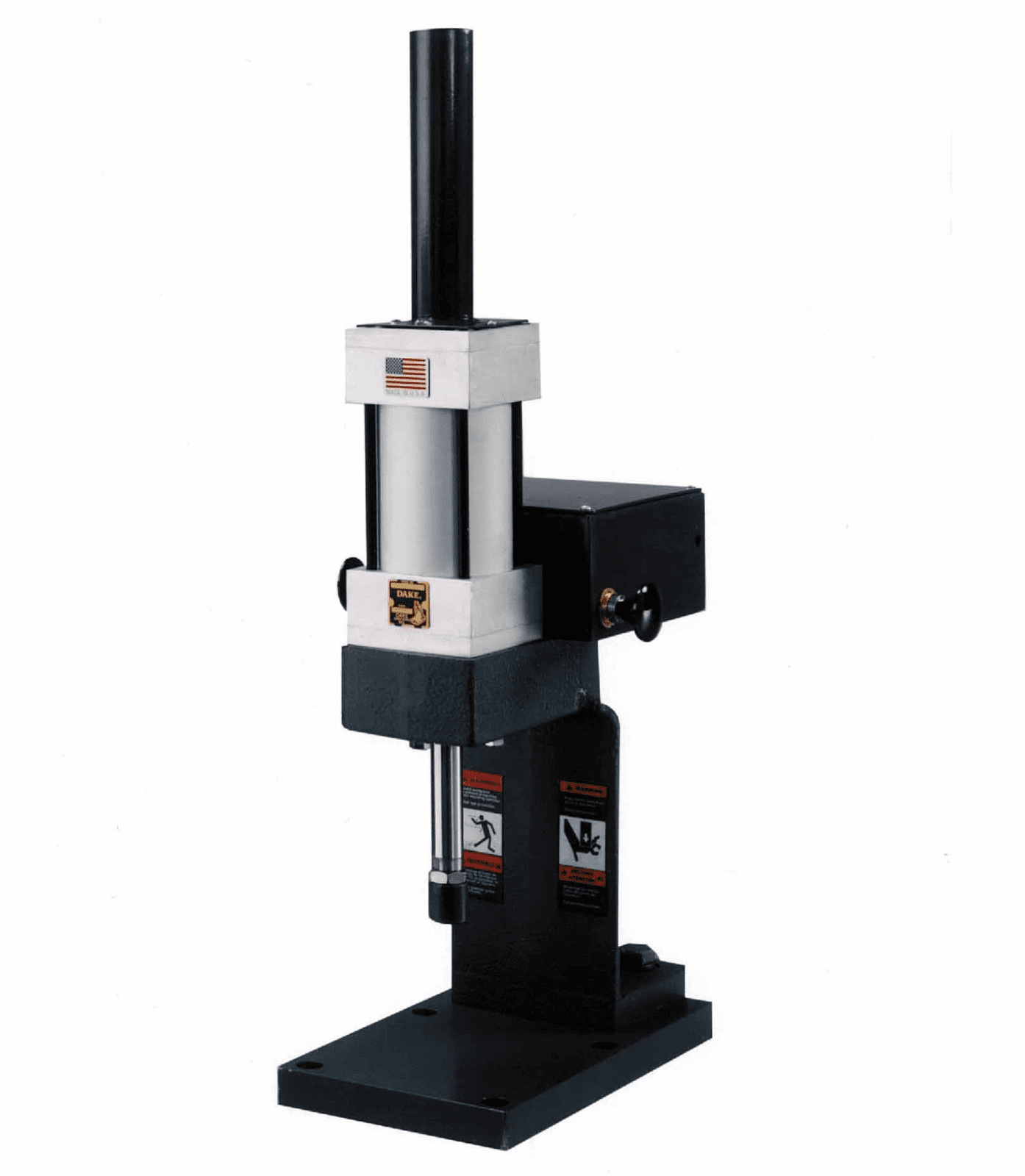

Features:
- Non-rotating double acting ram eliminates guide pins on most tooling
- Threaded rod end permits nose piece and tooling to be easily attached and detached
- Dual-palm push buttons must be engaged before the ram will move and cannot be mechanically by-passed
- Air filter/regulator combination assembly ensures clean and continuous air flow to press
- Chrome-plated piston rod resists rust and ensures long life
- Easily adjusted ram speed, pressure, and stroke allow accurate control of ram movement
- Polyurethane rod wiper protects cylinders from dust and contaminants
- Daylight can be increased with ease
Standard Equipment:
- Cast Iron Frame
- Air Cylinder
- Double-acting Ram
- Chrome-plated Piston Rods
- Air Filter/Regulator Combination
Model Specifications:
| Model Number | 1-220 | 1-210 |
| Part Number | 901220 | 901210 |
| Capacity (lbs) | 2,000 | 1,000 |
| Air Pressure (psi) | 100 | 90 |
| Ram Travel (in) | 4 | 4 |
| Weight (lbs) | 195 | 110 |
| Thread | 3/4 – 16 | 3/4 – 16 |
| Length Of Thread (in) | 1-1/8 | 1-1/8 |
| Daylight w/o Nose Piece | 8-11/16 | 8-11/16 |
| Daylight w/ Nose Piece | 8 | 8 |
| Nose Piece Diameter (in) | 1-1/4 | 1-1/4 |
| Throat (in) | 5 | 5 |
| Work Area (in) | 9 x 8 | 9 x 6 |
| Plate Thickness (in) | 1-1/2 | 1-1/4 |
| Base (in) | 15-3/4 x 8 | 14-9/16 x 8 |
| Hole Pattern (in) | 7-1/4 x 3-1/4 | 7-1/4 x 3-1/4 |
| Overall Height (in) | 35 | 34 |
