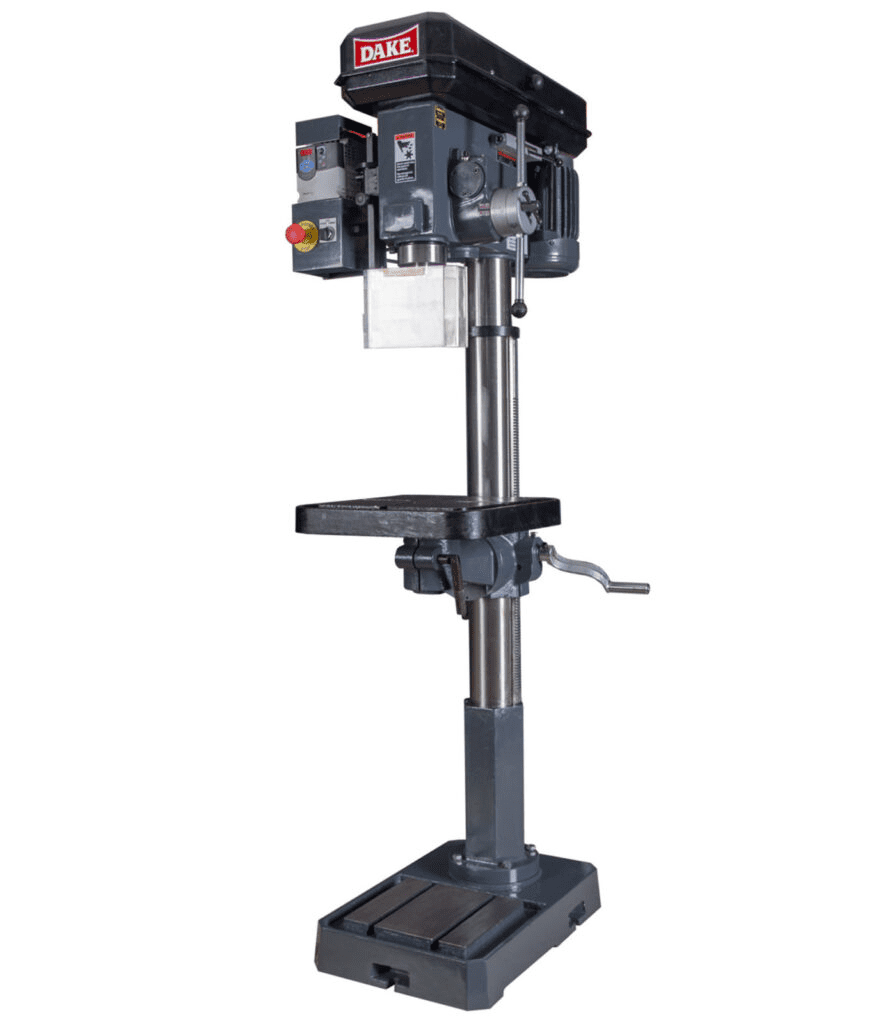

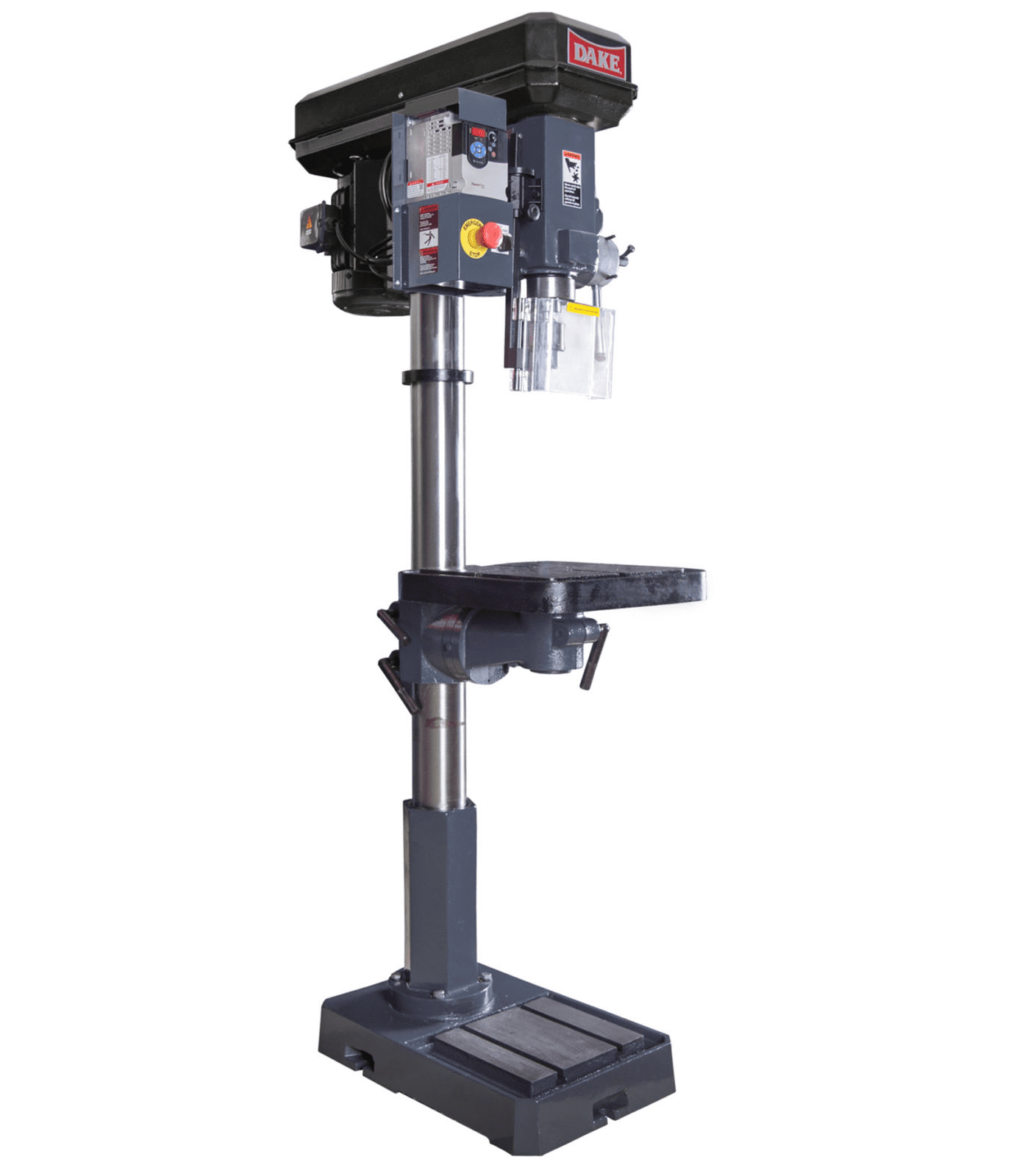

Dake Floor Model Drill Presses

Dake Floor Model Drill Presses

$4,250.00

Categories , , , , Tags , Brand:

Variable speed floor model drill press that automatically advances to preset depth, bottoms out, and returns automatically. Comes with forward and reverse selector switch for tapping applications, and a locking handle hub for repeatable depth. CE safety electrical package, a large diameter sturdy spindle, and a massive cast head make this one touch drill press.

Add to Quote Request

Model Number

Part Number

Drill capacity (in)

Horsepower

Motor

Spindle Taper

Working Diameter (in)

Number Of Speeds

Spindle Speed Range

Electrics

Weight (lbs)

Spindle Travel (in)

Column Diameter (in)

Table Depth (in)

Table Width (in)

Base Depth (in)

Base Width (in)

Spindle To Table (in)

Spindle To Base (in)

Overall Height (in)

SB-250V

977701V

1

1.5

110V, Single Phase

MT3

18

Variable Speeds

68-1380

120V 1 Phase

483

5

3-5/8

15-3/4

15-3/4

23-5/8

15

28-3/8

49-1/4

71

SB-32V

977400V

1-1/4

1.5

110V, Single Phase

MT4

18

Variable Speeds

46-3,473

120V 1 Phase

483

5-1/4

4

15-3/4

15-3/4

23-5/8

15

26-1/4

50

71

SB-25V

977600V

1

1.5

110V, Single Phase

MT3

18

Variable Speeds

46-3550

120V 1 Phase

397

5

3-5/8

13-3/4

13-3/4

23-5/8

15

28-3/8

50

71

SB-25

977600

1

2

110V, Single Phase

MT3

18

9

270-2000

CE 220/440V

397

5

3-5/8

13-3/4

13-3/4

23-5/8

15

28-3/8

50

71

SB-16

977200

5/8

1/2

110/220/440V

MT2

14-1/8

9

240-3400

CE 120V

230

3-1/8

3-1/8

11-3/4

11-3/4

19-5/8

12-1/2

28-1/2

49-1/4

64
