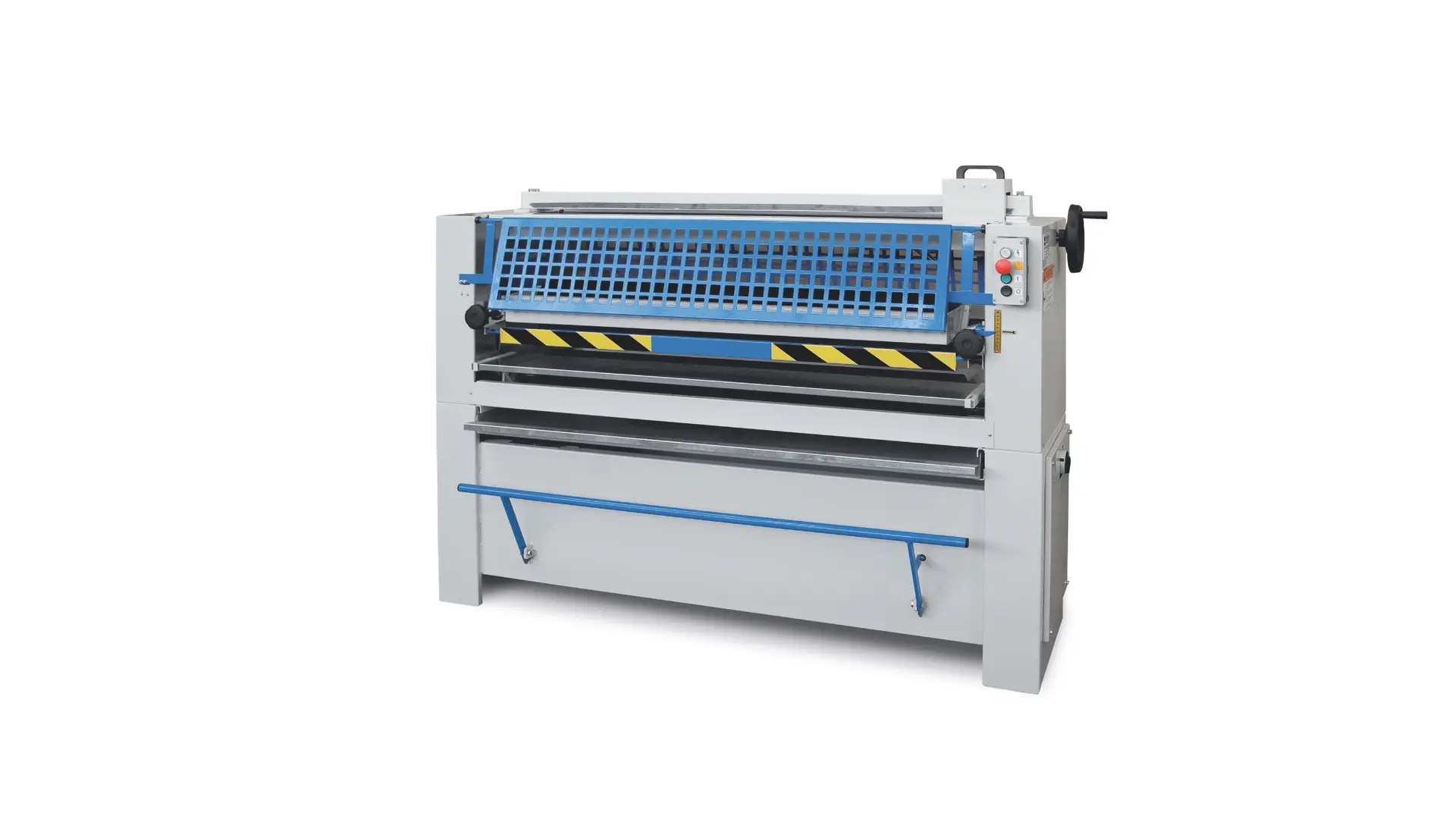

Evans Midwest GS2R 2-Roll Glue Spreader
Consistent glue coverage is where a good laminated panel starts. The GS2R is the entry point: a two-roll spreader that puts an even film of PVA across the full panel width, so bonds come out uniform and clean instead of starved in one spot and bled-through in another. Evans Midwest imports it from OSAMA Technologies and backs it with parts and application support on this side of the Atlantic.
Built for PVA Laminating
The two-roll configuration suits PVA adhesive on flat stock, the workhorse setup for countertop and panel shops. Rollers meter the glue to a repeatable weight, which is what keeps panel flatness and press results predictable run after run.
Stands Alone or Joins the Line
Run it as a standalone machine or integrate it into an Evans Midwest flat-panel laminating line alongside feeders, presses, and stackers. Evans configures the spreader to your substrate, adhesive, and throughput.
Specifications
| Type | Two-roll glue spreader (OSAMA S2R platform) |
|---|---|
| Adhesive | PVA |
| Working width | Configurable across the S2R range (up to 1,600 mm / 63″) |
| Working height clearance | Up to 100 mm (about 3.9″) |
| Roller diameter | 185 mm (about 7.3″) |
| Feed speed | 18 m/min (about 59 ft/min) |
| Support | Evans Midwest / Choice Machinery Group, North America |
Configured to your application. Full OSAMA S2R model/size options available on request.
Contact 360 Degree Machinery
Tell us your panel width and adhesive and we will spec the GS2R with you. Call 630-229-6705 or request a quote online.
