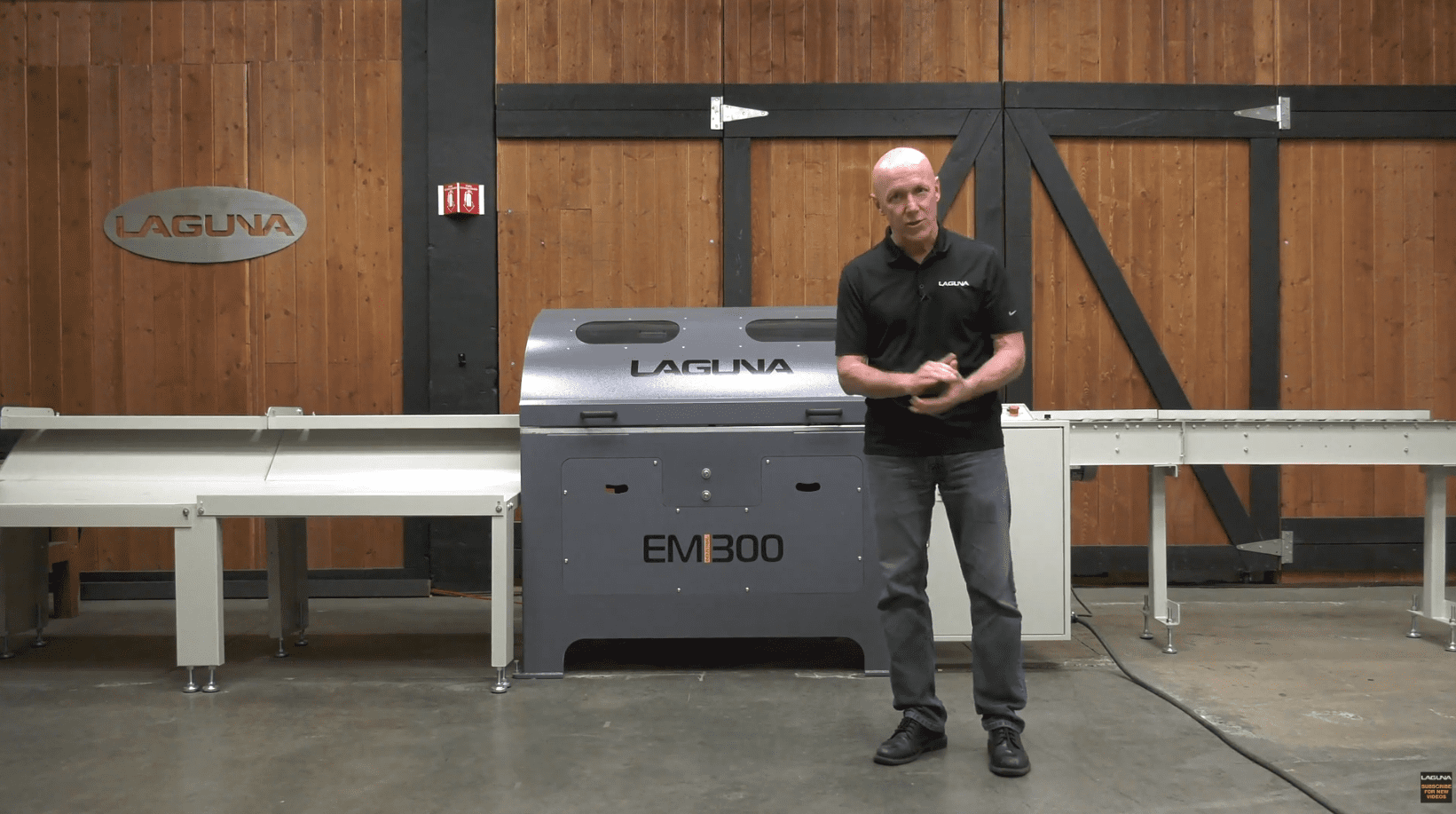

Laguna Tools End Matcher EM-300
Laguna End Matcher EM-300
$41,900.00
Request a call back

Laguna End Matcher EM-300

Laguna End Matcher EM-300

$41,900.00

Categories , , Tags , Brands ,

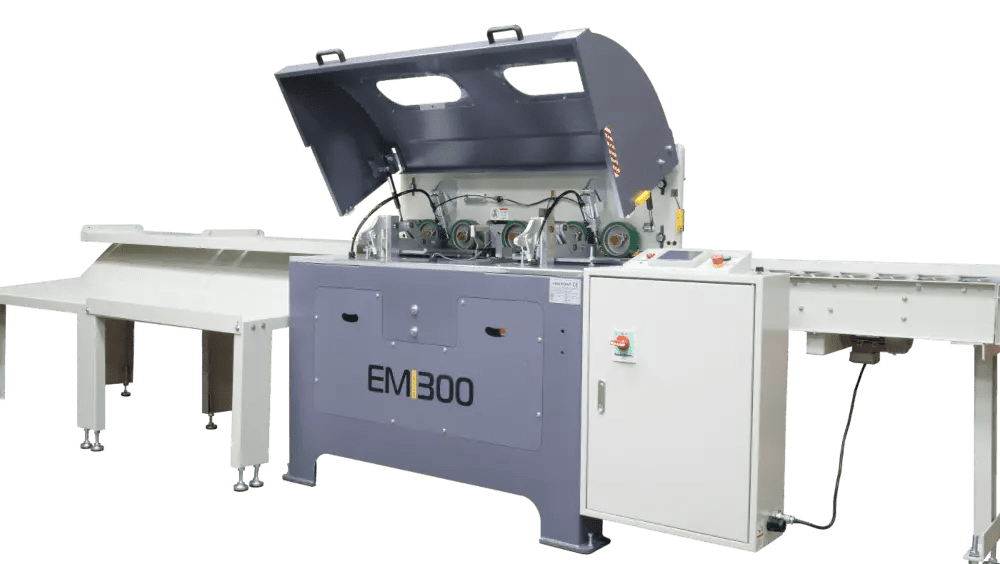

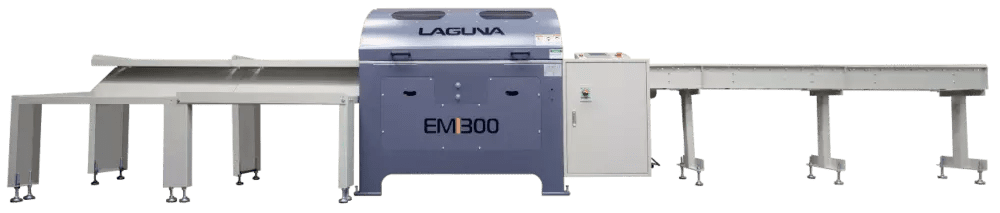

Laguna’s new through-feed end matcher is the perfect solution to produce end matched tongue and groove joints for hardwood flooring and paneling.
The EM is equipped with a continuous feed conveyor that handles any random length (min 11″) and utilizes 2 powerful 10HP motors to cut tongue and groove simultaneously.
PLC control touch screen can keep track of total linear feet cut as well as piece count.
Features:
  • Min/Max Width: 1-1/2″ / 12″
  • Min/Max Thickness: 1/4″ / 1″
  • Min Board Length: 11″
  • Max Board Length: Unlimited
  • Max Board Weight: 35 lbs
  • Cutterhead Spindle Motors: 10HP x 2
Add to Quote Request

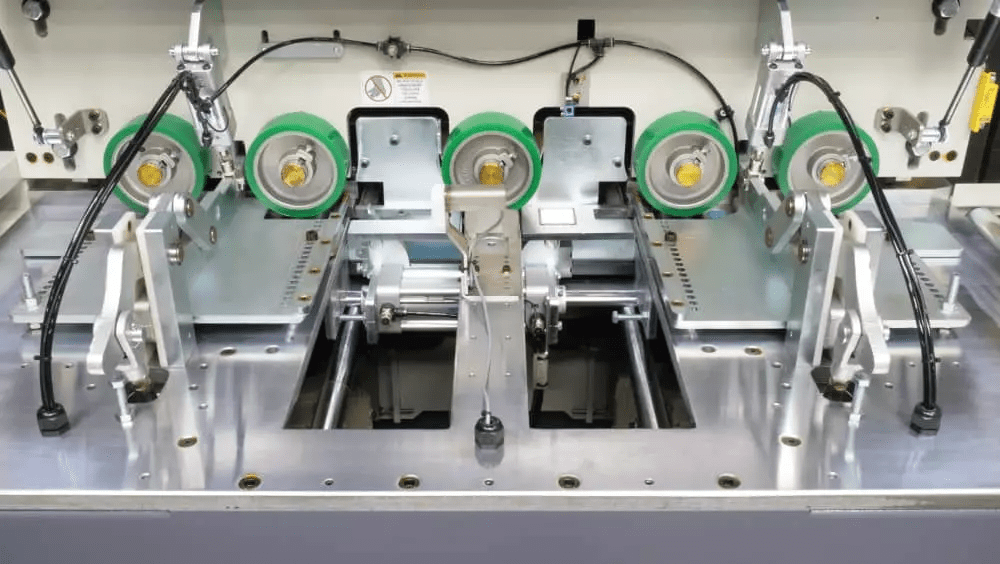

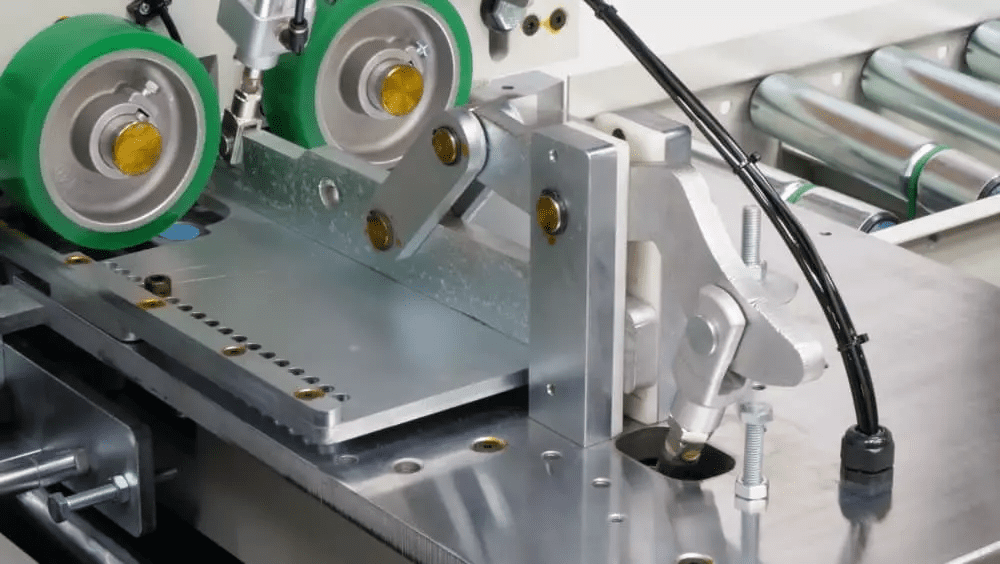

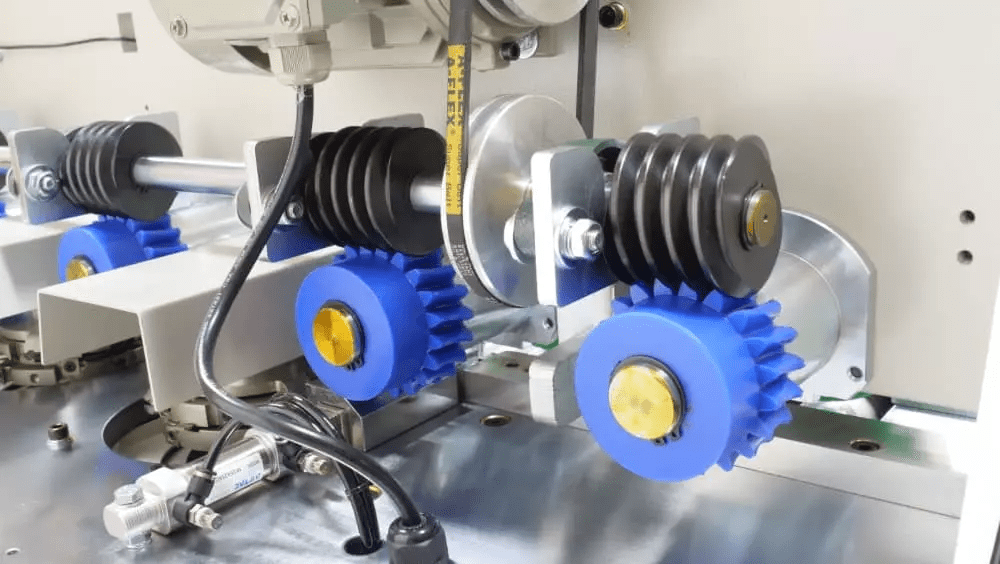

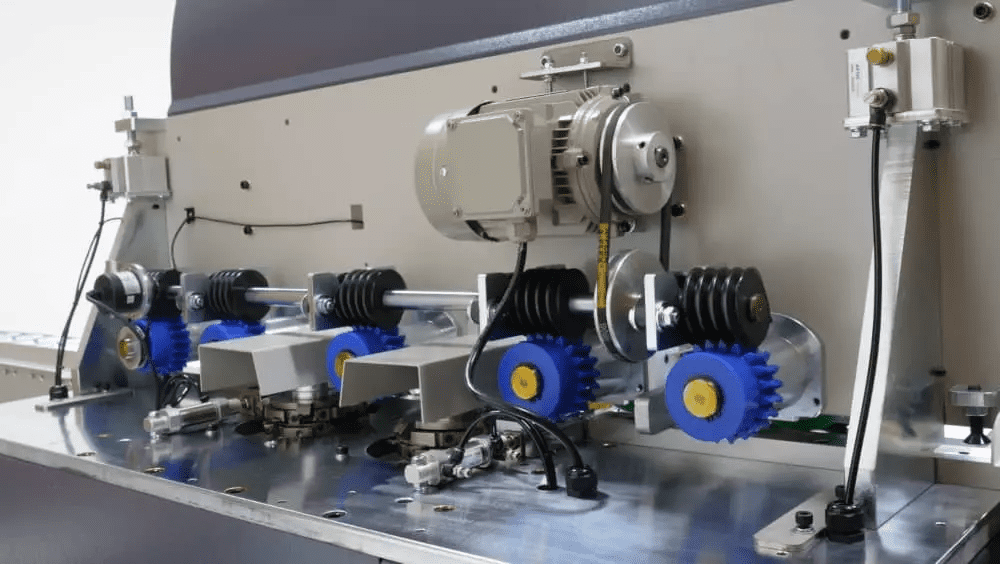

Feeding Pressure Roller Motor: 1HP w/1HP Inverter

Infeed Conveyor Table Motor: Variable Feed 1 HP Inverter

Cutterhead Feeding Motor (Forward & Backward): ½ HP w/1HP Inverter

Cutterhead Spindle Diameter: 40mm

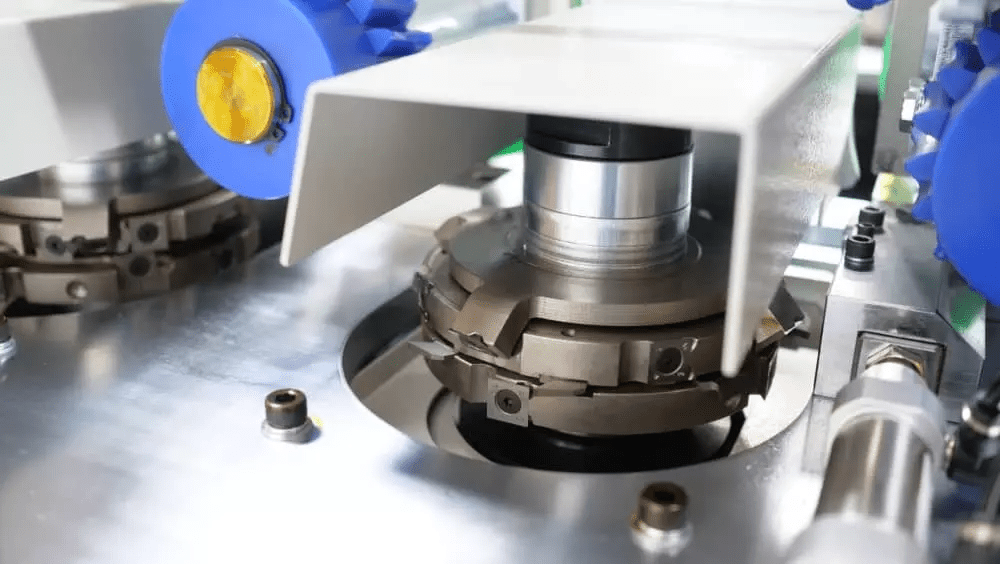

Cutterhead Type: TCT Disposable Inserts

Cutterhead Travel System: Mechanical Actuator

Variable Feed Speed: 0-295′

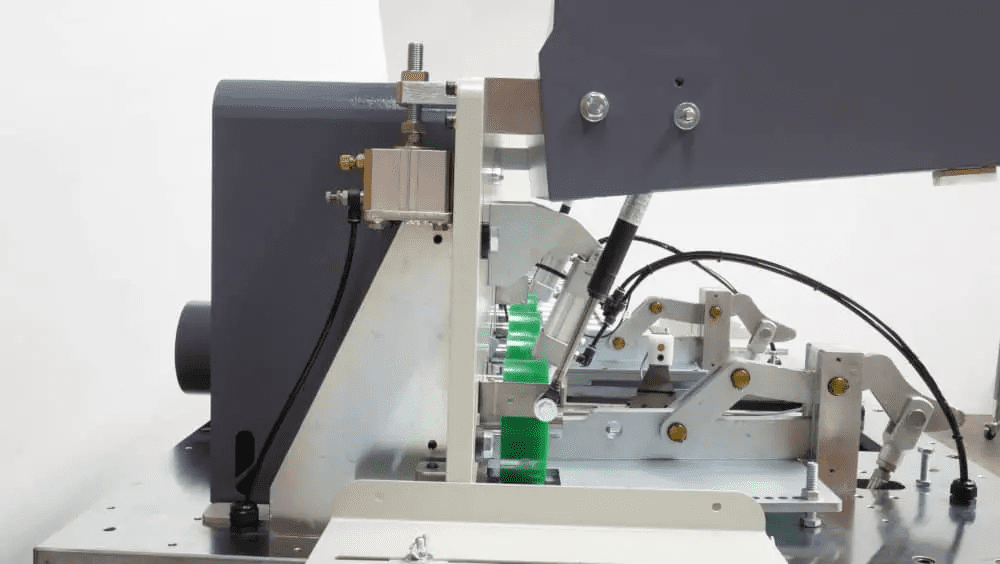

Clamping: Clamps On Top And Side

Controls: Manual or Automatic

Cutterhead Speed: 7000 RPM

Weight: 2420 lbs

CSA Standard
