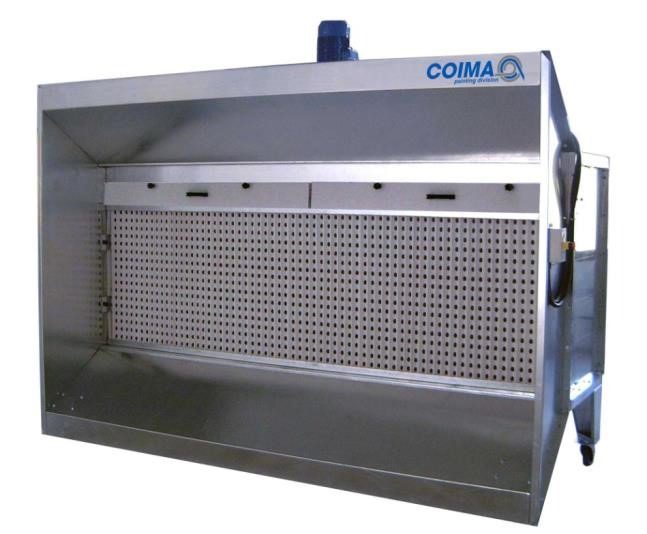

The CVS-C Portable Dry Spray Paint Booth is suitable for the extraction and capture of pigments and fumes emitted from paint spray made with synthetic solvents, organic compounds or water. The fumes and particles are extracted through a primary layer wall of cardboard inertial filters and a secondary layer with “Paint-Stop” filter drawers.
The CVS-C Portable Booth is constructed of press-bent galvanized steel panels on a sturdy steel frame and mounted on heavy-duty casters. This unit is ideal for workshops where large workpieces are finished which cannot fit into a standard booth or enclosure. The CVS-C Booth can be wheeled into place where needed, providing better capture of overspray and fumes. CVS-C booths are an economical alternative to a larger booth, and require less infrastructure to install. This unit is great for maintenance facilities where spot or touch-up work on vehicles and equipment that are too large for enclosures or painting rooms.
Standard Equipment:
Optional Equipment:
| MODEL | AIRFLOW | FAN MOTOR | WORKING BOOTH FACE | OVERALL WIDTH | OVERALL HEIGHT | EXHAUST DUCT |
|---|---|---|---|---|---|---|
| CVS-C-1.5 | 1,800 CFM | 1 HP | 59″ | 63″ | 94″ | ø12″ |
| CVS-C-2 | 3,000 CFM | 1.5 HP | 79″ | 83″ | 98″ | ø12″ |
| CVS-C-2.5 | 4,700 CFM | 2 HP | 98″ | 102″ | 98″ | ø14″ |
| CVS-C-3 | 6,500 CFM | 3 HP | 118″ | 122″ | 102″ | ø14″ |
