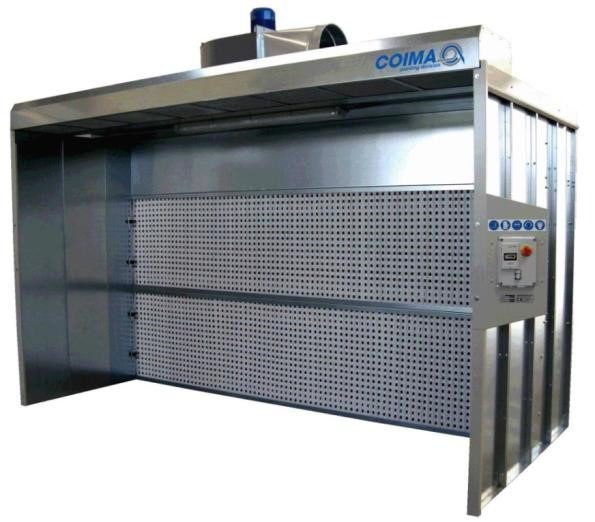

COIMA USA CVS-A

The CVS-A Dry Spray Paint Booth is suitable for the extraction and capture of pigments and fumes emitted from paint spray made with synthetic solvents, organic compounds or water. The fumes and particles are extracted through a primary layer wall of cardboard inertial filters and a secondary layer with “Paint-Stop” filter drawers.

The CVS-A Painting Booth is constructed of press-bent galvanized steel modular panels, which can be added to the base filtration bank to create the ideal size of enclosure best suited to your needs.  Offering a 93″ interior clearance and 59″ standard depth, this booth has a large area for workpieces and painting operations.  With extra modules providing additional depth in 20″ increments, you can choose the right size capture booth for your workshop.

Standard Equipment:

• Anti-Spark Centrifugal Fan
• Energy Efficient Fan Motor (IE2)
• Emergency Stop Button
• Primary Inertial Cardboard Filters (H900)
• Metallic Drawers with “Paint-Stop” Filters

Options:

• Booth Extension Module (20″ Depth)
• Return Air Curtain Module (20″ Depth)
• Activate Carbon VOC Filter
