Features & Benefits:
- Galvanized Steel: Durable and long-lasting.
- Self-Powered: Integrated suction fan for consistent velocity.
- Aluminized Polyester Filters: Maximized suction and extended filter life.
- Easy Dust Disposal: Removable steel drawers for dust collection.
- Optional Features: Timer, side walls, rear suction wall, and more.
Ideal for Sanding and Finishing

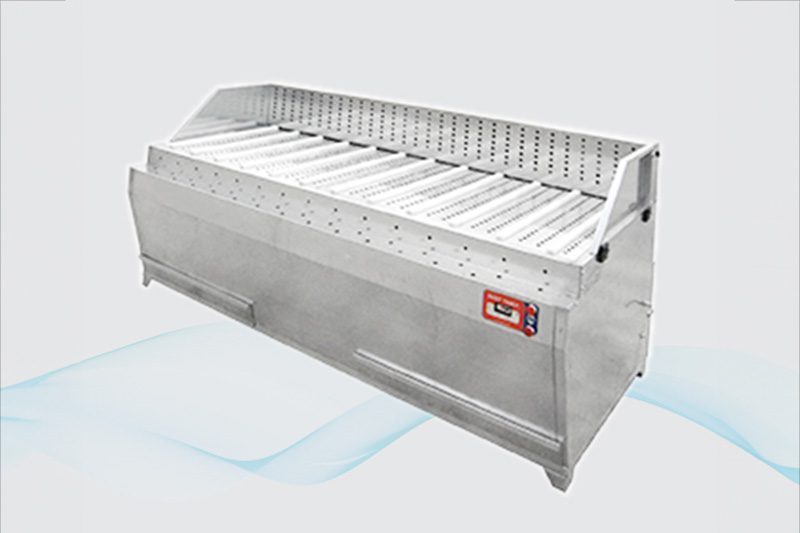

The Coima BAP Series Downdraft Table is the perfect companion for sanding and finishing operations, especially woodworking. Its design ensures that all dust and particles are efficiently extracted, leaving behind a clean and safe workspace.
Robust Construction
The BAP Series is constructed from galvanized sheet steel and offers a durable base with a 35″ deep work surface. Optional scratch-resistant felt strips can be added to protect workpieces, ensuring they remain pristine.
Advanced Filtration System
Equipped with aluminized polyester filter cartridges, the BAP Series ensures maximum suction and extended filter life. The pulse-jet compressed air cleaning system keeps the filters clean, ensuring optimal performance at all times.
Safety and Efficiency Combined
The F-Series also incorporates an emergency flooding system, making it compatible with spark detection and extinguishment systems – a feature that aligns with NFPA compliance. The high-efficiency backward inclined centrifugal fan, equipped with noise reduction insulation, is strategically placed inside the dust collector housing. This design allows for higher negative pressures compared to other collection systems.
Efficient Dust Management
Dust management is made easy with the BAP Series. Dust is collected in removable steel drawers at the bottom of the table, ensuring easy and hassle-free disposal. This feature ensures that the workspace remains clean and free from dust accumulation.
Customizable Features
The BAP Series has a range of optional features to enhance its functionality. An automatic timer for the cleaning system can be added for convenience. Additionally, side walls and a rear suction wall can be included to enhance the downdraft capabilities. For added safety, a spark-resistant fan configuration is also available.
Models & Specifications:
BAP-E Series
The BAP-E Series provides an affordable solution for applications with light dust and light duty requirements.
| MODEL | WIDTH | FILTERS | FILTER SIZE | FILTER AREA | FAN HP | AIRFLOW |
|---|---|---|---|---|---|---|
| BAP E-2 | 79″ | 2 | Ø13”/ L23” | 210 ft2 | 2HP | 2,300 CFM |
| BAP E-2.5 | 98″ | 2 | Ø13”/ L27” | 246 ft2 | 2HP | 2,600 CFM |
| BAP E-3 | 118″ | 4 | Ø13”/ L39” | 351 ft2 | 2HP | 3,200 CFM |
BAP-M Series
Upgrade your dust control game with the BAP-M Series, the ultimate solution for light to medium dust in medium or heavy-duty applications!
| MODEL | WIDTH | FILTERS | FILTER SIZE | FILTER AREA | FAN HP | AIRFLOW |
|---|---|---|---|---|---|---|
| BAP M-1 | 39″ | 2 | Ø13”/ L15” | 158 ft2 | 1.5HP | 1,700 CFM |
| BAP M-1.5 | 59″ | 2 | Ø13”/ L23” | 210 ft2 | 2HP | 2,300 CFM |
| BAP M-2 | 79″ | 4 | Ø13”/ L23” | 421 ft2 | 2HP | 2,550 CFM |
| BAP M-2.5 | 98″ | 4 | Ø13”/ L27” | 492 ft2 | 3HP | 3,300 CFM |
| BAP M-3 | 118″ | 4 | Ø13”/ L39” | 702 ft2 | 3HP | 3,900 CFM |
