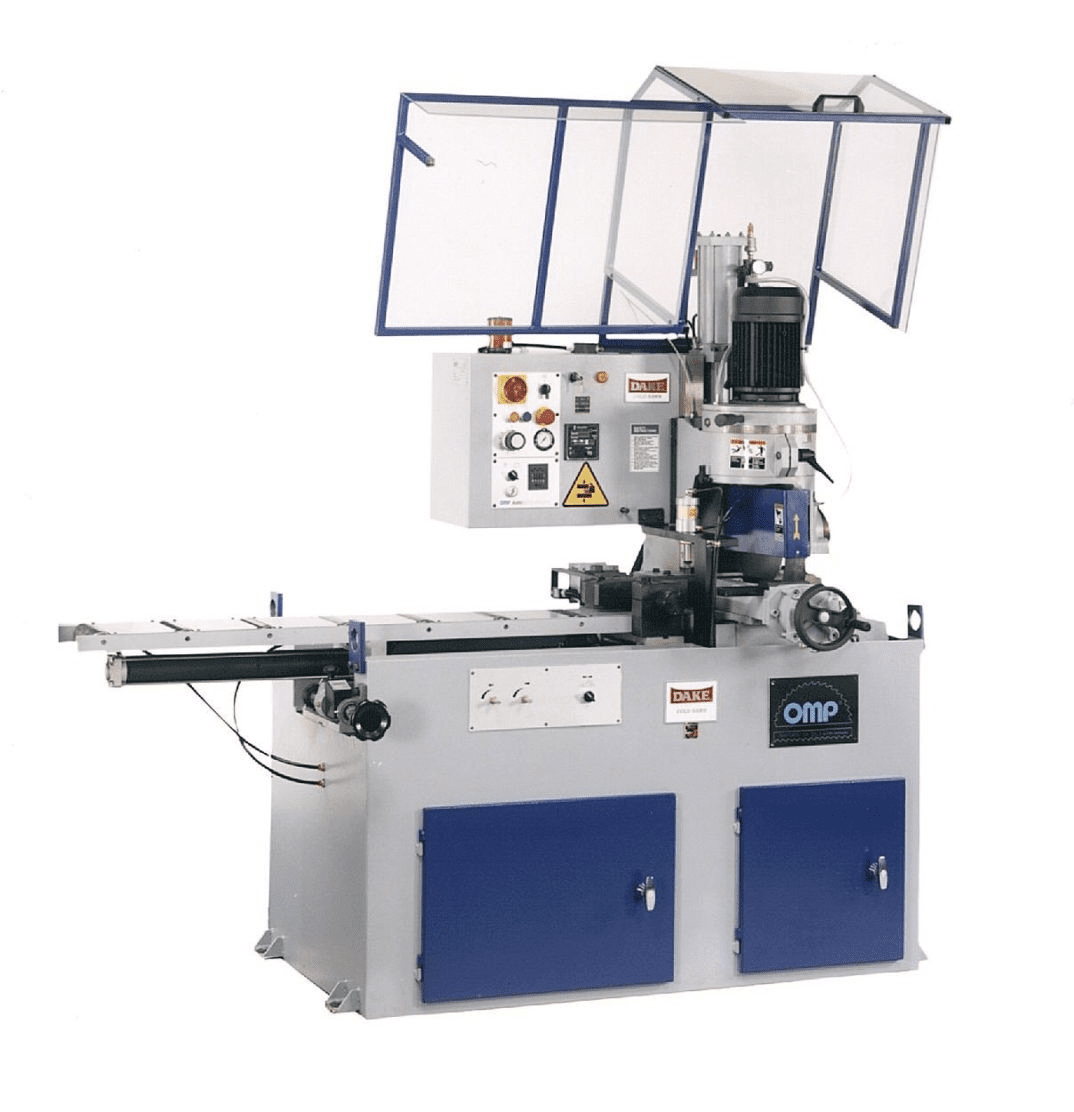

Dake Model 370PP-L 220V Three Phase 14½” Euromatic Automatic Non-Ferrous Cold Saw 976210

Description

The 370PP-L Non-Ferrous Automatic Cold Saw is user-friendly while offering aggressive precision and stamina. Featuring two removable surface wear plates and a head that rotates 45° right of center.

Features

• Head rotates 45° right of center for miter cutting
• Table features two removable surface wear plates to support longer cut lengths
• Three gib guides for the cutting head with two adjustable cast iron gib blocks in each for increased cutting accuracy and easy adjustment
• Rear surface of the gearbox is machined with interlocking circles to evenly distribute oil over the ways
• Large automatic clamping vise features adjustable gib guides, removable face plates, and an anti-burr arm
• Minimum 6” remnant drop piece size for maximum material use
• Outboard section of the table is designed so shorter lengths tumble down a mesh discharge chute
• Manual oiler to lubricate 1” thick, hardened ways
• 3.5/4.5 HP motor has the muscle to drive a 14½” or 12” blade quickly and quietly through solids
• Clear acrylic hood has shock assists for raising and lowering and electrical interlocks
• Swap cutting head to gain non-ferrous/ferrous option on same saw

Standard Equipment

• Blade
• Coolant
• Saw blade selector calculator
• Tools kit for changing blades
• Instruction and service manual

Specifications

• Cutting Ability: Non-Ferrous/Plastic
• Max Blade Diameter: 14½”
• Max Vise Opening: 8¼”
• Max Feed Vise Opening: 6½”
• Max Angle: 45° Left
• Slotting: No
• Speeds: 1500/3000 rpm
• Work Height: 35”
• Electrical Requirements: 220V Three Phase 3.5HP
• Machine Dims: 83” x 54” x 90”
• Approx Weight: 1,716 lbs

Capacities

• Solid Round
  • 90°: 4”
  • 45°: 3-5/8”
• Tube
  • 90°: 5-1/16”
  • 45°: 5”
• Square
  • 90°: 4”
  • 45°: 3-7/8”
• Rectangle
  • 90°: 4” x 7”
  • 45°: 4” x 6”

Optional Add-Ons

• 440V unit available (please contact a sales rep for more info)
• 440V External Transformer
• 575V Transformer
• Ferrous Cutting Head (300128)
• Non-Ferrous Cutting Head (79917)
• Unloading Table (301645)
