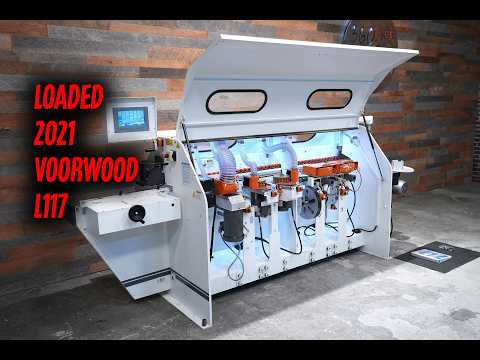

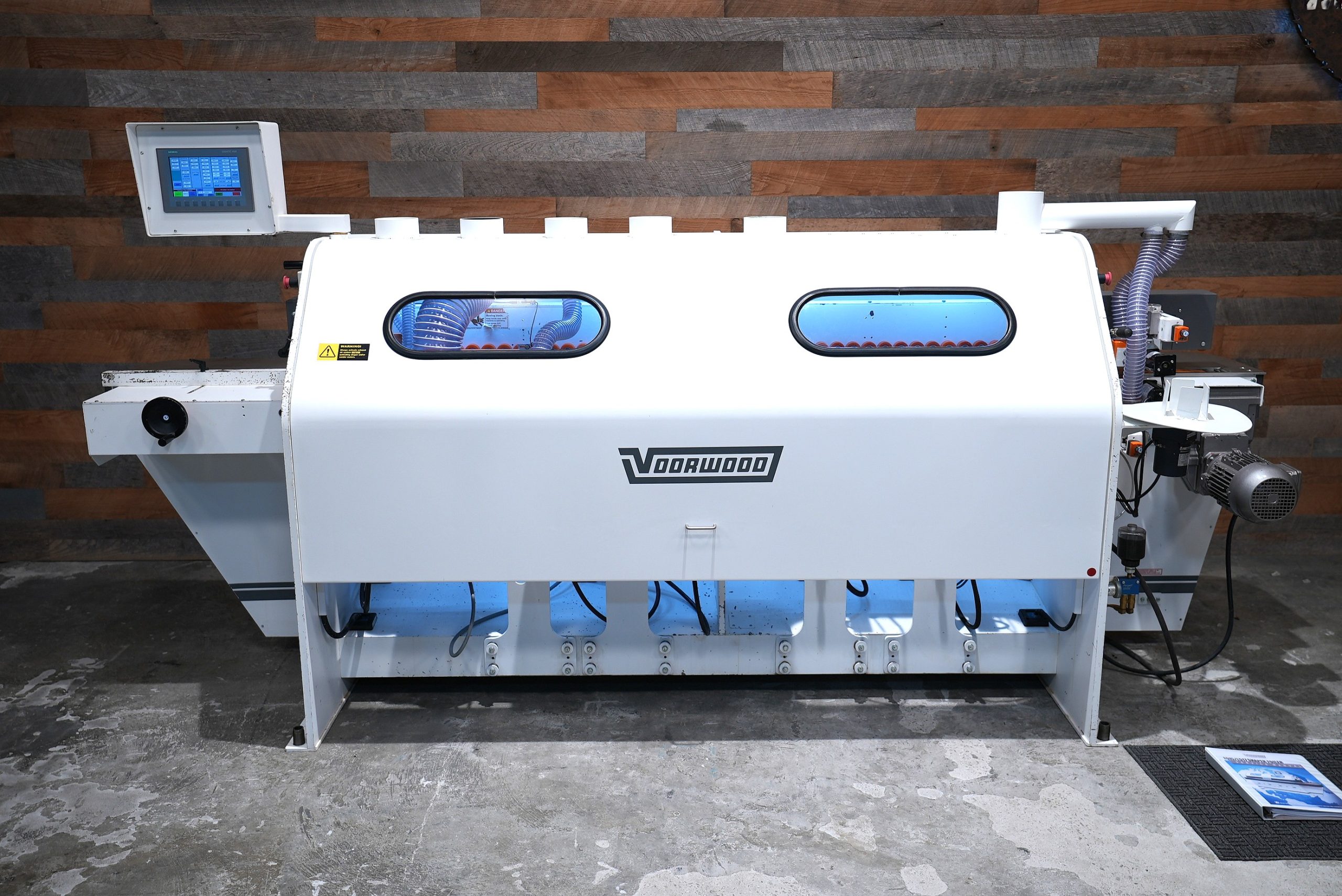

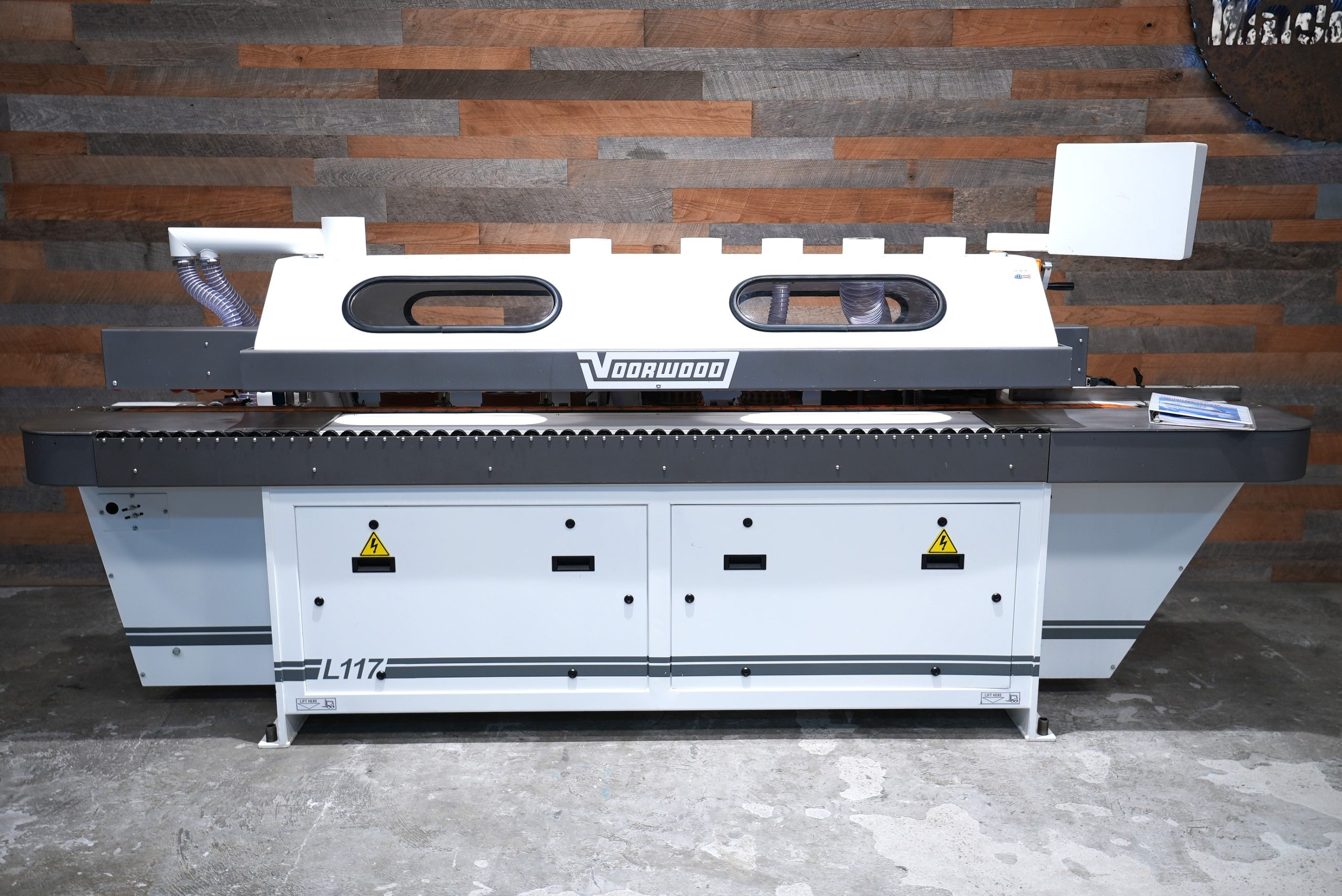

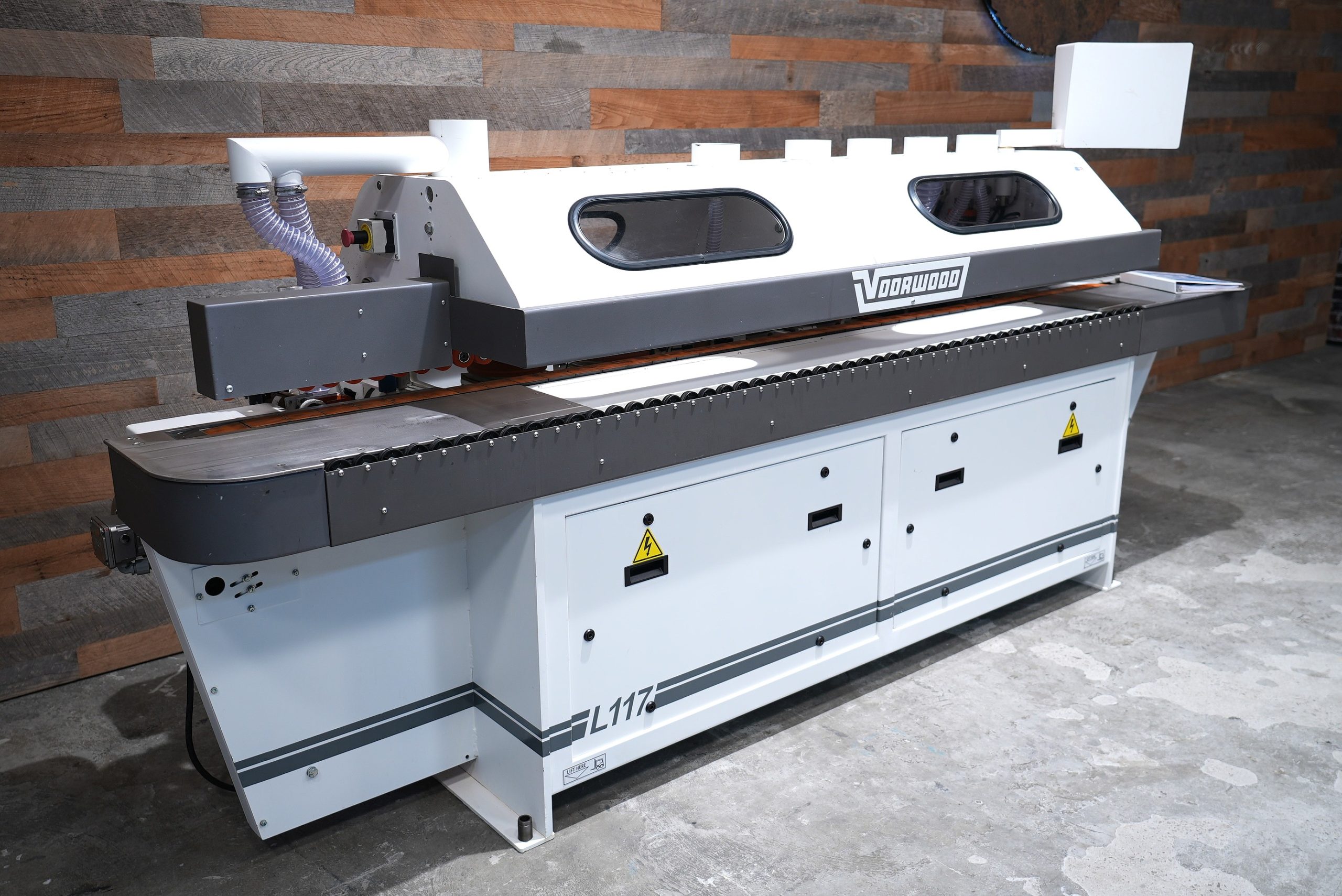

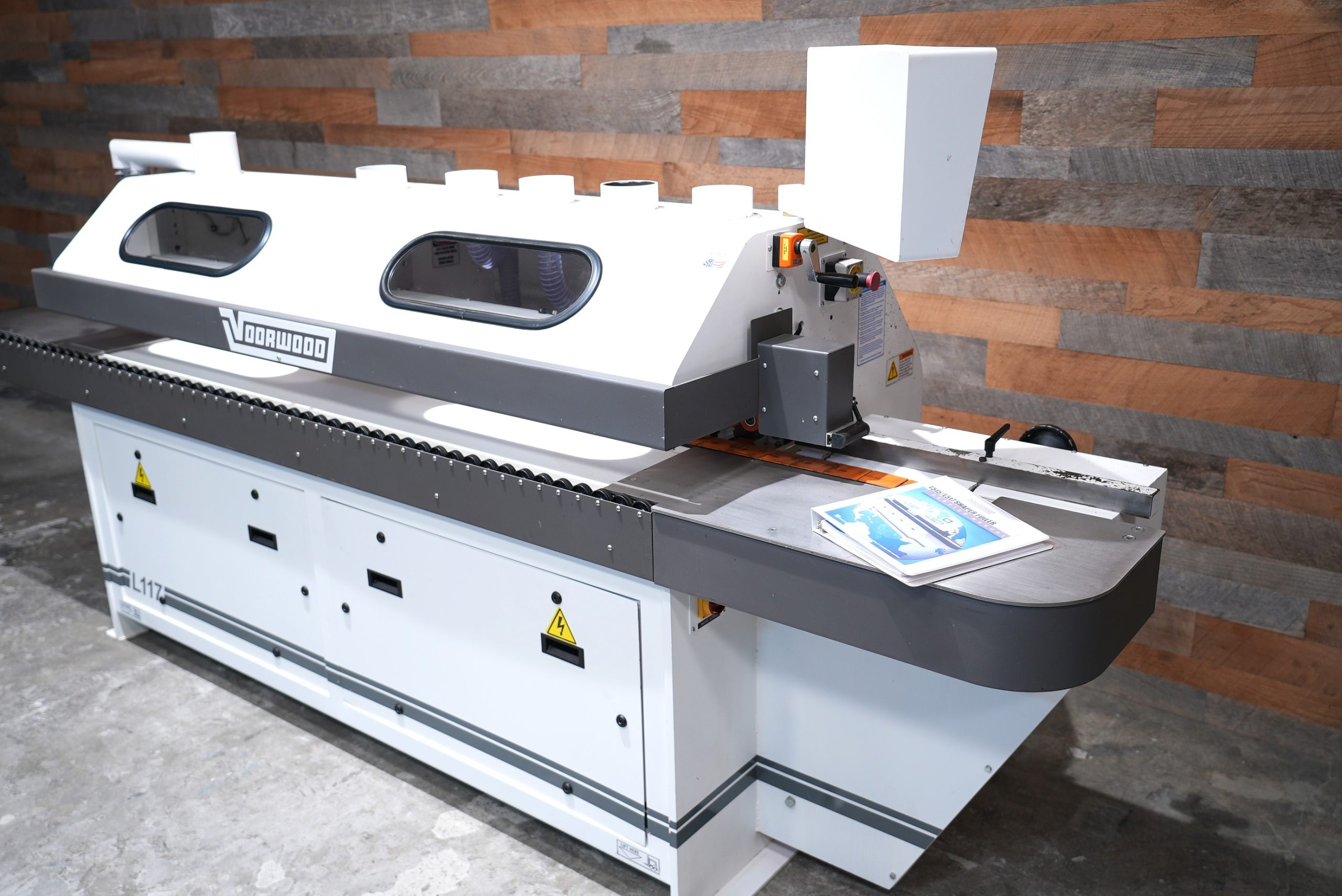

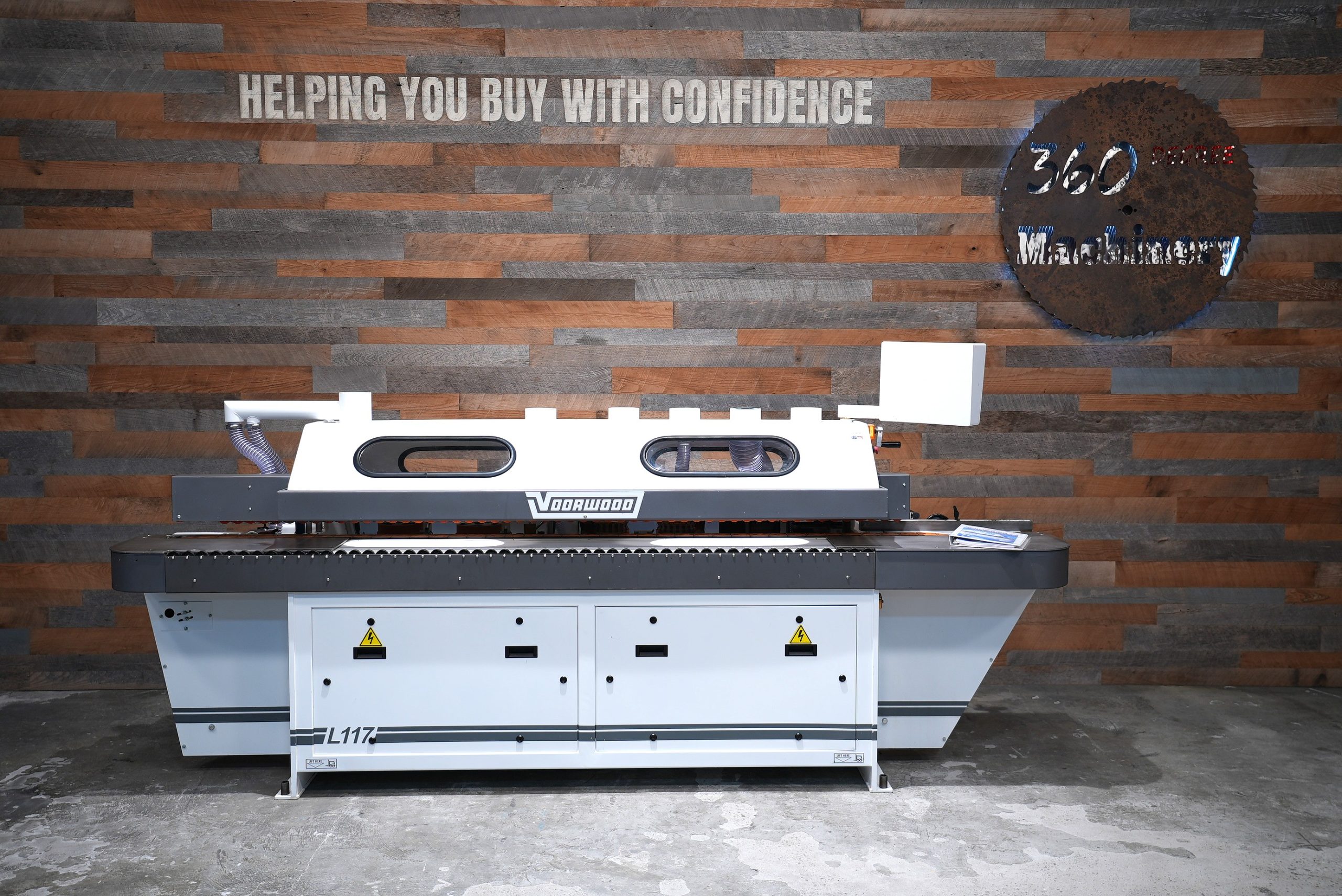

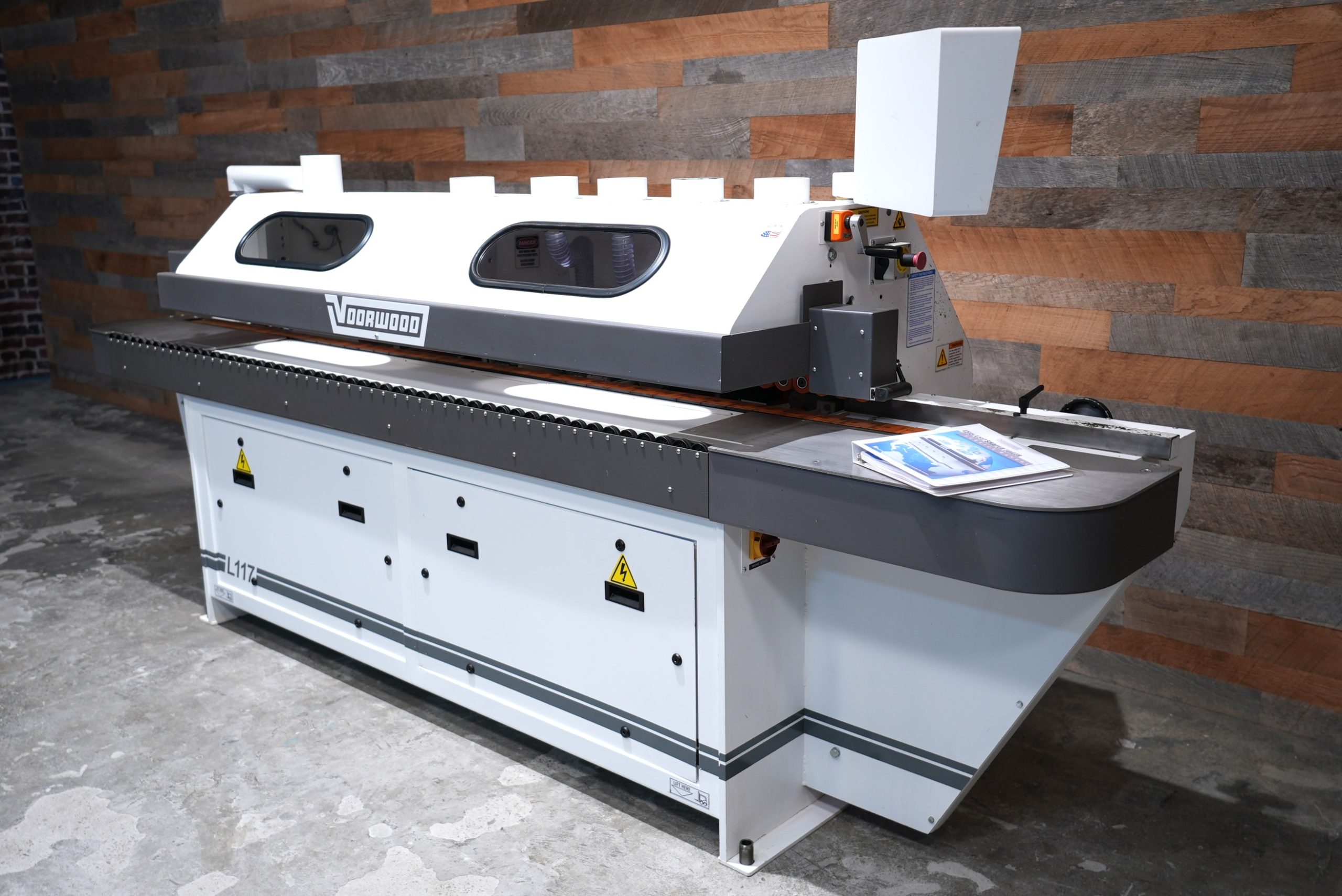

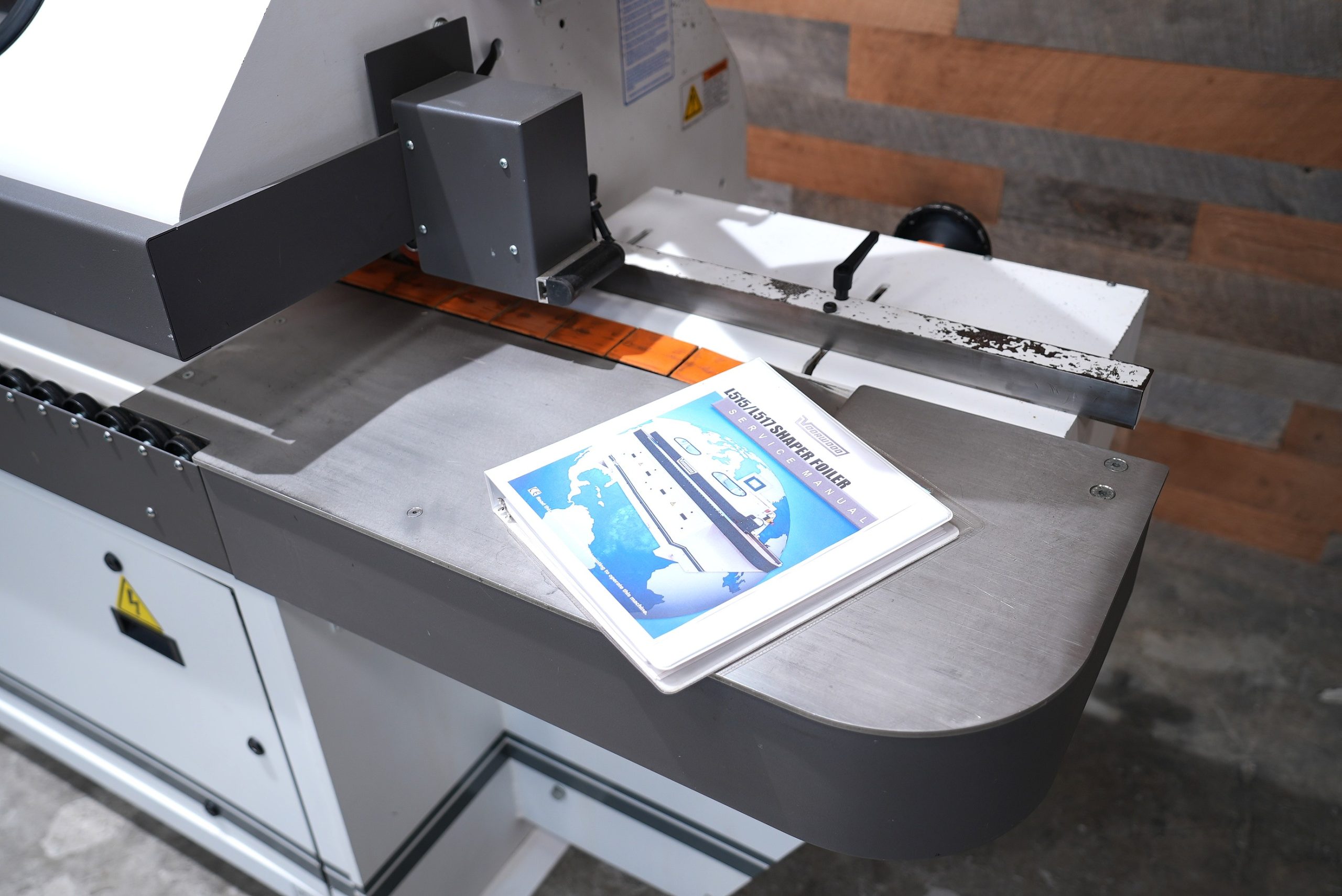

TRANSPORTER:
Motor: 2 hp
Feed Speed: 12 – 60 fpm 4 – 18.3 M per minute
Feed Height: 38 inches 97 cm
SUBSTRATE SIZE:
Minimum Size: 3 inches x 3 inches 76mm x 76mm
plus pattern face width* plus pattern face width
Minimum Thickness: 1/8 inch 3mm
Maximum Thickness: 1 ½ inches 38mm
Maximum Profile Face: 1-3/4 inches 45mm
SCORING STATION (Optional/Included):
Saw Diameter: Two 4” (102mm) saw blades required
Vertical Adjustment:
Top Score: 2.25” (57mm)
Bottom Score: .75” (19mm)
Horizontal Adjustment:
Top Score: .75” (19mm)
Bottom Score: .75” (19mm)
Motor: Two .50 hp motors (.37 kW)
Spindle Speed: 6000 RPM

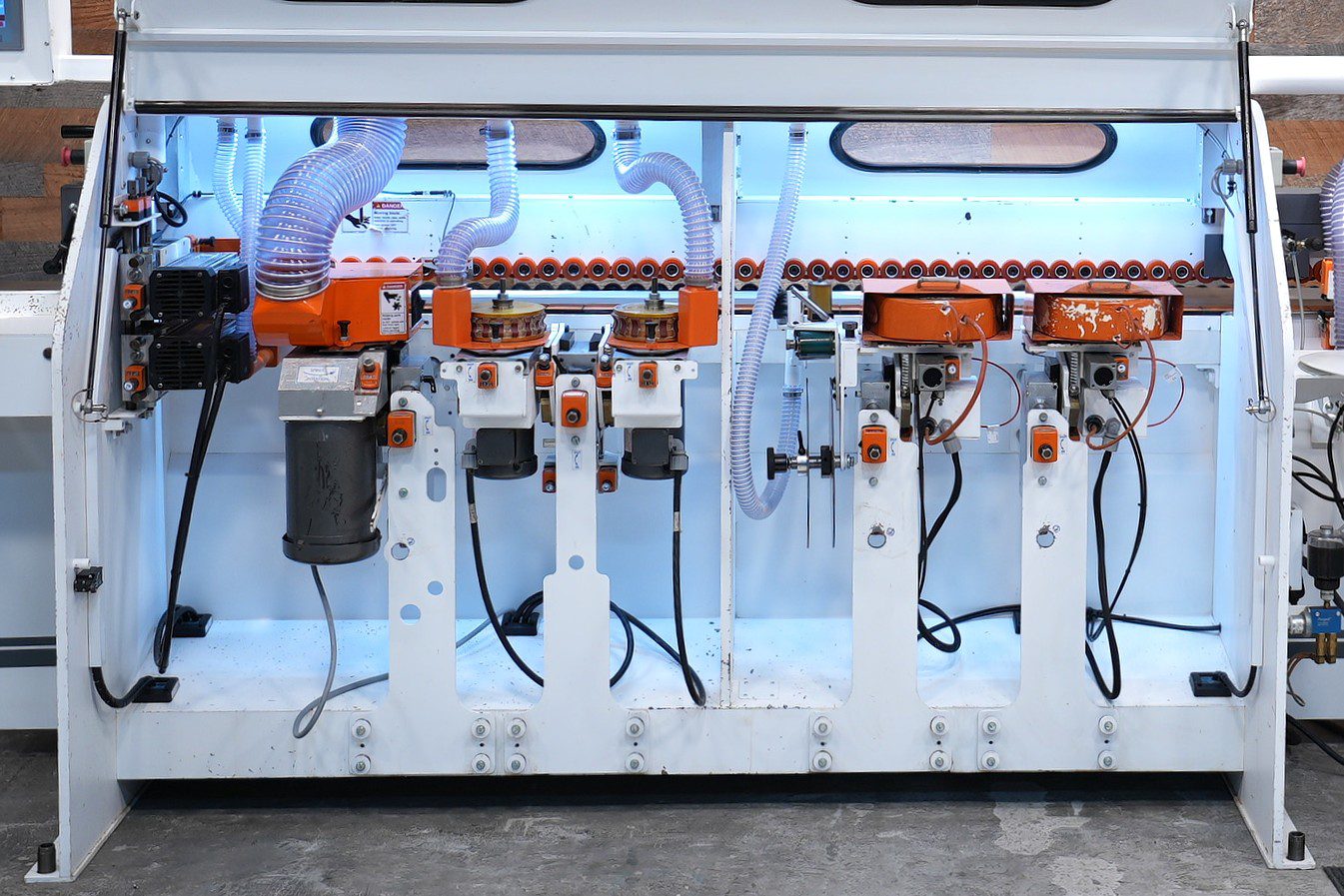

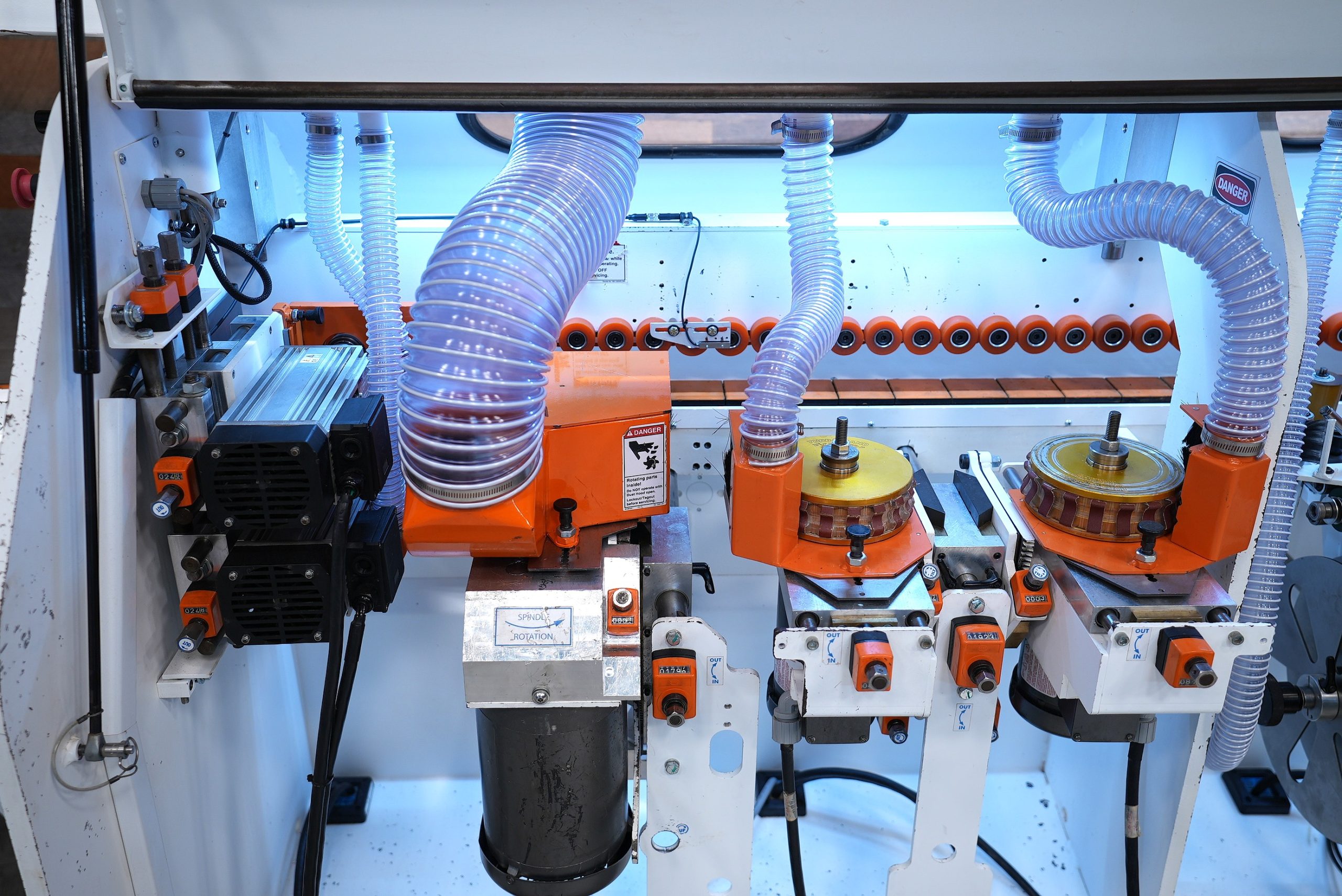

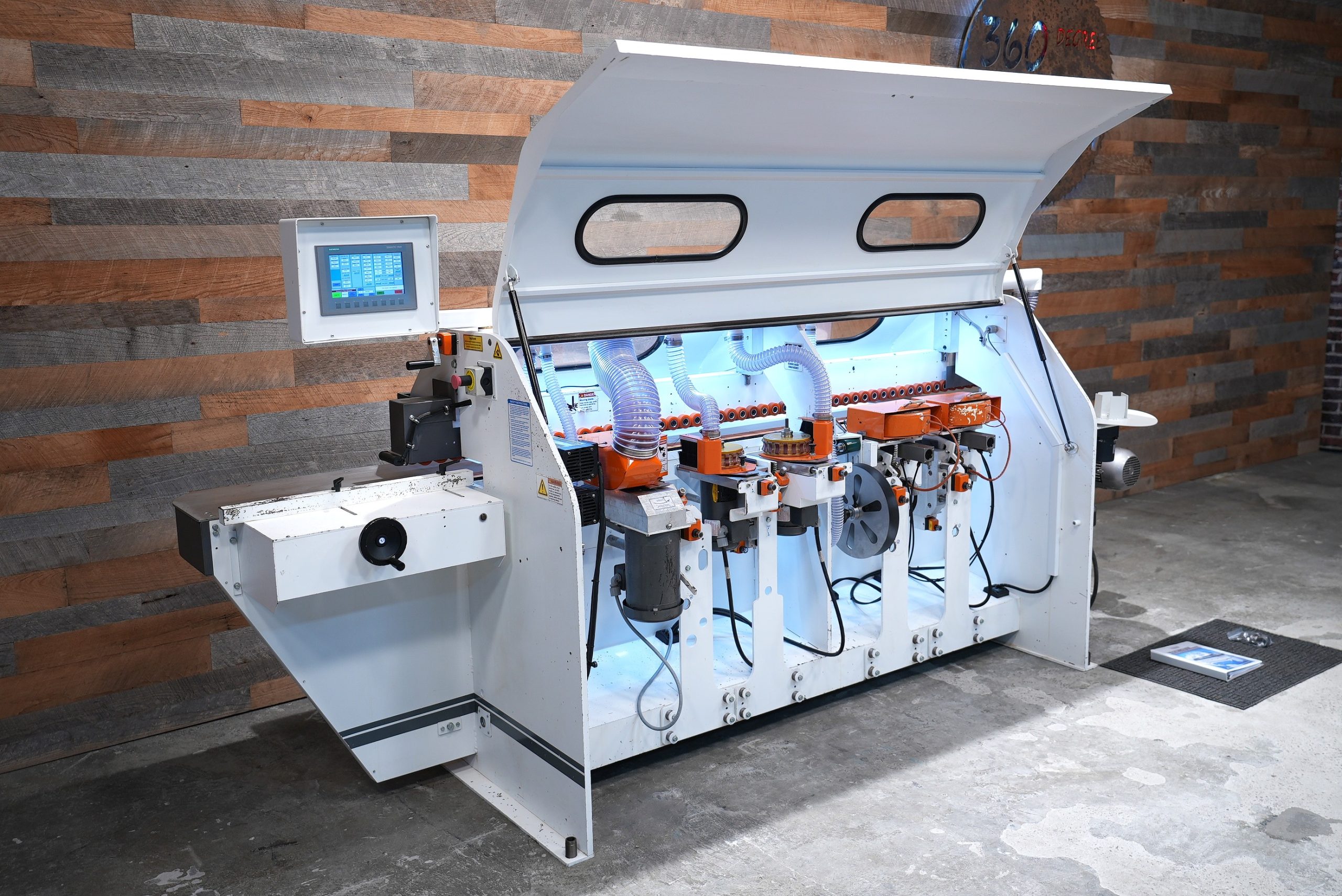

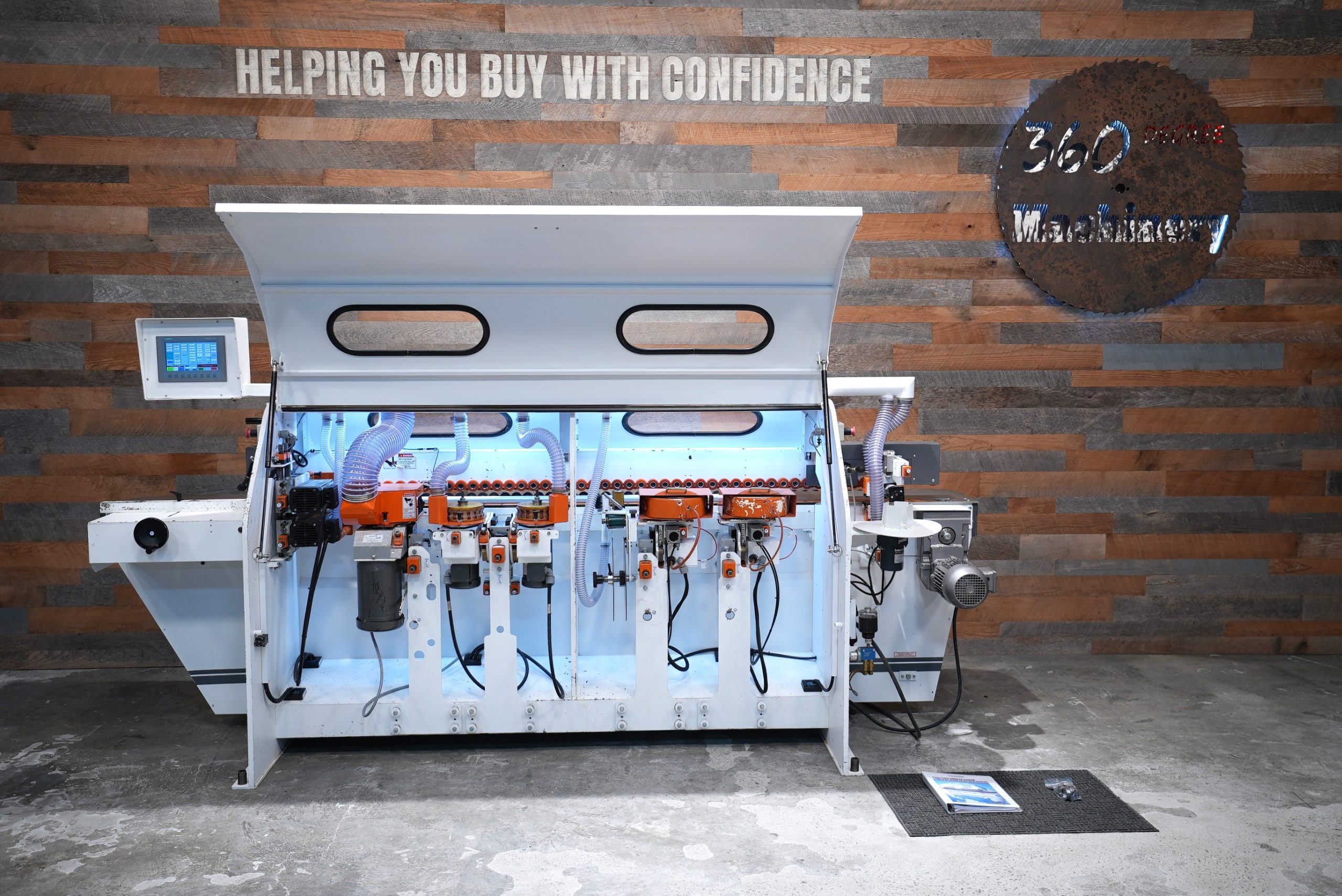

SHAPING STATION:
Spindle Diameter: 1-1/4 inches 31.75mm
Spindle Length: 2-7/8 inches 73mm
Spindle Adjustments:
Tilt: 0-30 degrees
Horizontal: 6 inches 152mm
Vertical: 3 inches 76mm
Motor: 5 hp at 6000 rpm
Cutting Head Capacity:
Maximum Diameter: 6 inches 152mm
SANDING STATION:
Spindle Diameter: .984 inches 25mm
Spindle Length: 3 inches 76mm
Spindle Adjustments –
Tilt: 0-30 degrees
Horizontal: 6 inches 152mm
Vertical: 3 inches 76mm
Motor: .75 hp at 1750 rpm .56 kw

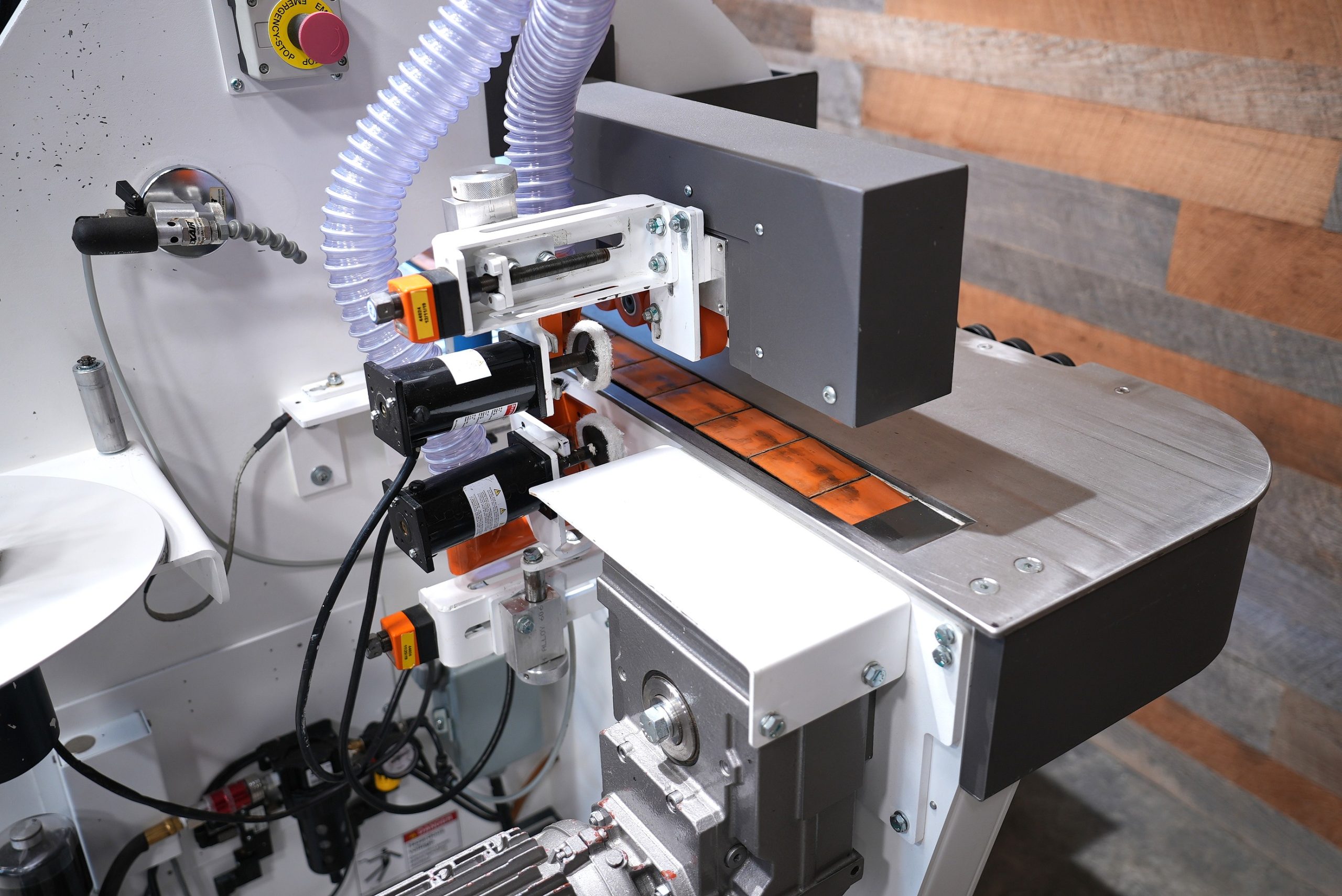

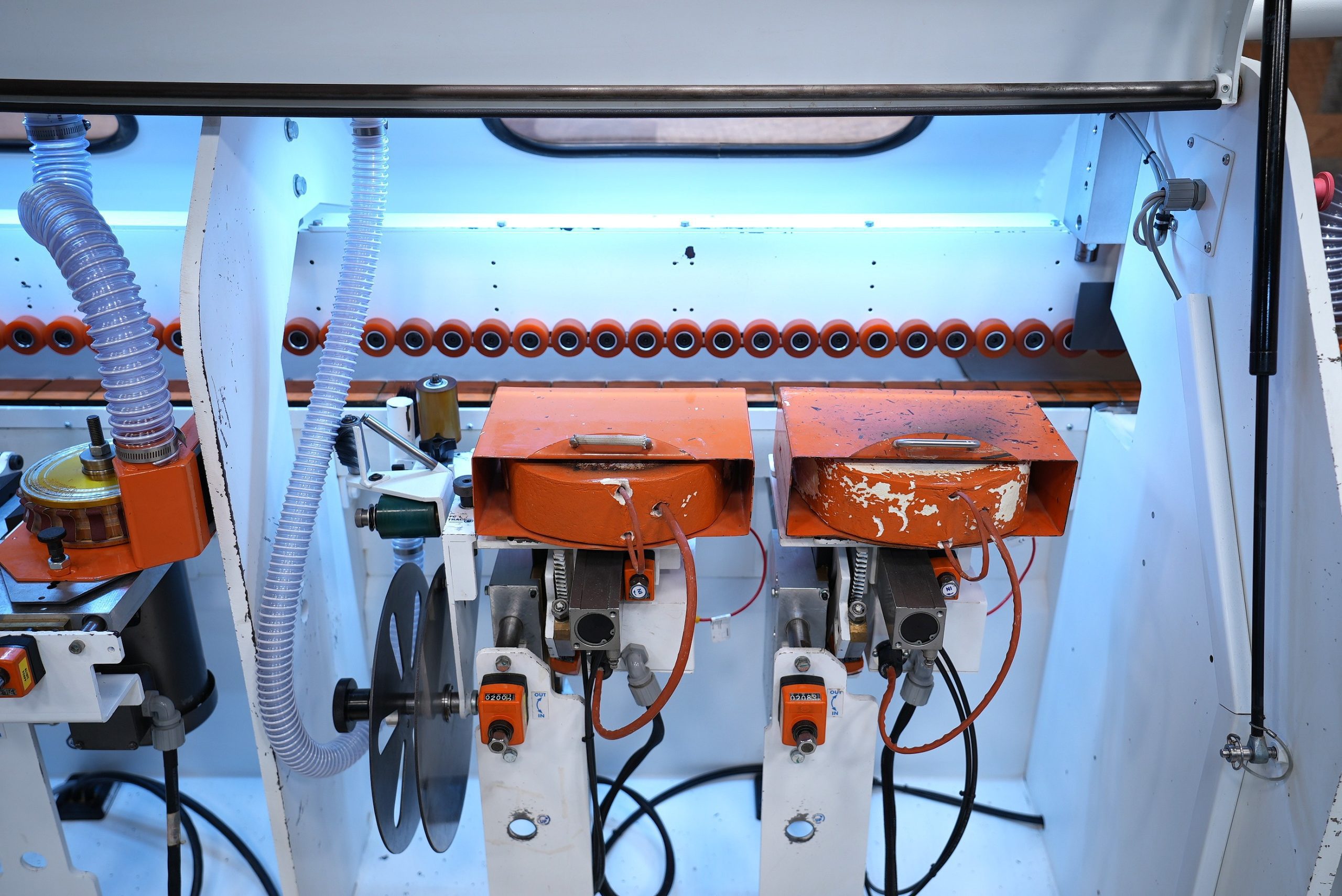

FOILING: (1) Supply Roll:
(a) Maximum diameter: 12-3/4 inches (324mm) (approximately)
(b) Maximum width: 2 inches (50.8mm)
(c) Core diameter: 1 and 3 inches ID (25.4mm and 76.2mm)
(2) Applicator Stations:
(a) Furnished with two foiling stations for domestic or metric foil wheel.
(b) One shaped applicator wheel per spindle required, not included.
(c) Station adjustments: 5-1/2 inches (140mm) in and out
2-1/4 inches (57mm) laterally across face
10 to +52 degree angle from horizontal.
(3) Film Takeup:
Carrier film rewinds with automatic tension control. Stripper rollers for precision
trimming on mitres and edges follow the edge of the part for precision foil trimming.

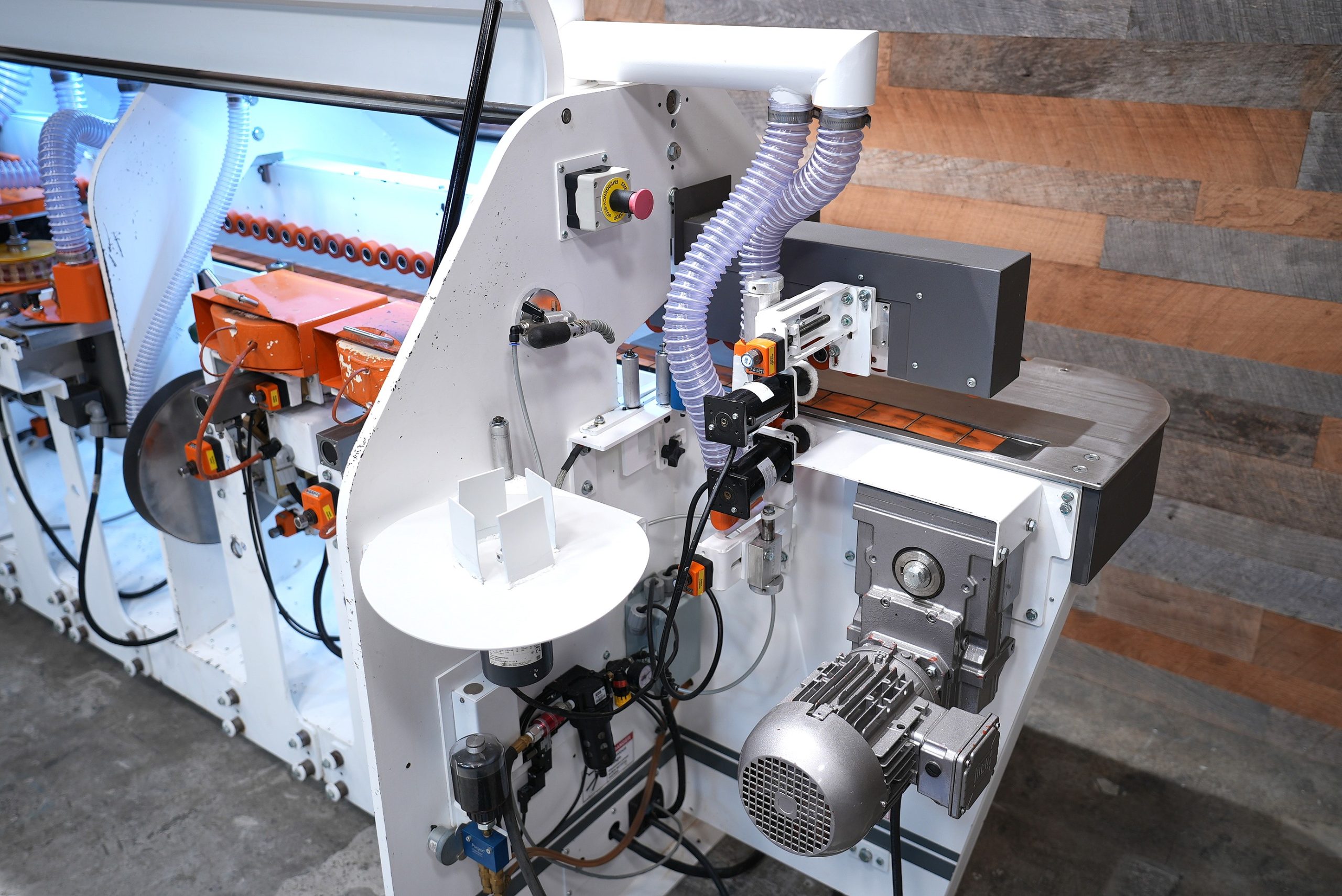

Dual Post Cleaners (optional/included)
Located on the outfeed end of the machine, optional top and bottom post cleaner brush assemblies
(figure 3.5a) remove foil feathering and lightly smooth the top and bottom foil trim line from the profiled
edges as the part exits the machine. The unit adjusts in/out and up/down and is equipped with
a vacuum pickup.

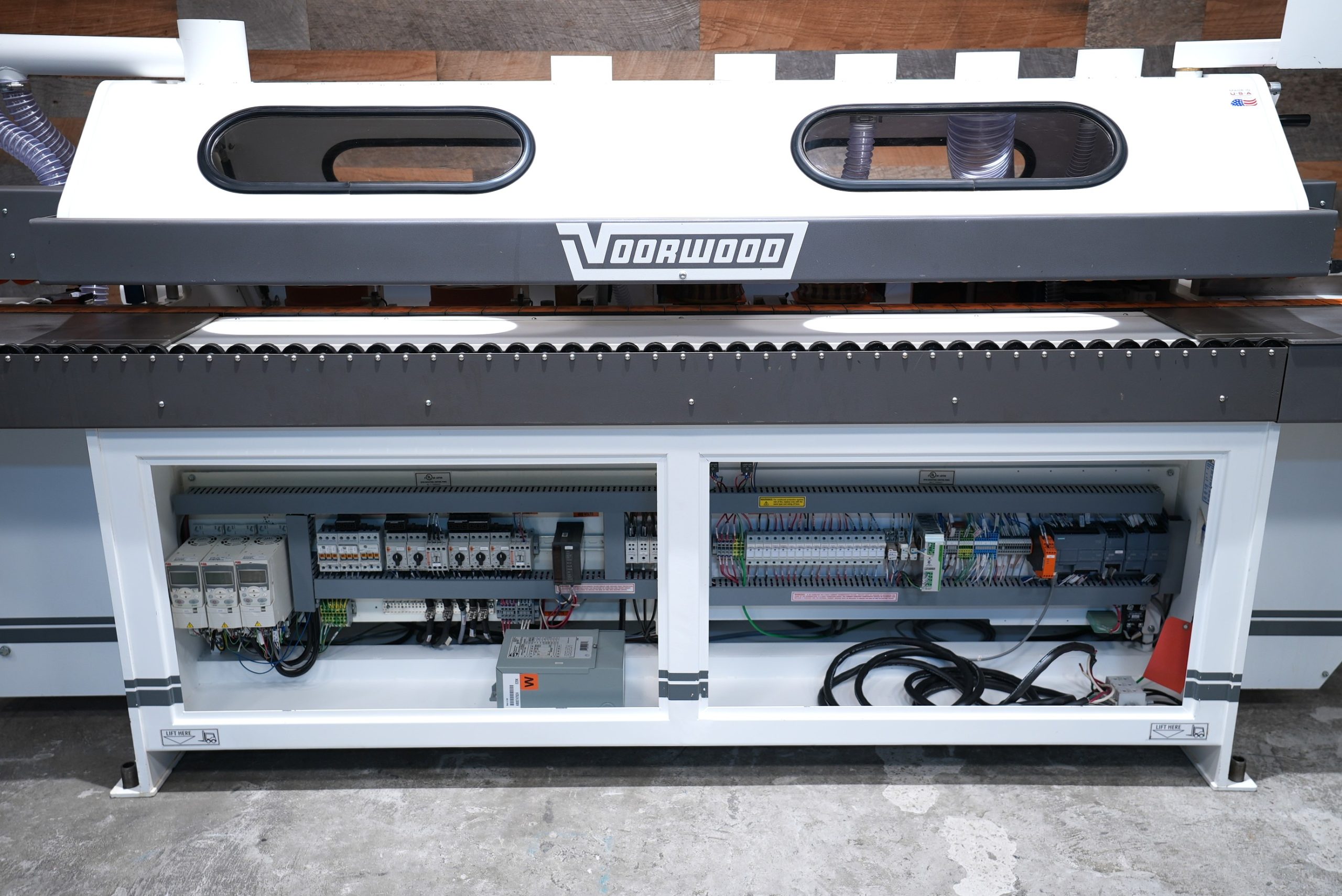

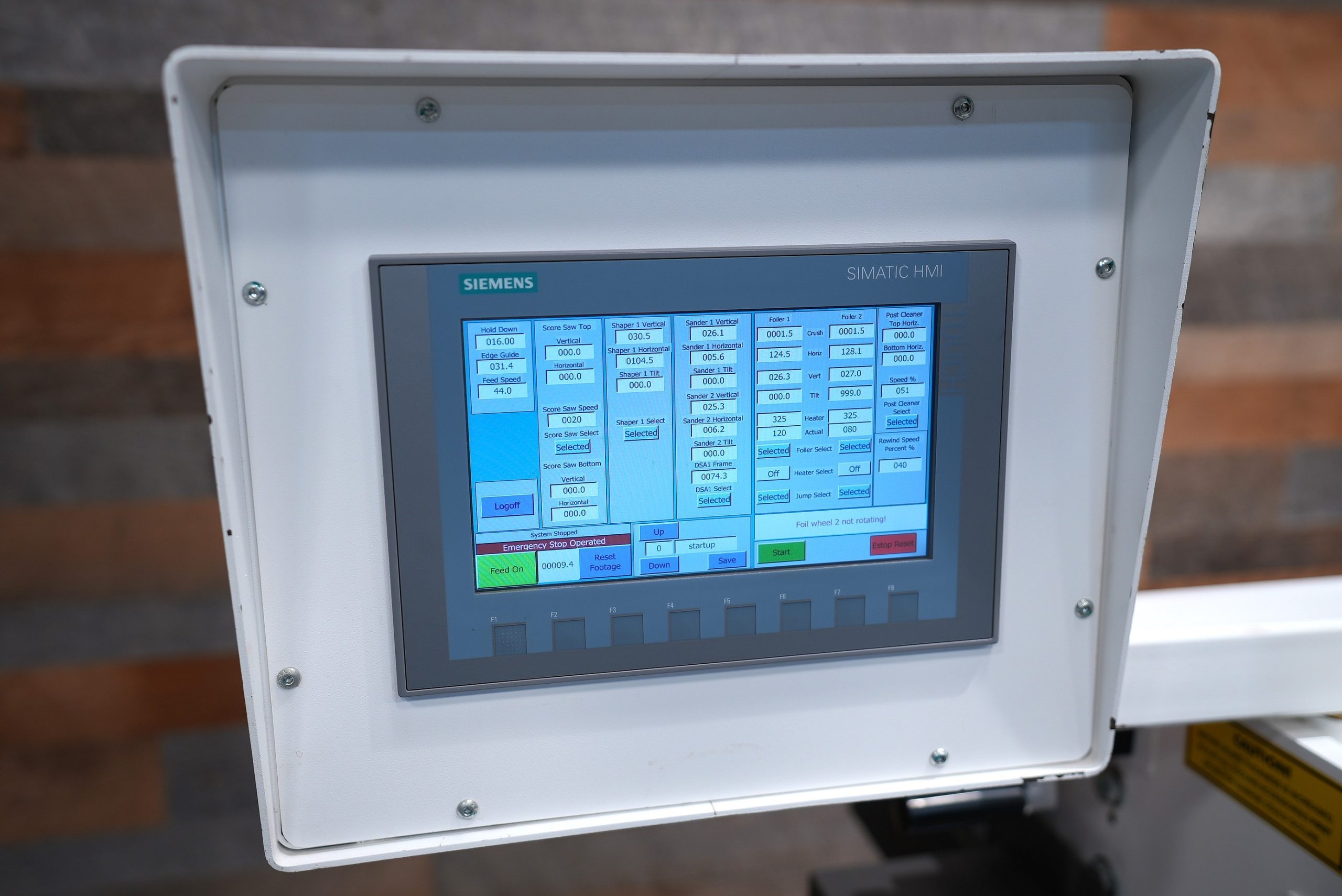

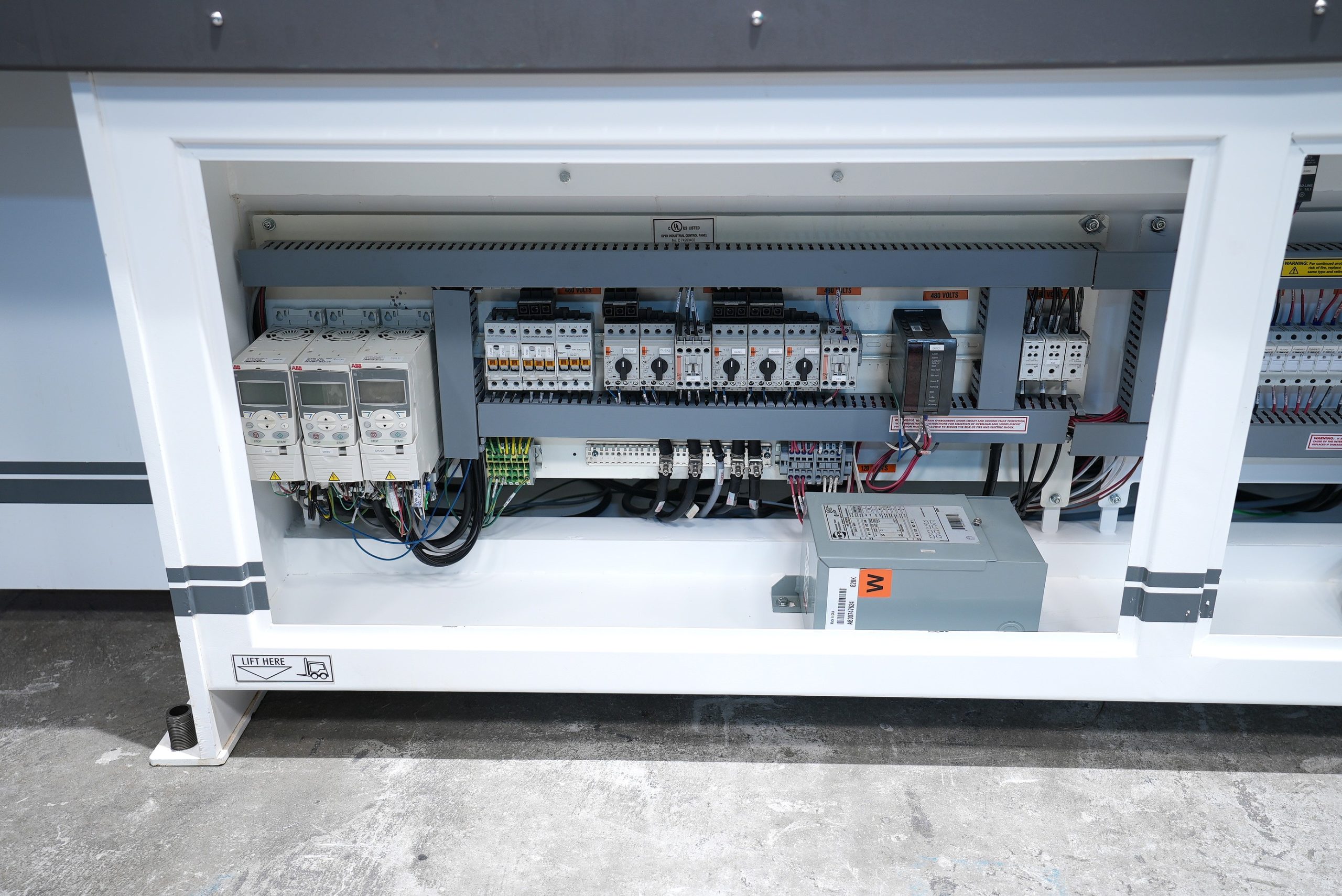

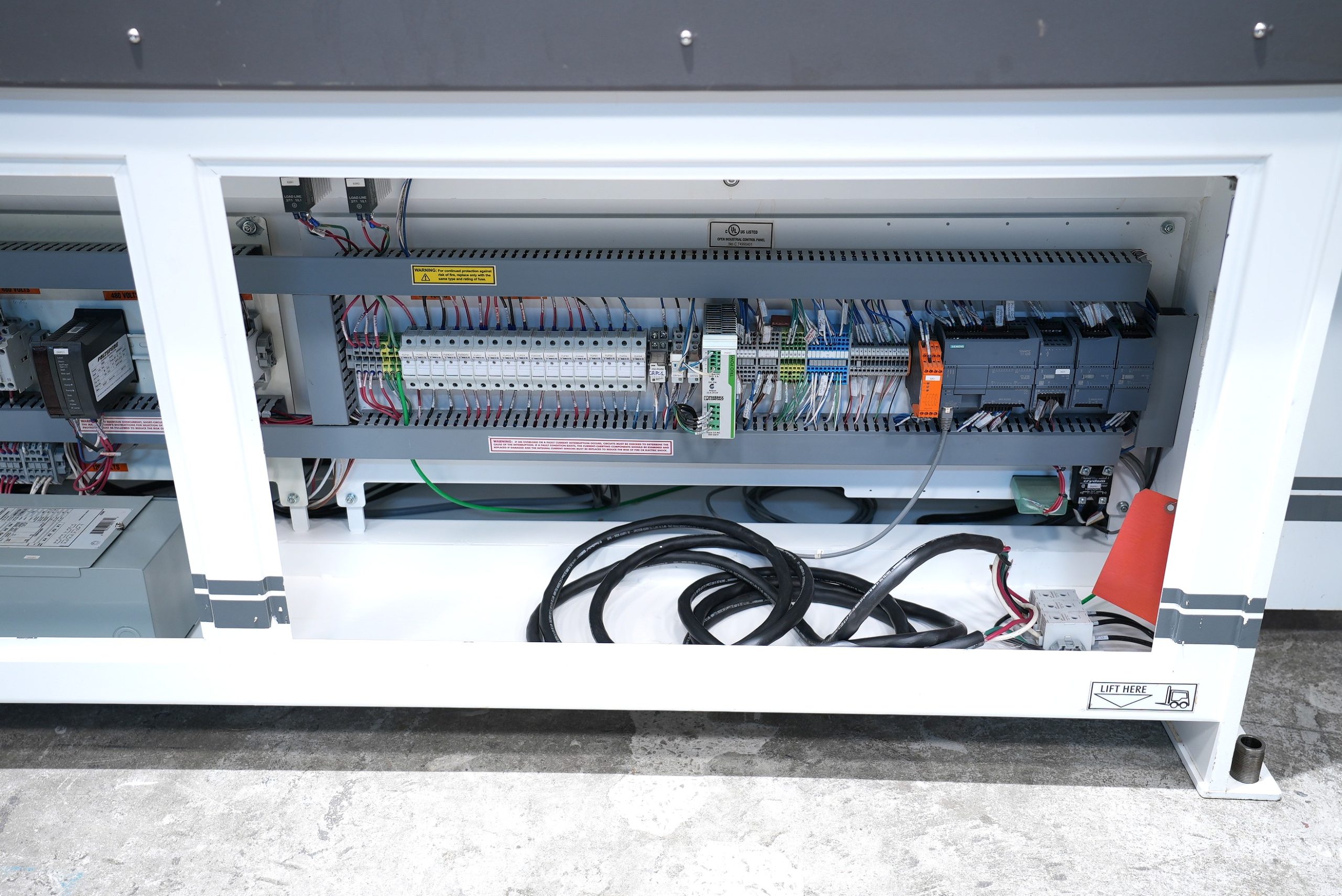

CONTROLS:

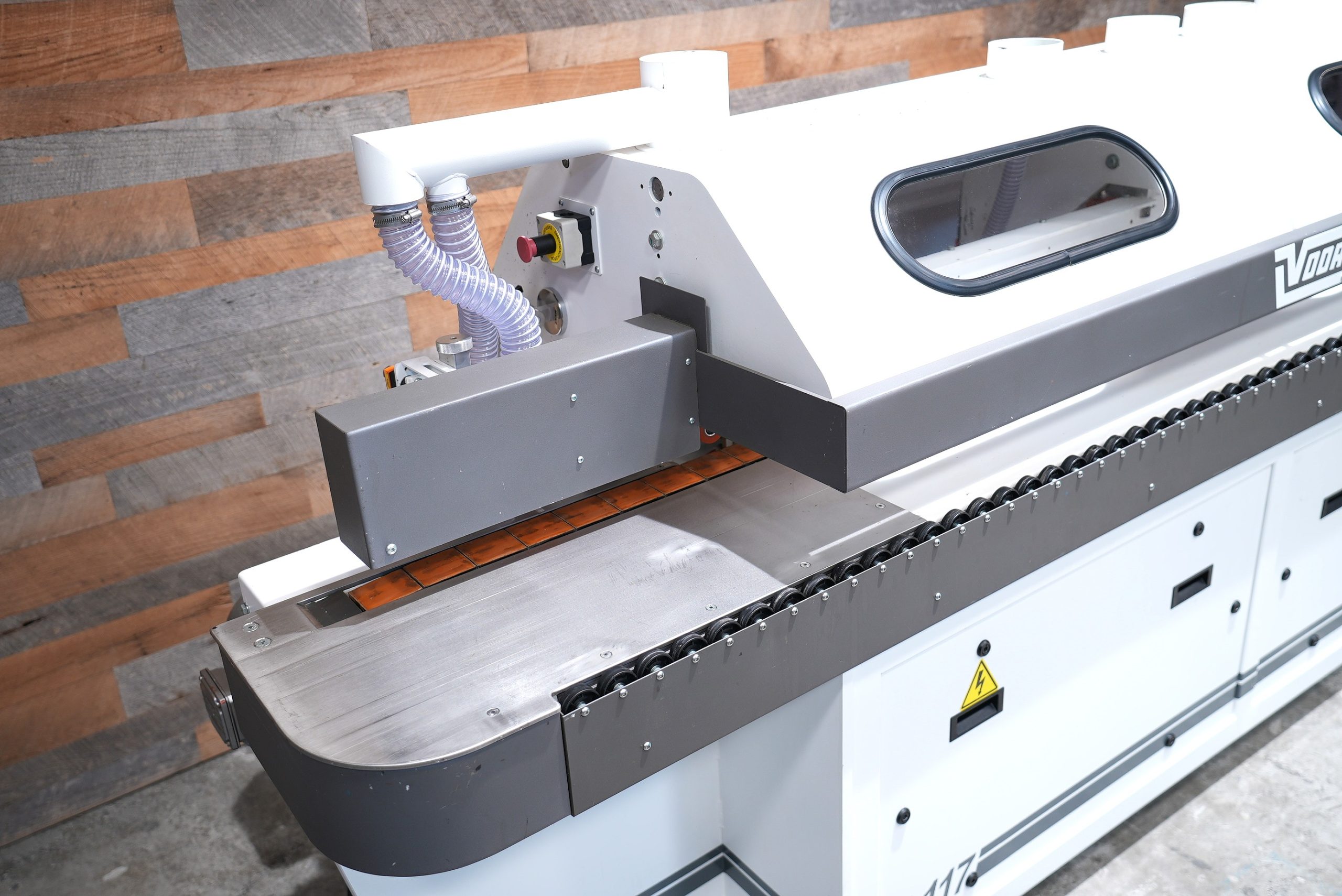

Emergency stop switches, Infeed and Outfeed
Machine Activate (Main power On/Off Infeed)
Infeed Guard (Infeed end)
SERVICES REQUIRED:
ELECTRICAL:
DUST COLLECTION:
One Ø5” (127mm) , three Ø5” (127mm) with Ø2” (51mm) inlets, and two Ø4” (102mm) ports
require exhaust air:
Velocity: 4000 fpm 1220 mpm
Minimum Air Volume: 1800 cfm 850 lps
SPACE REQUIREMENTS: SHIPPING DIMENSIONS:
145 inches long, 68 inches high, 42 inches wide 160 inches long, 78 inches high, 55 inches wide
3.7M x 1. 7M x 1.1M 4.1M x 1.98M x 1.40M
APPROXIMATE NET WEIGHT: APPROXIMATE SHIPPING WEIGHT:
3650 lbs. 1660 kg 4500 lbs. 2040 kg
