Description

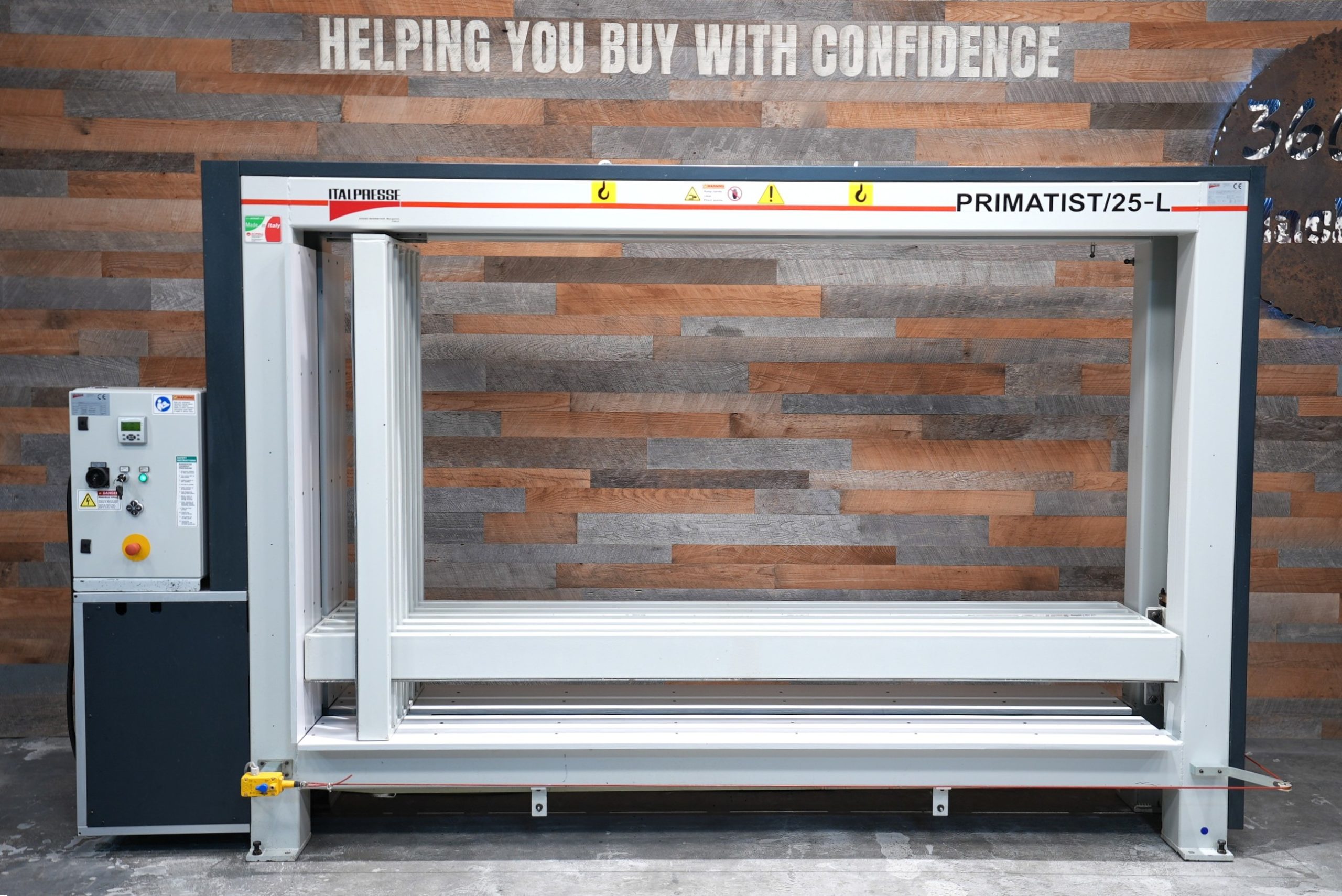

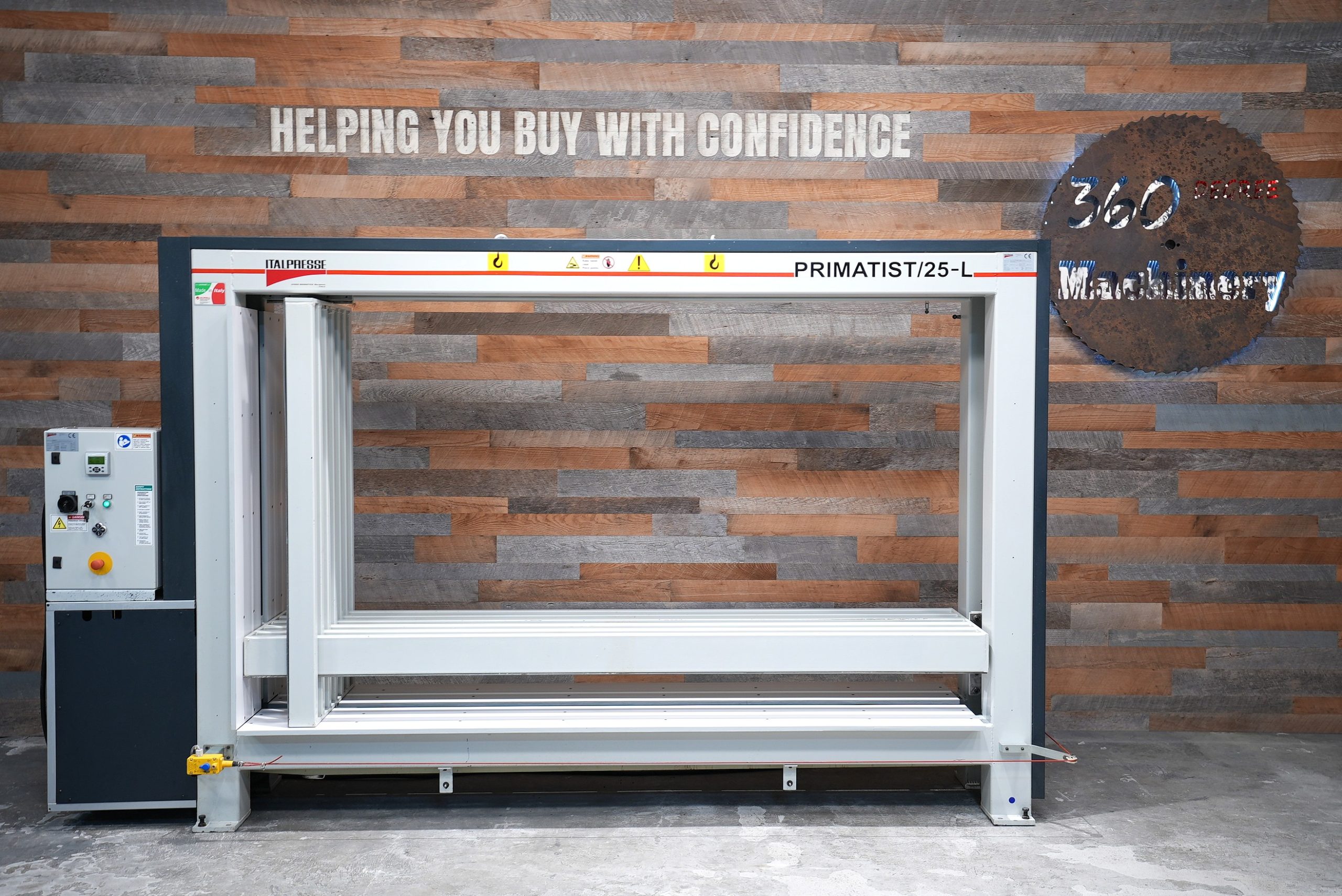

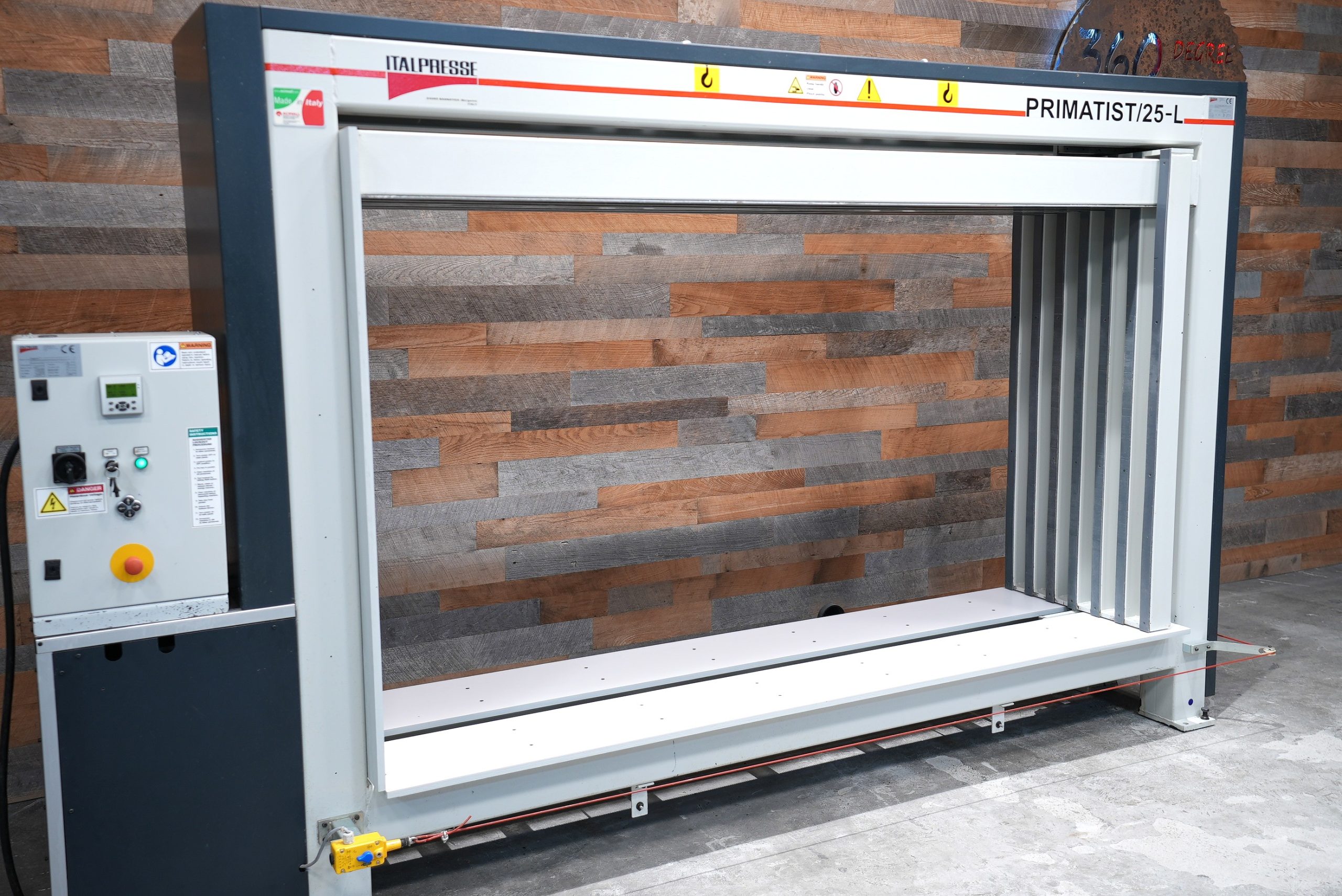

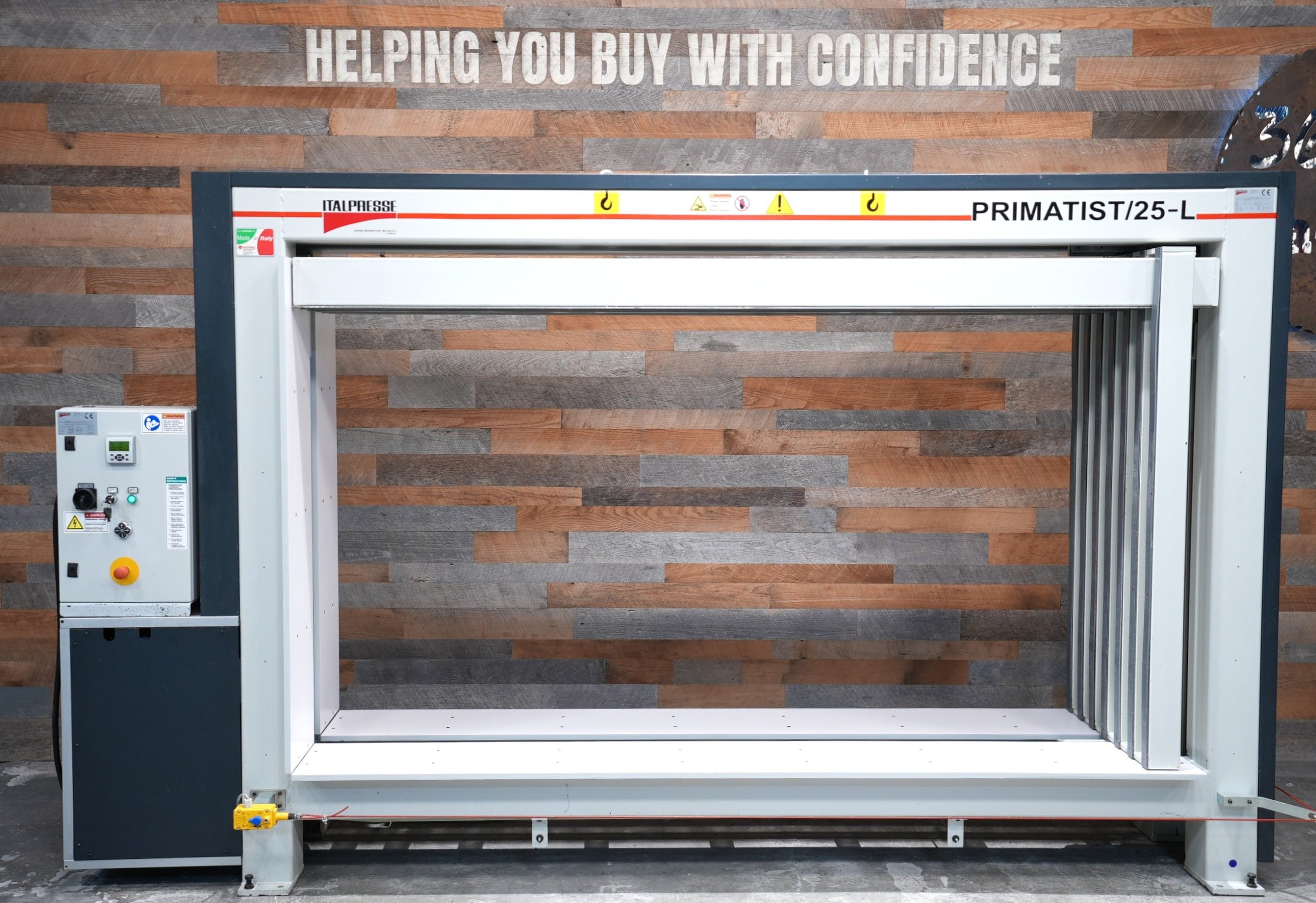

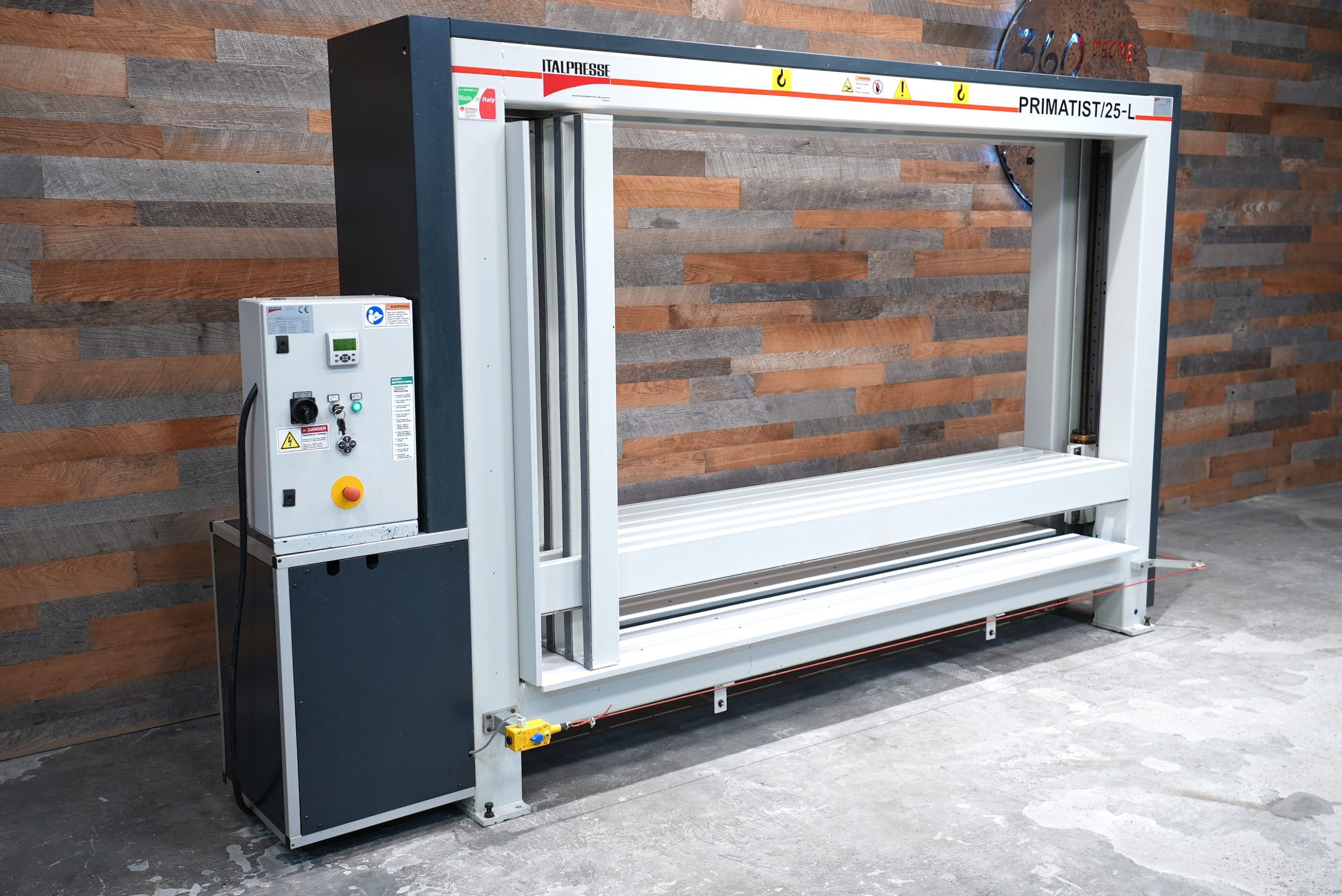

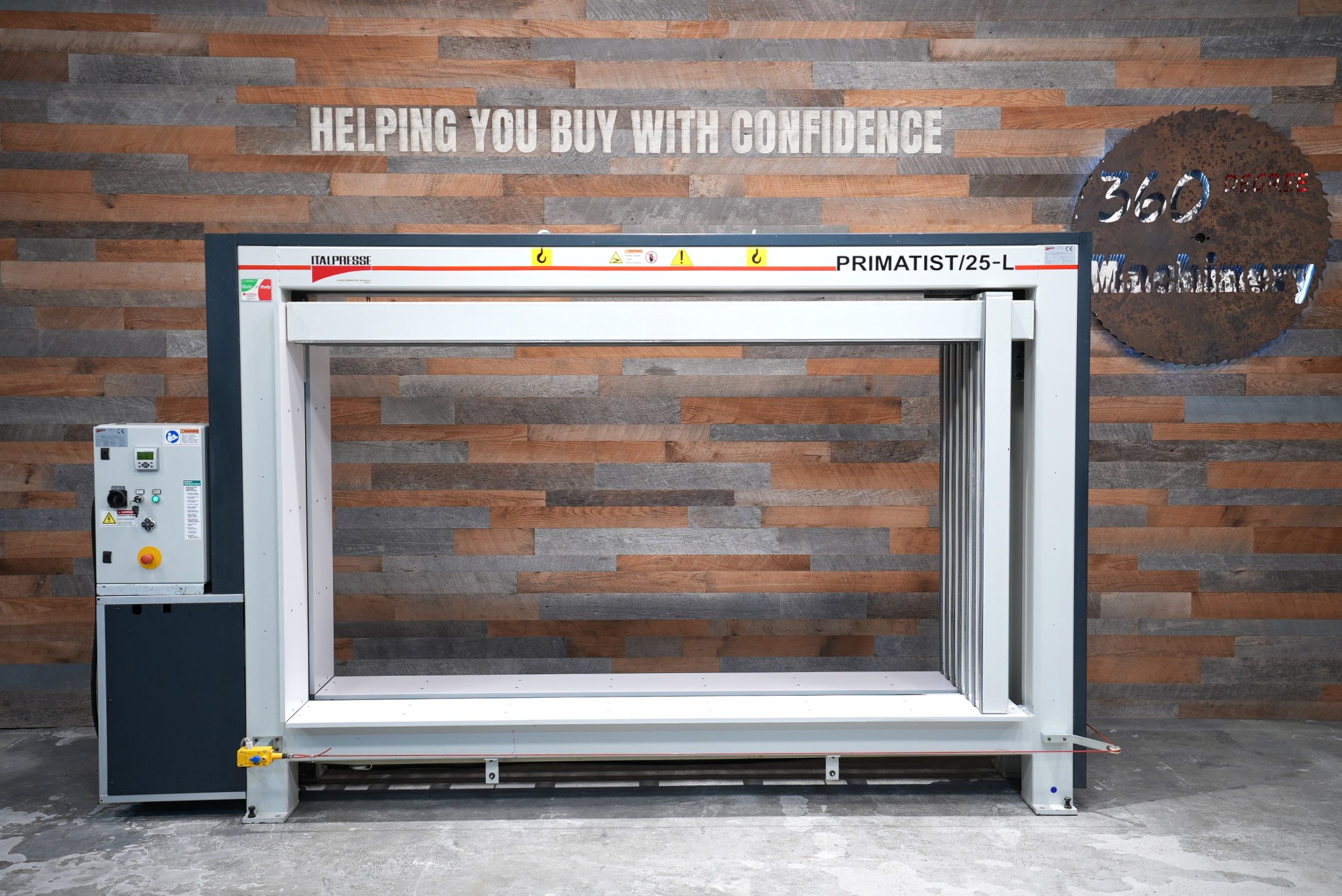

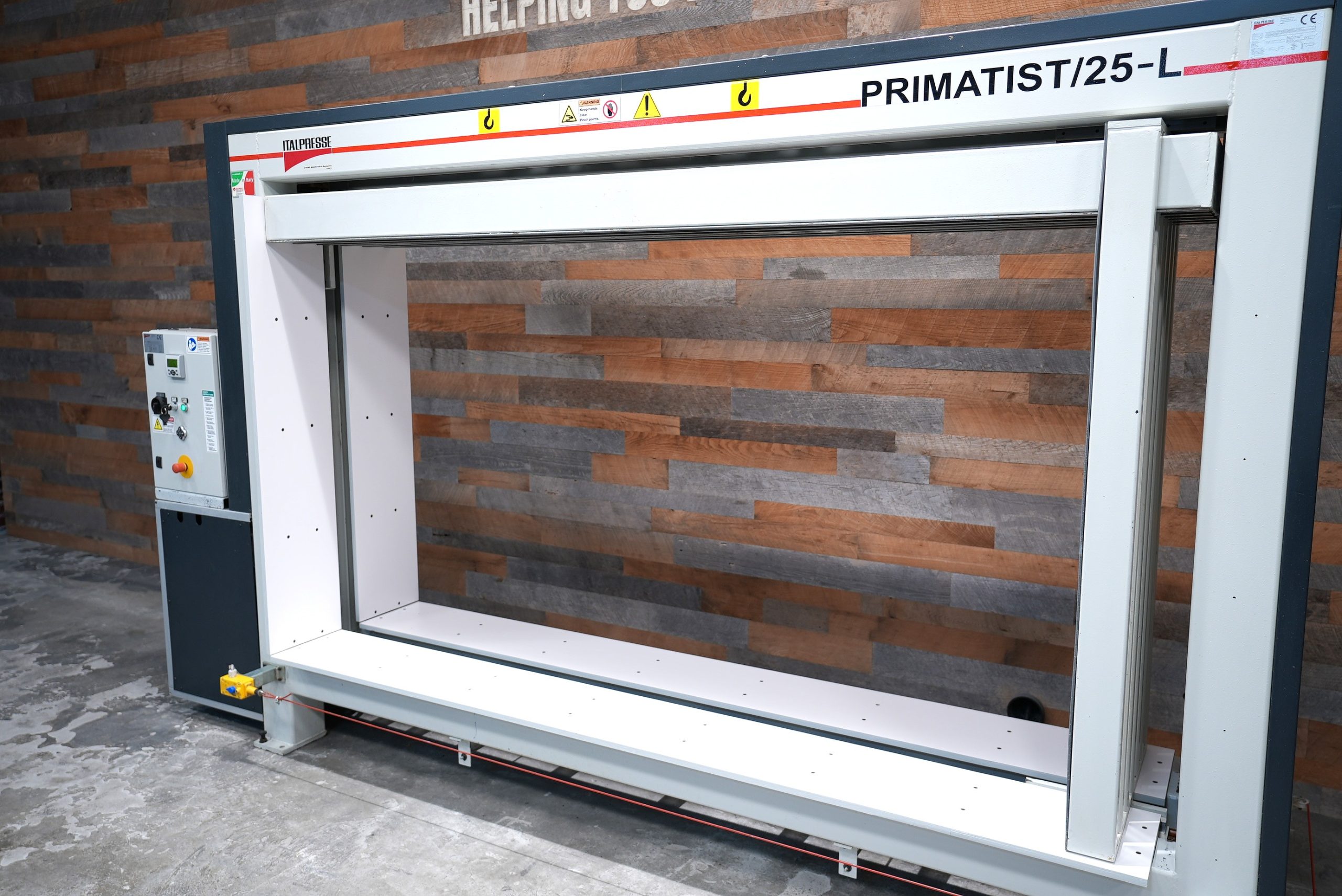

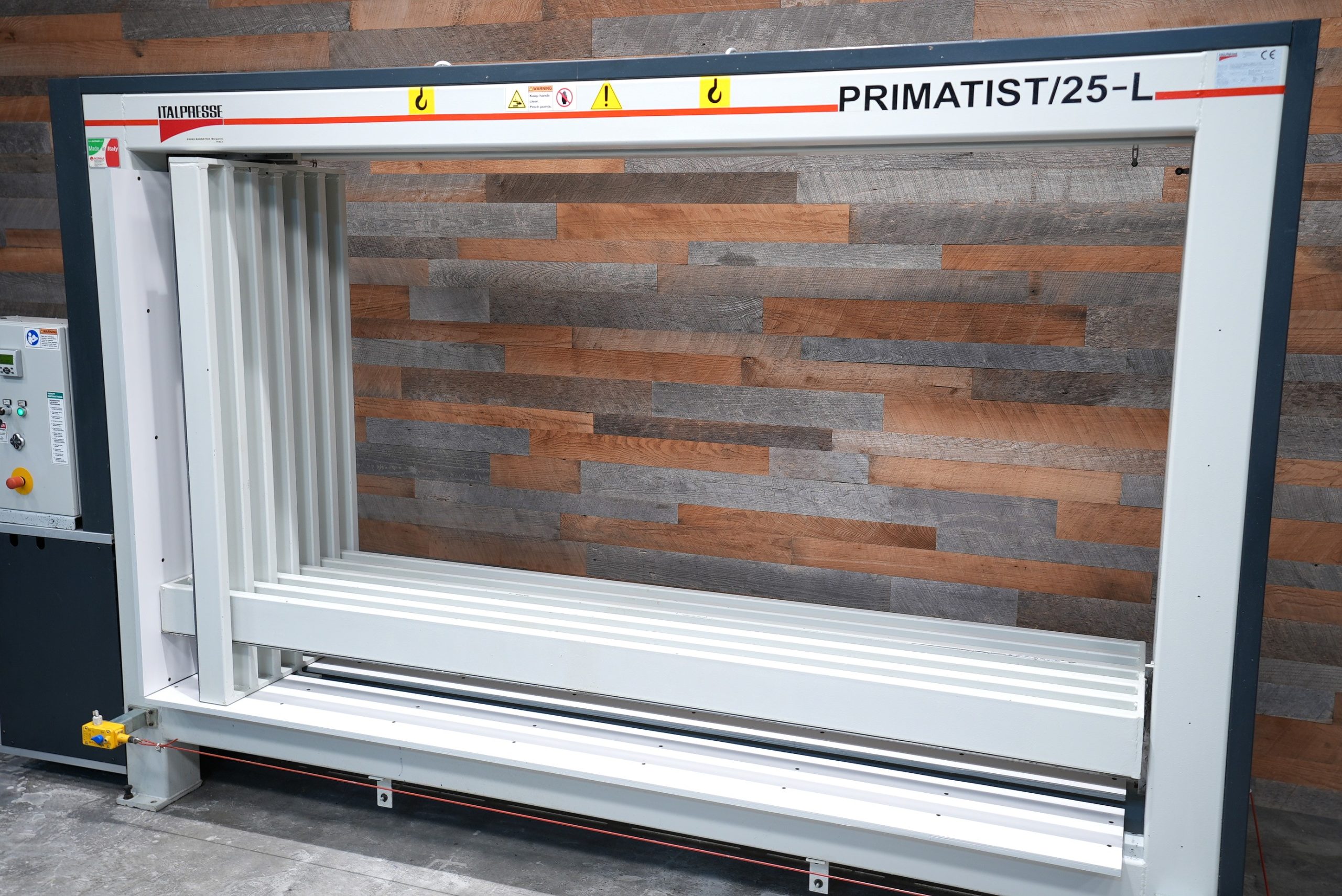

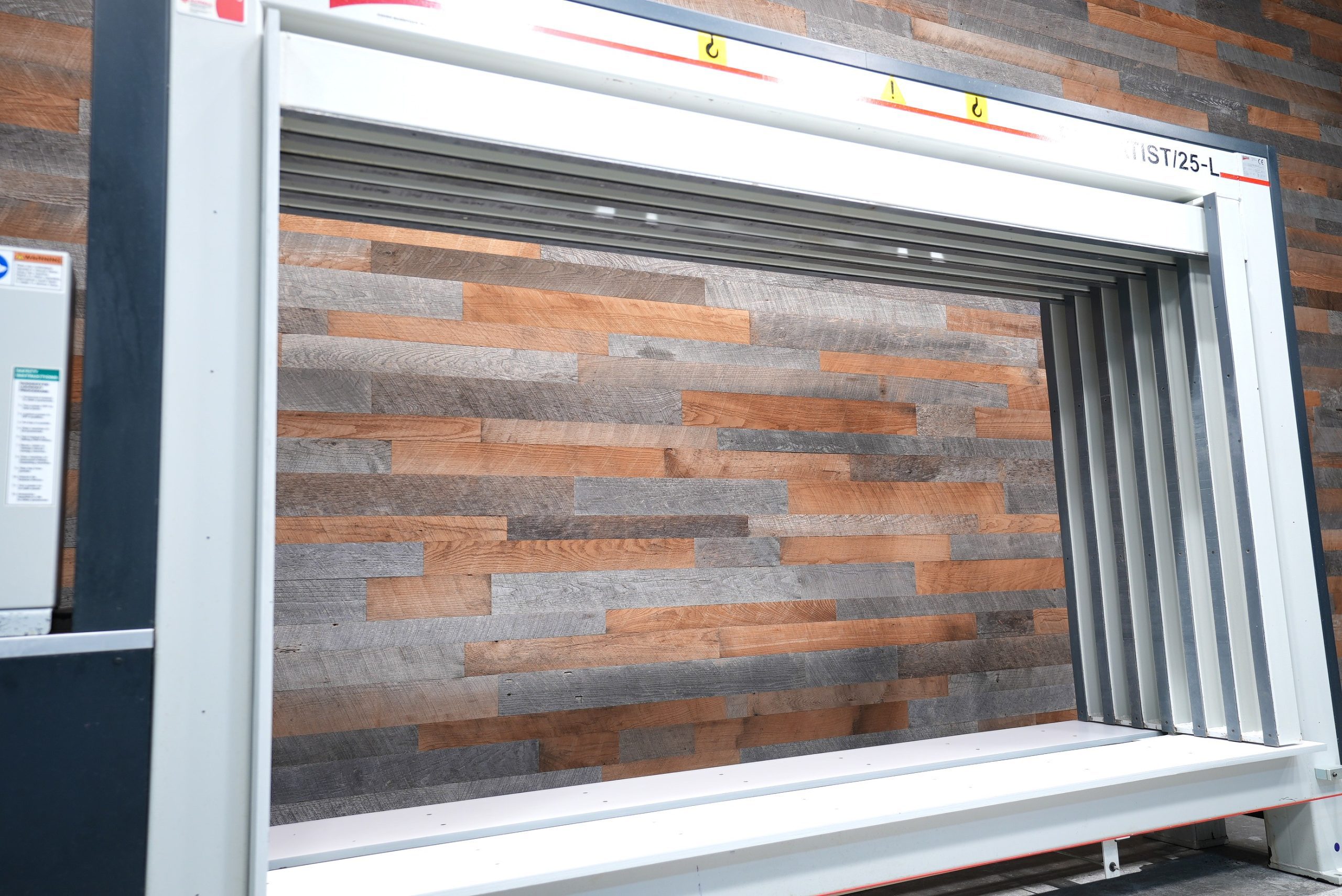

Primatist / 25-L Semi-Automatic Case Clamp
Max. cabinet height ……………………. 1400 mm. (55”)
Min. cabinet height ……………………… 250 mm. (9.85”)
Max. cabinet length ……………………… 2,667 mm. (105”)
Min. cabinet length ………………………. 250 mm. (9.85”)
Max. cabinet depth ………………………. 700 mm. (27.5”)
Working height (off floor)….………….. 400 mm. (15.75”)
Total installed power …………………….. 1.5 kw
Features:
-
-
- Horizontal and vertical interlaced beams constructed of thick tubular steel profiles faced with PVC
- Set-up free operation – motorized positioning and clamping of both pressure beams

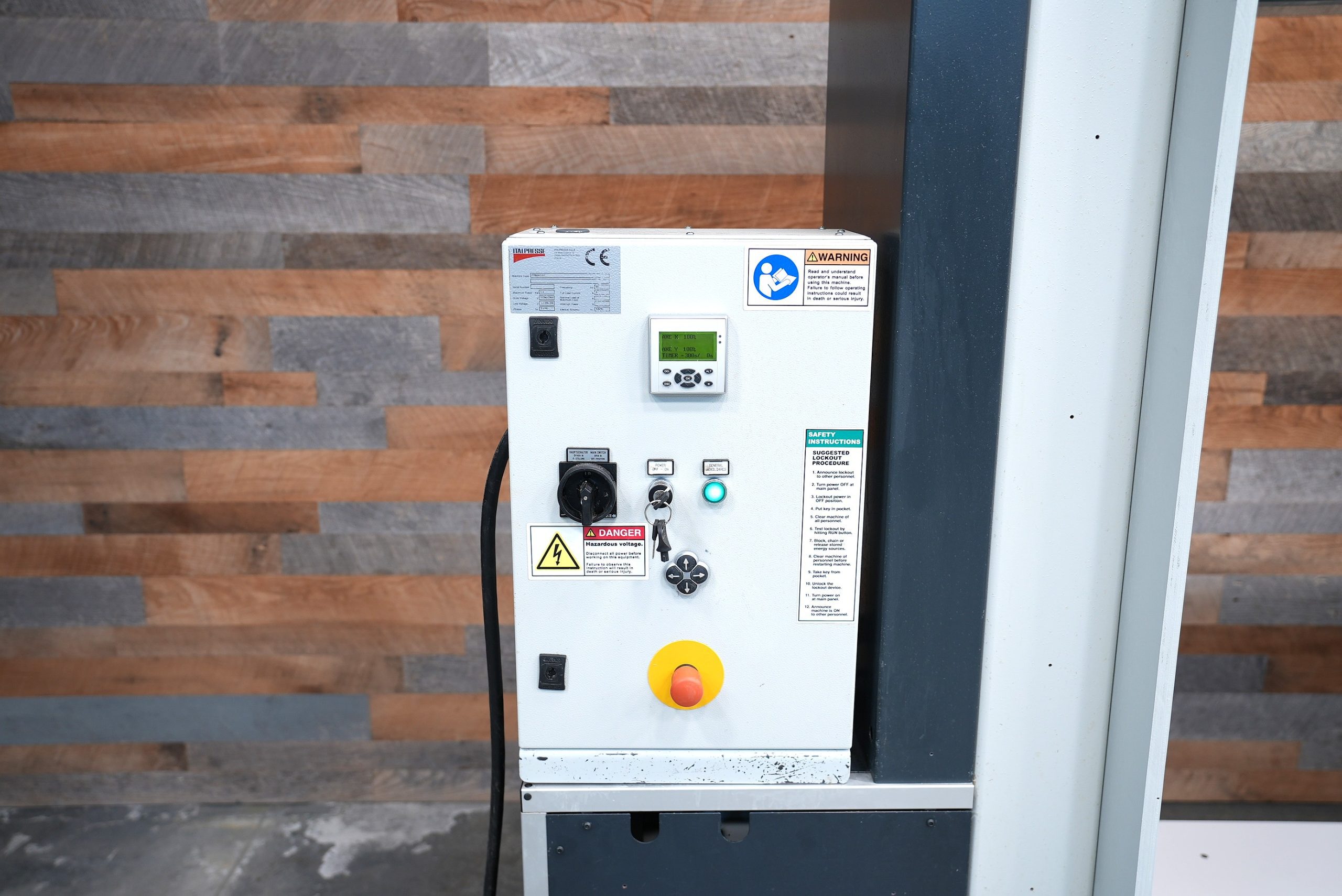

- Push button control of the motorized clamping beams with independent or simultaneous movement
- Clamping timer with automatic opening sequence
- Independent digital control of the horizontal and vertical clamping pressures
- Safety switches for minimum and maximum travel of both pressure beams

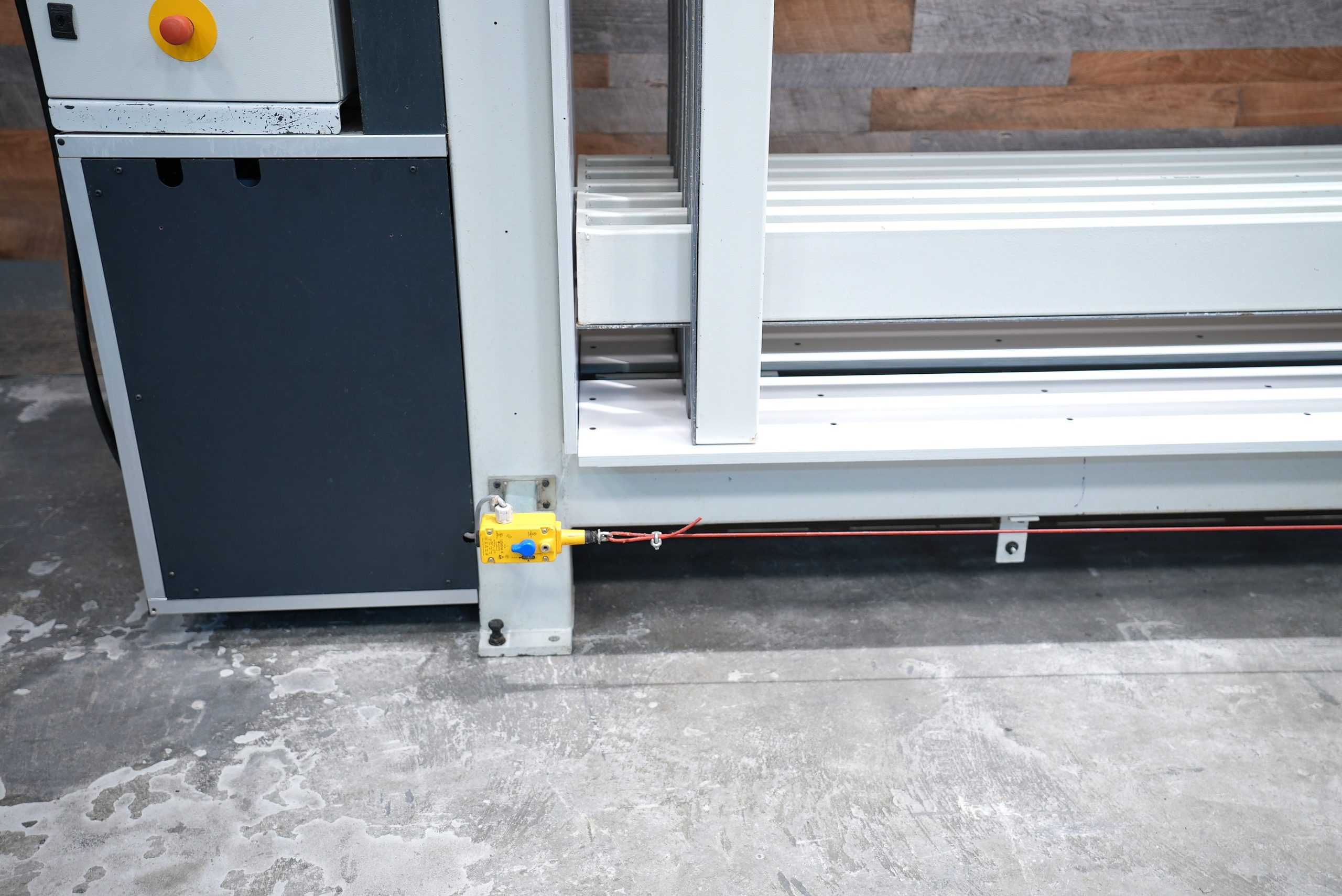

- E-stop rope for operator safety
- U.L. approved electrical components
- 230 volts, 3 phase, 60 cycle
-
