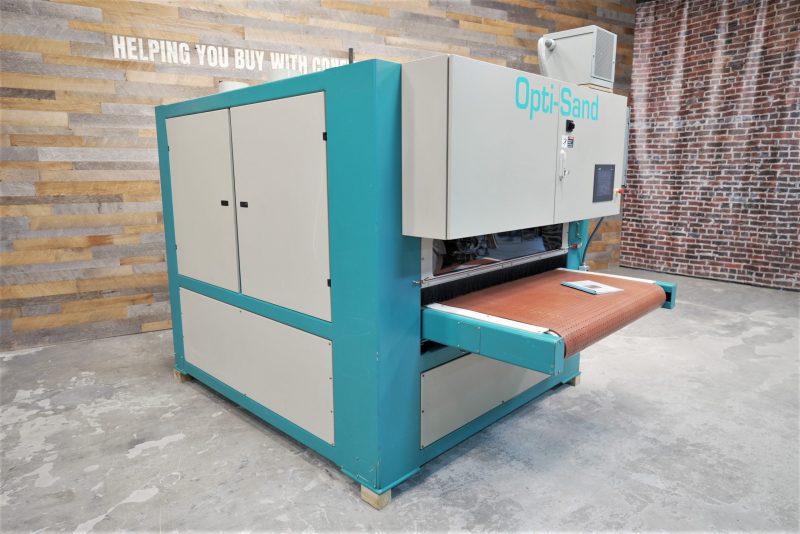

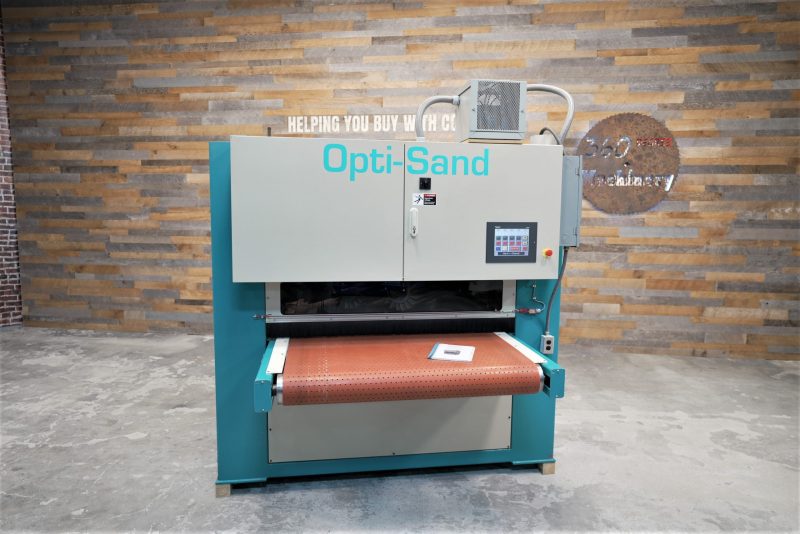

2011 Opti-Sand Model R52V Rotary Finish and Sealer Sander (offsite)

We sold this machine 2 years ago and our customer needs more room, thus he has made the hard decision to sell. This machine is currently under power in Irvington, AL. This is a very hard to find machine in todays marketplace.

1-Head, 52″ max. width cap., 0″ – 4″ max. part thickness opening

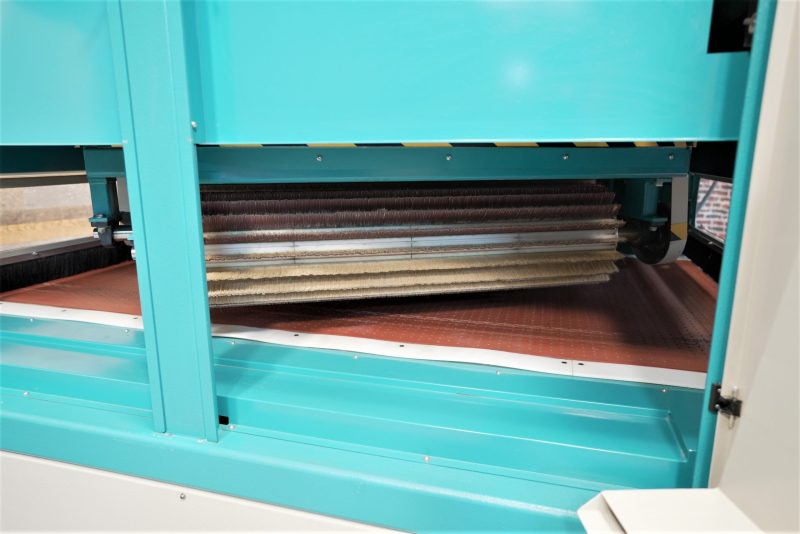

(1) Carousel head

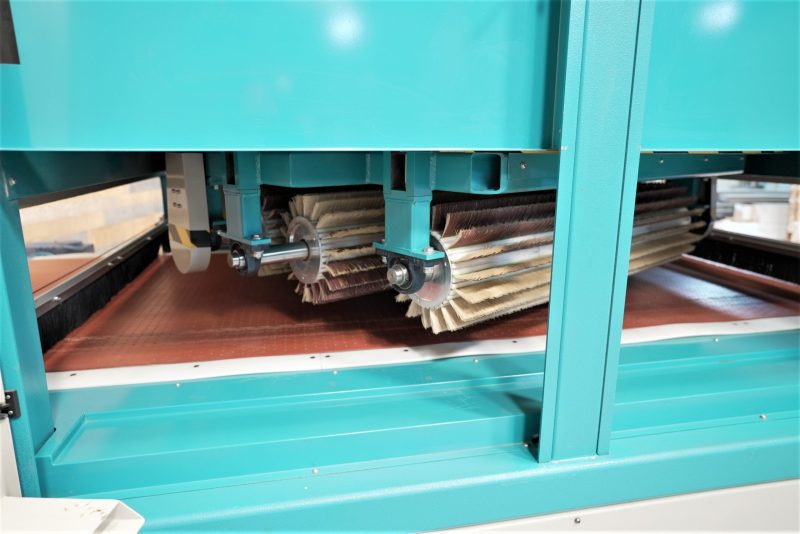

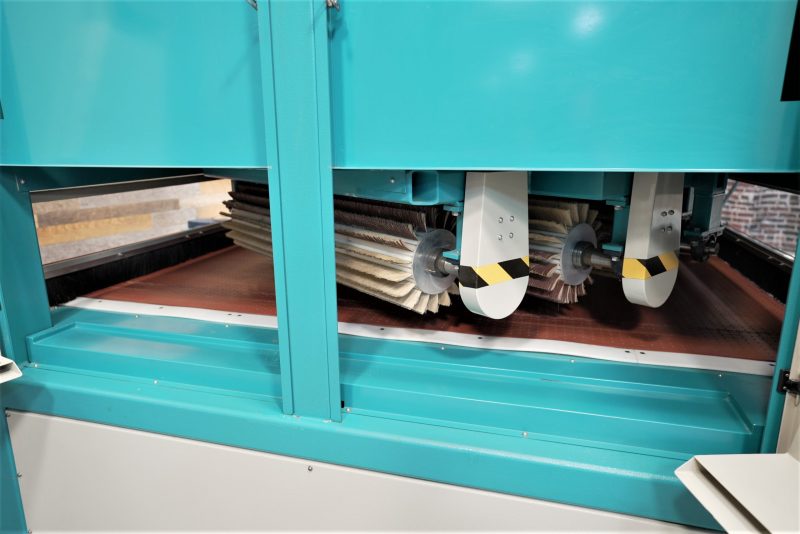

(4) rotating arbors mounted on a central rotating deck assembly, carousel deck rotation from 4 to 24 RPM

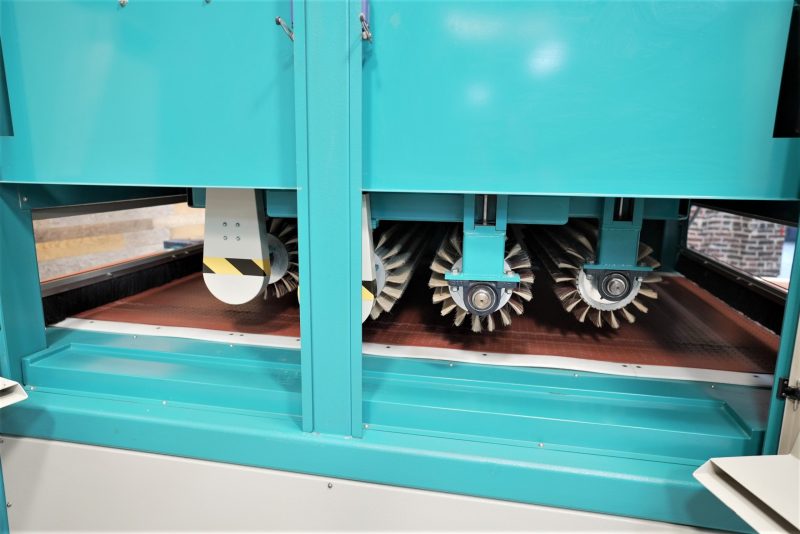

Front & rear spindles 7″ dia. x 42″ long

(2) center spindles 7″ dia. x 57″ long; 60 – 600 RPM Spindle speed with inverter control (reversible)

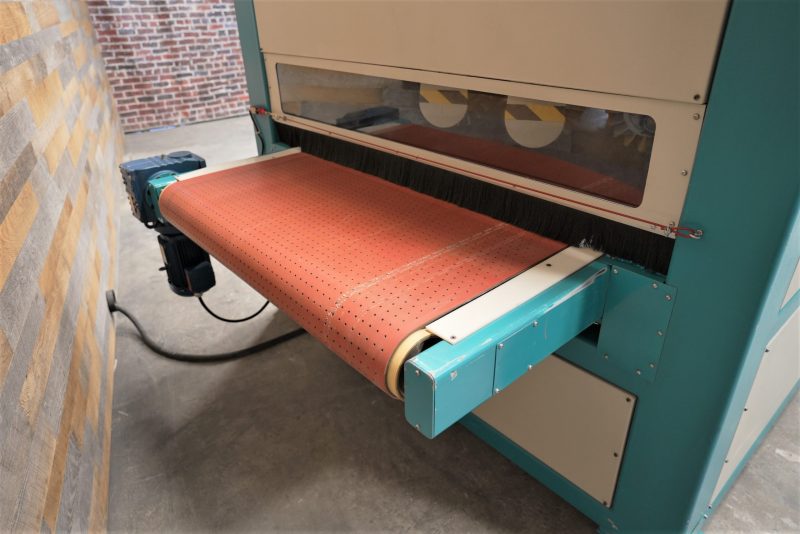

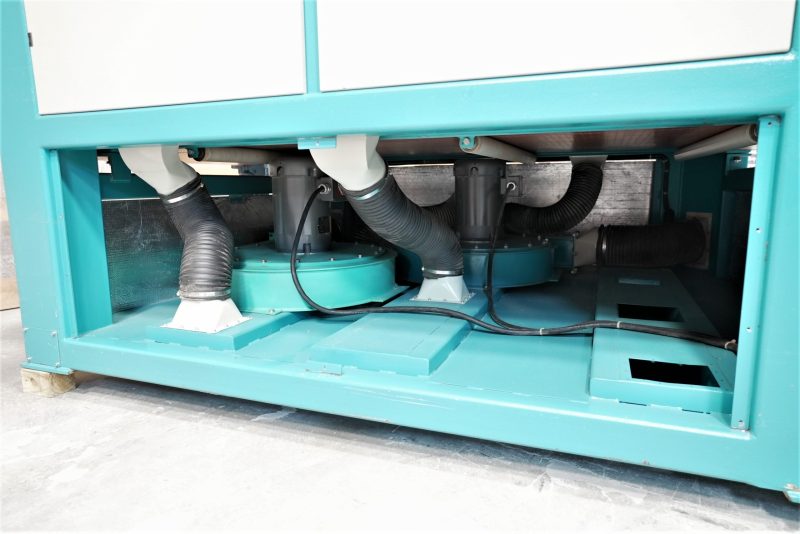

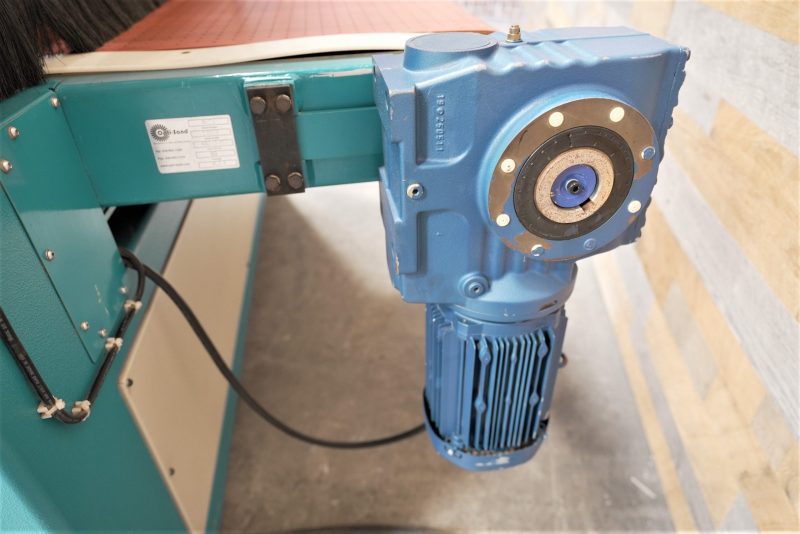

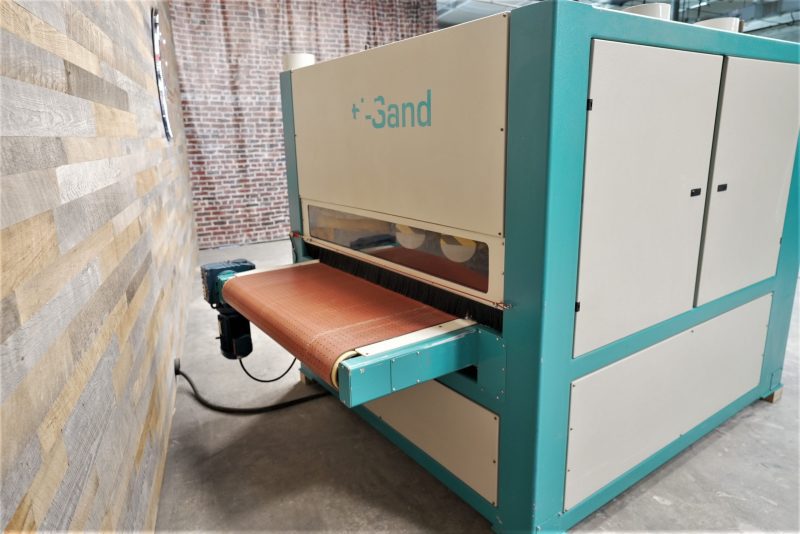

Feed system with vacuum conveyor belt feed, variable feed speed from 4 – 46 FPM, 3 HP feed drive with (2) 10 HP vacuum pumps & motors

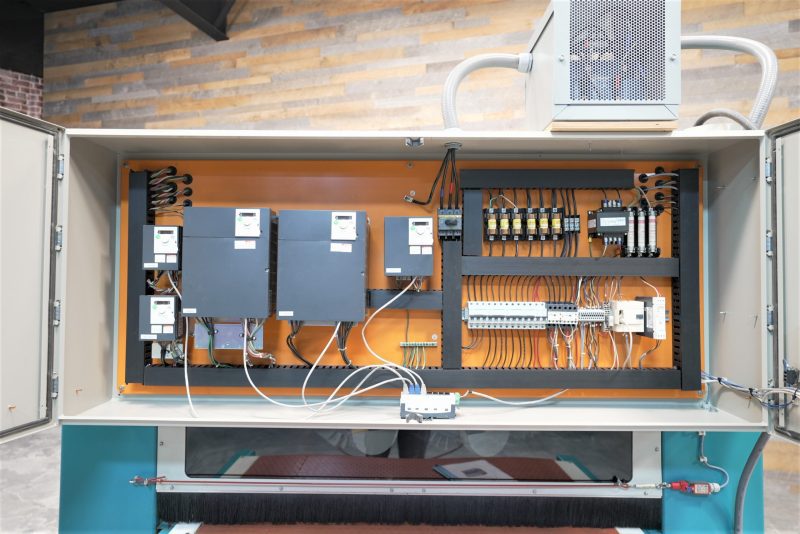

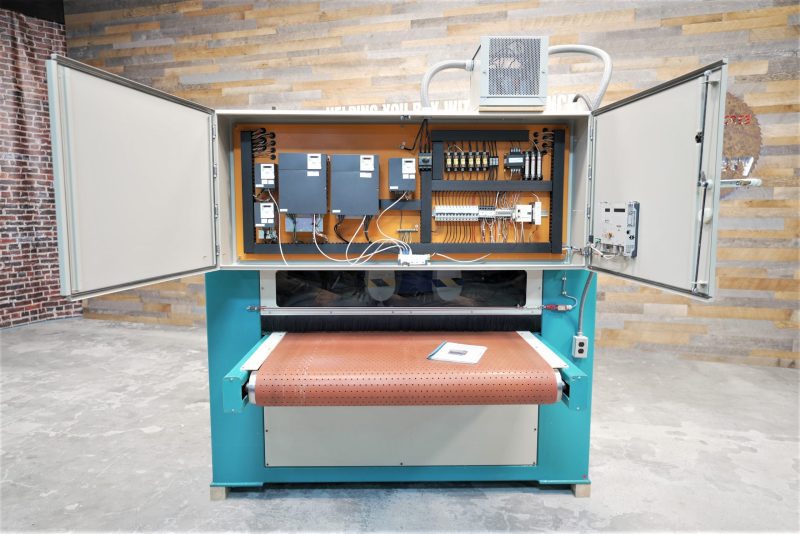

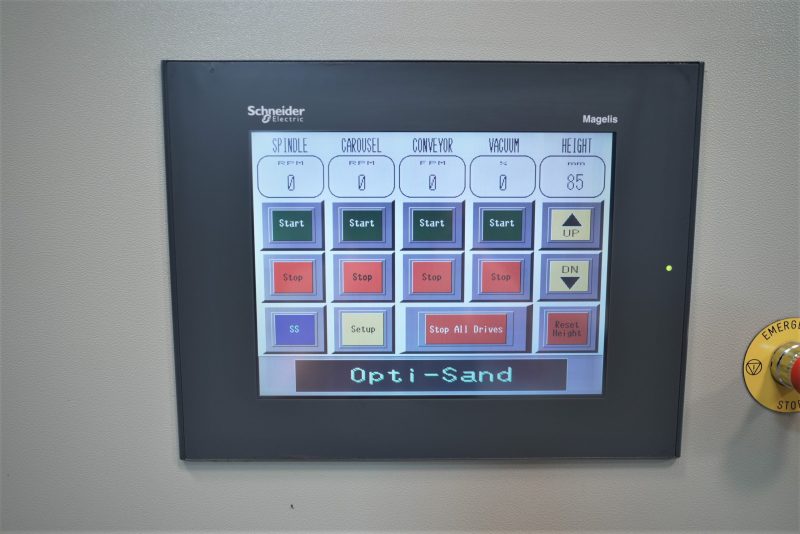

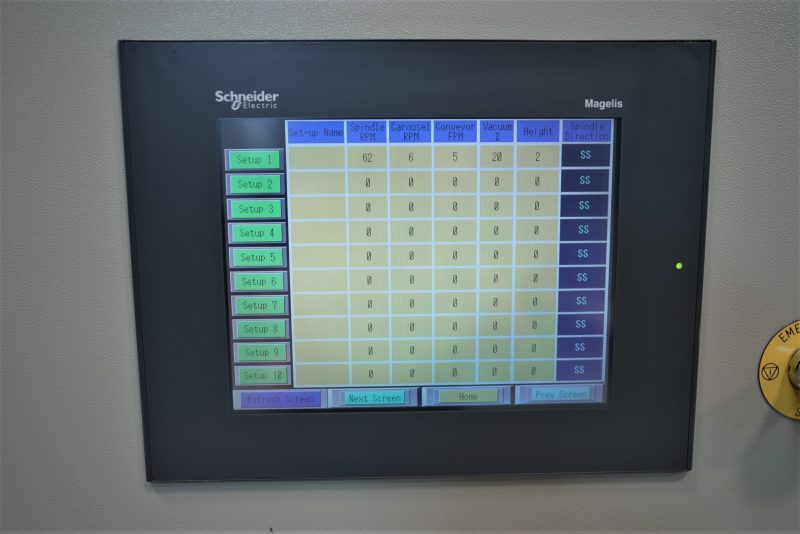

Spindle speeds, head rotation speeds, and conveyor speeds; all inverter controlled with infinite knob adjustment and digital readouts; work piece height is push button adjusted with digital readout

Sound enclosure

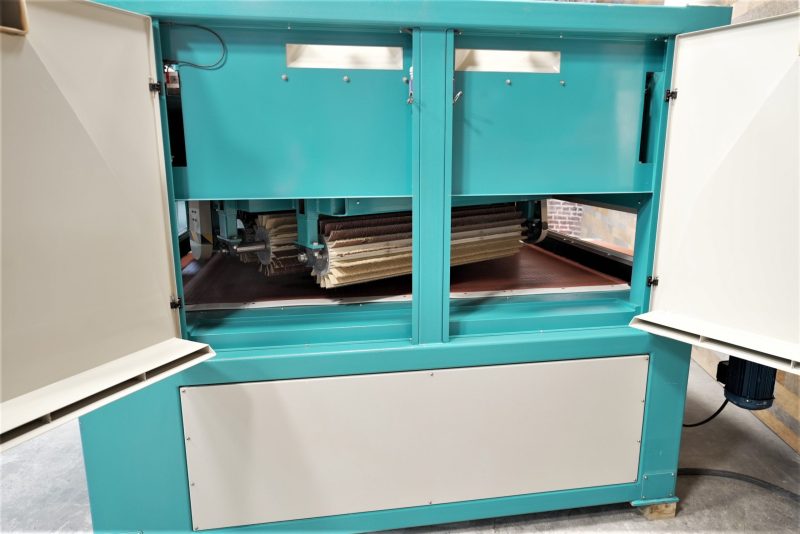

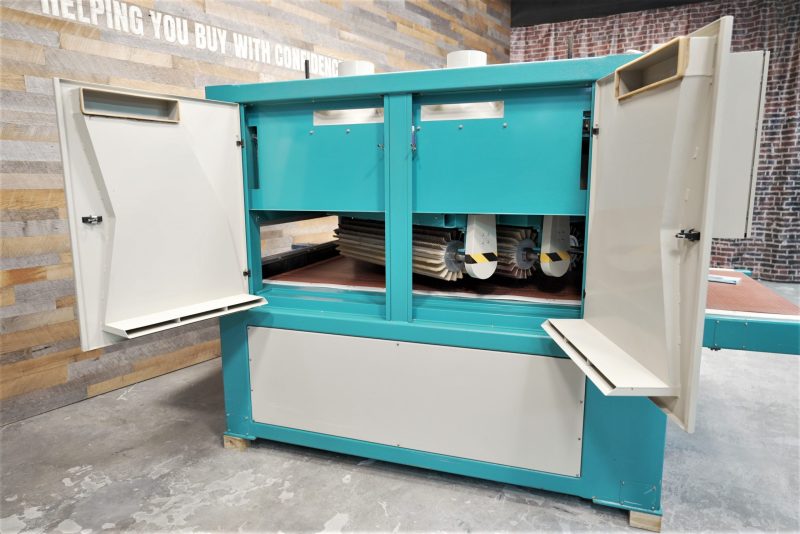

(4) easy access doors

(4) dust collection outlets of 6″ dia. each

Feed mat size 52″ x 151″

Designed to finish sand & sealer sand work pieces such as raised panel cabinet doors, entry doors, louvers, shutters, etc
