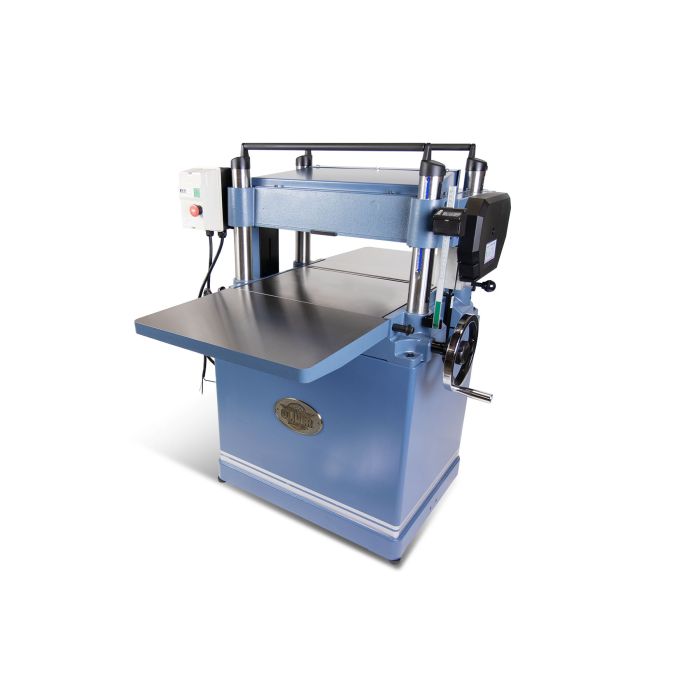

Oliver 20 Planer W/Oliver HCX Helical Cutterhead – 5HP, 1PH – M-4430

Name: Oliver 20 Planer W/Oliver HCX Helical Cutterhead - 5HP, 1PH - M-4430
Brand: Oliver Machinery
SKU: 4430.201

$5,199.99

SKU 4430.201 Categories Oliver Machinery, Oliver Planers, Planers Tags Helical Cutterhead, Planers Brand: Oliver Machinery

Unique design allows motor and cutter head to move in unison.
Auto-depth lock features twin nitrogen cylinders virtually eliminates snipping.

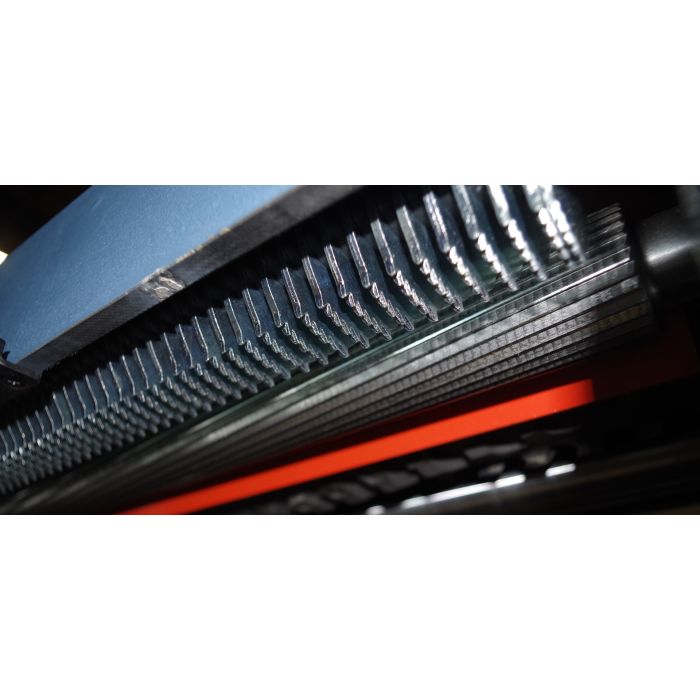

Oliver HCX Helical cutterhead with premium carbide inserts.

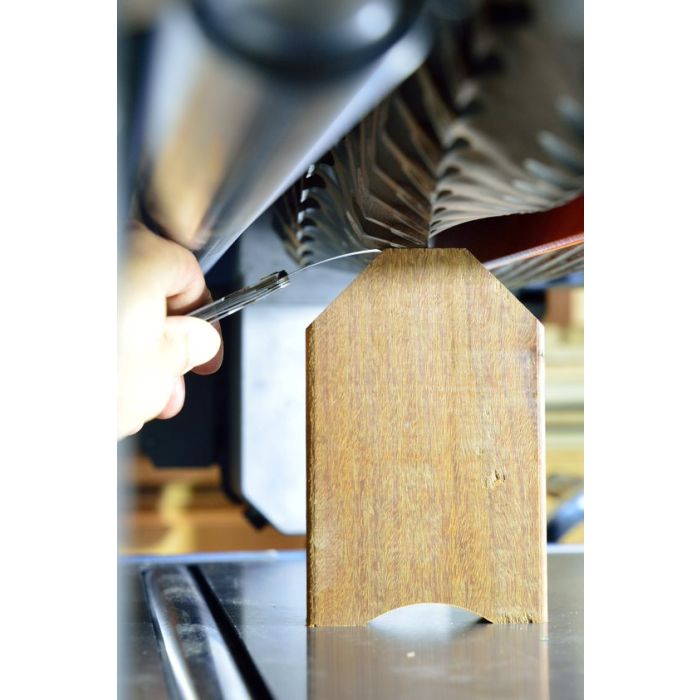

4-sided cutting inserts are indexed and easy to replace.
Heavy cast iron construction including extension wings.
Table is precision ground for smooth stock feeding
Table is fixed allowing easy use of auxiliary stock support
Wixey digital read out allows precise thickness settings
Large hand wheel and support struts allow easy height adjustment.
Four-post design ensures head alignment regardless of stock thickness.

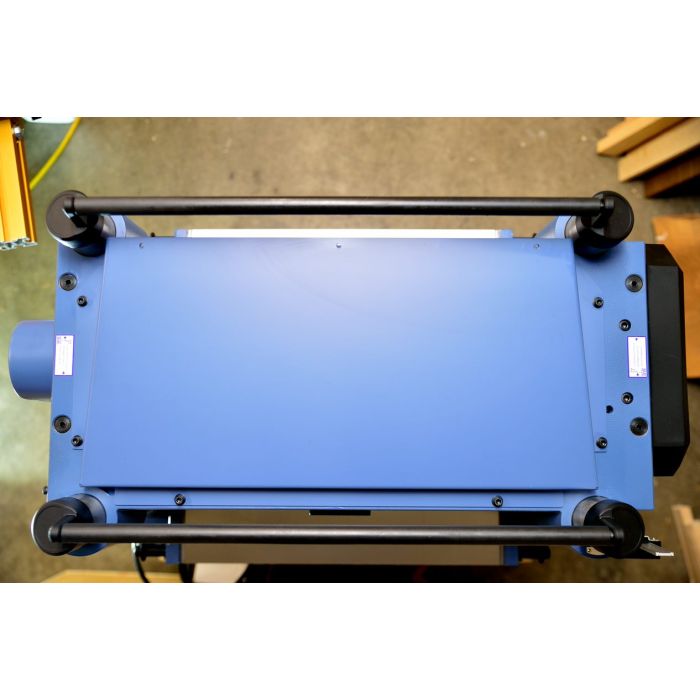

Top mounted roller for easy multiple passes.

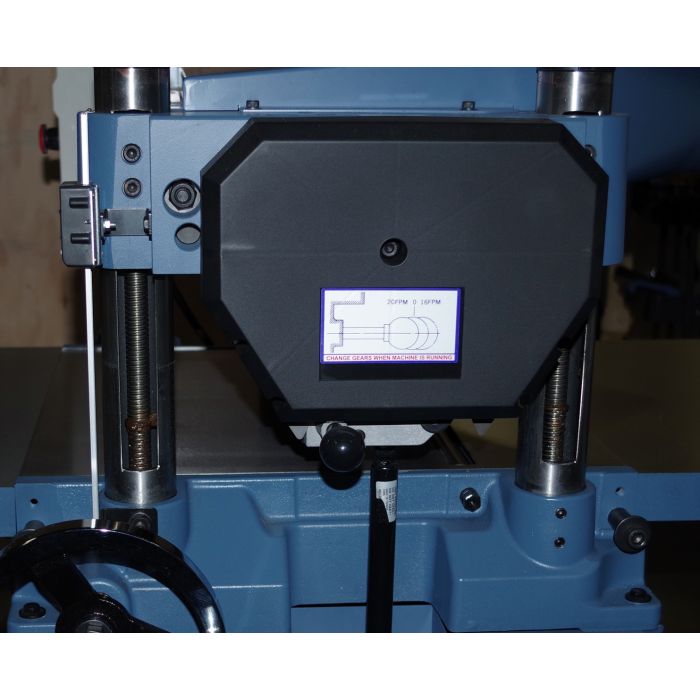

Two-speed feed gearbox for better cuts.
Oil bath gear lubrication for years of performance.

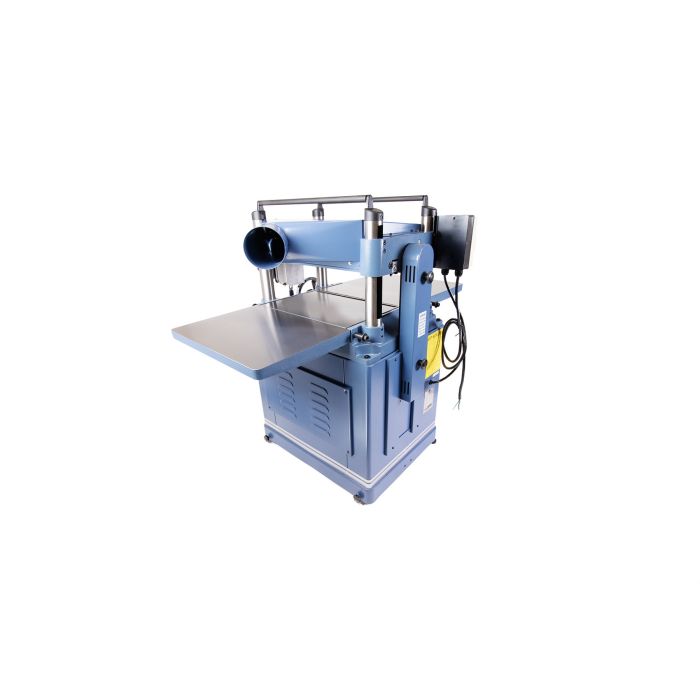

5” port allows excellent dust management.
Built-in heavy-duty casters for mobility.

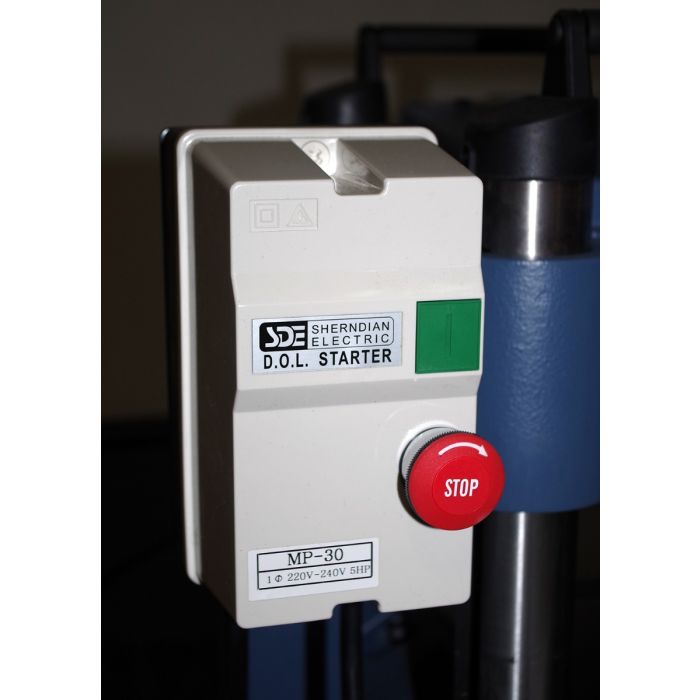

Magnetic switch for added protection and safety.
CSA listed.

Specs & Features

Model Number	4430
Overall Dimension	51”(L) x 40”(W) x 46-1/2”(H)
Ph	1Ph
Stock No. (5HP, 1Ph)	4430.201
Stock Number	M-4430
Maximum Stock Width	20″
Maximum Depth of Cut	1/4″ (Stock less than 8” wide) 1/8”(Full Width)
Maximum Stock Thickness	8″
Minimum Stock Thickness	1/4″
Minimum Stock Length	7″
Dust Port Diameter	5″
Minimum CFM Required	650 CFM
Feed Speeds	16/20
Bed Rollers	1, Adjustable
Table Size	21” x 20”
Table Size w/Extension Wings	51” x 20”
Table Height	29-3/4”
Cutterhead Diameter	3-1/4″
Cutterhead Speed	3450 RPM
Number of Knives	68
Number of Knives (helical)	68
Footprint	22-1/2” (L) x 28-3/4”(W)
Footprint – with Table	51”(L) x 40”(W) x 46-1/2”(H)
Motor	Included 10 Cutter inserts and compatible Torx screws.
Motor 1Ph	5HP 1Ph 230V (1Ph, 18 Amp)
Overall Dimensions	38-1/4” (L) x 32”(W) x 51-3/4”(H)
Net Weight	546 lbs.
Gross Weight	625 lbs.
