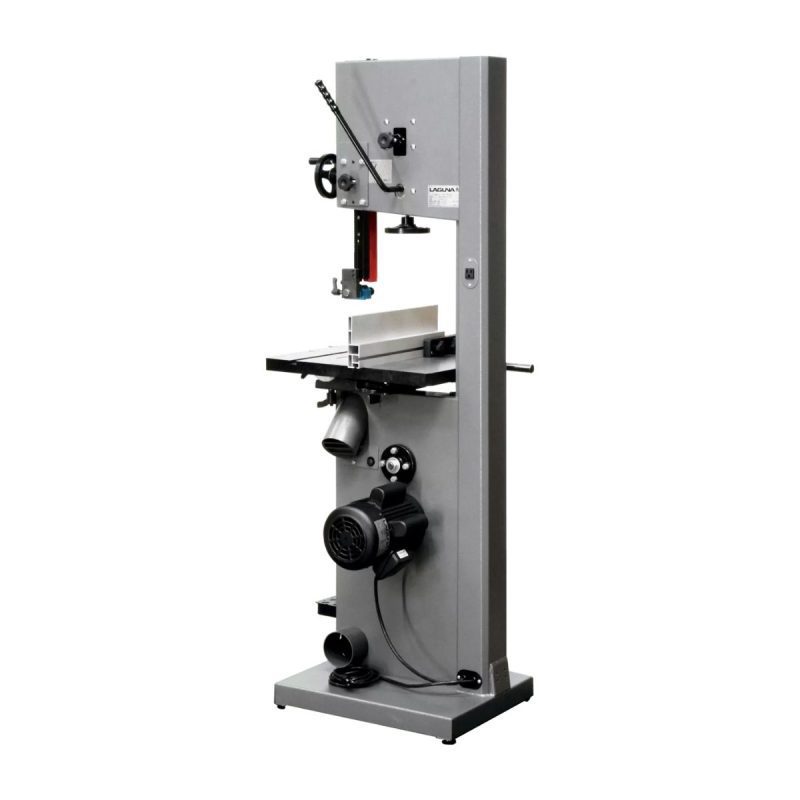

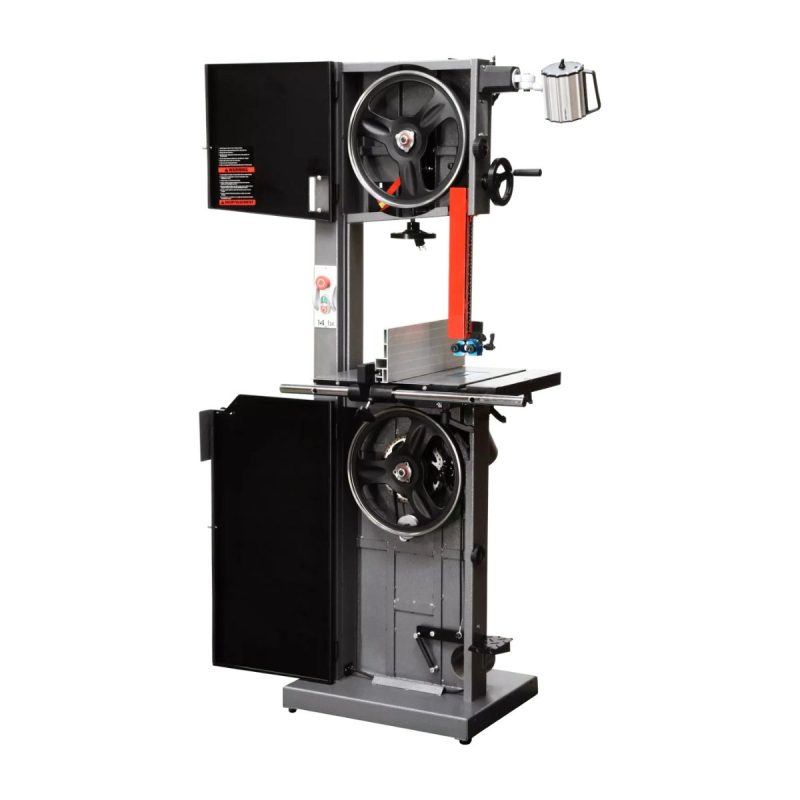

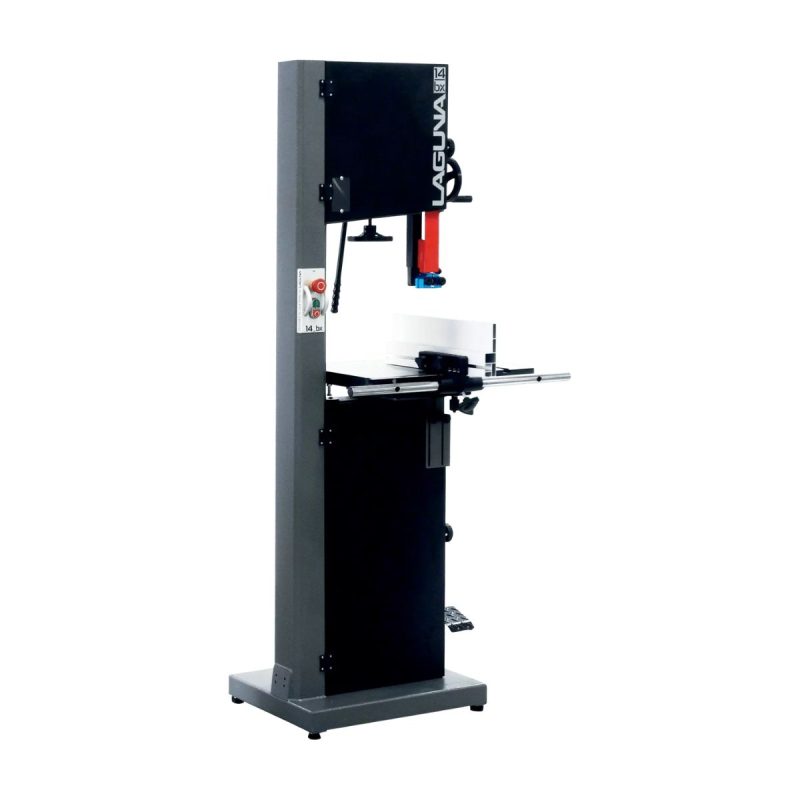

Laguna Tools 14|BX Bandsaw

$1,999.00

Main differences from 14|12:
– Weight increased
– Solid one-piece Frame
– Frame is heavier Gauge
– Magnetic On/Off Switch
– Disc-Brake w/ Micro-Switch
– Dual light mounting positions

Shown with optional Blade

* Blade Not Included

Features:

13″ Resaw Capacity
Height: 70-1/4″
21-1/2″ X 16″ Table
Table Height: 38″
7° Table Tilt Left
2 X 4″ Dust Ports

Description
Additional information

110 Volt

1.75HP, 14 Amp, TEFC
110 Volt Outlet for Light
6′ Cord with Nema Plug: 5-15P
Weight (Net/Ship): 260/320 lbs

220 Volt

1 Phase, 2.5HP, 9.8 Amp, TEFC
220 Volt Outlet for Light
6′ Cord with Nema Plug: 6-15P
Weight (Net/Ship): 270/330 lbs

Height: 70-¼″

Table Size: 21-½″ x 16″

Table Height: 38″

Table Tilt Left: 7°

Table Tilt Right: 45°

Dust Ports: 4″ x 2

Blade Length: 115″

Cast Iron Wheels

Magnetic Starter

Dual Light Mount

Max. Blade Width: ¾″

Pyramid-Shaped Spine

Min. Blade Width: ⅛″

Footprint: 17-½″ x 22-½″

Quick Release Tension

Magnetic Blade Guard

Laguna Ceramic Guides

Hi/Low Aluminum Fence

Worm Gear Rack & Pinion

Massive Cast Trunion: 8″ x 13″

Shipping Weight: 350lbs

Shipping Dimensions (L x W x H): 73″ x 27″ x 29″

Bandsaw Comparison Chart (3 22 24)

Additional information

Voltage	115V Single-Phase, 230V Single-Phase
