Northtech NT UCS18R 18″ 10 HP Upcut Saw (Right‑Hand Cut)

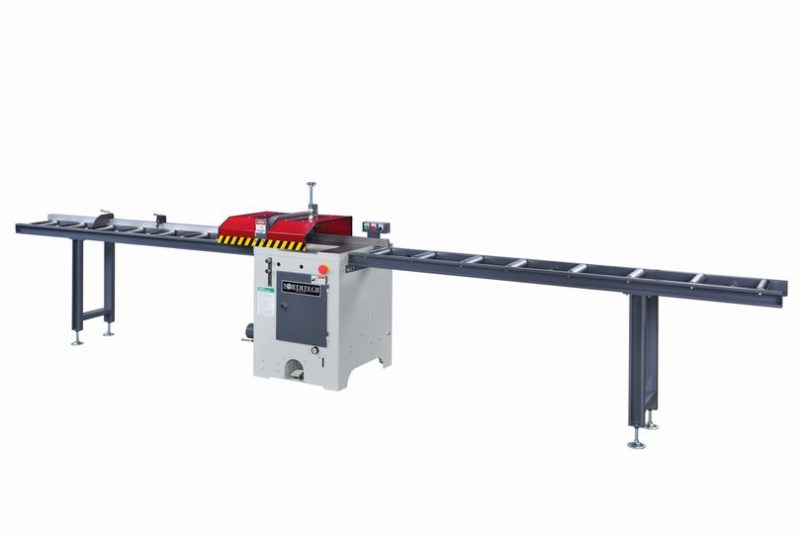

This innovative up-cut saw from Northtech quickly and safely cuts boards up to 13-1/2 inches wide or 4 inches high. The powerful 10 HP soft-start motor and 18″ diameter blade consistently produce clean and accurate results. Up to 16′ infeed/outfeed tables with flip-stops are optionally available to further improve operator precision and productivity.
*Northtech’s new “UCS” up-cut saw models, offer advanced features such as extra dust collection and a full zero-clearance fence to help eliminate tear-out!
ⓘ Unlock Your Best Price!
By clicking the button below, you'll receive personalized pricing tailored to your needs, including available discounts and accurate shipping costs. We're committed to offering you the best value, but some of our special rates can't be displayed online.Don't miss out – request your quote now!
PRODUCT DIMENSIONS:
• Max cutting capacity: 1″ x 13″, 2″ x 12″, 3″ x 11″, 4″ x 10″
FEATURES:
• 10HP motor, 3PH 230 or 460V with 24V magnetic controls, 3600 RPM
• 18” 120T Carbide tipped blade with included
• 1” Saw arbor diameter
• Cycle operation: Pneumatically adjustable up to 45 cycles/minute
• Table size: 26” x 27-1/4”
• Quick access on the front of the machine to adjust blade stroke
• Adjustable fence 2″ x 25″
• Amperage requirements: 230V/460V 60HZ, 3PH: 24A/12A
• Dust requirements: (1) 4″ dust port requiring 436 CFM at point of extraction
• Net / Gross weight: 730lbs / 860lbs
• Machine / Packing dimensions (LxWxH): 26″ x 28″ x 50″ / 40″ x 48″ x 55″
• (1) Operation and Parts Manual included
• Warranty is one-year parts
• Northtech offers a full line of dust collectors for any application.
• All machines are tested stateside before shipment providing trouble-free start-up.
OPTIONS:
• 8’ infeed without fence and 8’ outfeed with fence, (2) legs, (1) gravity flip stop
• 16’ infeed and 16’ outfeed with fence, (4) legs, (1) gravity flip stop
• Trap door waste bin for under UCS outfeed
• Infeed horizontal clamp
• 8′ Special multiple-stop outfeed fence (required for use of more than (1) flip stop)
• Custom infeed/outfeed rollers up to 60’ . .
• 18″ x 80T carbide-tipped blade
• 18” x 100T carbide-tipped blade
• 18” x 120T carbide-tipped blade
• (1) Gravity flip stop
• Rigid stop
• Two-handed push button actuation in place of a foot pedal
• Optional top clamp dust port
• Integrated auxiliary starter system for NT-DC20
• Safety interlock for blade access
• Illuminated safety guard for clear visibility of cut zone
• Voltage change
• LMC (Less Motor & Controls)
