PRODUCT DIMENSIONS:
• Max cutting capacity: 1″ x 13″, 2″ x 12″, 3″ x 11″, 4″ x 10″
FEATURES:

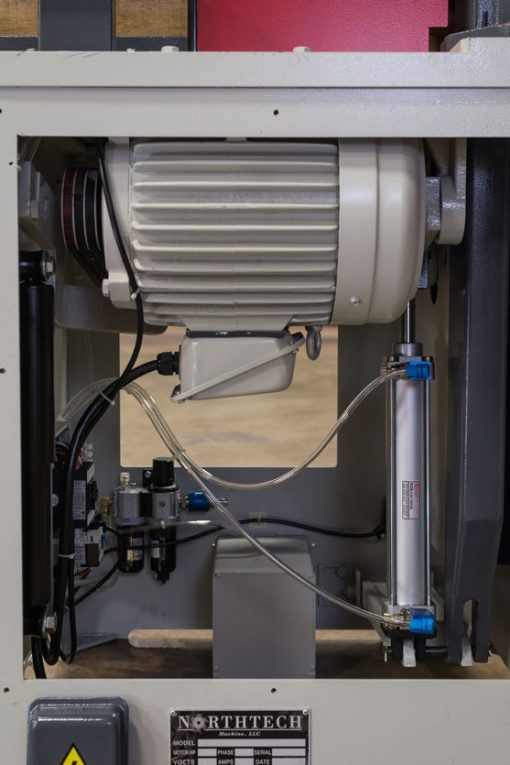

• 10HP motor, 3PH 230/460V with 24V magnetic controls, 3600 RPM

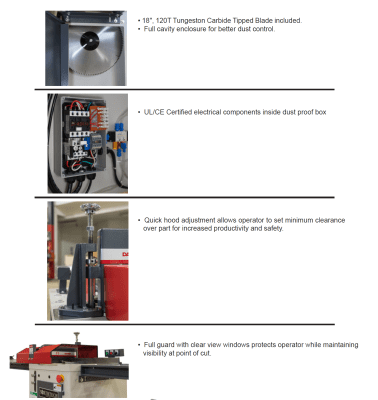

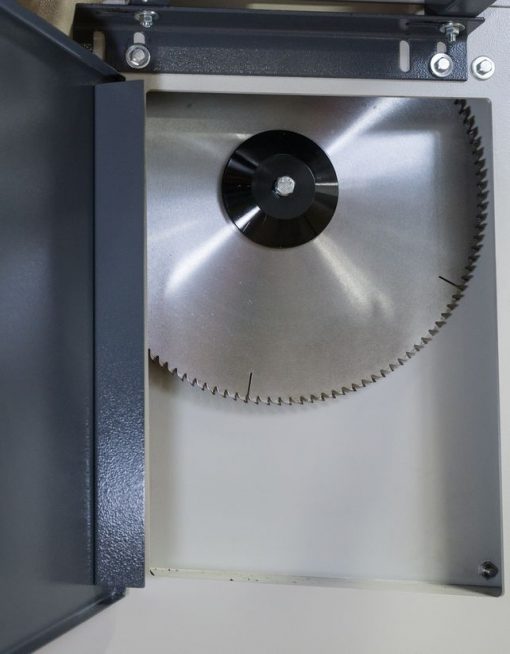

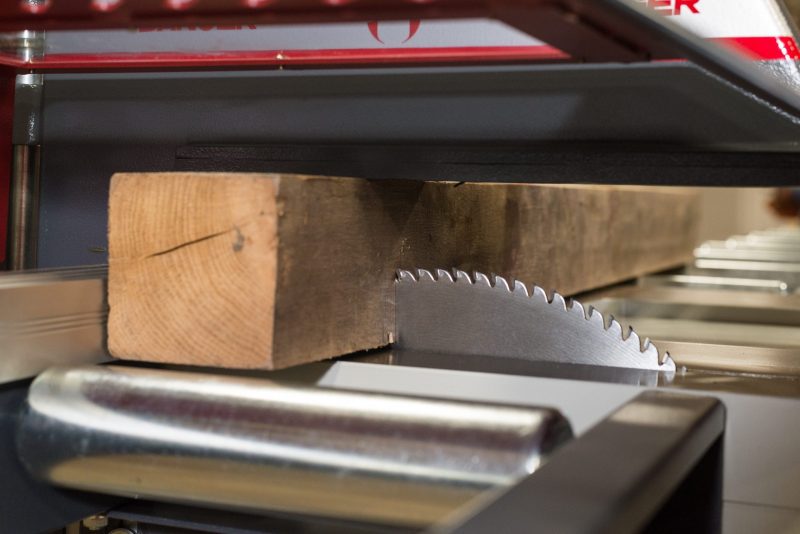

• 18” 120T Carbide tipped blade with included
• 1” Saw arbor diameter

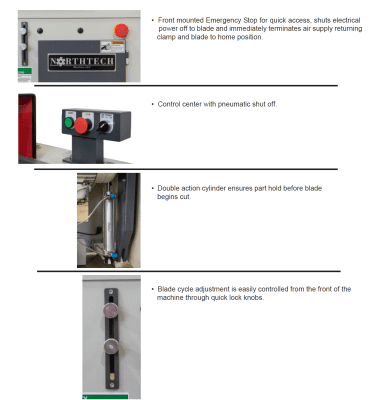

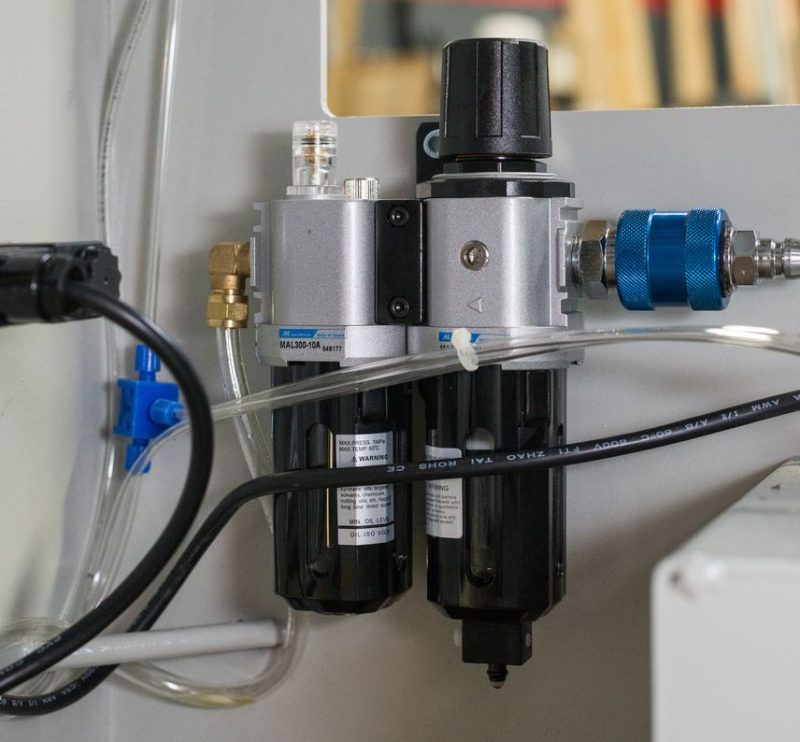

• Cycle operation: Pneumatically adjustable up to 45 cycles/minute
• Table size: 26” x 27-1/4”
• Quick access on the front of the machine to adjust blade stroke
• Adjustable fence 2″ x 25″
• Amperage requirements: 230V/460V 60HZ, 3PH: 24A/12A
• Dust requirements: (1) 4″ dust port requiring 436 CFM at point of extraction
• Net / Gross weight: 730lbs / 860lbs
• Machine / Packing dimensions (LxWxH): 26″ x 28″ x 50″ / 40″ x 48″ x 55″
• (1) Operation and Parts Manual included
• Warranty is one-year parts
• Northtech offers a full line of dust collectors for any application.
• All machines are tested stateside before shipment providing trouble-free start-up.
OPTIONS:

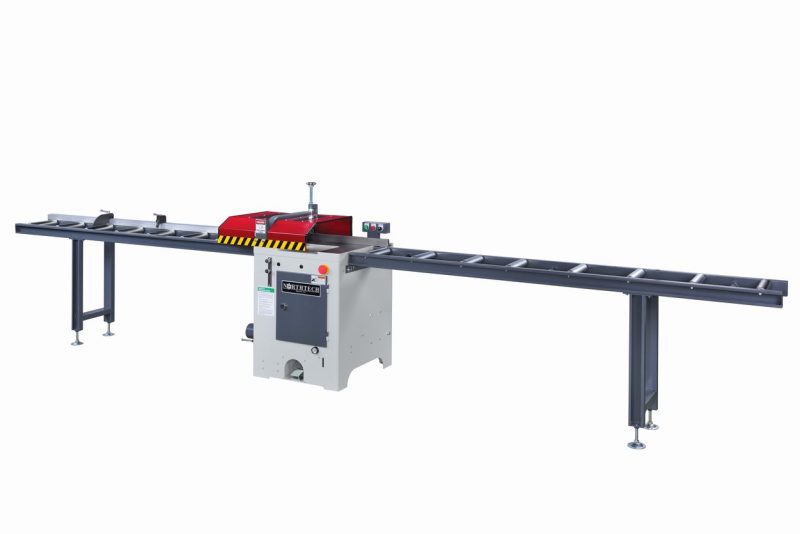

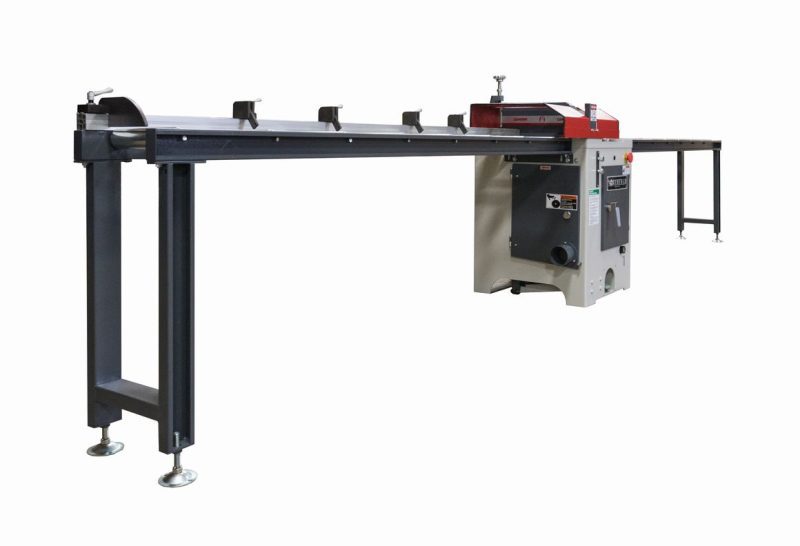

• 8’ infeed without fence and 8’ outfeed with fence, (2) legs, (1) gravity flip stop
• 16’ infeed and 16’ outfeed with fence, (4) legs, (1) gravity flip stop
• Trap door waste bin for under UCS outfeed
• Infeed horizontal clamp
• 8′ Special multiple-stop outfeed fence (required for use of more than (1) flip stop)
• Custom infeed/outfeed rollers up to 60’ . .
• 18″ x 80T carbide-tipped blade
• 18” x 100T carbide-tipped blade
• 18” x 120T carbide-tipped blade

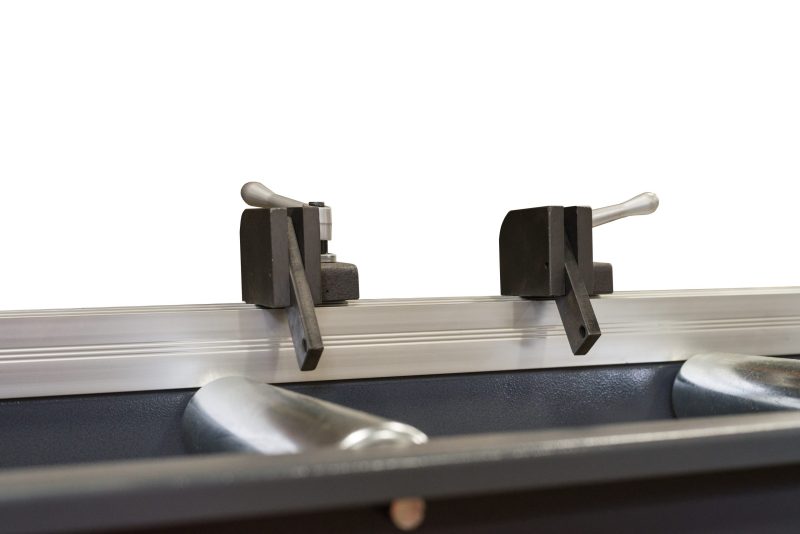

• (1) Gravity flip stop
• Rigid stop

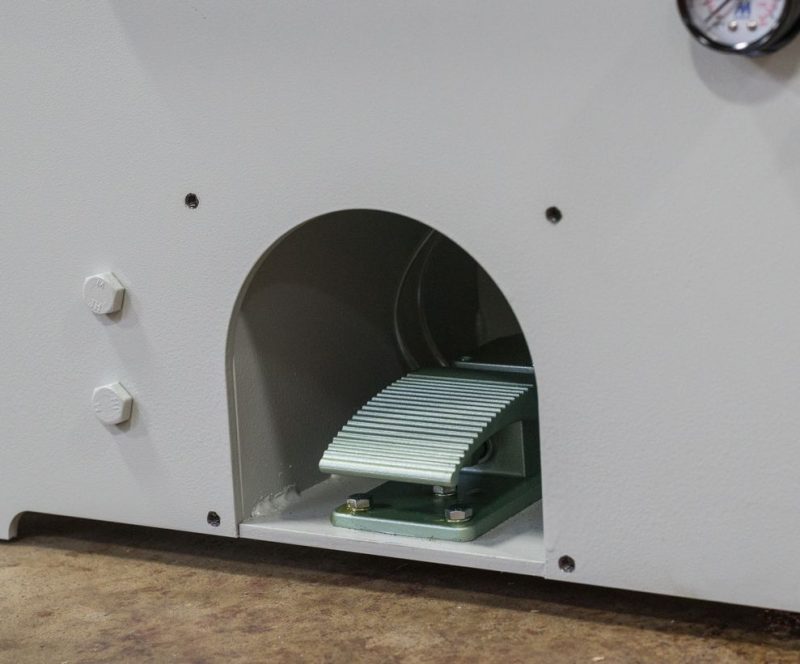

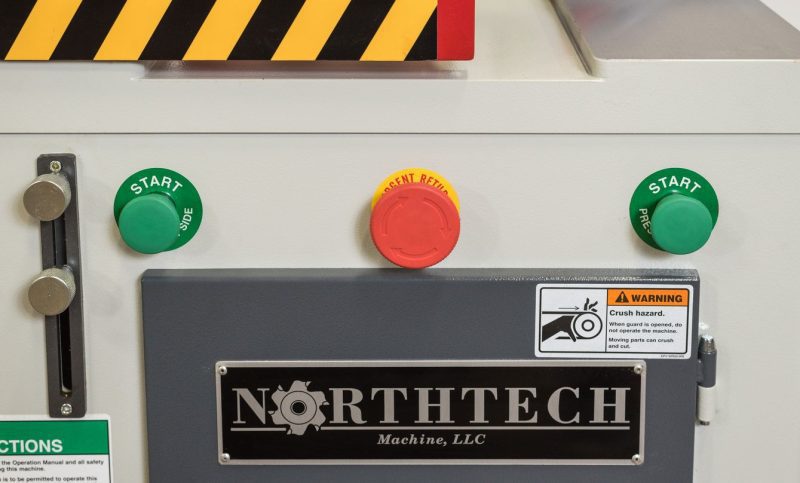

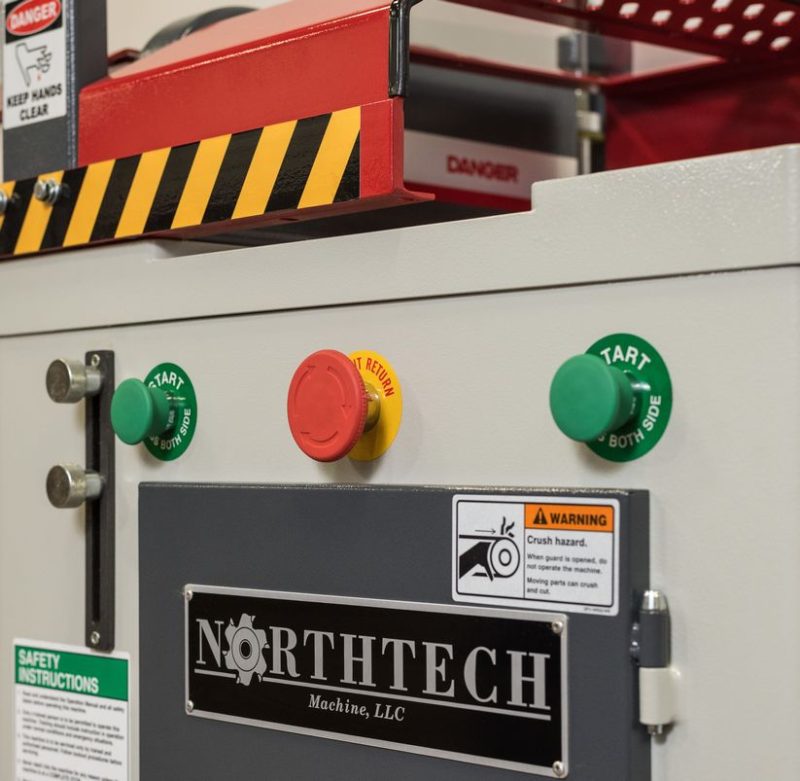

• Two-handed push button actuation in place of a foot pedal
• Optional top clamp dust port
• Integrated auxiliary starter system for NT-DC20

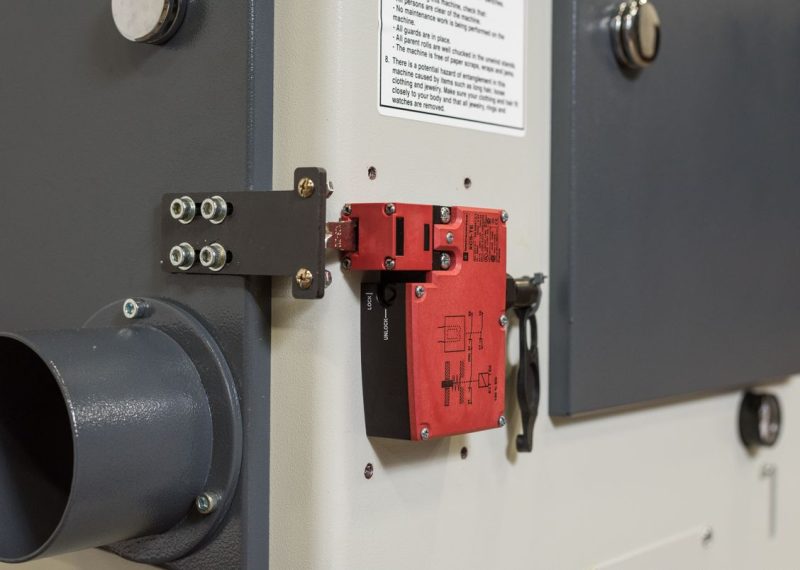

• Safety interlock for blade access

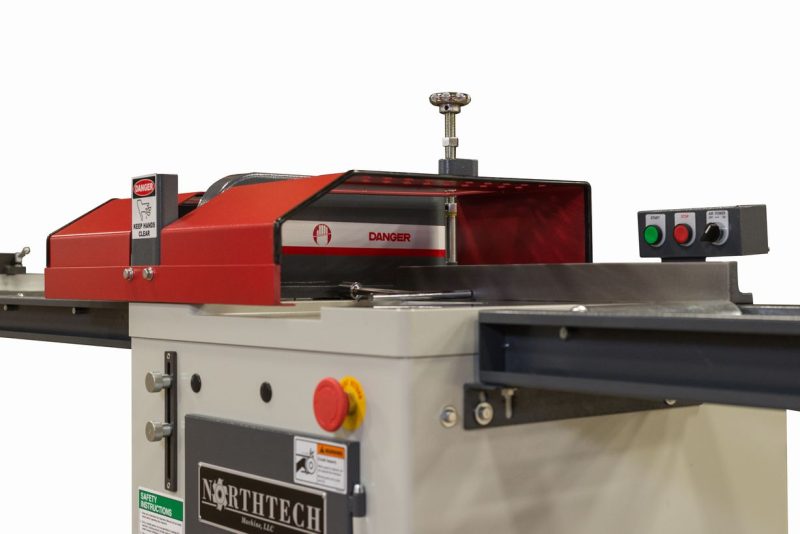

• Illuminated safety guard for clear visibility of cut zone
• Voltage change
• LMC (Less Motor & Controls)
