Description

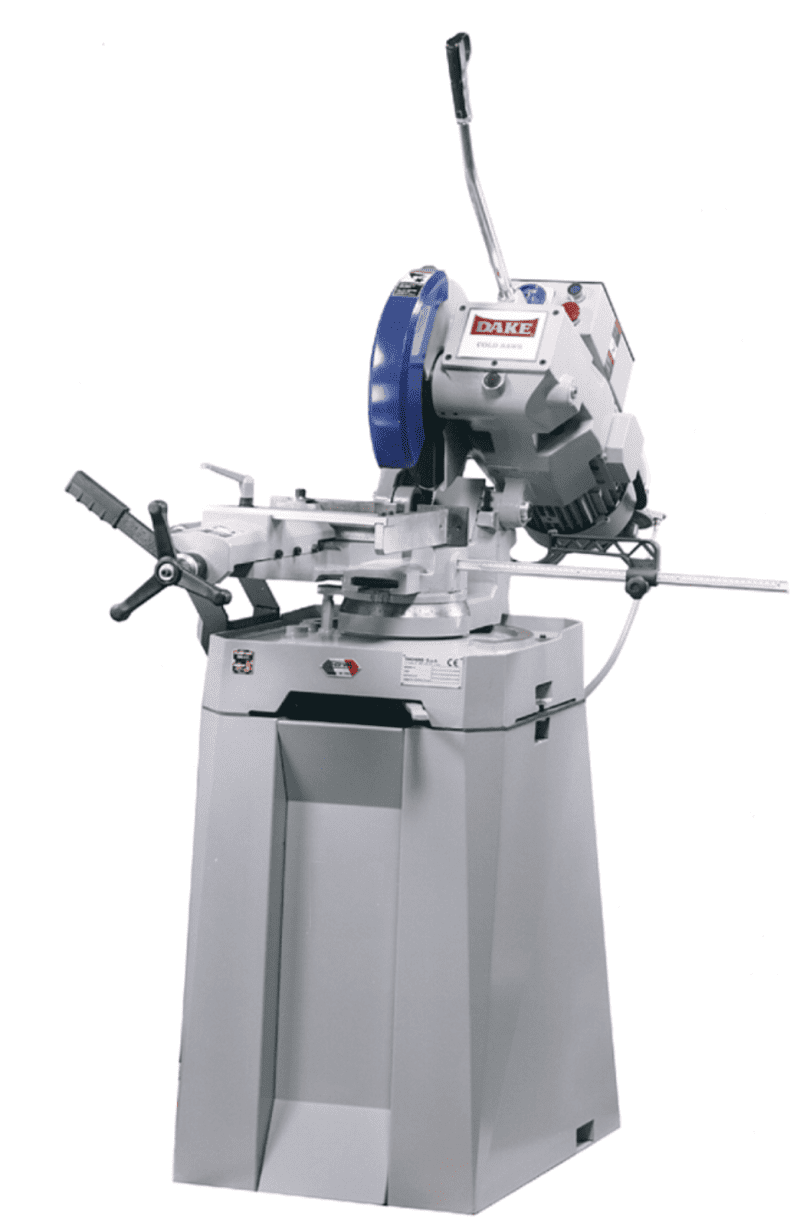

Manual cold saw that will rotate to 90° right for slot cutting and offers variable speeds. Heavy-duty low production variable speed saw, comes with one standard HSS blade. A mechanical coolant pump with flow control is included.
Features
- Head rotates 45° right and left of center for mitering
- Dependable oversized spindle and gear assembly with steel spindle and bronze gear
- Reliable mechanical coolant pump with flow control adjustment
- Vise is gib adjustable with cam lever action for quick secure clamping
- Additional ball bearing support of hardened and ground spindle shaft to prevent failure
- E-Stop, low voltage protection, and thermal overload protection
- 90° rotation for slot cutting operations
Standard Equipment
- Blade
- Pedestal Base
- Tool Kit
- Coolant
- Adjustable Positive Stop
Specifications
- Cutting Ability: Ferrous/Non-Ferrous/Plastics
- Max Blade Diameter: 14”
- Max Vise Opening: 6-5/8”
- Max Angle: 45° Left/Right; 90° Right for Slot Cutting
- Slotting: Yes
- Speeds: 22-88 rpm
- Work Height: 40”
- Electrical Requirements: 220V Three Phase 3.5HP
- Machine Dims: 24¾” x 23” x 75”
- Approx. Weight: 650 lbs
Capacities
- Solid Round
- 90°: 3-3/8”
- 45°: 3”
- Tube
- 90°: 4¾”
- 45°: 4”
- Square
- 90°: 4-1/8”
- 45°: 3-3/8”
- Rectangle
- 90°: 6¼” x 3½”
- 45°: 3-3/8” x 2¾”
Optional Add-Ons
- 440V unit available (please contact a sales rep for more info)
- Pneumatic Vise
- Blade Starter Pack, Three 14” Blades
- 78” Loading Table (301644)
- 78” Unloading Table (301645)
