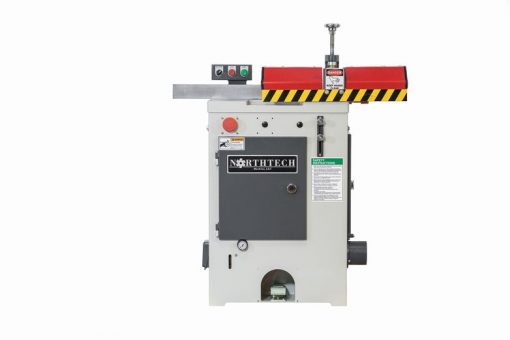

Northtech NT CS14R 14″ 7.5HP Upcut Saw (Right-Hand Cut)

This innovative up-cut saw from Northtech quickly and safely cuts boards up to 11 inches wide or 3 inches high. The 3-phase 7.5 HP soft-start motor and 14″ diameter blade consistently produce clean and accurate results. Up to 16′ infeed/outfeed tables with flip-stops are optionally available to further improve operator precision and productivity.

*Be sure to ask us about Northtech’s new “UCS” up-cut saw models, which offer advanced features such as extra dust collection and a full zero-clearance fence to help eliminate tear-out!

For current product availability and our most competitive price delivered, please contact us using the “Request A Quote” button below. Due to vendor restrictions, we cannot always advertise our highly competitive pricing online.

Categories: New Machines, NORTHTECH MACHINE, SAWING MACHINERY, Saws, Saws (Cut Off/Upcut) Tags: Saws, Saws (Cut Off/Upcut)

Description

Features

7.5 HP motor, 3PH 230/460V with 24V magnetic controls
14” 100T Carbide tipped blade included
1” Saw arbor diameter
Cycle operation: Pneumatic
Table size: 25” x 23-1/4”
Quick access in front of the machine to adjust blade stroke.
Dust requirements: (1) 4″ dust port requiring 450 CFM at point of extraction
Net weight: 548 lbs.
Gross weight: 685 lbs.
Packing dimensions: (L) 30″ x (W) 30″ x (H) 51″
(1) Toolbox and manual
Warranty is one-year parts
All machines are tested stateside before shipment providing trouble-free start-up.

Cut Capacities

Max cutting capacity: 1″ x 11″, 2″ x 10″, 3″ x 7-1/2″

Options

8’ infeed and 8’ outfeed with fence, legs, (2)gravity flip stops
16’ infeed and 16’ outfeed with fence, legs (4) sets, (2) gravity flip stops
Custom infeed/outfeed up to 20’ long
14″ x 72T carbide-tipped blade (standard with saw)
14” x 80T carbide-tipped blade
14″ x 100T carbide-tipped blade
Gravity flip stops
230V 3-phase power
Double palm button actuation instead of foot pedal
Safety interlock for blade access

Specifications

Main Motor Hp. = 7.5 hp.
Voltage/ Freq. = 230/460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 18.4/9.2 Amps
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 24 Volt Control Voltage
Pass-Line = 33-3/4”
Cut Envelope = 1” x 11” 2” x 10” 3” x
Min. Length = 12” from Blade to Gaurd Edge
Max. Width = 1” x 11”
Max. Thickness = 3-3/8″
Arbor Rpm = 4260 Rpm
Blade Size = 14” Tungsten Carbide-Tipped
No. of Teeth = 100 Tooth
Tooth Spacing = 15/32 In.
Blade Kerf = .125 In.
Dust Collection = 4” 450 CFM
Dust Port Out = 4” Bottom
Arbor Diameter = 1” Arbor
Cycles/Minute = 78 Cuts Per Minute
Hold Down Style = T Clamp
Recommended CFM = 480 nl/min

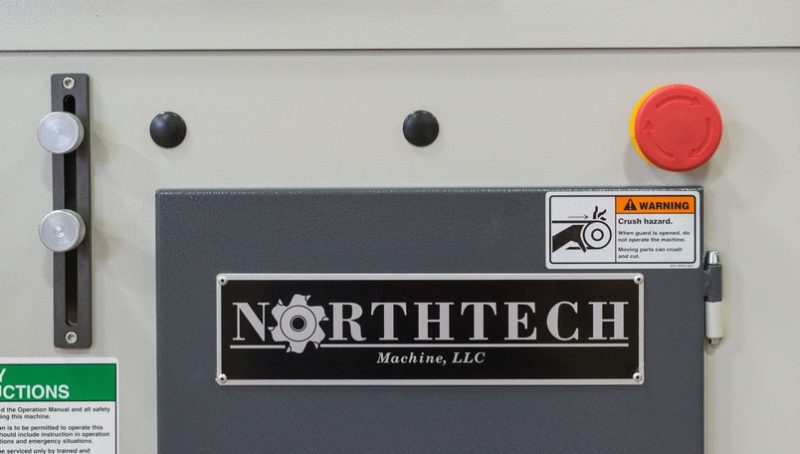

Emergency Stop = Push Button
Safety Feature = Safety Interlock Switch

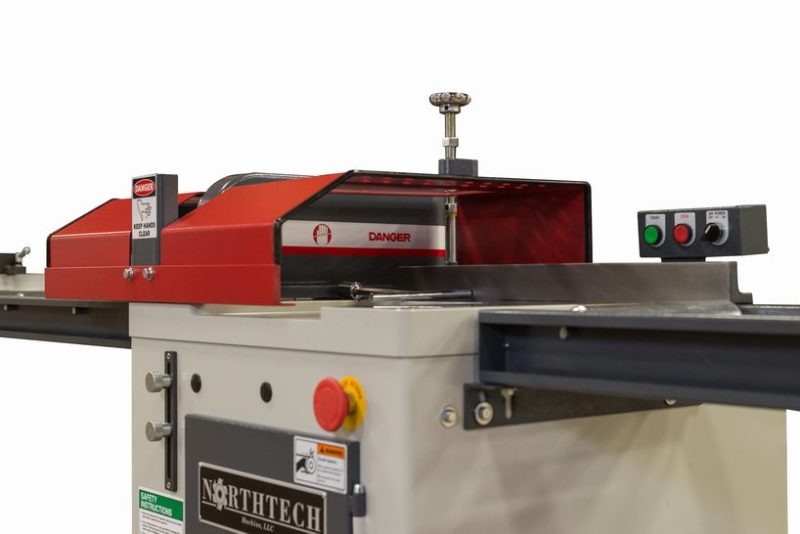

Guarding = Full Guard with Clear View
Operation Style = Pneumatic Foot Pedal
Fence Type = Adjustable Fence
Fence Dims. = 2″ x 25”
Adjust. Stroke = 2-1/16” Adj. on Arbor Stroke
Frame Const. = 3/16” Steel Construction
Worktable Dims. = 23-1/4” x 24-7/8”
Table Const. = Machined Steel
Decible Rating = 75 dB
Net Weight = 548 Lbs.
Gross Weight = 685 Lbs.
Machine Dims. = 23-1/4” x 24-7/8” x 47”
Packaging Dims = 40” x 48” x 50”
